Flow analysis during mock circulation in normal and aortic arch aneurysm models through an aortic cannula toward the aortic arch and root

Journal of Artificial Organs volume 24, pages 442–449 (2021)Cite this article

Abstract

The aim of this study was to elucidate flow patterns of two different types of aortic cannulas inserted from the ascending aorta toward the aortic arch and root by mock circulation in a normal aortic arch and an aortic arch aneurysm model. Extracorporeal circulation was established using a centrifugal pump, a transparent glass normal aortic arch model, and an aortic arch aneurysm model for measurement by particle image velocimetry. The Stealthflow and Dispersion cannulas were used to elucidate the characteristics of the flow pattern and velocity under the condition of the cannula tip toward the aortic arch and aortic root. In the normal aortic arch model, high-velocity exit flow ranging from 0.7 to 0.8 m/s was detected in the proximal aortic arch by directing the cannula tip toward the aortic arch, whereas flow velocity in the aortic arch was < 0.2 m/s by directing the cannula tip toward the aortic root. In the aortic arch aneurysm model, high-velocity exit flow ranging from 0.5 to 0.8 m/s was detected in the aortic arch by directing the cannula tip toward the aortic arch, whereas flow velocity in the aortic arch was decreased to less than 0.2 m/s by directing the cannula tip toward the aortic root. Directing the aortic cannula tip toward the aortic root allowed the high-velocity exit flow to attenuate in velocity, so that flow velocity in the aortic arch was sufficiently reduced by reversed flow and vortex formation in both the normal and aortic arch aneurysm models.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2

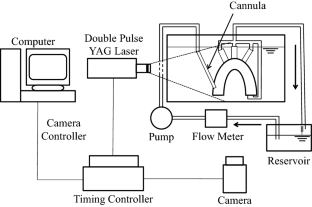

Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
