Bildfusion von SPECT und CT als präzisierende Diagnostik von malignen Tumoren im Mund-Kiefer-Gesichtsbereich

Image fusion of bone SPECT and CT – a specific diagnostic method in oral and maxillofacial surgery

Mund-, Kiefer- und Gesichtschirurgie volume 11, pages 33–41 (2007)Cite this article

Zusammenfassung

Fragestellung

Ziel dieser Studie war es, die Bildfusion von CT (Computertomographie) und SPECT (single photon emission computed tomography) hinsichtlich des diagnostischen Zugewinns beim Staging von Kopf-Hals-Tumoren zu bewerten.

Patientengut und Methode

Bei 39 Patienten mit dem Verdacht auf Malignome im Mund-, Kiefer-, Gesichtsbereich erfolgte nach der CT- und SPECT-Diagnostik im Anschluss, ohne zusätzliche Belastung des Patienten, eine computergestützte Bildfusion der beiden Verfahren und der anschließende Vergleich mit der Simultanbefundung einerseits und mit den intraoperativen und histologischen Befunden andererseits.

Ergebnisse

Bei 5 von 39 Patienten wurde durch die Bildfusion eine exaktere und präzisere anatomische Beschreibung der Tumorausdehnung als durch die Simultanbefundung möglich.

Schlussfolgerung

Für eine effizientere und plastischere Bildgebung vor chirurgischer und radiogener Therapie von Kopf-Hals-Tumoren eignet sich die Bildfusion als ergänzendes Verfahren vor allem in den anatomisch komplexen Regionen wie Nasenboden, Maxilla und Schädelbasis, insbesondere wenn durch die Simultanbefundung der einzelnen Verfahren keine eindeutige Aussage getroffen werden kann.

Abstract

Objective

The aim of this study was to evaluate the benefit of image fusion of CT (computertomography) and bone SPECT (single photon emission computed tomography) in diagnosis of head and neck cancer.

Methods and patients

Computer based image fusion has been applied in 39 patients with suspected cancer in the oromaxillofacial region following CT and SPECT without any further hazard for the patients. Afterwards image fusion was set in comparision to simultaneously evaluation of CT and SPECT and histological findings.

Results

In 5 out of 39 patients SPECT/CT image fusion obtained more precise anatomical findings in tumour expansion than simultaneously evaluation of CT and SPECT.

Conclusion

For planning of surgical and radiation therapy of oral and maxillofacial cancer, image fusion of CT/SPECT provides efficient and plastical diagnostic imaging. Particularly in complex anatomical regions like maxilla or base of the skull image fusion could be an additional device, if simultaneous evaluation of CT and SPECT is not clear.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

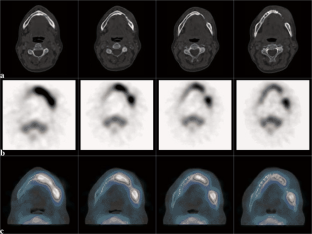

Abb. 1 a–c:

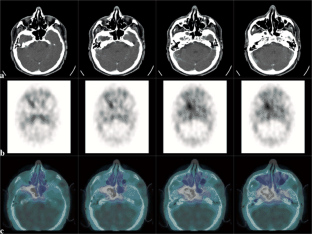

Abb. 2 a–c:

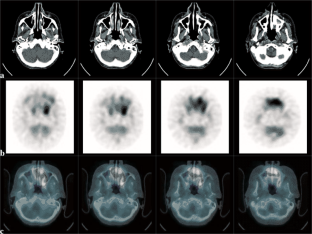

Abb. 3 a–c:

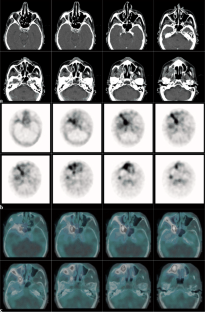

Abb. 4 a–c:
