Computational study of interactions and nuclear magnetic shielding constants in linear chains of formamide clusters

Journal of Molecular Modeling volume 20, Article number: 2320 (2014) Cite this article

Abstract

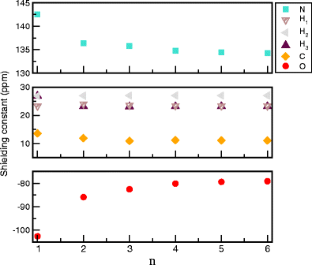

We investigated the energetic, structural, dielectric, and nuclear magnetic shielding properties of linear n-formamide clusters, with n up to 6, to quantitatively characterize cooperative effects in model biological systems. The geometries of the complexes were optimized at the MP2 and DFT/B3LYP levels by using the pc-2 and pc-3 basis sets, while the nuclear magnetic shielding constants were calculated by employing pcS-n type basis sets, which have been optimized specifically for density functional calculations of these properties. The interaction energies show the cooperative effect, which favors the successive addition of monomers. In addition, by analyzing structural changes in the intermolecular C=O, C–N and hydrogen O⋯H bonds, as well as in the average dipole moments as cluster size increases, we found that the cooperative interaction far exceeds that expected for electrostatic interactions. Such non-pairwise-additive effects are also reflected in the changes of the nuclear magnetic shielding constants. In particular, the negativity of O shielding decreases around 23 % from the monomer to the 6-formamide chain. It is possible to note the decrease in the shielding of H and in the deshielding of O as a result of their hydrogen bonding. However, the results obtained show that these variations in the extremes of formamide chains tend to zero, and the respective shielding values tend to stabilize as the number of monomers increases in the chain. Also, the cooperative effect increases in the middle of the chains, by decreasing the shielding for all atoms except that of O, which decreases its deshielding. These results could serve to guide improvements in current conventional models for simulating hydrogen bonded systems.

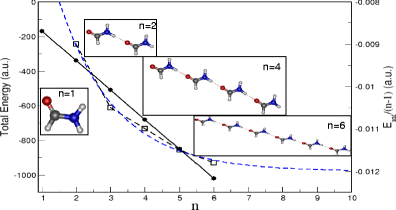

Total energy (solid circles) and interaction energy per hydrogen bond (open squares) for different n-formamide clusters. Blue dashed line Extrapolated values

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

References

  1. Stryer L (1988) Biochemistry, 3rd edn. Freeman, New York

    Google Scholar

  2. Hirota E, Sugisaki R, Nielsen CJ, Soerensen GO (1974) J Mol Spectrosc 49:251

    CAS  Article  Google Scholar

  3. Sugawara Y, Hamada Y, Tsuboi T (1983) Bull Chem Soc Jpn 56:1045

    CAS  Article  Google Scholar

  4. Ohtaki H, Funaki A, Rode BM, Reibnegger GJ (1983) Bull Chem Soc Jpn 56:2116

    CAS  Article  Google Scholar

  5. Vaara J, Kaski J, Jokisaari J, Diehl P (1997) J Phys Chem A 101:5069, 101, 9185 (1997)

    CAS  Article  Google Scholar

  6. Sagarik KP, Ahlrich R (1987) J Chem Phys 86:5117

    CAS  Article  Google Scholar

  7. Costain CC, Dowling JM (1959) J Chem Phys 32:158

    Article  Google Scholar

  8. Kirchhoff WH, Johnson DR (1973) J Mol Spectrosc 45:159

    CAS  Article  Google Scholar

  9. Fogarasi G, Szalay PG (1997) J Phys Chem A 101:1400

    CAS  Article  Google Scholar

  10. Sponer J, Hobza P (2000) J Phys Chem A 104:4592

    CAS  Article  Google Scholar

  11. Dreyfus M, Pullman A (1970) Theor Chim Acta 19:20

    CAS  Article  Google Scholar

  12. Hinton JF, Harpool RD, Am J (1977) Chem Soc 99:349

    CAS  Article  Google Scholar

  13. Wojcik MJ, Hirakawa AY, Tsuboi M, Kato S, Morokuma K (1983) Chem Phys Lett 100:523

    CAS  Article  Google Scholar

  14. Novoa JJ, Whangbo MH (1991) J Am Chem Soc 113:9017

    CAS  Article  Google Scholar

  15. Hrouda V, Florian J, Polasek M, Hobza P (1994) J Phys Chem 98:4742

    CAS  Article  Google Scholar

  16. Cabaleiro-Lago EM, Rios MA (1999) J Chem Phys 110:6782

    CAS  Article  Google Scholar

  17. Frey JA, Leutwyler S (2006) J Phys Chem A 110:12512

    CAS  Article  Google Scholar

  18. Torrie H, O’Donovan C, Powell BM (1994) Mol Phys 82:643

    CAS  Article  Google Scholar

  19. Tsuchida E (2004) J Chem Phys 121:4740

    CAS  Article  Google Scholar

  20. Scheiner S (1997) Hydrogen bonding. A theoretical perspective. Oxford University Press, Oxford

    Google Scholar

  21. Cornilescu G, Hu JS, Bax A (1999) J Am Chem Soc 121:2949

    CAS  Article  Google Scholar

  22. Fierman M, Nelson A, Khan SI, Barfield M, O’Leary DJ (2000) Org Lett 2:2077

    CAS  Article  Google Scholar

  23. Del Bene JE, Perera SA, Bartlett RJ, Alkorta I, Elguero J (2000) J Phys Chem A 104:7165

    Article  Google Scholar

  24. Arnold WD, Oldfield E (2000) J Am Chem Soc 122:12835

    CAS  Article  Google Scholar

  25. Del Bene JE, Jordan MJT (2001) J Mol Struct (THEOCHEM) 572:11

    Article  Google Scholar

  26. Pecul M, Sadlej J (2002) Chem Phys Lett 360:272

    CAS  Article  Google Scholar

  27. Kobko N, Dannenberg JJ (2003) J Phys Chem A 107:10389

    CAS  Article  Google Scholar

  28. Dannenberg JJ (2002) J Mol Struct 615:219

    CAS  Article  Google Scholar

  29. Provasi PF, Aucar GA, Sanchez M, Alkorta I, Elguero J, Sauer SPA (2005) J Phys Chem A 109:6555

    CAS  Article  Google Scholar

  30. van Mourik T, Dingley AJ (2007) J Phys Chem A 111:11350

    Article  Google Scholar

  31. Zarycz N, Aucar GA, Della Védova CO (2010) J Phys Chem A 114:7162

    CAS  Article  Google Scholar

  32. Cabaleiro-Lago EM, Otero JR (2002) J Chem Phys 117:1621

    CAS  Article  Google Scholar

  33. Mehler EL (1980) J Am Chem Soc 102:4051

    CAS  Article  Google Scholar

  34. Ribas Prado F, Giessner-Prettre C (1982) J Magn Reson 47:103

    CAS  Google Scholar

  35. Pecul M, Leszcynski J, Sadlej J (2000) J Phys Chem A 104:8105

    CAS  Article  Google Scholar

  36. Sorensen OW, Scheibye S, Lawesson S-O, Jakobsen H-J (1981) Org Magn Reson 16:322

    Article  Google Scholar

  37. Sun M, Zhang IY, Wu A, Xu X (2013) J Chem Phys 138:124113

    Article  Google Scholar

  38. Keal TW, Tozer DJ (2004) J Chem Phys 121:5654

    CAS  Article  Google Scholar

  39. Jensen F (2008) J Chem Theory Comput 4:719

    CAS  Article  Google Scholar

  40. Jensen F (2002) J Chem Phys 116:7372

    CAS  Article  Google Scholar

  41. Gaussian 09, Revision A.02, Frisch MJ, Trucks GW, Schlegel HB, Scuseria GE, Robb MA, Cheeseman JR, Scalmani G, Barone V, Mennucci B, Petersson GA, Nakatsuji H, Caricato M, Li X, Hratchian HP, Izmaylov AF, Bloino J, Zheng G, Sonnenberg JL, Hada M, Ehara M, Toyota K, Fukuda R, Hasegawa J, Ishida M, Nakajima T, Honda Y, Kitao O, Nakai H, Vreven T, Montgomery JA Jr, Peralta JE, Ogliaro F, Bearpark M, Heyd JJ, Brothers E, Kudin KN, Staroverov VN, Kobayashi R, Normand J, Raghavachari K, Rendell A, Burant JC, Iyengar SS, Tomasi J, Cossi M, Rega N, Millam JM, Klene M, Knox JE, Cross JB, Bakken V, Adamo C, Jaramillo J, Gomperts R, Stratmann RE, Yazyev O, Austin AJ, Cammi R, Pomelli C, Ochterski JW, Martin RL, Morokuma K, Zakrzewski VG, Voth GA, Salvador P, Dannenberg JJ, Dapprich S, Daniels AD, Farkas O, Foresman JB, Ortiz JV, Cioslowski J, Fox DJ (2009) Gaussian, Wallingford CT

  42. Boys SF, Bernardi F (1970) Mol Phys 19:553

    CAS  Article  Google Scholar

  43. Ditchfield R (1974) Mol Phys 27:789

    CAS  Article  Google Scholar

  44. Wolinski K, Hilton JF, Pulay P (1990) J Am Chem Soc 112:8251

    CAS  Article  Google Scholar

  45. Becke AD (1993) J Chem Phys 98:5648

    CAS  Article  Google Scholar

  46. Jackowski K, Jaszuński M, Makulski W (1997) J Magn Reson 127:137

    Article  Google Scholar

Download references

Acknowledgments

This work was supported by the MICINN grants FIS2010-18132, FIS2011-29596-C02-01, and COST Actions CM1002 (CODECS). The authors thank the Centro de Calculo (IFF-CSIC), SGAI (CSIC), and Centro de Supercomputación de Galicia (CESGA) for allocation of computer time.

Author information

Affiliations

  1. Instituto de Física Fundamental, IFF-CSIC, Serrano 123, 28006, Madrid, Spain

    Marina Sánchez, Rita Prosmiti & Gerardo Delgado-Barrio

Authors
  1. Marina Sánchez
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Rita Prosmiti
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Gerardo Delgado-Barrio
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Rita Prosmiti.

Additional information

This paper belongs to Topical Collection QUITEL 2013

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Sánchez, M., Prosmiti, R. & Delgado-Barrio, G. Computational study of interactions and nuclear magnetic shielding constants in linear chains of formamide clusters. J Mol Model 20, 2320 (2014). https://doi.org/10.1007/s00894-014-2320-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s00894-014-2320-7

Keywords

  • Hydrogen bonding
  • Electronic structure calculations
  • Potential interactions
