Effect of gamma-ray sterilization on phase transformation behavior and fatigue resistance of contemporary nickel-titanium instruments

Clinical Oral Investigations Aims and scope Submit manuscript

Abstract

Objectives

The aim of this study was to compare body temperature cyclic fatigue resistance (CF) of heat-treated NiTi rotary instruments submitted to gamma-irradiation or autoclave sterilization.

Materials and methods

A total of 176 instruments (88 Hyflex EDM (HEDM) and 88 TRUShape (TS)) were used. Forty-four of each were submitted to gamma-irradiation. Twenty-two in each group were further autoclaved, resulting in a total of eight groups (n = 22 each): TS-γ and HEDM-γ (gamma-irradiated)/TS-γ-ac and HEDM-γ-ac (gamma-irradiated and autoclaved)/TS-non-γ and HEDM-non-γ (non-sterilized controls, non-gamma-irradiated/non-autoclaved)/TS-non-γ-ac and HEDM-non-γ-ac (non-gamma-irradiated and autoclaved). Twenty in each were tested for CF. Weibull parameters were calculated and compared. The remainder was used for differential scanning calorimetry analysis.

Results

TS instruments lasted significantly longer if not submitted to gamma-irradiation (TS-non-γ mean-life = 101.5 s, 95 CI% 91.7–112.3; TS-γ mean-life = 83.2 s, 95 CI% 76–91.1); further autoclaving did not significantly affect CF. Gamma-irradiation did not affect HEDM (HEDM-γ mean-life = 717.9 s, 95 CI% 636.8–809.3; HEDM-non-γ: mean-life = 678.8 s, 95 CI% 595.1–744.2); further sterilization significantly decreased fatigue resistance (HEDM-γ-ac mean-life = 524.1 s, 95 CI% 476.1–576.8; HEDM-non-γ-ac mean-life = 570.6, 95 CI% 512.3–635.5). Gamma irradiation benefited HEDM conversion to martensite state and its maintenance, while further autoclave sterilization reverted the benefit.

Conclusions

Gamma-irradiation and autoclaving differentially affected fatigue life span and transformation temperatures of contemporary martensitic rotary instruments manufactured with different methods.

Clinical relevance

Gamma-ray processing is increasingly utilized by manufacturers for clinician to use fully sterile packaged instruments; however, the sterilization method of choice should vary depending on the effects on the behavior of contemporary martensitic rotary instruments manufactured with different methods.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (Finland)

Instant access to the full article PDF.

Institutional subscriptions

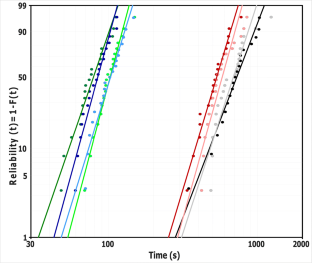

Fig. 1

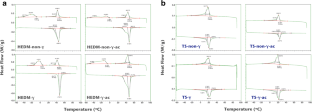

Fig. 2

References

  1. Walia HM, Brantley WA, Gerstein H (1998) An initial investigation of the bending and torsional properties of Nitinol root canal files. J Endod 14:346–351

    Article  Google Scholar

  2. Pereira ESJ, Viana ACD, Buono VTL, Peters OA, Bahia MG de A. (2015) Behavior of nickel-titanium instruments manufactured with different thermal treatments. J Endod 41:67–71

    Article  Google Scholar

  3. Peters OA, Morgental RD, Schulze KA, Paqué F, Kopper PMP, Vier-Pelisser FV (2014) Determining cutting efficiency of nickel-titanium coronal flaring instruments used in lateral action. Int Endod J 47:505–513

    Article  Google Scholar

  4. Shen Y, Zhou H-M, Zheng Y-F, Peng B, Haapasalo M (2013) Current challenges and concepts of the thermomechanical treatment of nickel-titanium instruments. J Endod 39:163–172

    Article  Google Scholar

  5. De-Deus G, Silva EJNL, Vieira VTL, Belladonna FG, Elias CN, Plotino G et al (2017) Blue thermomechanical treatment optimizes fatigue resistance and flexibility of the Reciproc files. J Endod 43:462–466

    Article  Google Scholar

  6. Plotino G, Grande NM, Cotti E, Testarelli L, Gambarini G (2014) Blue treatment enhances cyclic fatigue resistance of vortex nickel-titanium rotary files. J Endod 40:1451–1453

    Article  Google Scholar

  7. Nguyen HH, Fong H, Paranjpe A, Flake NM, Johnson JD, Peters OA (2014) Evaluation of the resistance to cyclic fatigue among ProTaper Next, ProTaper Universal, and Vortex Blue rotary instruments. J Endod 40:1190–1193

    Article  Google Scholar

  8. Sattapan B, Nervo GJ, Palamara JE, Messer HH (2000) Defects in rotary nickel-titanium files after clinical use. J Endod 26:161–165

    Article  Google Scholar

  9. Bergmans L, Van Cleynenbreugel J, Wevers M, Lambrechts P (2001) Mechanical root canal preparation with NiTi rotary instruments: rationale, performance and safety. Status report for the American Journal of Dentistry. Am J Dent 14:324–333

    PubMed  Google Scholar

  10. Young JM, Van Vliet KJ (2005) Predicting in vivo failure of pseudoelastic NiTi devices under low cycle, high amplitude fatigue. J Biomed Mater Res Part B Appl Biomater 72:17–26

    Article  Google Scholar

  11. Gambarini G, Pompa G, Di Carlo S, De Luca M, Testarelli L (2009) An initial investigation on torsional properties of nickel-titanium instruments produced with a new manufacturing method. Aust Endod J 35:70–72

    Article  Google Scholar

  12. Larsen CM, Watanabe I, Glickman GN, He J (2009) Cyclic fatigue analysis of a new generation of nickel titanium rotary instruments. J Endod 35:401–403

    Article  Google Scholar

  13. Gambarini G, Gergi R, Naaman A, Osta N, Al-Sudani D (2012) Cyclic fatigue analysis of twisted file rotary NiTi instruments used in reciprocating motion. Int Endod J 45:802–806

    Article  Google Scholar

  14. Peters OA, Arias A, Paqué F (2015) A micro-computed tomographic assessment of root canal preparation with a novel instrument, TRUShape, in mesial roots of mandibular molars. J Endod 41:1545–1550

    Article  Google Scholar

  15. Arias A, Paqué F, Shyn S, Murphy S, Peters OA (2018) Effect of canal preparation with TRUShape and vortex rotary instruments on three-dimensional geometry of oval root canals. Aust Endod J 44:32–39

    Article  Google Scholar

  16. Jameson EC (2001) Electrical Discharge Machining. Society of Manufacturing Engineers. Dearbern, Michigan

  17. Pirani C, Iacono F, Generali L, Sassatelli P, Nucci C, Lusvarghi L et al (2015) HyFlex EDM: superficial features, metallurgical analysis and fatigue resistance of innovative electro discharge machined NiTi rotary instruments. Int Endod J 49:483–493

    Article  Google Scholar

  18. Arias A, Macorra JC, Govindjee S, Peters OA (2018) Correlation between temperature-dependent fatigue resistance and differential scanning calorimetry analysis for 2 contemporary rotary instruments. J Endod 44:630–634

    Article  Google Scholar

  19. Park JH, Olivares-Navarrete R, Baier RE, Meyer AE, Tannenbaum R, Boyan BD, Schwartz Z (2012) Effect of cleaning and sterilization on titanium implant surface properties and cellular response. Acta Biomater 8:1966–1975

    Article  Google Scholar

  20. Introduction to gamma irradiation processing. https://www.steris-ast.com/tech-tip/introduction-gamma-irradiation-processing/. Accessed May 15, 2018

  21. Brauer DS, Saeki K, Hilton JF, Marshall GW, Marshall SJ (2008) Effect of sterilization by gamma radiation on nano-mechanical properties of teeth. Dent Mater 24:1137–1140

    Article  Google Scholar

  22. Delgado LM, Pandit A, Zeugolis DI (2014) Influence of sterilisation methods on collagen-based devices stability and properties. Expert Rev Med Devices 11:305–314

    Article  Google Scholar

  23. Zengin R (2010) The effects of gamma-irradiation on transformation temperatures of NiTi shape memory alloy. Thermochim Acta 503-504:61–64

    Article  Google Scholar

  24. Pruett JP, Clement DJ, Carnes DL (1997) Cyclic fatigue testing of nickel-titanium endodontic instruments. J Endod 23:77–85

    Article  Google Scholar

  25. de Vasconcelos RA, Murphy S, Carvalho CAT, Govindjee RG, Govindjee S, Peters OA (2016) Evidence for reduced fatigue resistance of contemporary rotary instruments exposed to body temperature. J Endod 42:782–787

    Article  Google Scholar

  26. Dosanjh A, Paurazas S, Askar M (2017) The effect of temperature on cyclic fatigue of nickel-titanium rotary endodontic instruments. J Endod 43:823–826

    Article  Google Scholar

  27. Plotino G, Grande NM, Bellido MM, Testarelli L, Gambarini G (2017) Influence of temperature on cyclic fatigue resistance of ProTaper Gold and ProTaper Universal rotary files. J Endod 43:200–202

    Article  Google Scholar

  28. Miyai K, Ebihara A, Hayashi Y, Doi H, Suda H, Yoneyama T (2006) Influence of phase transformation on the torsional and bending properties of nickel-titanium rotary endodontic instruments. Int Endod J 39:119–126

    Article  Google Scholar

  29. Roylance D (2008) Mechanical properties of materials. MIT. Boston, Massachusetts

  30. Weibull W (1951) A statistical distribution function of wide applicability. J Appl Mech 18:293–297

    Google Scholar

  31. Quinn JB, Quinn GD (2010) A practical and systematic review of Weibull statistics for reporting strengths of dental materials. Dent Mater 26:135–147

    Article  Google Scholar

  32. Abernethy RB (2006) The New Weibull Handbook. Reliability and statistical analysis for predicting life, safety, survivability, risk, cost and warranty claims, 5th ed. North Palm Beach, FL

  33. Iacono F, Pirani C, Generali L, Bolelli G, Sassatelli P, Lusvarghi L, Gandolfi MG, Giorgini L, Prati C (2017) Structural analysis of HyFlex EDM instruments. Int Endod J 50:303–313

    Article  Google Scholar

  34. Silva EJNL, Vieira VTL, Belladonna FG, Zuolo AS, Antunes HDS, Cavalcante DM et al (2018) Cyclic and torsional fatigue resistance of XP-endo Shaper and TRUShape instruments. J Endod 44:168–172

    Article  Google Scholar

Download references

Acknowledgments

The authors would like to thank Coltene Whaledent and Dentsply Tulsa Dental Specialties for donating the instruments used in this study.

Author information

Authors and Affiliations

  1. Department of Conservative Dentistry, School of Dentistry, Complutense University, Plaza Ramon y Cajal s/n. Ciudad Universitaria, 28040, Madrid, Spain

    Ana Arias & José C. Macorra

  2. Department of Endodontics, University of the Pacific, Arthur A. Dugoni School of Dentistry, San Francisco, CA, USA

    Ana Arias & Ove A. Peters

  3. Department of Civil and Environmental Engineering, University of California, Berkeley, CA, USA

    Sanjay Govindjee

  4. School of Dentistry, UQ Oral Health Centre, The University of Queensland, Brisbane, Queensland, Australia

    Ove A. Peters

Authors
  1. Ana Arias
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. José C. Macorra
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Sanjay Govindjee
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Ove A. Peters
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Ana Arias.

Ethics declarations

Conflict of interest

Dr. Ove Peters serves as a consultant for Dentsply Sirona, whose support for this study is also acknowledged. The remaining authors declare that they have no conflict of interest.

Ethical approval

This article does not contain any studies with human participants or animals performed by any of the authors.

Informed consent

For this type of study, formal consent is not required.
