Fracture characteristics of anterior resin-bonded zirconia-fixed partial dentures

Clinical Oral Investigations volume 13, pages 453–457 (2009)Cite this article

Abstract

Resin-bonded fixed partial dentures (RBFPD) are used as a minimal invasive, tooth-preventing alternative for replacing anterior teeth. Zirconia cantilever restorations were supposed to show sufficient strength for a clinical application. The aim of this investigation was to determine the fracture characteristics of cantilever and two-retainer RBFPD, which are fabricated by computer-manufactured high-strength zirconia. Human incisors and canines were used to form three groups of 14 RBFPDs with different types of preparation: group 1, an invasive cantilever; group 2, a minimal-invasive cantilever and group 3, a two-retainer RBFPD control. After thermal cycling and mechanical loading, which was performed to simulate oral service, all restorations were loaded to fracture in a universal testing machine. One half of the specimens were investigated as a control without simulated service. Mode of failure was determined for the three designs. Both cantilever groups showed comparable fracture resistance of 227 N (no. 1) and 210 N (no. 2) before thermal cycling and mechanical loading. The resistance after aging was reduced to 210 N for the invasive cantilever RBFPD and to 179 N for the minimal invasive group. Three-unit RBFPDs showed a significantly higher (p < 0.02) fracture resistance than cantilever bridges before (426 N) as well as after aging (360 N). Predominant failure was FPD and retainer fracture for the invasive cantilever design, debonding for the minimal cantilever design and RBFPD fracture for the two-retainer design. The present study revealed a significantly higher fracture resistance for two-retainer RBFPDs than for cantilever RBFPDs. The frequency of adhesive debonding increased for non-retentive prepared cantilever RBFPDs.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

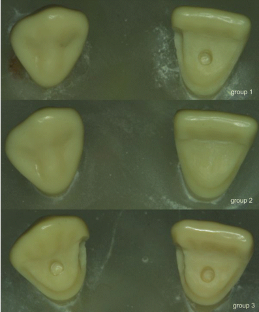

Fig. 1

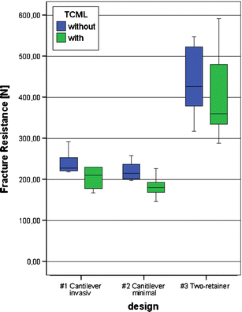

Fig. 2
Fig. 3

References

  1. Edelhoff D, Sorensen JA (2002) Tooth removal associated with various preparation designs for anterior teeth. J Prosthet Dent 87:503–509

    Article  PubMed  Google Scholar

  2. Behr M, Leibrock A, Stich W, Rammelsberg P, Rosentritt M, Handel G (1998) Adhesive-fixed partial dentures in anterior and posterior areas. Results of an on-going prospective study begun in 1985. Clin Oral Invest 2:31–35

    Article  Google Scholar

  3. Probster B, Henrich GM (1997) 11-year follow-up study of resin-bonded fixed partial dentures. Int J Prosthodont 10:259–268

    PubMed  Google Scholar

  4. De Backer H, Van Herle G, De Moor N, Van den Berghe L, De Boever J (2006) A 20-year retrospective survival study of fixed partial dentures. Int J Prosthodont 19:143–153

    PubMed  Google Scholar

  5. Ketabi AR, Kaus T, Herdach F, Groten M, Axmann-Krcmar D, Pröbster L et al (2004) Thirteen-year follow-up study of resin-bonded fixed partial dentures. Quint Inter 35:407–410

    Google Scholar

  6. Wolfart S, Kern M (2006) A new design for all-ceramic inlay-retained fixed partial dentures: a report of 2 cases. Quintessence Inter 37:27–33

    Google Scholar

  7. Kern M, Glaser R (1997) Cantilevered all-ceramic, resin-bonded fixed partial dentures: a new treatment modality. J Esthet Dent 9:255–264

    Article  PubMed  Google Scholar

  8. Komine F, Tomic M (2005) A single-retainer zirconium dioxide ceramic resin-bonded fixed partial denture for single tooth replacement: a clinical report. J Oral Sci 47:139–142

    Article  PubMed  Google Scholar

  9. Ries S, Wolz J, Richter EJ (2006) Effect of design of all-ceramic resin-bonded fixed partial dentures on clinical survival rate. Int J Periodontics Restor Dent 26:143–149

    Google Scholar

  10. Rosentritt M, Kolbeck C, Ries S, Gross M, Behr M, Handel G (2008) Zirconia resin-bonded fixed partial dentures in the anterior maxilla. Quintessence Int 39:313–319

    PubMed  Google Scholar

  11. Koutayas SO, Kern M, Ferraresso F, Stub JR (2000) Influence of design and mode of loading on the fracture strength of allceramic resin-bonded fixed partial dentures: An in vitro study in a dual-axis chewing simulator. J Prosthet Dent 83:540–547

    Article  PubMed  Google Scholar

  12. Kern M (2005) Clinical long-term survival of two-retainer and single-retainer all-ceramic resin-bonded fixed partial dentures. Quintessence Int 36:141–147

    PubMed  Google Scholar

  13. Botelho MG, Chan AW, Yiu EY, Tse ET (2002) Longevity of two-unit cantilevered resin-bonded fixed partial dentures. Am J Dent 15:295–299

    PubMed  Google Scholar

  14. Botelho MG, Leung KC, Ng H, Chan K (2006) A retrospective clinical evaluation of two-unit cantilevered resin-bonded fixed partial dentures. J Am Dent Assoc 137:783–788

    PubMed  Google Scholar

  15. Behr M, Hindelang U, Rosentritt M, Lang R Handel G (2000) Comparison of failure rates of adhesive-fixed partial dentures for in vivo and in vitro studies. Clin Oral Investig 4:25–30

    Article  PubMed  Google Scholar

  16. Creugers NH, Snoek PA, Van , t Hof MA, Kayser AF (1990) Clinical performance of resin-bonded bridges: a 5-year prospective study. Part III: failure characteristics and survival after rebonding. J Oral Rehabil 17:179–186

    Article  PubMed  Google Scholar

  17. Koutayas SO, Kern M, Ferraresso F, Strub JR (2002) Influence of framework design on fracture strength of mandibular anterior all-ceramic resin-bonded fixed partial dentures. Int J Prosthodont 15:223–229

    PubMed  Google Scholar

  18. Helkimo E, Carlsson GE, Helkimo M (1997) Bite force and state of dentition. Acta Odontol Scand 35:297–303

    Article  Google Scholar

  19. Waltimo A, Kononen M (1995) Maximal bite force and its association with signs and symptoms of craniomandibular disorders in young Finnish non-patients. Acta Odontol Scand 53:254–258

    Article  PubMed  Google Scholar

  20. Waltimo A, Kononen M (1993) A novel bite force recorder and maximal isometric bite force values for healthy young adults. Scand J Dent Res 101:171–175

    PubMed  Google Scholar

  21. Paphangkorakit J, Osborn JW (2000) The effect of normal occlusal forces on fluid movement through human dentine in vitro. Arch Oral Biol 45:1033–1041

    Article  PubMed  Google Scholar

  22. Uo M, Sjogren G, Sundh A, Watari F, Bergman M, Lerner U (2003) Cytotoxicity and bonding property of dental ceramics. Dent Mater 19:487–492

    Article  PubMed  Google Scholar

  23. Ernst CP, Cohnen U, Stender E, Willershausen B (2005) In vitro retentive strength of zirconium oxide ceramic crowns using different luting agents. J Prosthet Dent 93:551–558

    Article  PubMed  Google Scholar

  24. Atsu SS, Kilicarslan MA, Kucukesmen HC, Aka PS (2006) Effect of zirconium-oxide ceramic surface treatments on the bond strength to adhesive resin. J Prosthet Dent 95:430–436

    Article  PubMed  Google Scholar

  25. Wegner SM, gerdes W, Kern M (2002) Effect of different aging conditions on ceramic-composite bond strength. Int J Prosthodont 15:267–272

    PubMed  Google Scholar

  26. Wegner SM, Kern M (2000) Long-term resin bond strength to zirconia ceramic. J Adhes Dent 2:139–147

    PubMed  Google Scholar

  27. Loher H, Behr M, Hintereder U, Rosentritt M, Handel G (2009) The impact of cement mixing and storage errors on the risk of failure of glass-ceramic crowns. Clin Oral Investig. doi:10.1007/s00784-008-0215-7

  28. Caughman WF, Chan DC, Rueggeberg FA (2001) Curing potential of dual-polymerizable resin cements in simulated clinical situations. J Prosthet Dent 85:479–484

    Article  PubMed  Google Scholar

  29. Walker MP, Spencer P, Eick JD (2003) Effect of simulated resin-bonded fixed partial denture clinical conditions on resin cement mechanical properties. J Oral Rehabil 30:837–846

    Article  PubMed  Google Scholar

  30. Beuer F, Naumann M, Gernet W Sorensen JA (2009) Precision of fit: zirconia three-unit fixed dental prostheses. Clin Oral Investig. doi:10.1007/s00784-008-0224-6. PNID: 18769946

  31. De Jager N, Pallav P, Feilzer AJ (2004) The apparent increase of the Young’s modulus in thin cement layers. Dent Mater 20:457–462

    Article  PubMed  Google Scholar

  32. Wolfart M, Lehmann F, Wolfart S, Kern M (2007) Durability of resin bond strength to zirconia ceramic after using different surface conditioning methods. Dent Mater 23:45–50

    Article  PubMed  Google Scholar

  33. Yoshida K, Tsuo Y, Atsuta M (2006) Bonding of dual-cured resin cement to zirconia ceramic using phosphate acid ester monomer and zirconate coupler. J Biomed Mater Res. Part B. Appl Biomater 77:28–33

    Article  PubMed  Google Scholar

  34. Nothdurft FP, Motter PJ, Pospiech PR (2009) Effect of surface treatment on the initial bond strength of different luting cements to zirconium oxide ceramic. Clin Oral Investig. doi:10.1007/s00784-008-0222-8. PMID: 18758827

  35. Ozcan M, Kerkdijk S, Valandro LF (2008) Comparison of resin cement adhesion to Y-TZP ceramic following manufacturers’ instructions of the cements only. Clin Oral Investig 12:279–282

    Article  PubMed  Google Scholar

  36. Johnston CD, Hussey DL (1993) The immediate replacement of incisor teeth by cantilevered resin-bonded bridgework. Dent Up 22:190–196

    Google Scholar

  37. Briggs P (1996) The single unit, single retainer, cantilever resin-bonded bridge. Br Dent J 181:373–377

    PubMed  Google Scholar

  38. Hussey DL (1996) The clinical performance of cantilevered resin-bonded bridgework. J Dent 24:251–256

    Article  PubMed  Google Scholar

  39. Chan AW, Barnes IE (2000) A prospective study of cantilever resin-bonded bridges: an initial report. Aust Dent J 45:31–36

    Article  PubMed  Google Scholar

  40. De Boever JA, McCall WD Jr, Holden S, Ash MM Jr (1978) Functional occlusal forces: an investigation by telemetry. J Prosthet Dent 40:326–333

    Article  PubMed  Google Scholar
