Reactive sites and course of reduction in the Rieske protein

Abstract

Rieske proteins play an essential role in electron transfer in the bc 1 complex. Rieske proteins contain a [2Fe–2S] cluster with one iron ligated by two histidines and the other iron ligated by two cysteines. All Rieske proteins have pH-dependent reduction potentials with the histidines ligating the cluster deprotonating in response to increases in pH. The addition of diethylpyrocarbonate (DEPC) modifies deprotonated histidines. The previous studies on the isolated Thermus thermophilus Rieske protein have used large excesses of DEPC, and this study examines what amino acids become modified under different molar equivalents of DEPC to protein. Increasing amounts of DEPC result in more modification, and higher pH values result in faster reaction. Upon modification, the protein also becomes reduced and ~6 equivalents of DEPC are needed for 50% of the reduction to occur. Which amino acids are modified first also points to the most reactive species on the protein. Mass spectrometry analysis shows that lysine 68 is the most reactive amino acid, followed by the ligating histidine 154 and two other surfaces lysines, 76 and 43. The modification of the ligating histidine at low numbers of DEPC equivalents and correlation with a similar number of equivalents needed to reduce the protein shows that this histidine can interact with neighboring groups, and these results can be extended to the protein within the bc 1 complex, where interaction with neighboring residues or molecules may allow reduction to occur. These results may shed light on how Rieske transfers electrons and protons in the bc 1 complex.

This is a preview of subscription content, access via your institution.

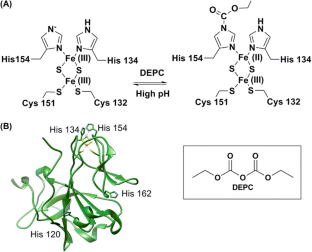

Fig. 1

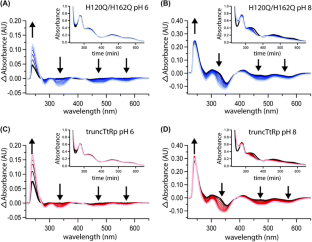

Fig. 2
Fig. 3

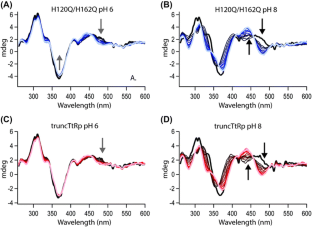

Fig. 4

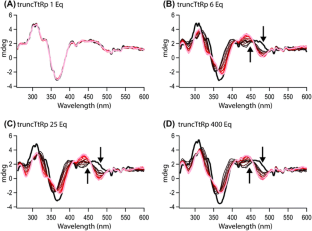

Fig. 5

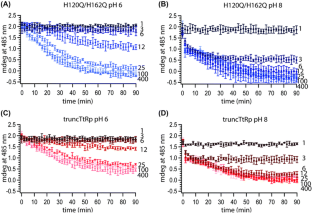

Fig. 6

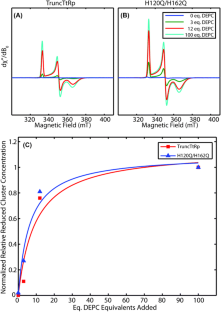

Fig. 7

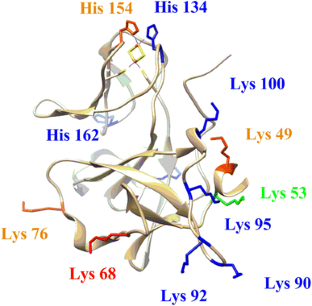

Fig. 8

Abbreviations

bc 1 :

The cytochrome bc 1 complex, complex III of the electron transport chain

CD:

Circular dichroism

CW-EPR:

Continuous-wave electron paramagnetic resonance

DEPC:

Diethylpyrocarbonate

EDTA:

Ethylenediamine tetraacetic acid

HPLC–ESI–MS/MS:

HPLC-electrospray ionization-tandem mass spectrometry

IPTG:

Isopropyl β-d-1-thiogalactopyranoside

LMCT:

Ligand to metal charge transfer

PMSF:

Phenylmethylsulfonylfluoride

SDS-PAGE:

Sodium dodecyl sulfate polyacrylamide gel electrophoresis

truncTtRp:

The truncated version of the Rieske protein from Thermus thermophilus

TtRp:

The Thermus thermophilus Rieske protein that has the additional 17 amino acids

References

  1. Link TA (1999) The structures of Rieske and Rieske-type proteins. Adv Inorg Chem 47:83–157

    Article  CAS  Google Scholar

  2. Berry EA, Guergova-Kuras M, Huang LS, Crofts AR (2000) Structure and function of cytochrome bc complexes. Ann Rev Biochem 69:1005–1075

    Article  CAS  PubMed  Google Scholar

  3. Link TA (2001) Fe–S Rieske Center. In: Messerschmidt A, Huber R, Weighardt K, Poulos T (eds) Handbook of metalloproteins, vol 1. Wiley, New York, pp 518–531

    Google Scholar

  4. Hunsicker-Wang LM, Heine A, Chen Y, Luna EP, Todaro T, Zhang Y, Williams PA, McRee DE, Hirst J, Stout CD, Fee JA (2003) High resolution structure of the soluble, respiratory-type Rieske protein from Thermus thermophilus: analysis and comparison. Biochemistry 42:7303–7317

    Article  CAS  PubMed  Google Scholar

  5. Zu Y, Fee JA, Hirst J (2001) Complete thermodynamic characterization of reduction and protonation of the bc1-type Rieske [2Fe–2S] center of thermus thermophilus. J Am Chem Soc 123:9906

    Article  CAS  PubMed  Google Scholar

  6. Zu Y, Couture MM, Kolling DRJ, Crofts AR, Eltis LD, Fee JA, Hirst J (2003) Reduction potentials of Rieske clusters: importance of the coupling between oxidation state and histidine protonation state. Biochemistry. 42:12400–12408

    Article  CAS  PubMed  Google Scholar

  7. Hsueh K, Westler WM, Markley JL (2010) NMR investigations of the Rieske protein from Thermus thermophilus support a coupled proton and electron transfer mechanism. J Am Chem Soc 132:7908–7918

    Article  CAS  PubMed  PubMed Central  Google Scholar

  8. Konkle ME, Muellner SK, Schwander AL, Dicus MM, Pokhrel R, Britt RD, Taylor AB, Hunsicker-Wang LM (2009) Effect of pH on the Rieske protein from Thermus thermophilus: a spectroscopic and structural analysis. Biochemistry 48:9848–9857

    Article  CAS  PubMed  Google Scholar

  9. Lin I, Chen Y, Fee JA, Song J, Westler WM, Markley JL (2006) Rieske protein from Thermus thermophilus: 15N NMR titration study demonstrates the role of iron-ligated histidines in the pH dependence of the reduction potential. J Am Chem Soc 128:10672–10673

    Article  CAS  PubMed  Google Scholar

  10. Miles EW (1977) Modification of histidyl residues in proteins by diethylpyrocarbonate. Methods Enzymol 47:431–442

    Article  CAS  PubMed  Google Scholar

  11. Lundblad RL (2005) Chemical reagents for protein modification, 3rd edn. CRC Press, Boca Raton

    Google Scholar

  12. Grace ME, Loosemore MJ, Semmel ML, Pratt RF (1980) Kinetics and mechanism of bamberger cleavage of imidazole and of histidine derivatives by diethyl pyrocarbonate in aqueous solution. J Am Chem Soc 102:6784–6789

    Article  CAS  Google Scholar

  13. Yagi T, Vik SB, Hatefi Y (1982) Reversible inhibition of the mitochondrial ubiquinol-cytochrome c oxidoreductase complex (complex III) by ethoxyformic anhydride. Biochemistry 21:4777–4782

    Article  CAS  PubMed  Google Scholar

  14. Ohnishi T, Meinhardt SW, von Jagow G, Yagi T, Hatefi Y (1994) Effect of ethoxyformic anhydride on the Rieske iron–sulfur protein of bovine heart ubiquinole: cytochrome c oxidoreductase. FEBS Lett 353:103–107

    Article  CAS  PubMed  Google Scholar

  15. Lorusso M, Gatti D, Marzo M, Boffoli D, Cocco T, Papa S (1987) Chemical modification studies of beef-heart mitochondrial b-c1 complex. Effect of modification by ethoxyformic anhydride. Eur J Biochem 162:231–238

    Article  CAS  PubMed  Google Scholar

  16. Lorusso M, Gatti D, Boffoli D, Bellomo E, Papa S (1983) Redox-linked proton translocation in the b-c1 complex from beef-heart mitochondria reconstituted into phospholipid vesicles. Studies with chemical modifiers of amino acid residues. Eur J Biochem 137:413–420

    Article  CAS  PubMed  Google Scholar

  17. Konkle ME, Elsenheimer KN, Hakala K, Robicheaux JC, Weintraub ST, Hunsicker-Wang LM (2010) Chemical modification of the Rieske protein from Thermus thermophilus using diethyl pyrocarbonate modifies ligating histidine 154 and reduces the [2Fe–2S] cluster. Biochemistry 49:7272–7281

    Article  CAS  PubMed  Google Scholar

  18. Karagas N, Jones CN, Osborn DJ, Oyala P, Konkle ME, Whitney EM, Britt RD, Hunsicker-Wang LM (2014) The reduction rates of DEPC-modified mutant Thermus thermophilus Rieske proteins differ when there is a negative charge proximal to the cluster. J Biol Inorg Chem 19:1121–1135

    Article  CAS  PubMed  Google Scholar

  19. Degli Esposti M, Ballester F, Solaini G, Lenaz G (1987) The circular-dichroic properties of the ‘Rieske’ iron-sulphur protein in the mitochondrial ubiquinol: cytochrome c reductase. Biochem J 241:285–290

    Article  CAS  PubMed  PubMed Central  Google Scholar

  20. Ugulava NB, Crofts AR (1998) CD-monitored redox titration of the Rieske Fe–S protein of rhodobacter sphaeroides: pH dependence of the midpoint potential in isolated bc1 complex and in membranes. FEBS Lett 440:409–413

    Article  CAS  PubMed  Google Scholar

  21. Iwata S, Lee JW, Okada K, Lee JK, Iwata M, Rasmussen B, Link TA, Ramaswamy S, Jap BK (1998) Complete structure of the 11-subunit bovine mitochondrial cytochrome bc1 complex. Science 281:64–71

    Article  CAS  PubMed  Google Scholar

  22. Gurung B, Yu L, Yu CA (2008) Stigmatellin induces reduction of iron–sulfur protein in the oxidized cytochrome bc1 complex. J Biol Chem 283:28087–28094

    Article  CAS  PubMed  PubMed Central  Google Scholar

  23. Fraczkiewicz R, Braun W (1998) Exact and efficient analytical calculation of the accessible surface areas and their gradients for macromolecules. J Comput Chem 19:319–333

    Article  CAS  Google Scholar

  24. Altman J, Lipka JJ, Kuntz I, Waskell L (1989) Identification by proton nuclear magnetic resonance of the histidines in cytochrome b5 modified by diethyl pyrocarbonate. Biochemistry 28:7516–7523

    Article  CAS  PubMed  Google Scholar

  25. George P, Hanania GIH, Irvine DH, Asu-Issa I (1964) Effect of coordination on ionization. Part IV. Imidasole and its ferrimyoglonin complex. J Chem Soc 5689–5694

  26. Gurung B, Yu L, Xia D, Yu CA (2005) The iron–sulfur cluster of the Rieske iron–sulfur protein functions as a proton-exiting gate in the cytochrome bc(1) complex. J Biol Chem 280:24895–24902

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

This work was supported by funds from the National Science Foundation (CHE-1058273) and the Welch Foundation (W-0031). LHW would also like to acknowledge the work of the Biochemistry Lab (CHEM 3131) in Fall 2013. Their preliminary work on differing amounts of DEPC added to truncTtRp led to this study. We would also like to thank Dr. Mary Konkle for helpful comments on the manuscript.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Laura M. Hunsicker-Wang.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Supplementary material 1 (PDF 1984 kb)

Rights and permissions

Reprints and Permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Li, S.Y., Oyala, P.H., Britt, R.D. et al. Reactive sites and course of reduction in the Rieske protein. J Biol Inorg Chem 22, 545–557 (2017). https://doi.org/10.1007/s00775-017-1445-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00775-017-1445-4

Keywords

  • Iron–sulfur cluster
  • Rieske proteins
  • DEPC
  • Circular dichroism
  • Mass spectrometry
