Wave generation of a compartmented surface-effect ship

  • Original Article
  • Published:
Journal of Marine Science and Technology Aims and scope Submit manuscript

Abstract

A series of carefully controlled experiments on the wave-generation characteristics of a model of a compartmented surface-effect ship has been conducted in a towing tank. Configurations of the model included cases encompassing one subcushion and two subcushions, as well as differing values of the pressures in the subcushions. It was shown that a reduced wave generation in the appropriate Froude number range could be achieved in this manner. Furthermore, a previously developed theory for the wave generation of marine vessels was verified for the model for a Froude number greater than 0.40.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

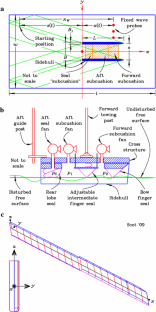

Fig. 1

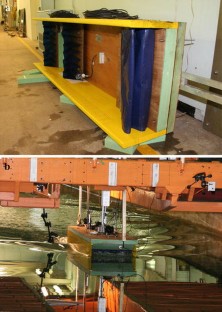

Fig. 2

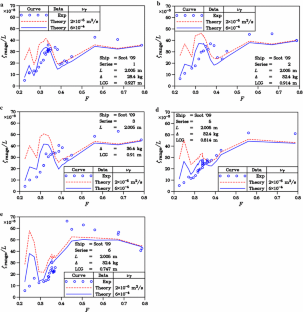

Fig. 3

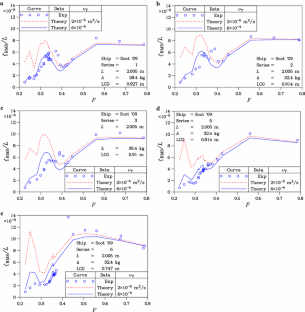

Fig. 4
Fig. 5

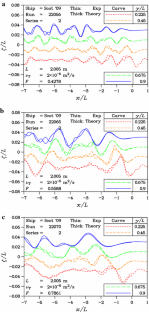

Fig. 6

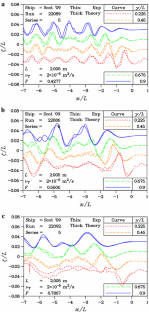

Fig. 7

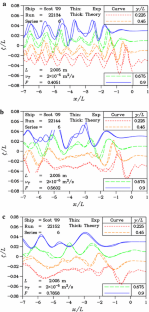

Fig. 8

Similar content being viewed by others

References

  1. Doctors LJ, Renilson MR, Parker G, Hornsby N (1991) Waves and wave resistance of a high-speed river catamaran. In: Proceedings of first international conference on fast sea transportation (FAST ’91), Norwegian Institute of Technology, Trondheim, Norway, vol 1, pp 35–52, June 1991

  2. Fox K, Gornstein R, Stumbo S (1993) Wake wash: issues and answers. Society of naval architects and marine engineers, Pacific Northwest Section, 16+i pp, October 1993

  3. Kofoed-Hansen H (1996) Technical investigation of wake wash from fast ferries, Danish Hydraulic Institute, Hørsholm, Denmark, 41+ii pp, December 1996

  4. Tuck EO, Lazauskas L (1998) Optimum hull spacing of a family of multihulls, University of Adelaide, Department of Applied Mathematics, 38 pp, May 1998

  5. Lazauskas L, Tuck EO (1998) Wave cancellation by Weinblum-type catamarans and diamond-shaped tetrahulls. In: Proceedings of third biennial engineering mathematics and applications conference (EMAC ’98), Adelaide, South Australia, pp 299–302, July 1998

  6. Doctors LJ (1998) Development of low-wash vessels. In: Proceedings of third AusMarine conference (AusMarine ’98), Fremantle, Western Australia, pp 73–78, November 1998

  7. Doctors LJ, Zilman G (2004) Environmental wave generation of high-speed marine vessels. In: Proceedings of twenty-fifth symposium on naval hydrodynamics, St John’s, Newfoundland and Labrador, 16 pp, August 2004

  8. Doctors LJ, Day AH (2000) Wave-free river-based air-cushion vehicles. In: Proceedings of international conference on hydrodynamics of high-speed craft: wake wash and motions control, Royal Institution of Naval Architects, London, England, pp 12.1–12.9, November 2000

  9. Tuck EO, Scullen DC, Lazauskas L (2000) Ship-wave patterns in the spirit of Michell. In: Proceedings of IUTAM symposium on free-surface flows, Birmingham, England, 8 pp, July 2000

  10. Doctors LJ, Day AH (2001) The generation and decay of waves behind high-speed vessels. In: Proceedings of sixteenth international workshop on water waves and floating bodies (16 IWWWFB), Hiroshima, Japan, pp 33–36, April 2001

  11. Doctors LJ (2007) A test of linearity in the generation of ship waves. In: Proceedings of twenty-second international workshop on water waves and floating bodies (22 IWWWFB), Plitvice Lakes, Croatia, pp 61–64, April 2007

  12. Day AH, Doctors LJ (2001) Rapid estimation of near- and far-field wave wake from ships and application to hull form design and optimization. J Ship Res 45(1):73–84

    Google Scholar

  13. Bassett AB (1888) Waves in a viscous fluid. In: A treatise on hydrodynamics. George Bell and Sons, Cambridge, pp 309–314

  14. Zilman G, Miloh T (2001) Kelvin and V-like wakes affected by surfactants. J Ship Res 45(2):150–163

    Google Scholar

  15. Tuck EO, Scullen DC, Lazauskas L (2002) Sea wave pattern evaluation. Part 6 report: viscosity factors, University of Adelaide, Department of Applied Mathematics, 14 pp, January 2002

  16. Doctors LJ (2003) The influence of viscosity on the wavemaking of a model catamaran. In: Proceedings of eighteenth international workshop on water waves and floating bodies (18 IWWWFB), Le Croisic, France, pp 12-1–12-4, April 2003

  17. Doctors LJ (1997) Optimal pressure distributions for river-based air-cushion vehicles. Ship Technol Res Schiffstechnik 44(1):32–36

    Google Scholar

  18. Day AH, Clelland D, Doctors LJ, Beveridge P (2010) Resistance of a compartmented surface-effect ship. J Ship Prod Des 26(3):1–11

    Google Scholar

  19. Steen S, Adriaenssens C (2005) Experimental verification of the resistance of a split-cushion surface-effect ship. In: Proceedings of eighth international conference on fast sea transportation (FAST ’05), Saint Petersburg, Russia, 8 pp, June 2005

  20. Beveridge P (2009) Design, build, test and analysis of a model SES with partitioned cushion arrangement. Bachelor thesis, University of Strathclyde, Department of Naval Architecture and Marine Engineering, 76 pp, May 2009

  21. Bouvy A, Henn R, Henße J (2009) Acoustic wave height measurements in a towing facility. In: First international conference on advanced model measurement technology for the EU maritime industry (AMT ’09), Nantes, France, pp 310–324, September 2009

  22. Doctors LJ (1993) On the use of pressure distributions to model the hydrodynamics of air-cushion vehicles and surface-effect ships. Nav Eng J 105(2):69–89

    Article  Google Scholar

  23. Doctors LJ, Tregde V, Jiang C, McKesson CB (2005) Optimization of a split-cushion surface-effect ship. In: Proceedings of eighth international conference on fast sea transportation (FAST ’05), Saint Petersburg, Russia, 8 pp, June 2005

  24. Doctors LJ, Macfarlane GJ, Young R (2007) A study of transom-stern ventilation. Int Shipbuild Prog 54(2,3):145–163

    Google Scholar

  25. Doctors LJ (2008) The unsteady growth of ship waves in a towing tank. In: Proceedings of twenty-third international workshop on water waves and floating bodies (23 IWWWFB), Jeju, Korea, pp 37–40, April 2008

  26. Doctors LJ, Sharma SD (1972) The wave resistance of an air-cushion vehicle in steady and accelerated motion. J Ship Res 16(4):248–260

    Google Scholar

Download references

Acknowledgments

We would like to thank the University of Strathclyde for providing the Sir David Anderson Bequest Award, which supported travel and maintenance costs associated with this project, as well as the Department of Naval Architecture and Marine Engineering for additional funding. We would also like to express our appreciation to Mr Charles Keay, Laboratory Coordinator, who supervised the construction of the model SES and the associated specialized equipment. Additionally, he oversaw the operation of the towing tank. Finally, we also respectfully acknowledge the infrastructure support provided by both the University of Strathclyde and The University of New South Wales (UNSW).

Author information

Authors and Affiliations

  1. School of Mechanical and Manufacturing Engineering, The University of New South Wales, Sydney, NSW, 2052, Australia

    Lawrence J. Doctors

  2. Department of Naval Architecture and Marine Engineering, The University of Strathclyde, Glasgow, G4 OLZ, Scotland, UK

    Alexander H. Day, David Clelland & Philip Beveridge

Authors
  1. Lawrence J. Doctors
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Alexander H. Day
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. David Clelland
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Philip Beveridge
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Lawrence J. Doctors.

About this article

Cite this article

Doctors, L.J., Day, A.H., Clelland, D. et al. Wave generation of a compartmented surface-effect ship. J Mar Sci Technol 15, 345–358 (2010). https://doi.org/10.1007/s00773-010-0104-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00773-010-0104-z
