Development of a HPTLC method to profile the phytochemicals in Allanblackia parviflora (tallow tree) kernel and seed cakes

  • Original Research Paper
  • Published:
JPC – Journal of Planar Chromatography – Modern TLC Aims and scope Submit manuscript

Abstract

HPTLC is a useful and practical analytical tool to characterize plant compositions. This study was focused on exploring the results of high-performance thin-layer chromatography (HPTLC) analysis, particularly as a useful tool for the authentication of Allanblackia parviflora seed and kernel cakes. Bulked samples from sixteen different Ghanaian communities were analysed by HPTLC and their fingerprints were compared. The optimum experimental conditions were established: sample weight of 2.0 g, methanol:water (80:20 v/v) as extraction solvent, 30 min extraction time and twice extraction, ethyl acetate:methanol:water (100:16.5:13.5 v/v) as mobile phase, vanillic acid as derivatisation agent and 7 min of plate heating time after derivatisation. The HPTLC profile generated from extracts across 16 communities and 157 trees was very reproducible and demonstrates the robustness of the technique in characterising the profile.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Fig. 1
Fig. 2

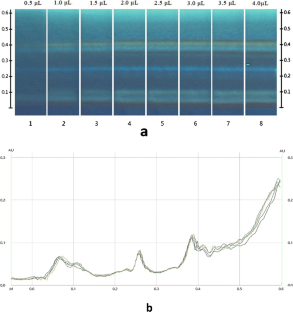

Fig. 3
Fig. 4
Fig. 5

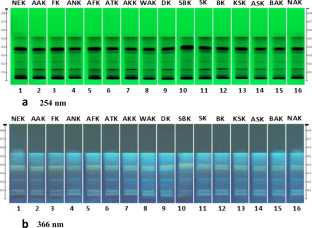

Fig. 6

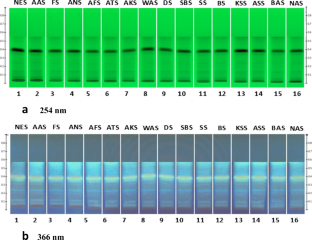

Fig. 7

Similar content being viewed by others

References

  1. OECD/FAO (2011) OECD-FAO Agricultural Outlook 2011

  2. OECD/FAO (2017) Oilseeds and Oilseed Products. In: OECD-FAO Agricultural Outlook 2016–2025, OECD Publishing, Paris. (Publication no. https://doi.org/10.1787/agr_outlook-2016-8-en)

  3. Teh SS, Morlock GE (2015) Analysis of bioactive components of oilseed cakes by high-performance thin-layer chromatography-(bio)assay combined with mass spectrometry. Chromatography 2:125–140. https://doi.org/10.3390/chromatography2010125

    Article  CAS  Google Scholar

  4. Boban PT, Bala N, Sudhakaran PR (2006) Hypolipidemic effect of chemically different mucilages in rats: a comparative study. Br J Nutr 96:1021–1029

    Article  CAS  Google Scholar

  5. Damodaran S, Parkin KL, Fennema OR (2008) Fennema’s food chemistry. CRC Press, Taylor and Francis Group

  6. https://www.phytochemicals.info/. Retrieved in November, 2018

  7. Rafi MM ( 2004) Elucidating the role of nutraceuticals in overexpressing antiapototic proteins in prostate cancer. (PhD), Cook College, Rutgers University, New Brunswick, New Jersey, USA

  8. Pagare S, Bhatia M, Tripathi N, Pagare S, Bansal YK (2015) Secondary metabolites of plants and their role: overview. Curr Trends Biotechnol Pharm 9(3):293–304

    Google Scholar

  9. Geyid A, Abebe D, Debella A, Makonnen Z, Aberra F, Teka F et al (2005) Screening of some medicinal plants of Ethiopia for their anti-microbial properties and chemical profiles. J Ethnopharmacol 97(3):421–427

    Article  CAS  Google Scholar

  10. Hamburger M, Hostettmann K (1989) Analytical aspects of drugs of natural origin. J Pharm Biomed Anal 7(12):1337–1349

    Article  CAS  Google Scholar

  11. Sibandze GF (2009) Pharmacological properties of swazi medicinal plants. (MSc. In medicine (Pharmacology) A dissertation), University of the Witwatersrand, Jahannesburg

  12. Do TKT, Hadji-Minaglou F, Antoniotti S, Fernandez X (2014) Secondary metabolites isolation in natural products chemistry: comparison of two semipreparative chromatographic techniques (high pressure liquid chromatography and high performance thin-layer chromatography). J Chromatogr A 1325:256–260. https://doi.org/10.1016/j.chroma.2013.11.046

    Article  CAS  PubMed  Google Scholar

  13. Ofori H, Hettiarachchi D, Sostaric T, Busetti F, Boyce MC (2019) High performance thin-layer chromatographic fingerprinting of sandalwood essential oils. J. Planar Chromatogr - Modern TLC 32:205–210

    Article  CAS  Google Scholar

  14. Ymele EV, Dongmo AB, Dimo T (2011) Analgesic and anti-inflammatory effect of aqueous extract of the stem bark of Allanblackia gabonensis (Guttiferae). Inflammopharmacology (2013) 21:21–30

    Article  Google Scholar

  15. Boudjeko T, Ngomoyogoli JEK, Woguia AL, Yanou NN (2013) Partial characterization, antioxidative properties and hypolipidemic effects of oilseed cake of Allanblackia floribunda and Jathropha curcas. BMC Complem Altern Med 13:352 http://www.biomedcentral.com/1472-6882/13/352 visited on March 20th, 2014

    Article  Google Scholar

  16. Ayoola GA, Ipav SS, Sofidiya MO, Adepoju-Bello AA, Coker HAB, Odugbemi TO (2008) Phytochemical screening and free radical scavenging activities of the fruits and leaves of Allanblackia floribunda Oliv (Guttiferae). Int J Health Res 1(2):87–93 http://www.ijhr.org’

    CAS  Google Scholar

  17. Kuete V, Azebaze AGB, Mbaveng AT, Nguemfo EL, Tshikalange ET, Chalard P, Nkengfack AE (2011) Antioxidant, antitumor and antimicrobial activities of the crude extract and compounds of the root bark of Allanblackia floribunda. Pharm Biol 49(1):57–65

    Article  Google Scholar

  18. Adu JK, Amoah E, Ayensu I, Osei-Djarbeng S, Peter J (2016) Phytochemical screening and antimicrobial activities of the stem bark of Allanblackia parviflora Chev.(Clusiaceae). J Phytopharmacol 5:215–219

  19. Allal F, Piombo G, Kelly BA, Okullo JBL, Thiam M, Diallo OB et al (2013) Fatty acid and tocopherol patterns of variation within the natural range of the shea tree (Vitellaria paradoxa). Agrofor Syst 87:1065–1082

    Article  Google Scholar

  20. Sefah W, Adubofour J, Oldham JH (2007) Extraction and characterisation of vegetable fat from Allanblackia floribunda. (MSc. Thesis), Kwame Nkrumah University of Science and Technology-Kumasi–Ghana

  21. HPTLC Association. Caraway fruit (flavonoids), Carum carvi: International Association for the Advancement of high-performance thin layer chromatography. A non-profit organisation dedicated to the promotion of HPTLC in plant analysis and other analytical fields www.hptlc-association.org. Date retrieved: August 2016

  22. Peschel W, Sanchez-Rabaneda F, Dn W, Plescher A, Gartzia I, Jimenez D, LamuelaRaventos R, Buxaderas S, Condina C (2006) An industrial approach in the search of natural antioxidants from vegetable and fruit wastes. Food Chem 97:137–150

    Article  CAS  Google Scholar

  23. Abdille MH, Singh RP, Jayaprakasa GK, Jens BS (2005) Antioxidant activity of the extracts from Dillenia indica fruits. Food Chem 90:891–896

    Article  CAS  Google Scholar

  24. Rehman ZU (2006) Citrus peel extract- a natural source of antioxidant. Food Chem 99:450–454

    Article  Google Scholar

  25. Li Y, Guo C, Yang J, Wei J, Xu J, Cheng S (2006) Evaluation of antioxidant properties of pomegranate peel extract in comparison with pomegranate pulp extract. Food Chem 96:254–260

    Article  CAS  Google Scholar

  26. Chatha SAS, Anwar F, Manzoor M, Bajwa JR (2006) Evaluation of the antioxidant activity of rice bran extracts using different antioxidant assays. Grasas Aceites (Seville) 57:328–335

    CAS  Google Scholar

  27. Kua SF, Ibrahim J, Ooi CKW, Nan KI, Hashim N, Mohd Yusof H (2015) Optimisation of phenolic extraction and quantification of phenolics in palm kernel cake. Renew Bioresour 3:1–7

    Article  Google Scholar

  28. Tan MC, Tan CP, Ho CW (2013) Effects of extraction solvent system, time and temperature on total phenolic content of henna (Lawsonia inermis) stems. Int Food Res J 20:3117–3123

    CAS  Google Scholar

  29. Hahn-Deinstrop E, Koch A, Müller M (2000) HPTLC measured values of primula saponins in extracts of Primulae radix. A comparison after derivatization between handspraying, dipping and autospraying. Chromatographia 51(1):S302–S304

    Article  CAS  Google Scholar

  30. Gessler K, Hamburger M, Reich E (2005) Development of an optimised HPTLC method for analysis of essential oils. Diploma Thesis. Universitat Basel - Philosophical and Scientific Faculty - Department Parmzeutische Sciences Iinstitute for Biology Pharmazeuzeutische. 1–59

  31. https://www.researchgate.net/post/what is the mechanism of a vanillin sulphuric acid spray (Sourced in March, 2019)

Download references

Acknowledgements

This study was supported by both the School of Science and the Centre for Ecosystem Management, Edith Cowan University, Western Australia.

Author information

Authors and Affiliations

  1. School of Science, Centre for Ecosystem Management, Edith Cowan University, Joondalup, Western Australia, 6027, Australia

    Wilfred Sefah & Hayford Ofori

  2. Faculty of Applied Sciences and Technology, Kumasi Technical University (KsTU), Kumasi, Ghana

    Wilfred Sefah

  3. Department of Environmental Science, Kwame Nkrumah University of Science and Technology, Kumasi, Ghana

    Lydia Sefah

  4. CSIR-Food Research Institute, Box M20, Accra, Ghana

    Hayford Ofori

Authors
  1. Wilfred Sefah
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Lydia Sefah
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Hayford Ofori
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Wilfred Sefah.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Sefah, W., Sefah, L. & Ofori, H. Development of a HPTLC method to profile the phytochemicals in Allanblackia parviflora (tallow tree) kernel and seed cakes. JPC-J Planar Chromat 33, 33–41 (2020). https://doi.org/10.1007/s00764-019-00009-9

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00764-019-00009-9
