A fluorometric optical fiber nanoprobe for copper(II) by using AgInZnS quantum dots

Microchimica Acta volume 187, Article number: 146 (2020) Cite this article

Abstract

An optical fiber nanoprobe is presented for fluorometric determination of copper(II). The method based on the use of water-dispersible AgInZnS quantum dots (QDs) deposited at the end of an optical fiber in a poly(vinyl alcohol) matrix. The fluorescnece of the QDs, best measured at excitation/emisssion wavelengths of 365/570 nm, is quenched by Cu(II) due to both static and electron transfer from the QDs to Cu(II). This is experimentally confirmed by photoluminescence and UV-vis absorption spectra, and measurement of luminescence lifetimes. The probe is highly selective and possesses a linear detection range that extends from 2.5 to 800 nM.

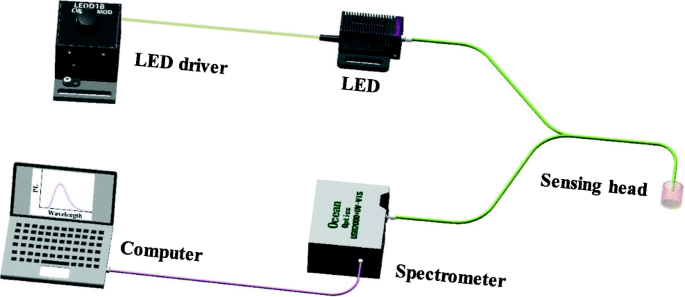

Schematic representation of an optical fiber nanoprobe based on hydrophilic AgInZnS quantum dots for fluorometric determination of copper(II). The fluorescence is quenched by Cu(II) due to static quenching and dynamic quenching. It has a detection range of 2.5–800 nM.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2

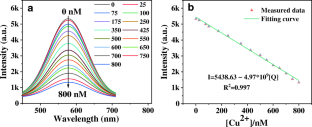

Fig. 3

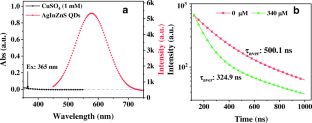

Fig. 4

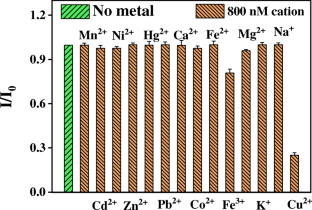

Fig. 5
