Dispersed copper nanoparticles promote the electron mobility of nitrogen-rich graphitized carbon aerogel for electrochemical determination of 4-nitrophenol

  • Original Paper
  • Published:
Microchimica Acta Aims and scope Submit manuscript

Abstract

An electrochemical method was designed for the determination and simultaneous reduction of 4-nitrophenol (4-NP). A nitrogen-rich carbon aerogel was synthesized from the precursor of phenol, formaldehyde and melamine. Then, copper nanoparticles were embedded into the aerogel, and the resulting material was used to modify a glassy carbon electrode (GCE), which displayed excellent electrocatalytic activity. Sensitive determination of 4-NP by cyclic voltammetry in 0.5 M sulfuric acid was accomplished. Among the various compositions of Cux@NC, the electrode modified with Cu3@NC showed the strongest reduction peak, typically at a potential of −0.30 V vs. reversible hydrogen electrode (RHE). A further study shows the cyclic voltammetry potential range to extend from −0.46 to +0.44 V (vs. RHE) at a scan rate of 100 mV s-1. Differential pulse voltammetric determination of 4-NP gave a lower detection limit of 53 nM and a current sensitivity of 0.7 μA μM−1 cm−2. The method was applied to the determination of 4-NP in spiked water samples, with comparable results of HPLC. The excellent performance was attributed to the highly graphitized structure of the aerogel with its large surface area and small pore size, and the presence of Cu-N structures as active sites.

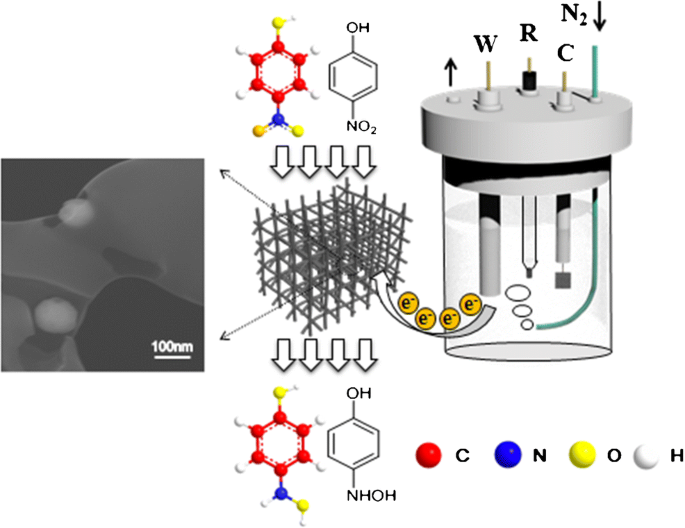

Schematic representation of electrochemical determination and reduction of 4-nitrophenol under the glassy carbon electrode modified with highly dispersed Cu nanoparticles embedded on nitrogen-rich carbon aerogel. W: working electrode; R: reference electrode; C: counter electrode). Left: copper nanoparticles embedded in an aerogel.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

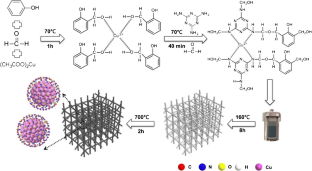

Fig. 1
Fig. 2

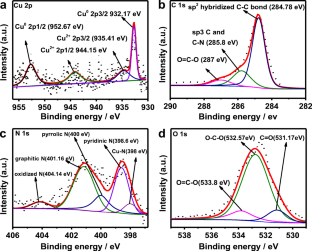

Fig. 3

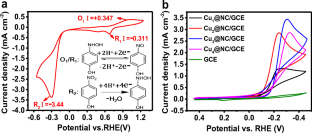

Fig. 4

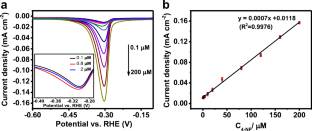

Fig. 5
