Impedimetric detection of cocaine by using an aptamer attached to a screen printed electrode modified with a dendrimer/silver nanoparticle nanocomposite

  • Mahmoud Roushani
  • Faezeh Shahdost-fard
Original Paper

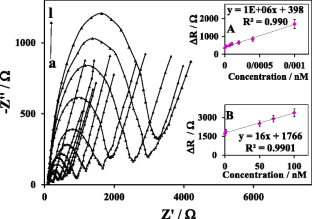

The authors describe a highly sensitive method for the aptamer (Apt) based impedimetric determination of cocaine. The surface of a screen-printed electrode (SPE) was modified with a nanocomposite of dendrimer and silver nanoparticles (AgNPs). The cocaine-binding Apt was attached to a dendrimer/AgNP/SPE surface, forming a sensitive layer for the determination of cocaine. The incubation with the analyte resulted in the formation of a cocaine/Apt complex on the electrode surface. As a consequence, folding and conformational change in the aptamer structure was induced, this resulting in a change in the impedimetric signal. The aptaassay exhibits highly efficient sensing characteristics with a good linearity of 1 fmol L−1 to 100 nmol L−1 (with two linear ranges) and a limit of detection (LOD) of 333 amol L−1. Its excellent specificity and high sensitivity suggest that this kind of aptamer-based assay may be applied to detect other targets in this field.

Graphical Abstract

Designing of an aptaassay via immobilization of a functionalized aptamer with silver nanoparticle (AgNPs-Apt) on the modified screen-printed electrode (SPE) with dendrimer/silver nanoparticle nanocomposite (Den-AgNPs) for impedimetric detection of cocaine.


Electrochemical impedance spectroscopy Nanomaterial Aptasensor Metal nanoparticles Charge transfer resistance Poly amidoamine Chemisorption



The authors thank the Iran National Science Foundation (Grant no. 94808064) for their support. They would also like to thank the Ilam University Research Council and the Iranian Nanotechnology Initiative Council for their partial support.

Compliance with ethical standards

The authors declare that they have no competing interests.

Supplementary material

604_2018_2709_MOESM1_ESM.docx (643 kb)
ESM 1 (DOCX 644 kb)
