Simultaneous determination of captopril and hydrochlorothiazide by using a carbon ionic liquid electrode modified with copper hydroxide nanoparticles

Microchimica Acta volume 185, Article number: 97 (2018) Cite this article

Abstract

A carbon electrode modified with the ionic liquid octylpyridinium hexafluorophosphate and copper hydroxide nanoparticles was employed in an electrochemical assay for simultaneous determination of captopril (CPT) and hydrochlorothiazide (HCT). The electrode showed two well-defined oxidation peaks for CPT (at 0.22 V) and HCT (at 0.73 V, both vs. Ag/AgCl) at pH 8.0 using square wave voltammetry. Calibration plots are linear in the concentration ranges of 0.7–70 µM (CPT) and 3–600 μM (HCT), with detection limits of 12 and 60 nM, respectively. The electrode was repeatedly applied to simultaneous determination of CPT and HCT in pharmaceutical formulation without showing any fouling.

Application of carbon ionic liquid electrode (CILE) modified with Cu(OH)2 nanoparticles (Cu(OH)2NP/CILE) for the simultaneous determination of captopril (CPT) and hydrochlorothiazide (HCT) in pharmaceutical formulation is presented.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

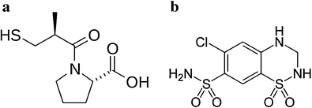

Scheme 1

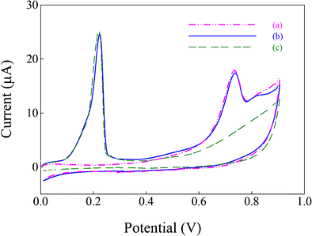

Fig. 1

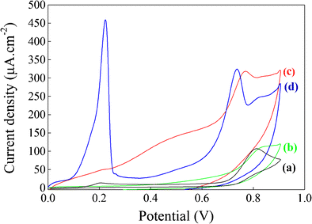

Fig. 2
Fig. 3

References

  1. Florey K (1982) Analytical profiles of drug substances. Academic Press, New York

    Google Scholar

  2. Shahrokhian S, Karimi M, Khajehsharifi H (2005) Carbon-paste electrode modified with cobalt-5-nitrolsalophen as a sensitive voltammetric sensor for detection of captopril. Sensors Actuators B Chem 109:278–284

    CAS  Article  Google Scholar

  3. Goodman LS, Gilman A, Brunton LL et al (1989) Goodman & Gilman’s the pharmacological basis of therapeutics, Seven ed. McGraw-Hill, Madrid

    Google Scholar

  4. Razak OA (2004) Electrochemical study of hydrochlorothiazide and its determination in urine and tablets. J Pharm Biomed Anal 34:433–440

    Article  Google Scholar

  5. Ouyang J, Baeyens WRG, Delanghe J et al (1999) Chemiluminescence-based liquid chromatographic determination of hydrochlorothiazide and captopril. Anal Chim Acta 386:257–264

    CAS  Article  Google Scholar

  6. Wald DS, Law M, Morris JK et al (2009) Combination therapy versus monotherapy in reducing blood pressure: meta-analysis on 11,000 participants from 42 trials. Am J Med 122:290–300

    Article  Google Scholar

  7. Huang T, He Z, Yang B et al (2006) Simultaneous determination of captopril and hydrochlorothiazide in human plasma by reverse-phase HPLC from linear gradient elution. J Pharm Biomed Anal 41:644–648

    CAS  Article  Google Scholar

  8. Kirschbaum J, Perlman S (1984) Analysis of captopril and hydrochlorothiazide combination tablet formulations by liquid chromatography. J Pharm Sci 73:686–687

    CAS  Article  Google Scholar

  9. Ivanovic D, Medenica M, Malenovic A, Jancic B (2004) Validation of the RP–HPLC method for analysis of hydrochlorothiazide and captopril in tablets. Accred Qual Assur 9:76–81

    CAS  Article  Google Scholar

  10. Abbasi-Ahd A, Shokoufi N, Kargosha K (2017) Headspace single-drop microextraction coupled to microchip-photothermal lens microscopy for highly sensitive determination of captopril in human serum and pharmaceuticals. Microchim Acta 184:2403–2409

    CAS  Article  Google Scholar

  11. Panderi I, Parissi-Poulou M (1992) Determination of captopril and captopril-hydrochlorothiazide combination in tablets by derivative UV spectrophotometry. Int J Pharm 86:99–106

    CAS  Article  Google Scholar

  12. Safavi A, Ahmadi R, Mahyari FA (2014) Simultaneous electrochemical determination of L-cysteine and L-cysteine disulfide at carbon ionic liquid electrode. Amino Acids 46:1079–1085

    CAS  Article  Google Scholar

  13. Dai H, Lin Y, Xu H et al (2010) Direct electrochemistry of thermally denatured calf thymus DNA on a poly (methyl methacrylate)–graphite microcomposite electrode. Analyst 135:2913–2917

    CAS  Article  Google Scholar

  14. Gholivand MB, Khodadadian M (2013) Simultaneous voltammetric determination of captopril and hydrochlorothiazide on a graphene/ferrocene composite carbon paste electrode. Electroanalysis 25:1263–1270

    CAS  Article  Google Scholar

  15. Gimenes DT, Marra MC, de Freitas JM et al (2015) Simultaneous determination of captopril and hydrochlorothiazide on boron-doped diamond electrode by batch injection analysis with multiple pulse amperometric detection. Sensors Actuators B Chem 212:411–418

    CAS  Article  Google Scholar

  16. Tian F, Li H, Li M et al (2017) A tantalum electrode coated with graphene nanowalls for simultaneous voltammetric determination of dopamine, uric acid, L-tyrosine, and hydrochlorothiazide. Microchim Acta 184:1611–1619

    CAS  Article  Google Scholar

  17. Siangproh W, Ngamukot P, Chailapakul O (2003) Electrochemical determination of captopril at boron-doped diamond thin film electrode applied to a flow injection system. Sensors Actuators B Chem 91:60–66

    CAS  Article  Google Scholar

  18. Stefan R-I, van Staden JKF, Aboul-Enein HY (2000) Simultaneous detection of S and R captopril using sequential injection analysis. Talanta 51:969–975

    CAS  Article  Google Scholar

  19. Wakabayashi H, Yamato S, Nakajima M, Shimada K (1994) Application of an electrochemical detector with a graphite electrode to liquid chromatographic determination of penicillamine and captopril in biological samples. J Pharm Biomed Anal 12:1147–1152

    CAS  Article  Google Scholar

  20. Jay D, Cuéllar A, Zamorano R et al (1991) Captopril does not scavenge superoxide: captopril prevents O2 ⨪ production by chelating copper. Arch Biochem Biophys 290:463–467

    CAS  Article  Google Scholar

  21. Maleki N, Safavi A, Tajabadi F (2006) High-performance carbon composite electrode based on an ionic liquid as a binder. Anal Chem 78:3820–3826

    CAS  Article  Google Scholar

  22. Safavi A, Ahmadi R, Mahyari FA, Tohidi M (2015) Electrocatalytic oxidation of thiourea on graphene nanosheets-ag nanoparticles hybrid ionic liquid electrode. Sensors Actuators B Chem 207:668–672

    CAS  Article  Google Scholar

  23. Farjami F, Mosalman FK, Ebrahimpourmoghaddam S, Sharghi H (2016) Electrocatalytic determination of cysteine using a carbon ionic liquid electrode modified with terpyridine copper (II) complex. Anal Lett 49:1412–1423

    Article  Google Scholar

  24. Absalan G, Akhond M, Soleimani M, Ershadifar H (2016) Efficient electrocatalytic oxidation and determination of isoniazid on carbon ionic liquid electrode modified with electrodeposited palladium nanoparticles. J Electroanal Chem 761:1–7

    CAS  Article  Google Scholar

  25. Chen X, Yan H, Shi Z et al (2017) A novel biosensor based on electro-co-deposition of sodium alginate-Fe3O4-graphene composite on the carbon ionic liquid electrode for the direct electrochemistry and electrocatalysis of myoglobin. Polym Bull 74:75–90

    CAS  Article  Google Scholar

  26. Dai H, Xu H, Wu X et al (2009) Fabrication of a new electrochemiluminescent sensor for fentanyl citrate based on glassy carbon microspheres and ionic liquid composite paste electrode. Anal Chim Acta 647:60–65

    CAS  Article  Google Scholar

  27. Eastman JA, Choi SUS, Li S et al (2001) Anomalously increased effective thermal conductivities of ethylene glycol-based nanofluids containing copper nanoparticles. Appl Phys Lett 78:718–720

    CAS  Article  Google Scholar

  28. You T, Niwa O, Tomita M et al (2002) Characterization and electrochemical properties of highly dispersed copper oxide/hydroxide nanoparticles in graphite-like carbon films prepared by RF sputtering method. Electrochem Commun 4:468–471

    CAS  Article  Google Scholar

  29. Farrell ST, Breslin CB (2004) Oxidation and photo-induced oxidation of glucose at a polyaniline film modified by copper particles. Electrochim Acta 49:4497–4503

    CAS  Article  Google Scholar

  30. Male KB, Hrapovic S, Liu Y et al (2004) Electrochemical detection of carbohydrates using copper nanoparticles and carbon nanotubes. Anal Chim Acta 516:35–41

    CAS  Article  Google Scholar

  31. Safavi A, Maleki N, Farjami E, Mahyari FA (2009) Simultaneous electrochemical determination of glutathione and glutathione disulfide at a nanoscale copper hydroxide composite carbon ionic liquid electrode. Anal Chem 81:7538–7543

    CAS  Article  Google Scholar

  32. Devamani RHP, Alagar M (2013) Synthesis and characterisation of copper II hydroxide nano particles. Nano Biomed Eng 5:116–120

    Article  Google Scholar

  33. Othman MR (2015) Electrosynthesis and characterization of cu(OH)2 nanoparticle using cu and cu-PVC electrodes in alkaline solution. Int J Electrochem Sci 10:4911–4921

    Google Scholar

  34. Safavi A, Maleki N, Farjami F, Farjami E (2009) Electrocatalytic oxidation of formaldehyde on palladium nanoparticles electrodeposited on carbon ionic liquid composite electrode. J Electroanal Chem 626:75–79

    CAS  Article  Google Scholar

  35. Karimi-Maleh H, Ganjali MR, Norouzi P, Bananezhad A (2017) Amplified nanostructure electrochemical sensor for simultaneous determination of captopril, acetaminophen, tyrosine and hydrochlorothiazide. Mater Sci Eng C 73:472–477

    CAS  Article  Google Scholar

Download references

Acknowledgements

A grateful acknowledgment is made to Shiraz University Research Council for supporting this research. The authors thank Daroo-Pakhsh pharmaceutical Co. (Iran) for donating the studied drugs. We also appreciate the assistance of Miss Raheleh Ahmadi due to her technical guidance.

Author information

Affiliations

  1. Department of Chemistry, College of Sciences, Shiraz University, P. O. Box, Shiraz, 71454, Iran

    Ghodratollah Absalan, Morteza Akhond, Raziye Karimi & Amir M. Ramezani

Authors
  1. Ghodratollah Absalan
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Morteza Akhond
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Raziye Karimi
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Amir M. Ramezani
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Ghodratollah Absalan.

Ethics declarations

The authors declare that they have no competing interests.

Electronic supplementary material

ESM 1

(DOC 2.61 mb)

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Absalan, G., Akhond, M., Karimi, R. et al. Simultaneous determination of captopril and hydrochlorothiazide by using a carbon ionic liquid electrode modified with copper hydroxide nanoparticles. Microchim Acta 185, 97 (2018). https://doi.org/10.1007/s00604-017-2630-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s00604-017-2630-4

Keywords

  • Cyclic voltammetry
  • Electrochemical assay
  • Electrochemical determination
  • Nanomaterial
  • Octyl pyridinium hexafluorophosphate
  • Pharmaceutical dosage
  • Square wave voltammetry
  • Tablet analysis
  • TEM
  • XRD
