Spinous process morphology: the effect of ageing through adulthood on spinous process size and relationship to sagittal alignment

European Spine Journal volume 21, pages 1007–1012 (2012)Cite this article

Abstract

Study design

Blinded radiographic analysis of CT scans reformatted for precise lumbar spinous process (LSP) measurement.

Objective

To investigate the effect of ageing on LSP morphology and influence of LSP morphology on lumbar spine sagittal alignment.

Summary of background data

There is little data reporting the influence of ageing on spinous process size. There is data describing the increase in size of other body parts with age, such as the femur, ears, vertebral body, and nose. Several old cadaveric and radiographic studies have reported the formation of osseous spurs within the supraspinous and interspinous ligaments.

Method

200 abdominal CT scans taken for trauma and vascular investigation were reformatted to allow precise bony measurement of the lumbar spine. Two observers were blinded from the age and demographics of the patients. Sagittal and coronal plane projections were used to measure the height and width of the spinous processes (L1–L5), respectively. The relationship between spinous process size, age, and supine lordosis was investigated.

Results

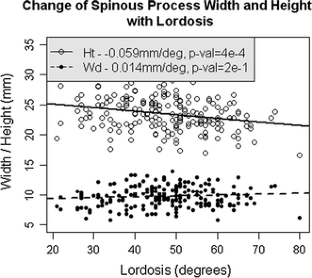

LSP height increases by 0.03–0.07 mm/year (p < 10−3 to 10−8) and width by 0.05–0.06 mm/year (p < 10−11 to 10−15). Lumbar lordosis decreases with increasing LSP height (p < 0.0004) but is not related to increasing LSP width (p = 0.195). Supine lordosis increases by 0.1°/year (p = 0.004).

Conclusions

This study demonstrates that the dimensions of the LSP change with age. Increases in LSP height and even more impressive increases in LSP width occur with advancing age. There is an inverse relationship between lumbar lordosis and LSP height.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4

References

  1. Senegas J (2002) Mechanical supplementation by non-rigid fixation in degenerative intervertebral lumbar segments: the Wallis system. Eur Spine J 11(Suppl 2):164–169

    Google Scholar

  2. Zucherman JF, Hsu KY, Hartjen CA et al (2005) A multicenter, prospective, randomized trial evaluating the XSTOP interspinous process decompression system for the treatment of neurogenic intermittent claudication: two-year follow-up results. Spine 30(24):2846–2847

    Google Scholar

  3. Sobottke R, Schluter-Brust K, Kaulhausen T et al (2009) Interspinous implants (XStop, Wallis, Diam) for the treatment of lumbar spinal stenosis: is there a correlation between radiological parameters and clinical outcome? Eur Spine J 18(10):1494–1503

    PubMed  Article  Google Scholar

  4. Takeuchi S, Kageyama I, Awatake T et al (1998) Enlargement of the femoral marrow cavity with ageing. Kaibogaku Zasshi 73(3):259–264

    PubMed  CAS  Google Scholar

  5. Israel H (1973) Progressive enlargement of the vertebral body as part of the process of human skeletal ageing. Age Ageing 2:71–79

    PubMed  Article  CAS  Google Scholar

  6. Sartoris DJ, Resnick D, Tyson R et al (1985) Age-related alterations in the vertebral spinous processes and intervening soft tissues: radiologic-pathologic correlation. AJR 145:1025–1030

    PubMed  CAS  Google Scholar

  7. Scapinelli R (1989) Morphological and functional changes of the lumbar spinous processes in the elderly. Surg Radiol Anat 11:129–133

    PubMed  Article  CAS  Google Scholar

  8. Baastrup CI (1983) On the spinous processes of the lumbar vertebrae and the soft tissues between them, and on pathological changes in that region. Acta Radiol (Stockh) 14:52–54

    Article  Google Scholar

  9. R Development Core Team (computer program) (2008) Version 2.8.1. R: a language and environment for statistical computing. R Foundation for Statistical Computing, Vienna. http://www.R-project.org. ISBN 3-900051-07-0

  10. Jinkins JR (2001) Acquired degenerative changes of the intervertebral segments at and suprajacent to the lumbosacral junction. A radioanatomic analysis of the nondiskal structures of the spinal column and perispinal soft tissues. Radiol Clin N Am 39(1):73–99

    PubMed  Article  CAS  Google Scholar

  11. Adams M, Bogduk N, Burton K, Dolan P (2002) The biomechanics of back pain, 1st edn, Chaps 4 and 10. Churchill Livingstone, London

  12. Adams MA, Dolan P, Hutton WC, Porter RW (1990) Diurnal changes in spinal mechanics and their clinical significance. J Bone Joint Surg Br Mar 72(2):266–270

    CAS  Google Scholar

  13. Keller TS, Nathan M (1999) Height change caused by creep in intervertebral discs: a sagittal plane model. J Spinal Disord 12(4):313–324

    PubMed  Article  CAS  Google Scholar

  14. Lee SC, Chen JF, Wu CT, Lee ST (2009) In situ local autograft for instrumented lower lumbar or lumbosacral posterolateral fusion. J Clin Neurosci 16(1):37–43

    PubMed  Article  Google Scholar

  15. Sengupta DK, Truumees E, Patel CK, Kazmierczak C, Hughes B, Elders G, Herkowitz HN (2006) Outcome of local bone versus autogenous iliac crest bone graft in the instrumented posterolateral fusion of the lumbar spine. Spine (Phila Pa 1976) 31(9):985–991

    Article  Google Scholar

Download references

Conflict of interest

No funds were received in support of this work. No benefits in any form have been or will be received from a commercial party related directly or indirectly to the subject of this manuscript.

Author information

Affiliations

  1. Department of Orthopaedics, Auckland City Hospital, Level 7, Auckland, New Zealand

    Caspar Edward William Aylott, Rupesh Puna & Peter Alexander Robertson

  2. Department of Engineering Science, The University of Auckland, Auckland, New Zealand

    Cameron Walker

  3. The Orthopaedic Clinic, Mercy Specialist Centre, 100 Mountain Road, Epsom, Auckland, 1023, New Zealand

    Peter Alexander Robertson

  4. Department of Orthopaedics, Gloucestershire Royal Hospital, Level 2 Tower Block, Great Western Road, Gloucestershire, GL1 3NN, UK

    Caspar Edward William Aylott

Authors
  1. Caspar Edward William Aylott
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Rupesh Puna
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Peter Alexander Robertson
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Cameron Walker
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding authors

Correspondence to Caspar Edward William Aylott or Peter Alexander Robertson.

Additional information

The manuscript submitted does not contain information about medical device(s)/drugs(s).

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Aylott, C.E.W., Puna, R., Robertson, P.A. et al. Spinous process morphology: the effect of ageing through adulthood on spinous process size and relationship to sagittal alignment. Eur Spine J 21, 1007–1012 (2012). https://doi.org/10.1007/s00586-011-2029-6

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00586-011-2029-6

Keywords

  • Spinous process
  • Ageing
  • Sagittal alignment
  • Lumbar lordosis
