Endotracheal intubation: ultrasound-guided versus fiberscope in patients with cervical spine immobilization

A Letter to the Editor to this article was published on 27 February 2018

A Letter to the Editor to this article was published on 01 November 2017

Abstract

Background

Ultrasound has growing applications in airway management during anesthesia. The aim of the present study was to evaluate the feasibility of real-time ultrasound-guided tracheal intubation in patients with cervical spine immobilization relative to fiberscope-guided tracheal intubation.

Patients and methods

This randomized controlled study was carried out on 266 adult patients who have a rigid neck collar in place for cervical spine immobilization and were randomly allocated into two equal groups. All patients were subjected to the same anesthetic protocol. After full neuromuscular blockade, neck collar was removed and tracheal intubation was done in the neutral position. In group A, the trachea was intubated guided by a 5–12-MHz linear ultrasound probe attached to a Sonoscape A5 ultrasound machine. In group B, the trachea was intubated by an endotracheal tube mounted over a fiberscope (Karl Storz, working length 65 cm, distal tip diameter 5.6 mm). Hemodynamic measurements and oxygen saturation were recorded. Tracheal intubation criteria for both groups including duration of the intubation procedure, number of intubation attempts, success rate at each attempt, and the lowest oxygen saturation recorded during tracheal intubation were recorded.

Results

Ultrasound and fiberscope achieved comparable time for tracheal intubation (57 ± 12 vs. 55 ± 10 s), respectively. Success rate of tracheal intubation at the first attempt was higher in the fiberscope group than the ultrasound group, with a P value of 0.032. The overall success rate was not significantly different between the two groups.

Conclusions

Ultrasound-guided tracheal intubation showed a lower first attempt success rate in patients with cervical spine immobilization compared to fiberscope-guided tracheal intubation but the overall success rates were comparable. Ultrasound can be an alternative technique for guiding tracheal intubation in patients with cervical spine immobilization.

Registry number

PACTR201602001476292.

This is a preview of subscription content, access via your institution.

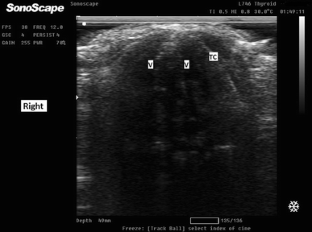

Fig. 1

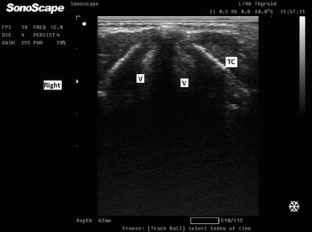

Fig. 2

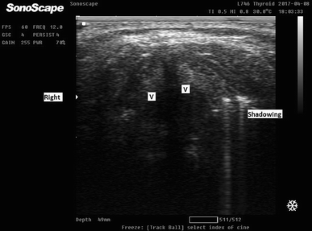

Fig. 3

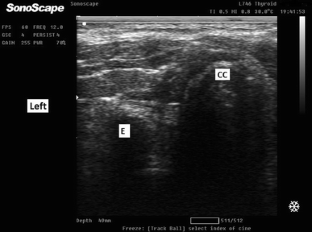

Fig. 4

References

  1. Marciniak B, Fayoux P, Hébrard A, Krivosic-Horber R, Engelhardt T, Bissonnette B. Airway management in children: ultrasonography assessment of tracheal intubation in real time? Anesth Analg. 2009;108:461–5.

    Article  PubMed  Google Scholar

  2. Kristensen MS. Ultrasonography in the management of the airway. Acta Anaesthesiol Scand. 2011;55:1155–73.

    CAS  Article  PubMed  Google Scholar

  3. Crosby ET. Airway management in adults after cervical spine trauma. Anesthesiology. 2006;104:1293–318.

    Article  PubMed  Google Scholar

  4. Malcharek MJ, Rogos B, Watzlawek S, Sorge O, Sablotzki A, Gille J, Larson CP Jr. Awake fiberoptic intubation and self-positioning in patients at risk of secondary cervical injury: a pilot study. J Neurosurg Anesthesiol. 2012;24:217–21.

    Article  PubMed  Google Scholar

  5. Fiadjoe JE, Stricker P, Gurnaney H, Nishisaki A, Rabinowitz A, Gurwitz A, McCloskey JJ, Ganesh A. Ultrasound-guided tracheal intubation: a novel intubation technique. Anesthesiology. 2012;117:1389–91.

    Article  PubMed  Google Scholar

  6. Wilson ME, Spiegelhalter D, Robertson J, Lesser I. Predicting difficult intubation. Br J Anaesth. 1988;61:211–6.

    CAS  Article  PubMed  Google Scholar

  7. Orr JA, Stephens RS, Mitchell VM. Ultrasound-guided localization of the trachea. Anaesthesia. 2007;62:972–3.

    CAS  Article  PubMed  Google Scholar

  8. Holley J, Jorden R. Airway management in patients with unstable cervical spine fractures. Ann Emerg Med. 1989;18:1237–9.

    CAS  Article  PubMed  Google Scholar

  9. Rosenblatt WH, Wagner PJ, Ovassapian A, Kain ZN. Practice patterns in managing the difficult airway by anesthesiologists in the United States. Anesth Analg. 1998;87:153–7.

    CAS  PubMed  Google Scholar

  10. Austin N, Krishnamoorthy V, Dagal A. Airway management in cervical spine injury. Int J Crit Illn Inj Sci. 2014;4:50–6.

    Article  PubMed  PubMed Central  Google Scholar

  11. Gottlieb M, Bailitz JM, Christian E, Russell FM, Ehrman RR, Khishfe B, Kogan A, Ross C. Accuracy of a novel ultrasound technique for confirmation of endotracheal intubation by expert and novice emergency physicians. West J Emerg Med. 2014;15:834–9.

    Article  PubMed  PubMed Central  Google Scholar

  12. Tsui B, Ip V, Walji A. Airway sonography in live models and cadavers. JUM. 2013;32:1049–58.

    Google Scholar

Download references

Author information

Affiliations

Authors

Contributions

MAM: idea of the research, writing the final draft, performing the design of the research. EAA: participation in the design, collection of data. OMZ: statistical analysis, participation in the protocol, collection of data. SFE: statistical analysis, participation in the protocol, collection of data.

Corresponding author

Correspondence to Moustafa Abdelaziz Moustafa.

Ethics declarations

Conflict of interest

All authors declare that they have no conflict of interest

Funding

Self fund.

Ethical approval

This report describes human research. IRB contact information: Ethics Committee of the Alexandria Main University Hospitals, 16/6/2011, IRB NO: 00007555-FWA NO: 00015712.

Informed consent

This study was conducted with written informed consent from the study subjects.
