Establishment of validated models for non-invasive prediction of rectal temperature of sows using infrared thermography and chemometrics

  • Original Paper
  • Published:
International Journal of Biometeorology Aims and scope Submit manuscript

Abstract

Rectal temperature is an important physiological indicator used to characterize the reproductive and health status of sows. Infrared thermography, a surface temperature measurement technology, was investigated in this study to explore its feasibility in non-invasive detection of rectal temperature in sows. A total of 124 records of rectal temperature and surface temperature in various body regions of 99 Landrace × Yorkshire crossbred sows were collected. These surface temperatures together with ambient temperature, ambient humidity, and wind speed in pig pens were correlated with the real rectal temperature of sows to establish rectal temperature prediction models by introducing chemometrics algorithms. Two types of models, i.e., full feature models and selected feature models, were established by applying the partial least squares regression (PLSR) method. The optimal model was attained when 7 important features were selected by LARS-Lasso, where correlation coefficients and root mean squared errors of calibration were 0.80 and 0.30 °C, respectively. Particularly, the validity and stability of established simplified models were further evaluated by applying the model to an independent prediction set, where correlation coefficients and root mean squared errors for prediction were 0.80 and 0.35 °C, respectively. The validation of established models is scarce in previous similar studies. Above all, this study demonstrated that introduction of chemometrics methodologies would lead to more reliable and accurate model for predicting sow rectal temperature, thus the potential for ensuring animal welfare in a broader view if extended to more applications.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

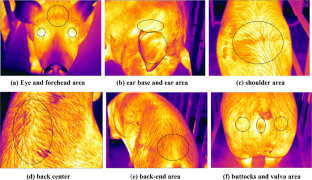

Fig. 1

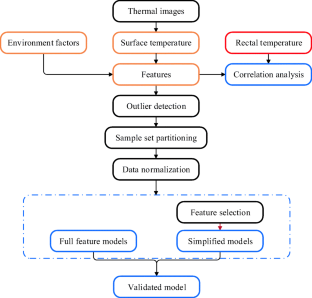

Fig. 2

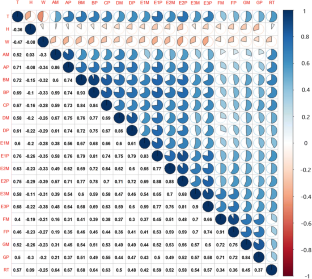

Fig. 3

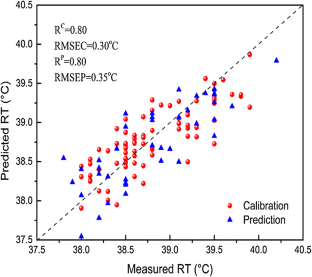

Fig. 4

References

  • Banhazi TM, Lehr H, Black JL, Crabtree H, Schofield P, Tscharke M, Berckmans D (2012) Precision livestock farming: an international review of scientific and commercial aspects. Int J Agric Biol Eng 5:1–9

    Google Scholar

  • Brown-Brandl TM, Eigenberg RA, Purswell JL (2013) Using thermal imaging as a method of investigating thermal thresholds in finishing pigs. Biosyst Eng 114:327–333

    Article  Google Scholar

  • Chung T, Jung W, Nam E, Kim J, Park S, Hwang C (2010) Comparison of rectal and infrared thermometry for obtaining body temperature of gnotobiotic piglets in conventional portable germ free facility. Asian Australas J Anim Sci 23:1364–1368

    Article  Google Scholar

  • Diego ACPD, Sánchez-Cordón PJ, Pedrera M, Martínez-López B, Gómez-Villamandos JC, Sánchez-Vizcaíno JM (2013) The use of infrared thermography as a non-invasive method for fever detection in sheep infected with bluetongue virus. Vet J 198:182–186

    Article  Google Scholar

  • Efron B, Hastie T, Johnstone I, Tibshirani R (2004) Least angle regression. Ann Stat 32:407–451

    Article  Google Scholar

  • Feng YZ, Sun DW (2013) Near-infrared hyperspectral imaging in tandem with partial least squares regression and genetic algorithm for non-destructive determination and visualization of Pseudomonas loads in chicken fillets. Talanta 109:74–83

    Article  CAS  Google Scholar

  • Feng YZ, Elmasry G, Sun DW, Scannell AG, Walsh D, Morcy N (2013) Near-infrared hyperspectral imaging and partial least squares regression for rapid and reagentless determination of Enterobacteriaceae on chicken fillets. Food Chem 138:1829–1836

    Article  CAS  Google Scholar

  • Furniss SJ (1987) Measurement of rectal temperature to predict ‘mastitis, metritis and alagactia’ (MMA) in sows after farrowing. Prev Vet Med 5:133–139. https://doi.org/10.1016/0167-5877(87)90018-3

    Article  Google Scholar

  • Galvão RK, Araujo MC, José GE, Pontes MJ, Silva EC, Saldanha TC (2005) A method for calibration and validation subset partitioning. Talanta 67:736–740

    Article  CAS  Google Scholar

  • George WD, Godfrey RW, Ketring RC, Vinson MC, Willard ST (2014) Relationship among eye and muzzle temperatures measured using digital infrared thermal imaging and vaginal and rectal temperatures in hair sheep and cattle. J Anim Sci 92:4949–4955

    Article  CAS  Google Scholar

  • Hardy JD, Soderstrom GF (1938) Heat loss from the nude body and peripheral blood flow at temperature of 22°C to 35°C. J Nutr 16:493–510

    Article  Google Scholar

  • Hine L, Laven RA, Sahu SK (2015) An analysis of the effect of thermometer type and make on rectal temperature measurements of cattle, horses and sheep. N Z Vet J 63:171–173

    Article  CAS  Google Scholar

  • Jensen BN, Jensen FS, Madsen SN, Løssl K (2000) Accuracy of digital tympanic, oral, axillary, and rectal thermometers compared with standard rectal mercury thermometers. Eur J Surg 166:848–851

    Article  CAS  Google Scholar

  • Kammersgaard TS, Malmkvist J, Pedersen LJ (2013) Infrared thermography--a non-invasive tool to evaluate thermal status of neonatal pigs based on surface temperature. Animal 7:2026–2034

    Article  CAS  Google Scholar

  • Kantardzic M (2004) Data mining: concepts, models, methods and algorithms. John Wiley & Sons, Inc., New Jersey

    Google Scholar

  • Loughmiller JA, Spire MF, Dritz SS, Fenwick BW, Hosni MH, Hogge SB (2001) Relationship between mean body surface temperature measured by use of infrared thermography and ambient temperature in clinically normal pigs and pigs inoculated with Actinobacillus pleuropneumoniae. Am J Vet Res 62:676–681

    Article  CAS  Google Scholar

  • Lucy MC, Safranski TJ (2017) Heat stress in pregnant sows: thermal responses and subsequent performance of sows and their offspring. Mol Reprod Dev 84:946–956

    Article  CAS  Google Scholar

  • Malmkvist J, Pedersen LJ, Kammersgaard TS, Jørgensen E (2012) Influence of thermal environment on sows around farrowing and during the lactation period. J Anim Sci 90:3186–3199

    Article  CAS  Google Scholar

  • Marai IFM, EI-Darawany AA, Fadiel A, Abdel-Hafez MAM (2007) Physiological traits as affected by heat stress in sheep—a review. Small Rumin Res 71:1–12

    Article  Google Scholar

  • Qin YX, Wang YL, Gao XF, Shi-Rong MI, Qiu XT, Zhang Q, Ding XD (2016) Temperature changes during estrus in swine was studied by infrared temperature measurement device. Chin J Anim Vet Sci 47(1):85–91

    Google Scholar

  • Roberto J, Souza B (2014) Use of infrared thermography in veterinary medicine and animal production. J Anim Behav Biometeorol 2(3):73–84

    Article  Google Scholar

  • Sathiyabarathi M, Jeyakumar S, Manimaran A, Jayaprakash G, Pushpadass HA, Sivaram M, Ramesha KP, Das DN, Kataktalware MA, Prakash MA, Kumar RD (2016) Infrared thermography: a potential noninvasive tool to monitor udder health status in dairy cows. Vet World 9:1075–1081

    Article  CAS  Google Scholar

  • Sellier N, Guettier E, Staub C (2014) A review of methods to measure animal body temperature in precision farming. Am J Agric Sci Technol 2:74–99

    Google Scholar

  • Siewert C, Dänicke S, Kersten S, Brosig B, Rohweder D, Beyerbach M, Seifert H (2014) Difference method for analysing infrared images in pigs with elevated body temperatures. Z Med Phys 24:6–15

    Article  Google Scholar

  • Soerensen DD, Pedersen LJ (2015) Infrared skin temperature measurements for monitoring health in pigs: a review. Acta Vet Scand 57:1–11

    Article  Google Scholar

  • Stiehler T, Heuwieser W, Pfützner A, Voigtsberger R, Burfeind O (2013) Repeatability of measurements of the rectal temperature and comparison of vaginal and rectal temperature in puerperal sows. Tierarztl Prax Ausg G Grosstiere Nutztiere 41:217–224

    Article  CAS  Google Scholar

  • Svante W, Michael S, Lennart E (2001) PLS-regression: a basic tool of chemometrics. Chemom Intell Lab Syst 58:109–130

    Article  Google Scholar

  • Tibshirani R (2011) Regression shrinkage and selection via the lasso. J R Stat Soc 73:267–288

    Article  Google Scholar

  • Traulsen I, Naunin K, Müller K, Krieter J (2010) Application of infrared thermography to measure body temperature of sows. Züchtungskunde 82:437–446

    Google Scholar

  • Vicente-Pérez R, Avendaño-Reyes L, Mejía-Vázquez Á, Álvarez-Valenzuela FD, Correa-Calderón A, Mellado M, Meza-Herrera CA, Guerra-Liera JE, Robinson PH, Macías-Cruz U (2016) Prediction of rectal temperature using non-invasive physiologic variable measurements in hair pregnant ewes subjected to natural conditions of heat stress. J Therm Biol 55:1–6

    Article  Google Scholar

  • Warriss PD, Pope SJ, Brown SN, Wilkins LJ, Knowles TG (2006) Estimating the body temperature of groups of pigs by thermal imaging. Vet Rec 158:331–334

    Article  CAS  Google Scholar

  • Wathes CM, Kristensen HH, Aerts JM, Berckmans D (2008) Is precision livestock farming an engineer’s daydream or nightmare, an animal’s friend or foe, and a farmer’s panacea or pitfall? Comput Electron Agric 64:2–10

    Article  Google Scholar

  • Yu J, Yin P, Liu F, Cheng G, Guo K, Lu A, Zhu X, Luan W, Xu J (2010) Effect of heat stress on the porcine small intestine: a morphological and gene expression study. Comp Biochem Physiol A 156:119–128

    Article  CAS  Google Scholar

Download references

Funding

The authors would like to thank the financial supports from the National Key R&D Program of China (2018YFD0500700) and the Natural Science Foundation of Hubei Province (2018CFB099).

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Yao-Ze Feng.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Feng, YZ., Zhao, HT., Jia, GF. et al. Establishment of validated models for non-invasive prediction of rectal temperature of sows using infrared thermography and chemometrics. Int J Biometeorol 63, 1405–1415 (2019). https://doi.org/10.1007/s00484-019-01758-2

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00484-019-01758-2
