Tumor ablation therapy of liver cancers with an open magnetic resonance imaging-based navigation system

  • Published:
Surgical Endoscopy Aims and scope Submit manuscript

Abstract

Background

As minimally invasive treatments for liver cancers, percutaneous ablation therapies represent a valid alternative to liver resections, especially in patients with poor liver function. Recently, image-guided surgical and interventional procedures using open magnetic resonance imaging (MRI) have been introduced.

Methods

We performed percutaneous ablation therapy for 51 nodules of liver cancer in 34 patients using a navigation system based on open MRI. During the ablation therapy, the ultrasonography (US) probe, needle, and tumor were displayed on the MR image. Immediately after the procedure, the therapeutic effect was evaluated by open MRI.

Results

In all cases, percutaneous puncture into the tumors was successful, even in the case of tumor undetectable by US. Mean fiducial registration error was approximately 3 mm. MR images captured after the procedure clearly demonstrated the ablated area. No mortality or major complications occurred, except for mild hemorrhage, pyrexia, and ascites.

Conclusions

We developed a novel navigation system integrating US and MR images using open MRI for percutaneous ablation therapy of liver cancers. The presented system allows a safe and accurate approach to liver cancers, especially certain tumors that cannot be adequately visualized by US, and an evaluation of therapeutic results immediately after the procedures.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

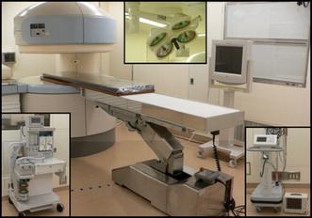

Fig. 1
Fig. 2

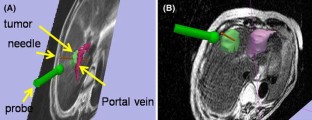

Fig. 3

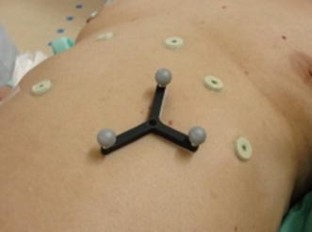

Fig. 4
