The impact of particle size and initial solid loading on thermochemical pretreatment of wheat straw for improving sugar recovery

Bioprocess and Biosystems Engineering volume 37, pages 1427–1436 (2014)Cite this article

Abstract

This work studies the effect of initial solid load (4–32 %; w/v, DS) and particle size (0.41–50 mm) on monosaccharide yield of wheat straw subjected to dilute H2SO4 (0.75 %, v/v) pretreatment and enzymatic saccharification. Response surface methodology (RSM) based on a full factorial design (FFD) was used for the statistical analysis of pretreatment and enzymatic hydrolysis. The highest xylose yield obtained during pretreatment (ca. 86 %; of theoretical) was achieved at 4 % (w/v, DS) and 25 mm. The solid fraction obtained from the first set of experiments was subjected to enzymatic hydrolysis at constant enzyme dosage (17 FPU/g); statistical analysis revealed that glucose yield was favored with solids pretreated at low initial solid loads and small particle sizes. Dynamic experiments showed that glucose yield did not increase after 48 h of enzymatic hydrolysis. Once established pretreatment conditions, experiments were carried out with several initial solid loading (4–24 %; w/v, DS) and enzyme dosages (5–50 FPU/g). Two straw sizes (0.41 and 50 mm) were used for verification purposes. The highest glucose yield (ca. 55 %; of theoretical) was achieved at 4 % (w/v, DS), 0.41 mm and 50 FPU/g. Statistical analysis of experiments showed that at low enzyme dosage, particle size had a remarkable effect over glucose yield and initial solid load was the main factor for glucose yield.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

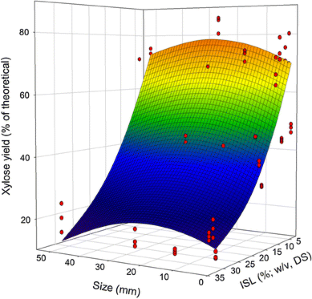

Fig. 1

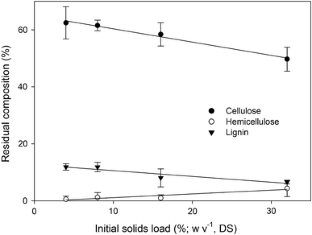

Fig. 2

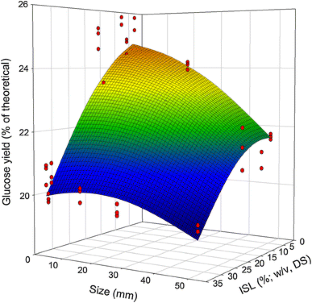

Fig. 3

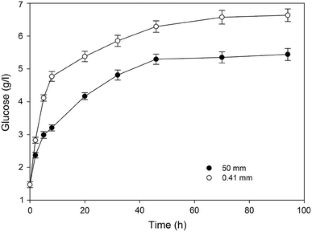

Fig. 4

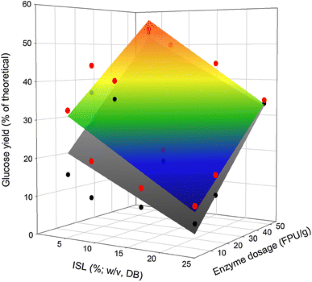

Fig. 5

References

  1. Alvira P, Ballesteros M, Negro M (2010) Pretreatment technologies for an efficient bioethanol production process based on enzymatic hydrolysis: a review. Bioresour Technol 101(13):4851–4861. doi:10.1016/j.biortech.2009.11.093

    CAS  Article  Google Scholar

  2. Arantes V, Saddler J (2010) Access to cellulose limits the efficiency of enzymatic hydrolysis: the role of amorphogenesis. Biotechnol Biofuels 3:4. doi:10.1186/1754-6834-3-4

    Article  Google Scholar

  3. Baboukani B, Vossoughi M, Alemzadeh I (2012) Optimisation of dilute-acid pretreatment conditions for enhancement sugar recovery and enzymatic hydrolysis of wheat straw. Biosyst Eng 111(2):166–174. doi:10.1016/j.biosystemseng.2011.11.009

    Article  Google Scholar

  4. Ballesteros I, Oliva J, Negro P, Ballesteros M (2002) Enzymic hydrolysis of steam exploded herbaceous agricultural waste (Brassica carinata) at different particle sizes. Process Biochem 38:187–192. doi:10.1016/S0032-9592(02)00070-5

    CAS  Article  Google Scholar

  5. Cara C, Ruiz E, Oliva J, Saez F, Castro E (2008) Conversion of olive tree biomass into fermentable sugars by dilute acid pretreatment and enzymatic saccharification. Renew Energy 99:1869–1876. doi:10.1016/j.biortech.2007.03.037

    CAS  Google Scholar

  6. Hansen M, Kristensen J, Felby C, Jorgensen H (2011) Pretreatment and enzymatic hydrolysis of wheat straw (Triticum aestivum L.)—the impact of lignin relocation and plant tissues on enzymatic accessibility. Bioresour Technol 102(3):2804–2811. doi:10.1016/j.biortech.2010.10.030

    CAS  Article  Google Scholar

  7. Hendriks A, Zeeman G (2009) Pretreatments to enhance the digestibility of lignocellulosic biomass. Bioresour Technol 100:10–18. doi:10.1016/j.biortech.2008.05.027

    CAS  Article  Google Scholar

  8. Hodge D, Karim N, Schell D, McMillan J (2008) Soluble and insoluble solids contributions to high-solids enzymatic hydrolysis of lignocellulose. Bioresour Technol 99(18):8940–8948. doi:10.1016/j.biortech.2008.05.015

    CAS  Article  Google Scholar

  9. Hsu T, Guo G, Chen W, Hwang W (2010) Effect of dilute acid pretreatment of rice Straw on structural properties and enzymatic hydrolysis. Bioresour Technol 101(13):4907–4913. doi:10.1016/j.biortech.2009.10.009

    CAS  Article  Google Scholar

  10. Jacobsen S, Wyman C (2000) Cellulose and hemicellulose hydrolysis models for application to current and novel pretreatment processes. Appl Biochem Biotechnol 84–86:81–96. doi:10.1385/ABAB:84-86:1-9:81

    Article  Google Scholar

  11. Jorgensen H, Vibe-Pedersen J, Larsen J, Felby C (2007) Liquefaction of lignocellulose at high-solids concentrations. Biotechnology 96(5):862–870. doi:10.1002/bit.21115

    Google Scholar

  12. Kabel M, Bos G, Zeevalking J, Voragen A, Schols H (2007) Effect of pretreatment severity on xylan solubility and enzymatic breakdown of the remaining cellulose of wheat straw. Bioresour Technol 95(10):2034–2042. doi:10.1016/j.biortech.2006.08.006

    Article  Google Scholar

  13. Kaparaju P, Serrano M, Thomsen AB, Kongjan P, Angelidaki I (2009) Bioethanol, biohydrogen and biogas production from wheat straw in a biorefinery concept. Bioresour Technol 100:2562–2568. doi:10.1016/j.biortech.2008.11.011

    CAS  Article  Google Scholar

  14. Karunanithy C, Muthukumarappan K, Gibbons WR (2012) Extrusion pretreatment of pine wood chips. Appl Biochem Biotechnol 167:81–99. doi:10.1007/s12010-012-9662-3

    CAS  Article  Google Scholar

  15. Kazi FK, Fortman JA, Anex RP, Hsu DD, Aden A, Dutta A, Kothandaraman (2010) Technoeconomic comparison of process technologies for biochemical ethanol production from corn stover. Fuel 89:520–528. doi:10.1016/j.fuel.2010.01.001

    Article  Google Scholar

  16. Kristensen J, Felby C, Jorgensen H (2009) Yield-determining factors in high-solids enzymatic hydrolysis of Lignocellulose. Biotechnol Biofuels 10:1–10. doi:10.1186/1754-68343212-11

    Google Scholar

  17. Larsson S, Palmqvist E, Hahn-Hagerdal B, Tengborg C, Stenberg K, Zacchi G, Nilvebrant N (1999) The generation of fermentation inhibitors during dilute acid hydrolysis of softwood. Enzyme Microb Technol 24(3–4):151–159. doi:10.1016/S01410229(98)00101-X

    CAS  Article  Google Scholar

  18. Laureano-Perez L, Teymouri F, Alizadeh H, Dale B (2005) Understanding factors that limit enzymatic hydrolysis of biomass. Appl Biochem Biotechnol 121–124:1081–1099. doi:10.1007/978-1-59259-991-291

    Article  Google Scholar

  19. Lloyd T, Wyman C (2005) Combined sugar yields for dilute sulfuric acid pretreatment of corn stover followed by enzymatic hydrolysis of the remaining solids. Bioresour Technol 96(18):1967–1977. doi:10.1016/j.biortech.2005.01.011

    CAS  Article  Google Scholar

  20. Mais U, Esteghlalian A, Saddler J, Mansfield S (2002) Enhancing the enzymatic hydrolysis of cellulosic materials using simultaneous ball milling. Appl Biochem Biotechnol 98–100:815–832. doi:10.1385/ABAB:98-100:1-9:815

    Article  Google Scholar

  21. Panagiotopoulos I, Lignos G, Bakker R, Koukios E (2012) Effect of low severity dilute acid pretreatment of barley straw and decreased enzyme loading hydrolysis on the production of fermentable substrates and the release of inhibitory compounds. J Clean Prod 32:45–51. doi:10.1016/j.jclepro.2012.03.019

    CAS  Article  Google Scholar

  22. Pedersen M, Meyer AS (2010) Lignocellulose pretreatment severity—relating pH to biomatrix opening. New Biotech 27(6):739–750. doi:10.1016/j.nbt.2010.05.003

    CAS  Article  Google Scholar

  23. Saha BC (2003) Hemicellulose bioconversion. J Ind Microbiol Biotechnol 30(5):279–291. doi:10.1007/s10295-003-0049-x

    CAS  Article  Google Scholar

  24. Saha BC, Iten LB, Cotta MA, Wu VY (2005) Dilute acid pretreatment, enzymatic saccharification and fermentation of wheat straw to ethanol. Process Biochem 40:3693–3700. doi:10.1016/j.procbio.2005.04.006

    CAS  Article  Google Scholar

  25. Sanchez A, Sevilla-Guitron V, Magaa G, Melgoza P, Hernandez H (2011) Co-production of ethanol, hydrogen and biogas using agro-wastes. Conceptual plant design and NPV analysis for mid-size agricultural sectors. Comput Aided Chem Eng 29:1884–1888. doi:10.1016/B978-0-444-54298-4.50155-0

    CAS  Article  Google Scholar

  26. Sanchez A, Sevilla-Guitron V, Magaña G, Gutierrez L (2013) Parametric analysis of total costs and energy efficiency of 2G enzymatic ethanol production. Fuel 113:165–179. doi:10.1016/j.fuel.2013.05.034

    CAS  Article  Google Scholar

  27. Sannigrahi P, Ragauskas A, Miller S (2008) Effects of two-stage dilute acid pretreatment on the structure and composition of lignin and cellulose in loblolly pine. Bioenergy Res 1(3–4):205–214. doi:10.1007/s12155-008-9021-y

    Article  Google Scholar

  28. Thomsen M, Thygesen A, Jorgensen H (2006) Preliminary results on optimization of pilot scale pretreatment of wheat straw used in coproduction of bioethanol and electricity. Appl Biochem Biotechnol 129–132(1):448–460. doi:10.1007/978-1-59745-268-737

    Google Scholar

  29. Wei W, Wu S, Liu L (2011) Enzymatic saccharification of dilute acid pretreated eucalyptus chips for fermentable sugar production. Bioresour Technol 110:302–307. doi:10.1016/j.biortech.2012.01.003

    Article  Google Scholar

  30. Weiss N, Nagle N, Tucker M, Elander R (2009) High xylose yields from dilute acid pretreatment of corn stover under process-relevant conditions. Appl Biochem Biotechnol 155(1–3):418–428. doi:10.1007/s12010-008-8490-y

    CAS  Google Scholar

  31. Yeh A, Huang Y, Chen S (2010) Effect of particle size on the rate of enzymatic hydrolysis 363 of cellulose. Carbohydr Polym 79(1):192–199. doi:10.1016/j.carbpol.2009.07.049

    CAS  Article  Google Scholar

  32. William H (2005) Official methods of analysis of AOAC International, 18th edition, Method 973.18 Fiber (acid detergent) and lignin (H2SO4) in animal Feed, Maryland USA

  33. Yoshida M, Liu Y, Uchida S, Kawarada K, Ukagami Y, Ichinose H, Kaneko S, Fukuda K (2008) Effects of cellulose crystallinity, hemicellulose, and lignin on the enzymatic hydrolysis of Miscanthus sinensis to monosaccharides. Biosci Biotechnol Biochem 72(3):805–810. doi:10.1271/bbb.70689

    CAS  Article  Google Scholar

  34. Zhu L, ODwyer J, Chang V, Granda C, Holtzapple M (2008) Structural features affecting biomass enzymatic digestibility. Bioresour Technol 99(9):3817–3828. doi:10.1016/j.biortech.2007.07.033

    CAS  Article  Google Scholar

Download references

Acknowledgments

Partial financial support from Secretary of Energy (SENER), México (Project SENER 2009-150001) is acknowledged.

Author information

Affiliations

  1. Centro de Investigación y de Estudios Avanzados del, Instituto Politécnico Nacional Unidad Guadalajara de Ingeniería Avanzada, Control Automático, Guadalajara, Mexico

    Oscar A. Rojas-Rejón & Arturo Sánchez

Authors
  1. Oscar A. Rojas-Rejón
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Arturo Sánchez
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Oscar A. Rojas-Rejón.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Rojas-Rejón, O.A., Sánchez, A. The impact of particle size and initial solid loading on thermochemical pretreatment of wheat straw for improving sugar recovery. Bioprocess Biosyst Eng 37, 1427–1436 (2014). https://doi.org/10.1007/s00449-013-1115-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00449-013-1115-z

Keywords

  • Thermochemical pretreatment
  • Wheat straw
  • Enzymatic saccharification
  • Cellulosic ethanol
