Rheology and Hydrodynamic Properties of Tolypocladium inflatum Fermentation Broth and Its Simulation

Bioprocess and Biosystems Engineering volume 27, pages 239–247 (2005)Cite this article

Abstract

A physico-chemical, two phase simulated pseudoplastic fermentation (SPF) broth was investigated in which Solka Floc cellulose fibre was used to simulate the filamentous biomass, and a mixture of 0.1% (w/v) carboxymethyl cellulose (CMC) and 0.15 M aqueous sodium chloride was used to simulate the liquid fraction of the fermentation broth. An investigation of the rheological behaviour and hydrodynamic properties of the SPF broth was carried out, and compared to both a fungal Tolypocladium inflatum fermentation broth and a CMC solution in a 50 L stirred tank bioreactor equipped with conventional Rushton turbines. The experimental data confirmed the ability of the two phase SPF broth to mimic both the T. inflatum broth bulk rheology as well as the mixing and mass transfer behaviour. In contrast, using a homogeneous CMC solution with a similar bulk rheology to simulate the fermentation resulted in a significant underestimation of the mass transfer and mixing times. The presence of the solid phase and its microstructure in the SPF broth appear to play a significant role in gas holdup and bubble size, thus leading to the different behaviours. The SPF broth seems to be a more accurate simulation fluid that can be used to predict the bioreactor mixing and mass transfer performance in filamentous fermentations, in comparison with CMC solutions used in some previous studies.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12

Abbreviations

a :

Gas-liquid interfacial area per unit volume (m −1)

C :

Instantaneous concentration of dissolved oxygen at any time, t mol.m −3)

C 0 :

Initial concentration of dissolved oxygen at time, t 0 (mol.m −3)

C * :

Saturation concentration of dissolved oxygen (mol.m −3)

d B :

Mean bubble diameter (m)

k L a :

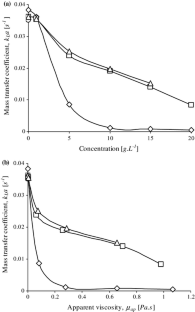

Overall volumetric gas-liquid mass transfer coefficient (s −1 K consistency factor (Pa.s n)

n :

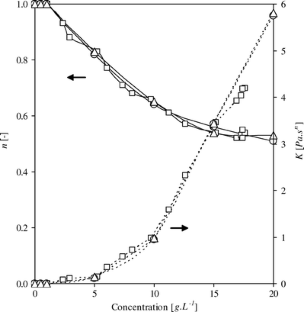

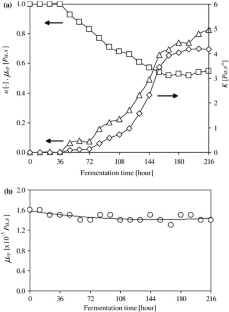

Flow behaviour index (-)

N :

Rotational speed of the impeller (s −1)

t 95 :

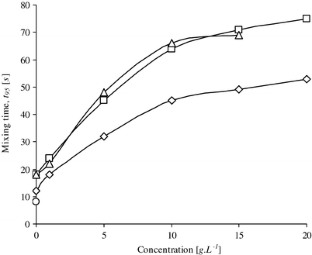

95% homogeneity of mixing time (s)

ε:

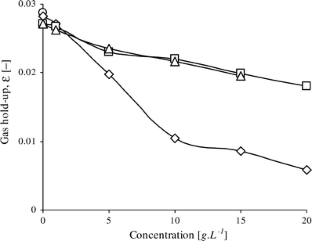

Gas hold-up (dimensionless)

μ ap :

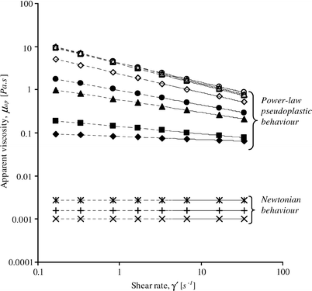

Apparent viscosity (Pa.s)

τ:

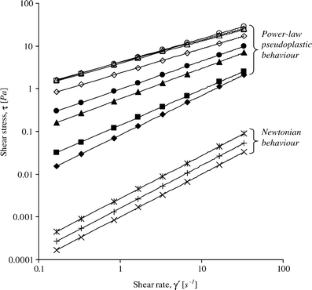

Shear stress (Pa)

γ′:

Shear rate (s −1)

References

  1. Moo-Young M (1989) Bioreactor design for fragile cell culture. In: Winkler MA (ed) Chemical Engineering Problems in Biotechnology. The Universities Press, Belfast

  2. Atkinson B, Mavituna F (1991) Biochemical engineering and biotechnology handbook, 2nd edn. Marcel Dekker, New York

    Google Scholar

  3. Riley GL, Tucker KG, Paul GC, Thomas CR (2000) Effect of biomass concentration and mycelial morphology on fermentation broth rheology. Biotechnol Bioeng 68:160–172

    Article  CAS  Google Scholar

  4. Moo-Young M, Blanch HW (1981) Design of biochemical reactor; mass transfer criteria for simple and complex systems. Adv Biochem Eng 2:1–69

    Google Scholar

  5. Blanch HW, Clark DS (1997) Biochemical Engineering. Marcel Dekker, New York

    Google Scholar

  6. Gavrilescu M, Tudose RZ (1998) Hydrodynamics of non-Newtonian liquids in external-loop airlift bioreactors. Bioproc Eng 18:17–26

    Article  CAS  Google Scholar

  7. Gogate PR, Beenackers AACM, Pandit AB (2000) Multiple-impeller systems with a special emphasis on bioreactors: a critical review. Biochem Eng J 6:109–144

    CAS  Google Scholar

  8. Li GQ, Yang SZ, Cai ZL, Chen JY (1996) Mass transfer and gas-liquid circulation in an airlift bioreactor with viscous non-Newtonian fluids. Chem Eng J 56:B101-B107

    Google Scholar

  9. Linek V, Benes P, Sinkule J (1989) Dynamic pressure method for k L a measurement in large scale bioreactors. Biotechnol Bioeng 23:301

    Google Scholar

  10. Linek V, Moucha T, Sinkule J (1996) Gas-liquid mass transfer in vessels stirred with multiple impellers: I. Gas-liquid mass transfer characteristics in individual stages. Chem Eng Sci 51(12):3203–3212

    CAS  Google Scholar

  11. Arjunwadkar SJ, Sarvanan K, Pandit AB, Kulkarni PR (1998) Optimizing impeller combination for maximum hold-up with minimum power consumption. Biochem Eng J 1:1

    Google Scholar

  12. Kawase Y, Moo-Young M (1988) Volumetric mass transfer coefficients in aerated stirred tank reactors with Newtonian and non-Newtonian media. Chem Eng Res Dev 66:284

    CAS  Google Scholar

  13. Chisti Y, Moo-Young M (1987) Airlift reactors: characteristics, applications and design consideration. Chem Eng Comm 60:195–242

    CAS  Google Scholar

  14. Moo-Young M, Halard B, Allen DG, Burrell R, Kawase Y (1987) Oxygen transfer to mycelial fermentation broths in an airlift fermenter. Biotechnol Bioeng 30:746–753

    Article  CAS  Google Scholar

  15. Metzner AB, Otto RE (1957) Agitation of non-Newtonian fluids. AICHE J 3:3–10

    CAS  Google Scholar

  16. Bailey JE, Ollis DF (1986) Biochemical Engineering Fundamentals. McGraw-Hill, New York

    Google Scholar

  17. Kemblowski Z, Kristiasen B (1986) Rheometry of fermentation liquids. Biotechnol Bioeng 28:1474–1483

    Article  CAS  Google Scholar

  18. Doran PM (1995) Bioprocess Engineering Principles. Academic Press, London

    Google Scholar

  19. Chisti Y, Moo-Young M (1988) Hydrodynamics and oxygen transfer in Pneumatic bioreactor devices. Biotechnol Bioeng 31:487–494

    Article  CAS  Google Scholar

  20. Chisti Y (1989) Bioreactors, Airlift bioreactors. Elsevier, Oxford, pp 1–11

    Google Scholar

  21. Chisti Y, Jauregui-Haza UJ (2002) Oxygen transfer and mixing in mechanically agitated airlift bioreactors. Biochem Eng 10:143–153

    CAS  Google Scholar

  22. Chiampo F, Conti R (1994) Gas hold-up and mass transfer studies in tall multiple-impeller reactors. Proc Eur Conf Mix 8:73

    Google Scholar

  23. Jin B, Yu Q, Yan XQ, van Leeuwen J (2001) Characterization and improvement of oxygen transfer in pilot plant external air-lift bioreactor for mycelial biomass production. World J of Microb Biotechol 17:265–272

    CAS  Google Scholar

  24. Hoogendoorn CJ, Den Hartog AP (1967) Model studies on mixers in the viscous flow region. Chem Eng Sci 22:1689–1699

    CAS  Google Scholar

  25. Leuliet JC, Brito-de la Fuente E, Choplin L (1992) Mixing of elastic fluids with a helical ribbon impeller. In: Delaplace G, Leuliet C, Relandeau V (2000) Circulation and mixing times for helical ribbon impellers: Review and experiments. Exp in Fluids 28:170–182

    Google Scholar

  26. Masiuk S, Lacki H (1993) Power consumption and mixing times for Newtonian and non-Newtonian liquids mixing in a ribbon mixer. Chem Eng J 52:13–17

    CAS  Google Scholar

  27. Lide DR (1994) CRC handbook of chemistry and physics. In Goudar CT, Strevett KA, Shah SN (1999) Appl Microbiol Biotechnol 51:310–315

    Google Scholar

  28. Goudar CT, Strevett KA, Shah SN (1999) Influence of microbial concentration on the rheology of non-Newtonian fermentation broths. Appl Microbiol Biotechnol 51:310–315

    Article  CAS  Google Scholar

  29. Wang R, Webb C (1995) Effect of cell concentration on the rheology of glucoamylase fermentation broth. In Goudar CT, Strevett KA, Shah SN (1999) Appl Microbiol Biotechnol 51:310–315

    Google Scholar

  30. Al-Masry WA, Dukkan AR (1998) Hydrodynamics and mass-transfer studies in a pilot-plant airlift reactor: non-Newtonian systems. Ind Eng Chem Res 37:41–48

    Article  CAS  Google Scholar

  31. Moo-Young M, Kawase Y (1987) Gas hold-up and mass transfer in a bubble column with viscoelastic fluids. Can J Chem Eng 65:113–118

    CAS  Google Scholar

  32. Pollard DJ, Ison AP, Ayazi Shamlou P, Lilly MD (1998) Reactor heterogeneity with Saccharopolyspora erythraea airlift fermentations. Biotech Bioeng 58(5):453–463

    Article  CAS  Google Scholar

Download references

Acknowledgments

This work was financially supported by the Natural Sciences and Engineering Research Council of Canada. The assistance of Apotex Fermentation Ltd., Winnipeg, Canada, is gratefully acknowledged.
