, Volume 167, Issue 1, pp 39–48 | Cite as

Freeze fitness in alpine Tiger moth caterpillars and their parasitoids

  • T. C. HawesEmail author
  • D. A. Wharton
Physiological ecology - Original Paper

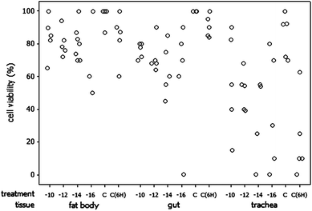

The adaptive fitness of a freeze-tolerant insect may be mediated by both endogenous and exogenous interactions. The aim of the study presented here was to characterize the freeze tolerance of alpine Tiger moth caterpillars (Metacrias huttoni) and highlight two poorly explored indices of the potential attrition of fitness: (1) downstream development and reproduction; (2) parasitism. Caterpillars survived temperatures as low as −16°C and demonstrated >90% 72-h survival after exposures to −10°C. Two-week acclimations at 5, 10, and 20°C had no effect on body water content, haemolymph osmolality or survival of equilibrium freezing, but there was a significant elevation of the temperature of crystallization (T c) in those caterpillars acclimated to 5°C. Cell viability of fat body tissue was resilient to freezing (−10 to −16°C), but midgut and tracheal cells showed significant degradation. Pupation and eclosion were unaffected by freezing at −5 or −10°C. Likewise, there were no significant differences in egg production or the proportion of eggs that hatched between control and frozen insects. By contrast, the ability of tachinid larvae to survive freezing within their hosts means that parasitism plays an important role in regulating population size. Mean parasitism of caterpillars by tachinids was 33.3 ± 7.2%. Pupation and imago emergence of tachinids after host ‘endo-nucleation’ was >75%. Eclosed adult tachinids showed a non-significant increase in the incidence of wing abnormalities in relation to low temperature exposure.


Fitness Freeze tolerance Parasitoid Lepidoptera Tachinidae



T. C. H. was funded by the Leverhulme Trust. Thanks to Kim Garrett for field assistance, Brian Patrick for the identification of M. huttoni and John Dugdale for the identification of the tachinid.


  1. Baust JG, Lee RE (1981) Divergent mechanisms of frost-hardiness in two populations of the gall fly, Eurosta solidaginis. J Insect Physiol 27:485–490CrossRefGoogle Scholar
  2. Baust JG, Rojas RR (1985) Insect cold hardiness: facts and fancy. J Insect Physiol 31:755–759CrossRefGoogle Scholar
  3. Block W, Turnock WJ, Jones TH (1987) Cold resistance and overwintering survival of the cabbage root fly, Delia radicum (Anthomyiidae), and its parasitoids, Trybliographa rapae (Cynipidae) in England. Oecologia 71:332–338CrossRefGoogle Scholar
  4. Brown CL, Bale JS, Walters KFA (2004) Freezing induces a loss of freeze tolerance in an overwintering insect. Proc R Soc Lond B 271:1507–1511CrossRefGoogle Scholar
  5. Butts RA (1992) Cold hardiness and its relationship to overwintering of the Russian wheat aphid (Homoptera: Aphididae) in southern Alberta. J Econ Entomol 85:1140–1145Google Scholar
  6. Colinet H, Hance T, Vernon P (2006) Water relations, fat reserves, survival, and longevity of a cold-exposed parasitic wasp Aphidius colemani (Hymenoptera: Aphidiinae). Environ Entomol 35:228–236CrossRefGoogle Scholar
  7. Colinet H, Nguyen TTA, Cloutier C, Michaud D, Hance T (2007) Proteomic profiling of a parasitic wasp exposed to constant and fluctuating cold exposure. Insect Biochem Mol Biol 37:1177–1188PubMedCrossRefGoogle Scholar
  8. DeWitt TJ, Scheiner SM (2004) Phenotypic variation from single phenotypes: a primer. In: DeWitt TJ, Scheiner SM (eds) Phenotypic plasticity functional and conceptual approaches. Oxford University Press, Oxford, pp 1–9Google Scholar
  9. Dugdale JS (2002) Some characteristics of New Zealand Tachinidae. Tachinid Times 15:1–2Google Scholar
  10. Fields PG, McNeil JM (1988) The cold hardiness of Ctenucha virginica (Lepidoptera: Arctiidae) larvae, a freezing-tolerant species. J Insect Physiol 34:269–277CrossRefGoogle Scholar
  11. Gibbs GW (1962) The New Zealand genus Metacrias Meyrick (Lepidoptera: Arctiidae). Systematics and distribution. Trans R Soc NZ 2:153–167Google Scholar
  12. Godfray HCJ (1994) Parasitoids. Behavioral and evolutionary ecology. Princeton University Press, Princeton, p 473Google Scholar
  13. Hance T, Boivin G (1993) Effect of parasitism by Anaphes sp. (Hymenoptera: Mymaridae) on the cold hardiness of Listronotus oregonensis (Coleoptera: Curculionidae) eggs. Can J Zool 71:759–764CrossRefGoogle Scholar
  14. Hance T, van Baaren J, Vernon P, Boivin G (2007) Impact of extreme temperatures on parasitoids in a climate change perspective. Annu Rev Entomol 52:107–126PubMedCrossRefGoogle Scholar
  15. Hart AJ, Bale JS (1997) Evidence for the first strongly freeze tolerant insect found in the UK. Ecol Entomol 22:242–245CrossRefGoogle Scholar
  16. Hart AJ, Bale JS (1998) Factors affecting the freeze tolerance of the hoverfly, Syrphus ribesii (Diptera: Syrphidae). J Insect Physiol 44:21–29CrossRefGoogle Scholar
  17. Hawes TC (2008) A postscript on cryotypes. J Exp Biol 211:3518PubMedCrossRefGoogle Scholar
  18. Hawes TC (2010) Mating behavior of the Alpine Tiger moth, Metacrias huttoni. J Insect Behav 24:22–33CrossRefGoogle Scholar
  19. Hawes TC, Bale JS (2007) Plasticity in arthropod cryotypes. J Exp Biol 210:2585–2592PubMedCrossRefGoogle Scholar
  20. Hawes TC, Wharton DAW (2010) Tolerance of freezing in caterpillars of the New Zealand Magpie moth (Nyctemera annulata). Physiol Entomol 35:296–300CrossRefGoogle Scholar
  21. Hawes TC, Couldridge CE, Bale JS, Worland MR, Convey P (2006) Habitat temperature and the temporal scaling of cold hardening in the High Arctic collembolan, Hypogastrura tullbergi (Schäffer). Ecol Entomol 31:450–459CrossRefGoogle Scholar
  22. Hawes TC, Hines AX, Viant MR, Bale JS, Worland MR, Convey P (2008) The metabolomic fingerprint of cryo-stress in a freeze tolerant insect. CryoLetters 29:505–515PubMedGoogle Scholar
  23. Hazell SP, Neve BP, Groutides C, Douglas AE, Blackburn TM, Bale JS (2010) Hyperthermic aphids: insights into behaviour and mortality. J Insect Physiol 56:123–131PubMedCrossRefGoogle Scholar
  24. Hodkinson ID, Coulson SJ (2004) Are high Arctic terrestrial food chains really that simple? The Bear Island food web revisited. Oikos 106:427–431CrossRefGoogle Scholar
  25. Humble LM (2006) Overwintering adaptions in Arctic sawflies (Hymenoptera: Tenthredinidae) and their parasitoids: cold tolerance. Can Entomol 138:59–71CrossRefGoogle Scholar
  26. Humble LM, Ring RA (1985) Inoculative freezing of a larval parasitoid within its host. CryoLetters 6:59–66Google Scholar
  27. Kukal O (1991) Behavioural and physiological adaptations to cold in a freeze tolerant Arctic insect. In: Lee RE, Denlinger DL (eds) Insects at low temperature. Chapman and Hall, London, pp 276–300Google Scholar
  28. Kukal O, Kevan PG (1987) The influence of parasitism on the life history of a high arctic insect, Gynaephora groenlandica (Wöcke) (Lepidoptera: Lymantriidae). Can J Zool 65:156–163CrossRefGoogle Scholar
  29. Layne JR (2005) Freeze tolerance and cryoprotection in caterpillars of the giant leopard moth (Ecpantheria scribonia Lepidoptera: Arctiidae). J Therm Biol 30:267–271CrossRefGoogle Scholar
  30. Layne JR, Blakeley DL (2002) Effect of freeze temperature on ice formation and long-term survival of the woolly bear caterpillar (Pyrrharctia isabella). J Insect Physiol 48:1133–1137PubMedCrossRefGoogle Scholar
  31. Lee RE, McGrath JJ, Morason RT, Taddeo RM (1993) Survival of intracellular freezing, lipid coalescence and osmotic fragility in fat body cells of the freeze-tolerant gall fly Eurosta solidaginis. J Insect Physiol 39:445–450CrossRefGoogle Scholar
  32. Lee RE, Elnitsky MA, Rinehart JP, Hayward SAL, Sandro LH, Denlinger DL (2006) Rapid cold-hardening increases the freezing tolerance of the Antarctic midge Belgica antarctica. J Exp Biol 209:399–406PubMedCrossRefGoogle Scholar
  33. Nowierski RM, Fitzgerald BC (2002) Supercooling capacity of Eurasian and North American populations of parasitoids of the Russian wheat aphid, Diuraphis noxia. Biocontrol 47:279–292CrossRefGoogle Scholar
  34. Powell SJ, Bale JS (2008) Intergeneration acclimation in aphid overwintering. Ecol Entomol 33:95–100CrossRefGoogle Scholar
  35. Southwood TRE (1961) A hormonal theory of the mechanism of wing polymorphism in Heteroptera. Proc R Entomol Soc Lond A 36:3–66Google Scholar
  36. Stireman JO, O’Hara JE, Wood DM (2006) Tachinidae: evolution, behaviour, and ecology. Annu Rev Entomol 51:525–555PubMedCrossRefGoogle Scholar
  37. Wharton DA (1999) Parasites and low temperatures. Parasitology 119:S7–S17PubMedCrossRefGoogle Scholar
  38. Worland MR, Block W, Grubor-Lajsic G (2001) Survival of Heleomyza borealis (Diptera, Heleomyzidae) larvae down to −60C. Physiol Entomol 25:1–5CrossRefGoogle Scholar
  39. Worland MR, Wharton DA, Byars SG (2004) Intracellular freezing and survival in the freeze tolerant alpine cockroach Celatoblatta quinquemaculata. J Insect Physiol 50:225–232PubMedCrossRefGoogle Scholar
  40. Zera AJ, Tiebel KC (1988) Brachypterizing effect of group rearing, juvenile hormone III and methoprene in the wing-dimorphic cricket, Gryllus rubens. J Insect Physiol 34:489–498CrossRefGoogle Scholar

Copyright information

© Springer-Verlag 2011

Authors and Affiliations

  1. 1.Department of ZoologyUniversity of OtagoDunedinNew Zealand
