Distribution pattern and penetration depth of doxorubicin after pressurized intraperitoneal aerosol chemotherapy (PIPAC) in a postmortem swine model

Journal of Cancer Research and Clinical Oncology volume 142, pages 2275–2280 (2016)Cite this article

Abstract

Background

Pressurized intraperitoneal aerosol chemotherapy (PIPAC) is a novel approach delivering intraperitoneal chemotherapy by means of a pressurized aerosol. This study was conducted to evaluate the distribution pattern of doxorubicin in the abdominal cavity after PIPAC in a postmortem swine model.

Methods

Doxorubicin was aerosolized through a Micropump© (MIP) into the peritoneal cavity of two swines at a pressure of 12 mm Hg CO2 and 32 °C. To measure the distribution of the drug, 9 different positions within the abdominal cavity were sampled. In-tissue doxorubicin penetration was evaluated using fluorescence microscopy on frozen thin sections.

Results

A maximum of drug penetration was observed in the area around the MIP. The penetration in the small intestine reached a depth of 349 ± 65 µm. Penetration depth in the right upper abdomen and left upper abdomen were 349 ± 65 and 140 µm ± 26 µm, respectively. Distant areas to the MIP showed variable penetration rates between 50 and 150 µm.

Conclusions

Doxorubicin reached all areas within the peritoneum. Highest penetration rates were measured in the area around the Micropump. Further studies are warranted to evaluate and optimize the distribution and penetration of cytotoxic agent into the tissue after PIPAC.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

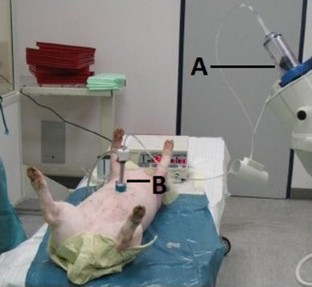

Fig. 1

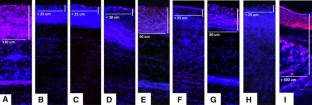

Fig. 2

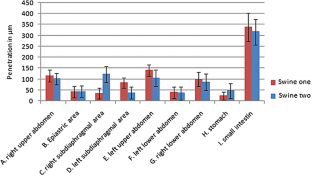

Fig. 3

Abbreviations

CO2 :

Carbon dioxide

CRS:

Cytoreductive surgery

HIPEC:

Hyperthermic intraperitoneal chemotherapy

IAP:

Intra-abdominal pressure

IPC:

Intraperitoneal chemotherapy

PC:

Peritoneal carcinomatosis

PCI:

Sugarbaker’s peritoneal cancer index

PIPAC:

Pressurized intraperitoneal aerosol chemotherapy

MIP® :

Micropump (Reger Medizintechnik, Rottweil, Germany)

References

  • Al-Quteimat OM, Al-Badaineh MA (2014) Intraperitoneal chemotherapy: rationale, applications, and limitations. J Oncol Pharm Pract 20(5):369–380

    CAS  PubMed  Article  Google Scholar

  • Chua TC, Esquivel J, Pelz JO, Morris DL (2013) Summary of current therapeutic options for peritoneal metastases from colorectal cancer. J Surg Oncol 107(6):566–573

    PubMed  Article  Google Scholar

  • Dedrick RL, Myers CE, Bungay PM, De Vita VT Jr. (1978) Pharmacokinetic rational for the peritoneal drug administration in the treatment of ovarian cancer. Cancer Treat Rep 62(1):1–11

    CAS  PubMed  Google Scholar

  • Demtröder C, Solass W, Zieren J, Strumberg D, Giger-Pabst U, Reymond MA (2016) Pressurized intraperitoneal aerosol chemotherapy with oxaliplatin in colorectal peritoneal metastasis. Colorectal Dis 18(4):364–371

    PubMed  Article  Google Scholar

  • Esquis P, Consolo D, Magnin G et al (2006) High intra-abdominal pressure enhances the penetration and antitumor effect of intraperitoneal cisplatin on experimental peritoneal carcinomatosis. Ann Surg 244(1):106–112

    PubMed  PubMed Central  Article  Google Scholar

  • Flessner MF (2005) The transport barrier in intraperitoneal therapy. Am J Physiol Renal Physiol 288(3):433–442

    Article  Google Scholar

  • Gesson-Paute A, Ferron G, Thomas F, de Lara EC, Chatelut E, Querleu D (2008) Pharmacokinetics of oxaliplatin during open versus laparoscopically assisted heated intraoperative intraperitoneal chemotherapy (HIPEC): an experimental study. Ann Surg Oncol 15(1):339–344

    PubMed  Article  Google Scholar

  • Jacquet P, Sugarbaker PH (1996) Peritoneal-plasma barrier. Cancer Treat Res 82(1):53–63

    CAS  PubMed  Article  Google Scholar

  • Jacquet P, Stuart OA, Chang D, Sugarbaker PH (1996) Effects of intraabdominal pressure on pharmacokinetics and tissue distribution of doxorubicin after intraperitoneal administration. Anticancer Drugs 7(5):596–603

    CAS  PubMed  Article  Google Scholar

  • Jain RK (1994) Barriers to drug delivery in solid tumors. Sci Am 271(1):58–65

    CAS  PubMed  Article  Google Scholar

  • Kakchekeeva T, Demtröder C, Herath NI et al (2016) In vivo feasibility of electrostatic precipitation as an adjunct to pressurized intraperitoneal aerosol chemotherapy (ePIPAC). Ann Surg Oncol (Epub ahead of print)

  • Khosrawipour V, Khosrawipour T, Falkenstein TA et al (2016a) Evaluating the effect of Micropump© position, internal pressure and doxorubicin dosage on efficacy of pressurized intra-peritoneal aerosol chemotherapy (PIPAC) in an ex vivo model. Anticancer Res (Accepted for publication on 12 July 2016)

  • Khosrawipour V, Bellendorf A, Khosrawipour T et al (2016b) Irradiation does not increase the penetration depth of doxorubicin in normal tissue after pressurized intra-peritoneal aerosol chemotherapy (PIPAC) in an ex vivo model. In Vivo 30(5):593–597

    PubMed  Google Scholar

  • Khosrawipour V, Giger-Pabst U, Khosrawipour T et al (2016c) Effect of irradiation on tissue penetration depth of doxorubicin after pressurized intra-peritoneal aerosol chemotherapy (PIPAC) in a novel ex vivo model. J Cancer 7(8):910–914

    PubMed  PubMed Central  Article  Google Scholar

  • Lotti M, Capponi MG, Piazzalunga D, Poisasina E, Pisano M, Manfredi R, Anssloni L (2016) Laparoscopic HIPEC: a bridge between open and closed-techniques. J Minim Access Surg 12(1):86–89

    PubMed  PubMed Central  Article  Google Scholar

  • Nadiradze G, Giger-Pabst U, Zieren J, Strumberg D, Solass W, Reymond MA (2016) Pressurized intraperitoneal aerosol chemotherapy (PIPAC) with low-dose cisplatin and doxorubicin in gastric peritoneal metastasis. J Gastrointest Surg 20(2):367–373

    PubMed  Article  Google Scholar

  • Reymond MA, Solaß W (2014) Pressurized intraperitoneal aerosol chemotherapy—cancer under pressure, 1st edn. De Gruyter, Berlin

    Google Scholar

  • Sadeghi M, Arvieux C, Glehen O et al (2000) Peritoneal carcinomatosis from non-gynecological malignancies: results of the EVOCAPE 1 multicentric prospective study. Cancer 88(2):358–363

    CAS  PubMed  Article  Google Scholar

  • Solaß W, Hetzel A, Nadiradze G, Sagynaliev E, Reymond MA (2012a) Description of a novel approach for intraperitoneal drug delivery and the related device. Surg Endosc 26:1849–1855

    PubMed  Article  Google Scholar

  • Solass W, Herbette A, Schwarz T, Hetzel A, Sun JS, Dutreix M, Reymond MA (2012b) Therapeutic approach of human peritoneal carcinomatosis with Dbait in combination with capnoperitoneum: proof of concept. Surg Endosc 26(3):847–852

    PubMed  Article  Google Scholar

  • Solass W, Kerb R, Mürdter T et al (2014) Intraperitoneal chemotherapy of peritoneal carcinomatosis using pressurized aerosol as an alternative to liquid solution: first evidence for efficacy. Ann Surg Oncol 21(2):553–559

    PubMed  Article  Google Scholar

  • Sugarbaker PH (2003) Peritoneal carcinomatosis: Is cure an option? J Clin Oncol 21(5):762–764

    PubMed  Article  Google Scholar

  • Tempfer CB, Rezniczek GA, Ende P, Solass W, Reymond MA (2015) Pressurized intraperitoneal aerosol chemotherapy with cisplatin and doxorubicin in women with peritoneal carcinomatosis: a cohort study. Anticancer Res 35(12):6723–6729

    CAS  PubMed  Google Scholar

Download references

Funding

This study was funded by institutional funds (Department of Surgery, Marien Hospital Herne, Ruhr University Bochum).

Authors’ contribution

Veria Khosrawipour contributed to study design, laboratory analysis, data acquisition and drafting of the manuscript; Tanja Khosrawipour contributed to laboratory analysis, data acquisition and drafting of the manuscript; Alexander Jens Peter Kern contributed to laboratory analysis, data acquisition and drafting of the manuscript; Aras Osma contributed to laboratory analysis and data acquisition; Burak Kabakci contributed to experimental and study design, laboratory analysis and data acquisition; David Diaz-Carballo contributed to supervision of the experiments and critical revision for important intellectual content of the manuscript; Eckart Förster contributed to study design, drafting and critical revision for important intellectual content of the manuscript; Jürgen Zieren contributed to supervision of the study, drafting and critical revision for important intellectual content of the manuscript; Khashayar Fakhrian contributed to study design, supervision of the study, data interpretation, drafting and critical revision for important intellectual content of the manuscript.

Author information

Affiliations

  1. Department of General Surgery and Therapy Center for Peritonealcarcinomatosis, Marien Hospital Herne, Ruhr University Bochum, Hölkeskampring 40, 44625, Herne, Germany

    Veria Khosrawipour, Tanja Khosrawipour & Jürgen Zieren

  2. Basic Research Laboratory, Department of General Surgery, Marien Hospital Herne, Ruhr University Bochum, Herne, Germany

    Veria Khosrawipour, Tanja Khosrawipour, Alexander Jens Peter Kern, Aras Osma, Burak Kabakci & David Diaz-Carballo

  3. Department of Radiation Oncology, Marien Hospital Herne, Ruhr University Bochum, Herne, Germany

    Khashayar Fakhrian

  4. Department of Neuroanatomy and Molecular Brain Research, Ruhr University Bochum, Bochum, Germany

    Eckart Förster

Authors
  1. Veria Khosrawipour
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Tanja Khosrawipour
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Alexander Jens Peter Kern
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Aras Osma
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Burak Kabakci
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. David Diaz-Carballo
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Eckart Förster
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Jürgen Zieren
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Khashayar Fakhrian
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Veria Khosrawipour.

Ethics declarations

Conflict of interest

All authors declare that they have no conflict of interest.

Human and animals rights

The swines were used and killed for a laparoscopic course at a local training center (Aesculap Akademie Bochum) prior to the experiment. This article does not contain any studies with human participants performed by any of the authors.

Ethical approval

An approval of the Local Board on Animal Care was obtained.
