The tensor-based model for growth and cell divisions of the root apex. II. Lateral root formation

  • Original Article
  • Published:
Planta Aims and scope Submit manuscript

Abstract

In this work, the formation of the virtual lateral root (VLR) is shown. The VLR is formed using the 2D simulation model of growth and cell divisions based on the concept of growth tensor, specified for radish. Growth is generated by the field of growth rates of an unsteady type (GT field). Principal directions of growth (PDGs) are assumed to define the orientation of cell divisions. Temporal sequences of the VLR formation are a result of an application of the GT field to the polygon meshwork representing cell pattern of already initiated primordium. The computer-generated lateral root (LR) develops realistically, and its cell pattern is vivid and similar to that observed in anatomical sections. The real and virtual LRs show similar cellular organization, both originate from a small group of cells situated in two-cell layers of the pericycle and both layers are engaged in the LR development. The LR formation seems to be controlled at the tensor level and individual cells presumably detect PDGs and obey them in the course of the cell divisions. PDGs are postulated to affect the cellular organization of the LR. Using the method of computer simulations, cellular aspects of the LR morphogenesis are discussed.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+
from $39.99 /Month
  • Starting from 10 chapters or articles per month
  • Access and download chapters and articles from more than 300k books and 2,500 journals
  • Cancel anytime
View plans

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

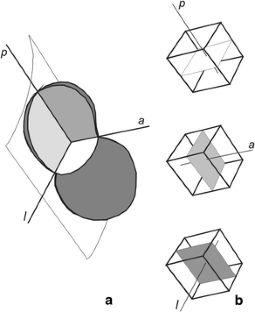

Fig. 1
Fig. 2
Fig. 3
Fig. 4

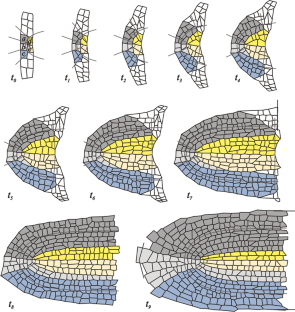

Fig. 5

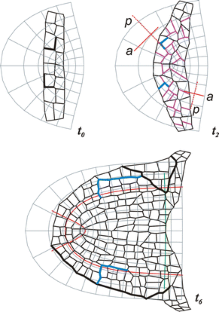

Fig. 6
Fig. 7

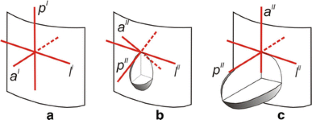

Fig. 8

Similar content being viewed by others

Explore related subjects

Discover the latest articles, books and news in related subjects, suggested using machine learning.

Abbreviations

GT:

Growth tensor

IL:

Inner layer

OL:

Outer layer

LR:

Lateral root

VLR:

Virtual lateral root

QC:

Quiescent center

PDGs:

Principal directions of growth

RERGl :

Relative elemental rate of linear growth

R-NCS:

Root-natural coordinate system

2D:

Two dimensional

References

  • Barlow PW (1974) Regeneration of the cap of primary roots of Zea mays. New Phytol 73:937–954

    Article  CAS  Google Scholar

  • Blakely LM, Evans TA (1979) Cell dynamics studies on the pericycle of radish seedling roots. Plant Sci Lett 14:79–83

    Article  CAS  Google Scholar

  • Blakely LM, Durham M, Evans TA, Blakely RM (1982) Experimental studies on lateral root formation in radish seedling roots: 1. General methods, developmental stages and spontaneous formation of laterals. Bot Gaz 143:341–352

    Article  Google Scholar

  • Casimiro I, Marchant A, Bhalerao RP, Beeckman T, Dhooge S, Swarup R, Graham N, Inzé D, Sandberg G, Casero PJ, Bennett M (2001) Auxin transport promotes Arabidopsis lateral root initiation. Plant Cell 13:843–852

    Article  CAS  PubMed  Google Scholar

  • Casimiro I, Beeckman T, Graham N, Bhalerao R, Zhang H, Casero P, Sandberg G, Bennett MJ (2003) Dissecting Arabidopsis lateral root development. Trends Plant Sci 8:165–171

    Article  CAS  PubMed  Google Scholar

  • Clowes FAL (1976) The root apex. In: Yeoman M (ed) Cell division in higher plants. Academic Press, London, pp 253–284

    Google Scholar

  • De Smet I, Tetsumura T, De Rybell B, Frei dit Frey N, Laplaze L, Casimiro I, Swarup R, Naudts M, Vanneste S, Audenaert D, Inzé D, Bennett MJ, Beeckman T (2007) Auxin-dependent regulation of lateral root positioning in the basal meristem of Arabidopsis. Development 134:681–690

    Article  PubMed  Google Scholar

  • Dubrovsky JG, Doerner PW, Colon-Carmona A, Rost TL (2000) Pericycle cell proliferation and lateral root initiation in Arabidopsis. Plant Physiol 124:1648–1657

    Article  CAS  PubMed  Google Scholar

  • Dubrovsky JG, Sauer M, Napsucialy-Mendivil S, Ivanchenko MG, Friml J, Shishkova S, Celenza J, Benkova E (2008) Auxin acts as a local morphogenetic trigger to specify lateral root founder cells. Proc Natl Acad Sci USA 105:8790–8794

    Article  CAS  PubMed  Google Scholar

  • Erickson RO (1966) Relative elemental growth rates and anisotropy of growth in area: a computer programme. J Exp Bot 17:390–403

    Article  Google Scholar

  • Erickson RO (1986) Symplastic growth and symplastic transport. Plant Physiol 82:1153

    Article  CAS  PubMed  Google Scholar

  • Fahn A (1990) Plant anatomy, 4th edn. Pergamon Press, Oxford

    Google Scholar

  • Gandar PW (1980) Analysis of growth and cell production in root apices. Bot Gaz 141:131–138

    Article  Google Scholar

  • Hejnowicz Z (1984) Trajectories of principal directions of growth, natural coordinate system in growing plant organ. Acta Soc Bot Pol 53:29–42

    Google Scholar

  • Hejnowicz Z (1989) Differential growth resulting in the specification of different types of cellular architecture in root meristems. In: Barlow PW (ed) Differential growth in plants. Pergamon Press, Oxford, pp 85–93

    Google Scholar

  • Hejnowicz Z, Hejnowicz K (1991) Modeling the formation of root apices. Planta 184:1–7

    Google Scholar

  • Hejnowicz Z, Karczewski J (1993) Modeling of meristematic growth of root apices in natural coordinate system. Am J Bot 80:309–315

    Article  Google Scholar

  • Hejnowicz Z, Romberger JA (1984) Growth tensor of plant organs. J Theor Biol 110:93–114

    Article  Google Scholar

  • Jiang K, Feldman LJ (2005) Regulation of root apical meristem development. Annu Rev Cell Dev Biol 21:485–509

    Article  CAS  PubMed  Google Scholar

  • Kurup S, Runions J, Köhler U, Laplaze L, Hodge S, Haselhoff J (2005) Marking cell lineages in living tissues. Plant J 42:444–453

    Article  CAS  PubMed  Google Scholar

  • Laskowski MJ, Williams ME, Nusbaum HC, Sussex IM (1995) Formation of lateral root meristems is a two-stage process. Development 121:3303–3310

    CAS  PubMed  Google Scholar

  • Laskowski M, Grieneisen VA, Hofhuis H, ten Hove CA, Hogeweg P, Maree AFM, Scheres B (2008) Root system architecture from coupling cell shape to auxin transport. PLoS Biol 6:e307. doi:10.1371/journal.pbio.0060307

    Article  PubMed  Google Scholar

  • MaCLeod RD, McLachlan SM (1974) The development of a quiescent centre in lateral roots of Vicia faba. Ann Bot 463:212–219

    Google Scholar

  • Malamy JE, Benfey PN (1997) Organization and cell differentiation in lateral roots of Arabidopsis thalina. Development 124:33–44

    CAS  PubMed  Google Scholar

  • Nakielski J (1987) Spatial variations of growth within domes having different patterns of principal growth directions. Acta Soc Bot Pol 56:611–623

    Google Scholar

  • Nakielski J (1991) Distribution of linear growth rates in different directions in root apical meristems. Acta Soc Bot Pol 60:77–86

    Google Scholar

  • Nakielski J (1999) Tensorial model for growth and cell divisions in the shoot apex. In: Carbone A, Gromov M, Prusinkiewicz P (eds) Pattern formation in biology vision and dynamics. World Scientific Publishing Company, Singapore, pp 252–267

    Google Scholar

  • Nakielski J (2008) The tensor-based model for growth and cell divisions of the root apex. I. The significance of principal directions. Planta 228:179–189

    Article  CAS  PubMed  Google Scholar

  • Nakielski J, Barlow PW (1995) Principal directions of growth and the generation of cell patterns in wild-type and gib-1 mutant roots of tomato (Lycopersicon esculentum Mill.) grown in vitro. Planta 196:30–39

    Article  CAS  Google Scholar

  • Nakielski J, Hejnowicz Z (2003) The description of growth of plant organs: a continuous approach based on the growth tensor. In: Nation J et al (eds) Formal description of developing systems. Kluwer, Dordrecht, pp 119–136

    Google Scholar

  • O’Brien TP, McCully ME (1981) The study of plant structure: principles and selected methods. Termarcahphi Pty Ltd., Melbourne

    Google Scholar

  • Peters WS, Baskin TI (2006) Tailor-made composite functions as tools in model choice: the case of sigmoidal vs bi-linear growth profiles. Plant Methods 2:11

    Article  PubMed  Google Scholar

  • Priestley JH (1930) Studies in the physiology of cambial activity. II. The concept of sliding growth. New Physiol 29:96–140

    Article  Google Scholar

  • Richards FJ, Kavanagh AJ (1943) The analysis of the relative growth gradients and changing form of growing organisms: illustrated by tobacco leaf. Am Nat 77:385–399

    Article  Google Scholar

  • Romberger JA, Hejnowicz Z, Hill JF (1993) Plant structure: function and development. Springer, Berlin

    Google Scholar

  • Silk WK (1983) Kinematic analysis of leaf expansion. In: Dale JE, Milthorpe FL (eds) The growth and functioning of leaves. Cambridge University Press, Cambridge, pp 89–108

    Google Scholar

  • Silk WK (1984) Quantitative descriptions of development. Annu Rev Plant Physiol 35:479–518

    Article  Google Scholar

  • Swamy BGL, Krishnamurthy KV (1975) Certain conceptual aspects of meristems. I On hypophysis and quiescent centre. Phytomorphology 25:60–65

    Google Scholar

  • Szymanowska-Pułka J (2007) Application of a changing field of growth rates to a description of root apex formation. J Theor Biol 247:650–656

    Article  PubMed  Google Scholar

  • von Sachs J (1887) Relations between growth and cell-division in the embryonic tissues. In: Lectures in plant physiology (translation by H.M. Ward). Clarendon Press, Oxford, Lecture XXVII, pp 431–459

Download references

Acknowledgments

The authors thank Professor Lewis Feldman from Department of Plant and Microbial Biology, UC Berkeley, USA, for helpful comments on the manuscript and Jerzy Karczewski for preparing the movie (Electronic Supplementary Material Video S1). The research was supported in part by a Grant from the Polish Ministry of Science and Higher Education (Grant no. N N303 333936).

Author information

Authors and Affiliations

  1. Department of Biophysics and Plant Morphogenesis, University of Silesia, Katowice, Poland

    Joanna Szymanowska-Pułka & Jerzy Nakielski

Authors
  1. Joanna Szymanowska-Pułka
    View author publications

    Search author on:PubMed Google Scholar

  2. Jerzy Nakielski
    View author publications

    Search author on:PubMed Google Scholar

Corresponding author

Correspondence to Joanna Szymanowska-Pułka.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Supplementary material 1 (AVI 3992 kb)

Supplementary material 2 (TIFF 14530 kb)

Appendix

Appendix

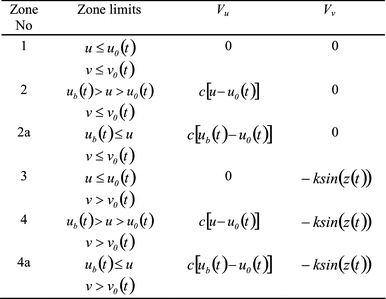

The components of V: \( V_{u} = \frac{{\rm d}u}{{\rm d}t} \) and \( V_{v} = \frac{{\rm d}v}{{\rm d}t} \) in particular zones

where \(z(t) = \left( {\frac{{\pi v}}{{v_0 (t)}}} \right)\) and c, k are constants.
