Abstract

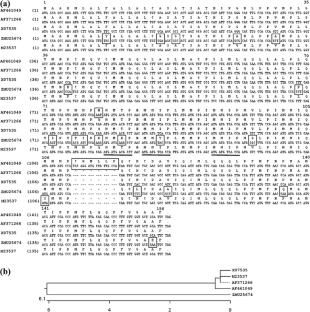

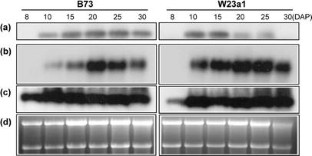

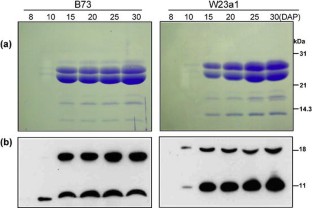

The sulfur-amino-acid-rich δ-zeins of maize (Zea mays L.) are represented by 18-kDa and 10-kDa proteins. We have cloned a novel 11-kDa methionine-rich δ-zein from developing endosperm of the inbred line W23a1. The nucleotide sequence of this new δ-zein is identical to the published 10-kDa δ-zein, except for an insertion of 18 nucleotides between +316 and +333 bp from the translation start site. Antibodies raised against the recombinant 18-kDa δ-zein recognized both the 18-kDa and 10-kDa δ-zein from total seed protein extracts of different maize inbred lines. Western blot analysis revealed differences in the levels of the δ-zeins in different inbred lines and some of the inbred lines lacked either the 10-kDa or the 18-kDa δ-zeins. Northern blot analysis revealed temporal differences in the RNA transcript levels of the 11-kDa and 18-kDa δ-zeins between B73 and W23a1. Such differences were not evident on Western blot analysis where similar protein accumulation profiles were seen for both lines. Immunostaining of paraffin sections of developing maize endosperm with the 18-kDa δ-zein antibodies revealed specific labeling of protein bodies found in the first few starchy layers from the aleurone layer. Electron-microscopic observation of thin-sections of B73 and W23a1 endosperm cells confirmed the presence of recently discovered novel, vacuole-like structures in these inbred lines. Immunogold labeling studies revealed that the δ-zeins were localized in the endoplasmic-reticulum-derived protein bodies and showed no preferential gold particle labeling over either the light or electron-dense material found in these protein bodies.
Similar content being viewed by others
Abbreviations
- DAP:
-
days after pollination
- IPTG:
-
isopropyl β-d-thiogalactopyranoside
References
Benner MS, Phillips RL, Kirihara JA, Messing JW (1989) Genetic analysis of methionine-rich storage protein accumulation in maize. Theor Appl Genet 78:761–767
Burnett WN (1981) Western blotting: electrophoretic transfer of proteins from SDS–polyacrylamide gel to unmodified nitrocellulose and radiographic detection with antibody and radioiodinated protein A. Anal Biochem 112:195-203
Chui CF, Falco SC (1995) A new methionine-rich seed storage protein from maize. Plant Physiol 107:291
Cruz-Alvarez M, Kirihara JA, Messing JW (1991) Post-transcriptional regulation of methionine content in maize kernels. Mol Gen Genet 225:331–339
Habben JE, Larkins BA (1995) Improving protein quality in seeds. In: Kige J, Galili G (eds) Seed development and germination. Dekker, New York, pp 791–810
Kirihara JA, Petri JB, Messing JW (1988a) Isolation and sequence of a gene encoding a methionine-rich 10-kDa zein protein from maize. Gene 71:359–370
Kirihara JA, Hunsperger JP, Mahoney WC, Messing JW (1988b) Differential expression of a methionine-rich storage protein gene in maize. Mol Gen Genet 211:477–484
Krishnan HB (2000) Biochemistry and molecular biology of soybean seed storage proteins. J New Seeds 2:1–25
Krishnan HB, Coe EH (2001) Seed storage proteins. In: Brenner S, Miller JH (eds) Encyclopedia of genetics. Academic Press, San Diego, pp 1782–1787
Krishnan HB, Okita TW (1986) Structural relationship among the rice glutelin polypeptides. Plant Physiol 81:748–753
Krishnan HB, Franceschi VR, Okita TW (1986) Immunocytochemical studies on the role of the Golgi complex in protein body formation in rice seeds. Planta 169:471–480
Laemmli UK (1970) Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 227:680–685
Lending CR, Larkins BA (1989) Changes in the zein composition of protein bodies during maize endosperm development. Plant Cell 1:1011–1023
Lending CR, Kriz AL, Larkins BA, Bracker CE (1988) Structure of maize protein bodies and immunocytochemical localization of zeins. Protoplasma 143:51–62
Ludevid MD, Torrent M, Martinez-Izquierdo JA, Puigdomenech P, Palau J (1984) Subcellular localization of glutelin-2 in maize (Zea mays L.) endosperm. Plant Mol Biol 3:227–234
Mertz ET, Bates LS, Nelson OE (1964) Mutant gene that changes protein composition and increases lysine content of maize endosperm. Science 145:279–280
Muntz K, Christov V, Saalbach G, Saalbach I, Waddell D, Pickardt T, Schieder O, Wustenhagen T (1998) Genetic engineering for high methionine grain legumes. Nahrung 42:125–127
Nielsen NC (1996) Soybean seed composition. In: Verma DPS, Shoemaker RC (eds) Soybean: genetics, molecular biology and biotechnology. CAB, Tucson, pp 127–163
Nordlee JA, Taylor SL, Townsend JA, Thomas LA, Bush RH (1996) Identification of a Brazil-nut allergen in transgenic soybeans. N Engl J Med 334:688–692
Norrander JM, Vieira J, Rubenstein I, Messing J (1985) Manipulation and expression of the maize zein storage proteins in Escherichia coli. J Biotechnol 2:157–175
Phillips RL McClure BA 1985) Elevated protein-bound methionine in seeds of a maize line resistant to lysine plus threonine. Cereal Chem 62:213–218
Schickler H, Benner MS, Messing JW (1993) Repression of the high-methionine zein gene in the maize inbred line Mo17. Plant J 3:221–229
Shewry PR, Tatham AS (1999) The characteristics, structures and evolutionary relationships of prolamins. In: Shewry P, Casey R (eds) Seed proteins. Kluwer, Norwel, MA, pp 11–33
Shewry PR, Napier JA, Tatham AS (1995) Seed storage proteins: structures and biosynthesis. Plant Cell 7:945–956
Swarup S, Timmermans MCP, Chaudhuri S, Messing JW (1995) Determinants of the high-methionine trait in wild and exotic germplasm may have escaped selection during early cultivation of maize. Plant J 8:359–368
Woo YM, Hu DW, Larkins BA, Jung R (2001) Genomics analysis of genes expressed in maize endosperm identifies novel seed proteins and clarifies patterns of zein gene expression. Plant Cell 13:2297–2317
Acknowledgements
The authors gratefully thank Dr. Michael McMullen for growing the maize plants in the field and Drs. Larry Darrah and Jack Gardiner for critical review of this manuscript.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Kim, W.S., Krishnan, H.B. Allelic variation and differential expression of methionine-rich δ-zeins in maize inbred lines B73 and W23a1. Planta 217, 66–74 (2003). https://doi.org/10.1007/s00425-002-0971-6
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s00425-002-0971-6
