Biological monitoring of exposure to solvents using the chemical itself in urine: application to toluene

International Archives of Occupational and Environmental Health volume 81, pages 273–284 (2008)Cite this article

Abstract

Objective

Biomonitoring of solvents using the unchanged substance in urine as exposure indicator is still relatively scarce due to some discrepancies between the results reported in the literature. Based on the assessment of toluene exposure, the aim of this work was to evaluate the effects of some steps likely to bias the results and to measure urinary toluene both in volunteers experimentally exposed and in workers of rotogravure factories.

Methods

Static headspace was used for toluene analysis. o-Cresol was also measured for comparison. Urine collection, storage and conservation conditions were studied to evaluate possible loss or contamination of toluene in controlled situations applied to six volunteers in an exposure chamber according to four scenarios with exposure at stable levels from 10 to 50 ppm. Kinetics of elimination of toluene were determined over 24 h. A field study was then carried out in a total of 29 workers from two rotogravure printing facilities.

Results

Potential contamination during urine collection in the field is confirmed to be a real problem but technical precautions for sampling, storage and analysis can be easily followed to control the situation. In the volunteers at rest, urinary toluene showed a rapid increase after 2 h with a steady level after about 3 h. At 47.1 ppm the mean cumulated excretion was about 0.005% of the amount of the toluene ventilated. Correlation between the toluene levels in air and in end of exposure urinary sample was excellent (r = 0.965). In the field study, the median personal exposure to toluene was 32 ppm (range 3.6–148). According to the correlations between environmental and biological monitoring data, the post-shift urinary toluene (r = 0.921) and o-cresol (r = 0.873) concentrations were, respectively, 75.6 μg/l and 0.76 mg/g creatinine for 50 ppm toluene personal exposure. The corresponding urinary toluene concentration before the next shift was 11 μg/l (r = 0.883).

Conclusion

Urinary toluene was shown once more time a very interesting surrogate to o-cresol and could be recommended as a biomarker of choice for solvent exposure.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

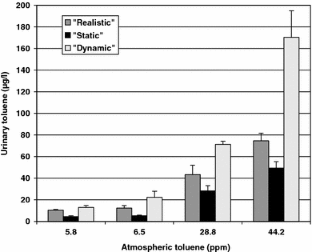

Fig. 1

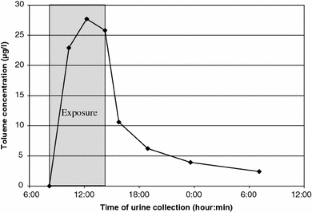

Fig. 2

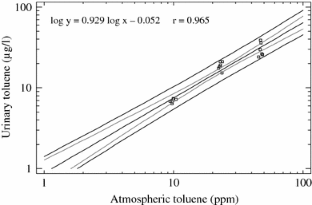

Fig. 3

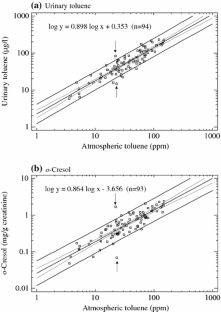

Fig. 4
Fig. 5

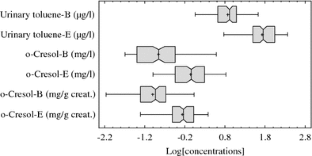

Fig. 6

References

  • Chouanière D, Wild P, Fontana J-M, Héry M, Fournier M, Baudin V, Subra I, Rousselle D, Toamain J-P, Saurin S, Ardiot M-R (2002) Neurobehavioral disturbances arising from occupational toluene exposure. Am J Ind Med 41:77–88

    PubMed  Article  Google Scholar

  • Commission of the European Communities (1995) Commission Regulation (EC) N 2298/95 of 27 September 1995 concerning the second list of priority substances as foreseen under Council Regulation (EEC) N 793/93. Official Journal of the European Communities N° L 231, 28/09/1995:18–19

  • Daisey JM, Mahanama KR, Hodgson AT (1998) Toxic volatile organic compounds in simulated environmental tobacco smoke: emission factors for exposure assessment. J Expo Anal Environ Epidemiol 8:313–334

    PubMed  CAS  Google Scholar

  • Dossing M, Aelum JB, Hansen SH, Lundqvist GR, Andersen NT (1983) Urinary hippuric acid and orthocresol excretion in man during experimental exposure to toluene. Br J Ind Med 40:470–473

    PubMed  CAS  Google Scholar

  • European Chemicals Bureau (2003) Toluene. European Union Risk Assessment Report, Volume 30. Available at: http://ecb.jrc.it/documents/Existing-Chemicals/RISK_ASSESSMENT/REPORT/toluenereport032.pdf. Accessed 20 June 2007

  • Fustinoni S, Giampiccolo R, Pulvirenti S, Buratti M, Colombi A (1999) Headspace solid-phase microextraction for the determination of benzene, toluene, ethylbenzene and xylenes in urine. J Chromatogr B Biomed Appl 723:105–115

    Article  CAS  Google Scholar

  • Fustinoni S, Buratti M, Giampiccolo R, Brambilla G, Foà V, Colombi A (2000) Comparison between blood and urinary toluene as biomarkers of exposure to toluene. Int Arch Occup Environ Health 73:389–396

    PubMed  Article  CAS  Google Scholar

  • Fustinoni S, Mercadante R, Campo L, Scibetta L, Valla C, Consonni D, Foà V (2007) Comparison between urinary o-cresol and toluene as biomarkers of toluene exposure. J Occup Environ Hyg 4:1–9

    PubMed  Article  CAS  Google Scholar

  • Ghittori S, Imbriani M, Pezzagno G, Capodaglio E (1987) The urinary concentration of solvents as a biological indicator of exposure: proposal for the biological equivalent exposure limit for nine solvents. Am Ind Hyg Assoc J 48:786–790

    PubMed  CAS  Google Scholar

  • Ghittori S, Alessio A, Maestri L, Negri S, Sgroi M, Zadra P (2002) Indice. Schede informative per il monitoraggio biologico. G Ital Med Lav Ergon 24:133–137. Available at: http://www.fsm.it/gimle/24/3s/0s.pdf. Accessed 9 Jan 2007

  • Ghittori S, Alessio A, Negri S, Maestri L, Zadra P, Imbriani M (2004) A field method for sampling toluene in end-exhaled air, as a biomarker of occupational exposure: correlation with other exposure indices. Ind Health 42:226–234

    PubMed  CAS  Google Scholar

  • Gobba F, Ghittori S, Imbriani M, Maestri L, Capodaglio E, Cavalleri A (1997) The urinary excretion of solvents and gases for the biological monitoring of occupational exposure: a review. Sci Total Environ 199:3–12

    PubMed  Article  CAS  Google Scholar

  • Hammer KD, Mayer N, Pfeiffer EH (1998) Sister chromatid exchanges in rotogravure printing plant workers. Int Arch Occup Environ Health 71:138–142

    PubMed  Article  CAS  Google Scholar

  • Hammer KD (2002) Metabolite ratio of toluene-exposed rotogravure printing plant workers reflects individual mutagenic risk by sister chromatid exchanges. Mutat Res 519:171–177

    PubMed  CAS  Google Scholar

  • Heinrich-Ramm R, Jakubowski M, Heinzow B, Molin Christensen J, Olsen E, Hertel O (2000) Biological monitoring for exposure to volatile organic compounds (IUPAC Recommendations 2000). Pure Appl Chem 72:385–436

    Article  CAS  Google Scholar

  • Heinrich-Ramm R (2001) New International Union of Pure and Applied Chemistry recommendation 2000 on biomonitoring for exposure to volatile organic compounds. Int Arch Occup Environ Health 74:229–230

    PubMed  Article  CAS  Google Scholar

  • Horwat F, Meyer JP (1998) Débit ventilatoire de travail. Documents pour le Médecin du Travail 76:343–350

    Google Scholar

  • Ikeda M (1999) Solvents in urine as exposure markers. Toxicol Lett 108:99–106

    PubMed  Article  CAS  Google Scholar

  • Imbriani M, Ghittori S (2005) Gases and organic solvents in urine as biomarkers of occupational exposure: a review. Int Arch Occup Environ Health 78:1–19

    PubMed  Article  CAS  Google Scholar

  • Inoue O, Kanno E, Kudo S, Kakizaki M, Kataoka M, Kawai T, Ukai H, Ikeda M (1998) High-pressure liquid chromatographic determination of toluene in urine as a marker of occupational exposure to toluene. Int Arch Occup Environ Health 71:302–308

    PubMed  Article  CAS  Google Scholar

  • IRSST—Institut de Recherche en Santé et en Sécurité du Travail (2004) Guide de surveillance biologique. Prélèvement et interprétation des resultants, 6ème édn. Montréal, Québec, Canada

  • Jang J-Y, Droz P (1996) Simulation of toluene in venous blood with a physiologically based pharmacokinetic model: its application to biological exposure index development. Appl Occup Environ Hyg 11:1092–1095

    CAS  Google Scholar

  • Japan Society for Occupational Health (2004) Recommendation of occupational exposure limits. J Occup Health 46:329–344

    Google Scholar

  • Kawai T, Mizunuma K, Okada Y, Horiguchi S, Ikeda M (1996) Toluene itself as the best urinary marker of toluene exposure. Int Arch Occup Environ Health 68:289–297

    PubMed  Article  CAS  Google Scholar

  • Lauwerys RR, Hoet P (2001) Industrial chemical exposure. Guidelines for biological monitoring. 3rd edn. Lewis Publishers, Boca Raton

    Google Scholar

  • Miller SL, Branoff S, Nazaroff WW (1998) Exposure to toxic air contaminants in environmental tobacco smoke: an assessment for California based on personal monitoring data. J Expo Anal Environ Epidemiol 8:287–311

    PubMed  CAS  Google Scholar

  • Monster AC, Sanja Kezic A, van de Gevel I, de Wolff FA (1993) Evaluation of biological monitoring parameters for occupational exposure to toluene. Int Arch Occup Environ Health 65:159–162

    Article  Google Scholar

  • Neubert D, Bochert G, Gericke C, Hanke B, Beckmann G, Toluene Field Study Group (2001) Multicenter field trial on possible health effects of toluene I. Toluene body burdens in workers of the rotogravure industry. Toxicology 168:139–157

    PubMed  Article  CAS  Google Scholar

  • Nise G (1992) Urinary excretion of o-cresol and hippuric acid after toluene exposure in rotogravure printing. Int Arch Occup Environ Health 63:377–381

    PubMed  Article  CAS  Google Scholar

  • Perbellini L, Ghittori S (1998) Il monitoraggio biologico delle esposizioni professionali a solventi utilizzando le loro concentrazioni urinarie. Med Lav 89:375–386

    PubMed  CAS  Google Scholar

  • Risner CH, Cash SL (1990) A high-performance liquid chromatographic determination of major phenolic compounds in tobacco smoke. J Chromatogr Sci 28:239–244

    PubMed  CAS  Google Scholar

  • Takeuchi A, Kawai T, Zhang ZW, Miyama Y, Sakamoto K, Higashikawa K, Ikeda M (2002) Toluene, xylenes and xylene isomers in urine as biological indicators of low-level exposure to each solvent; a comparative study. Int Arch Occup Environ Health 75:387–393

    PubMed  Article  CAS  Google Scholar

  • Truchon G, Tardif R, Brodeur J (1996) Gas chromatographic determination of urinary o-cresol for the monitoring of toluene exposure. J Anal Toxicol 20:309–312

    PubMed  CAS  Google Scholar

  • Truchon G, Tardif R, Brodeur J (1998) L’utilisation de la mesure de l’o-crésol urinaire comme indicateur de l’exposition professionnelle au toluène. Développement et validation d’un nouvel outil. Rapport R-195, IRSST Montréal

Download references

Acknowledgements

We express our thanks to the human volunteers and to the managerial and medical staff of the factories who participated in this study. Thanks are also due to Dr. Ruff and Ardiot for their medical assistance.

Author information

Affiliations

  1. Institut National de Recherche et de Sécurité, Avenue de Bourgogne, 54501, Vandoeuvre Cedex, France

    P. Ducos, J. M. Francin & C. Lefèvre

  2. Institute of Occupational Health Sciences, Bugnon 19, 1005, Lausanne, Switzerland

    M. Berode & C. Arnoux

Authors
  1. P. Ducos
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. M. Berode
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. J. M. Francin
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. C. Arnoux
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. C. Lefèvre
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to P. Ducos.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Ducos, P., Berode, M., Francin, J.M. et al. Biological monitoring of exposure to solvents using the chemical itself in urine: application to toluene. Int Arch Occup Environ Health 81, 273–284 (2008). https://doi.org/10.1007/s00420-007-0210-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00420-007-0210-3

Keywords

  • Biological monitoring
  • Toluene
  • Urine
  • Headspace
  • o-cresol
