Quantitative changes in flow density in patients with adult-onset foveomacular vitelliform dystrophy: an OCT angiography study

Graefe's Archive for Clinical and Experimental Ophthalmology volume 256, pages 23–28 (2018)Cite this article

Abstract

Purpose

To quantitatively compare the flow density, the retinal thickness, and the area of the foveal avascular zone (FAZ) between patients with adult-onset foveomacular vitelliform dystrophy (AOFVD) and a healthy controls.

Methods

Thirteen eyes (eight patients) with AOFVD and 13 matched eyes (13 patients) without any ocular pathology were included in this study. A 6 × 6 mm optical coherence tomography angiography (OCTA) scan was performed for every included eye. The flow density (superficial retinal vascular layer, deep retinal vascular layer and choriocapillary layer), retinal thickness and FAZ (superficial retinal vascular layer and deep retinal vascular layer) were subsequently analyzed.

Results

The mean flow density was decreased in the AOFVD patients in all measured vascular layers. The difference from the control group was statistically significant in the parafoveal sector of the deep retinal vascular layer (P = 0.02), and a clear trend was found in the superficial retinal vascular layer (P = 0.05). Both groups had comparable FAZs in the superficial and deep retinal vascular layers. The retinal thickness values were higher in the fovea (P = 0.840) and lower in the parafoveal sectors (P = 0.125). The difference was significant in the superior parafoveal sector (P = 0.034).

Conclusions

Flow densities as measured by OCTA are decreased in the superficial retinal vascular layer and the deep retinal vascular layer in patients with AOFVD. These findings could be helpful for diagnosing and understanding the pathogenesis of this disease.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2

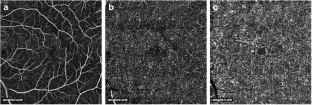

Fig. 3

References

  1. Gass J (1974) A clinicopathologic study of a peculiar foveomacular dystrophy. Trans Am Ophthalmol Soc 72:139–156

    CAS  PubMed  PubMed Central  Google Scholar

  2. Grob S, Yonekawa Y, Eliott D (2014) Multimodal imaging of adult-onset foveomacular vitelliform dystrophy. Saudi J Ophthalmol 28:104–110. https://doi.org/10.1016/j.sjopt.2014.02.001

    Article  PubMed  PubMed Central  Google Scholar

  3. Chowers I, Tiosano L, Audo I, Grunin M, Boon CJ (2015) Adult-onset foveomacular vitelliform dystrophy: A fresh perspective. Prog Retin Eye Res 47:64–85. https://doi.org/10.1016/j.preteyeres.2015.02.001

    CAS  Article  PubMed  Google Scholar

  4. Querques G, Zambrowski O, Corvi F, Miere A, Semoun O, Srour M, Souied EH (2016) Optical coherence tomography angiography in adult-onset foveomacular vitelliform dystrophy. Br J Ophthalmol 100:1724–1730. https://doi.org/10.1136/bjophthalmol-2016-308370

    Article  PubMed  Google Scholar

  5. Rocha Bastos R, Ferreira CS, Brandao E, Falcao-Reis F, Carneiro AM (2016) Multimodal image analysis in acquired vitelliform lesions and adult-onset foveomacular vitelliform dystrophy. J Ophthalmol 2016:6037537. https://doi.org/10.1155/2016/6037537

    PubMed  PubMed Central  Google Scholar

  6. Alnawaiseh M, Lahme L, Treder M, Rosentreter A, Eter N (2017) Short-term effects of exercise on optic nerve and macular perfusion measured by optical coherence tomography angiography. Retina 37:1642–1646. https://doi.org/10.1097/IAE.0000000000001419

    Article  PubMed  Google Scholar

  7. Toto L, Borrelli E, Di Antonio L, Carpineto P, Mastropasqua R (2016) Retinal vascular plexuses’ changes in dry age-related macular degeneration, evaluated by means of optical coherence tomography angiography. Retina 36:1566–1572. https://doi.org/10.1097/IAE.0000000000000962

    CAS  Article  PubMed  Google Scholar

  8. Casselholmde Salles M, Kvanta A, Amren U, Epstein D (2016) Optical coherence tomography angiography in central retinal vein occlusion: correlation between the foveal avascular zone and visual acuity. Invest Ophthalmol Vis Sci 57:OCT242–OCT246. https://doi.org/10.1167/iovs.15-18819

    Article  PubMed  Google Scholar

  9. Chalam KV, Sambhav K (2016) Optical coherence tomography angiography in retinal diseases. J Ophthalmic Vis Res 11:84–92. https://doi.org/10.4103/2008-322X.180709

    CAS  Article  PubMed  PubMed Central  Google Scholar

  10. Lee J, Moon BG, Cho AR, Yoon YH (2016) Optical coherence tomography angiography of DME and its association with Anti-VEGF treatment response. Ophthalmology 123:2368–2375. https://doi.org/10.1016/j.ophtha.2016.07.010

    Article  PubMed  Google Scholar

  11. Lupidi M, Coscas G, Cagini C, Coscas F (2015) Optical coherence tomography angiography of a choroidal neovascularization in adult onset foveomacular vitelliform dystrophy: pearls and pitfalls. Invest Ophthalmol Vis Sci 56:7638–7645. https://doi.org/10.1167/iovs.15-17603

    CAS  Article  PubMed  Google Scholar

  12. Parodi M, Rabiolo A, Cicinelli M, Iacono P, Romano F, Bandello F (2017) Quantitative analysis of optical coherence tomography angiography in adult-onset foveomacular vitelliform dystrophy. Retina. https://doi.org/10.1097/IAE.0000000000001539

  13. Querques G, Forte R, Querques L, Massamba N, Souied E (2011) Natural course of adult-onset foveomacular vitelliform dystrophy: a spectral-domain optical coherence tomography analysis. Am J Ophthalmol 152:304–313. https://doi.org/10.1016/j.ajo.2011.01.047

    Article  PubMed  Google Scholar

  14. Parodi M, Iacono P, Pedio M, Pece A, Isola V, Fachin A, Pinto M, Ravalico G (2008) Autofluorescence in adult-onset foveomacular vitelliform dystrophy. Retina 28:801–807. https://doi.org/10.1097/IAE.0b013e31816f859d

    Article  PubMed  Google Scholar

  15. You Q, Freeman W, Weinreb R, Zangwill L, Manalastas P, Saunders L, Nudleman E (2017) Reproducibility of vessel density measurement with optical coherence tomography angiography in eyes with and without retinopathy. Retina 37:1475–1482. https://doi.org/10.1097/IAE.0000000000001407

    Article  PubMed  Google Scholar

  16. Faul F, Erdfelder E, Lang A, Buchner A (2007) G*Power 3: A flexible statistical power analysis program for the social, behavioral, and biomedical sciences. Behav Res Methods 39:175–191

    Article  PubMed  Google Scholar

  17. Cohen J (1988) Statistical power analysis for the behavioral sciences, 2nd edn. Lawrence Erlbaum Associates, New Jersey

    Google Scholar

  18. Xu W, Grunwald JE, Metelitsina TI, DuPont JC, Ying GS, Martin ER, Dunaief JL, Brucker AJ (2010) Association of risk factors for choroidal neovascularization in age-related macular degeneration with decreased foveolar choroidal circulation. Am J Ophthalmol 150:40–47

    Article  PubMed  PubMed Central  Google Scholar

  19. Alten F, Clemens C, Heiduschka P, Eter N (2013) Localized reticular pseudodrusen and their topographic relation to choroidal watershed zones and changes in choroidal volumes. Invest Ophthalmol Vis Sci 54:3250–3257. https://doi.org/10.1167/iovs.13-11923

    Article  PubMed  Google Scholar

  20. Lauermann J, Heiduschka P, Nelis P, Treder M, Alnawaiseh M, Clemens C, Eter N, Alten F (2017) Comparison of choriocapillaris flow measurements between two optical coherence tomography angiography devices. Ophthalmologica 237:238–246. https://doi.org/10.1159/000464355

    Article  PubMed  Google Scholar

  21. La Spina C, Carnevali A, Marchese A, Querques G, Bandello F (2017) Reproducibility and reliability of optical coherence tomography angiography for foveal avascular zone evaluation and measurement in different settings. Retina 37:1636–1641. https://doi.org/10.1097/IAE.0000000000001426

    Article  PubMed  Google Scholar

  22. Manalastas P, Zangwill L, Saunders L, Mansouri K, Belghith A, Suh M, Yarmohammadi A, Penteado R, Akagi T, Shoji T, Weinreb R (2017) Reproducibility of optical coherence tomography angiography macular and optic nerve head vascular density in glaucoma and healthy eyes. J Glaucoma. https://doi.org/10.1097/IJG.0000000000000768

  23. Mastropasqua R, Toto L, Mattei P, Di Nicola M, Zecca I, Carpineto P, Di Antonio L (2017) Reproducibility and repeatability of foveal avascular zone area measurements using swept-source optical coherence tomography angiography in healthy subjects. Eur J Ophthalmol 27:336–341. https://doi.org/10.5301/ejo.5000858

    Article  PubMed  Google Scholar

Download references

Author information

Affiliations

  1. Department of Ophthalmology, University of Muenster Medical Center, Domagkstraße 15, 48149, Muenster, Germany

    Maximilian Treder, Jost Lennart Lauermann, Maged Alnawaiseh, Peter Heiduschka & Nicole Eter

Authors
  1. Maximilian Treder
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Jost Lennart Lauermann
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Maged Alnawaiseh
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Peter Heiduschka
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Nicole Eter
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Maximilian Treder.

Ethics declarations

Financial support

No funding was received for this research.

Conflict of interest

All authors certify that they have no affiliations with or involvement in any organization or entity with any financial interest (such as honoraria; educational grants; participation in speakers’ bureaus; membership, employment, consultancies, stock ownership, or other equity interest; and expert testimony or patent-licensing arrangements), or non-financial interest (such as personal or professional relationships, affiliations, knowledge or beliefs) in the subject matter or materials discussed in this manuscript.

Financial disclosure

M. Treder: Allergan, Novartis; J.L. Lauermann: Novartis; M. Alnawaiseh: Novartis; P. Heiduschka: Bayer, Novartis; N. Eter: Allergan, Alimera, Bausch and Lomb, Bayer, Heidelberg Engineering, Novartis, Roche.

Ethical approval

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Treder, M., Lauermann, J.L., Alnawaiseh, M. et al. Quantitative changes in flow density in patients with adult-onset foveomacular vitelliform dystrophy: an OCT angiography study. Graefes Arch Clin Exp Ophthalmol 256, 23–28 (2018). https://doi.org/10.1007/s00417-017-3815-6

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00417-017-3815-6

Keywords

  • Optical coherence tomography angiography
  • Adult-onset foveomacular vitelliform dystrophy
  • Flow density
  • Foveal avascular zone
