OSL and thermally assisted OSL response in dental enamel for its possible application in retrospective dosimetry

Radiation and Environmental Biophysics volume 53, pages 763–774 (2014)Cite this article

Abstract

Dental enamel was studied for its thermoluminescence (TL) and optically stimulated luminescence (OSL) defects. The TL studies showed a wide glow curve with multiple peaks. The thermally assisted OSL (TA-OSL) studies showed that the integrated TA-OSL and thus OSL signal increases with readout temperature between 100 and 250 °C, due to the temperature dependence of OSL. The thermally assisted energy E A associated with this increase is found to be 0.21 ± 0.015 eV. On the other hand, the signal intensity decreases with temperature between 260 and 450 °C. This decrease could be due to depletion of OSL active traps or possible thermal quenching. The increase of the OSL signal at increased temperature can be used to enhance the sensitivity of dental enamel for ex vivo measurements in retrospective dosimetry. The emission and excitation spectra of its luminescence centers were studied by photoluminescence and were found to be at 412 and 324 nm, respectively. It was found to possess multiple OSL active traps having closely lying photoionization cross sections characterized by continuous wave OSL and nonlinear OSL methods. The investigated dental enamel samples showed a linear OSL dose response up to 500 Gy. The dose threshold was found to be 100 mGy using a highly sensitive compact OSL reader with blue LED (470 nm) stimulation.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

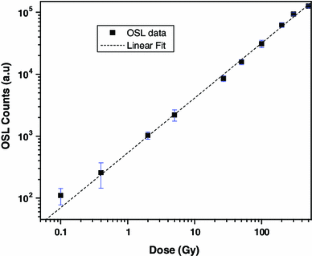

Fig. 6
Fig. 7

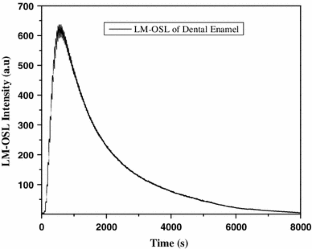

Fig. 8
Fig. 9

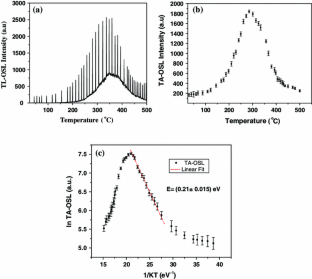

Fig. 10

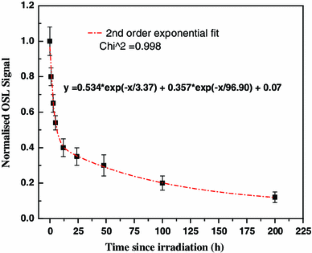

Fig. 11

References

  • Afouxenidis D, Polymeris GS, Tsirliganis NC, Kitis G (2012) Computerised curve deconvolution of TL/OSL curves using a popular spreadsheet program. Radiat Prot Dosim 149:363–370

    Article  Google Scholar

  • Akselrod MS, McKeever SWS (1999) A radiation dosimetry method using pulsed optically stimulated luminescence. Radiat Prot Dosim 81:167–175

    Article  Google Scholar

  • Anderle H, Stefaan I, Wild E, Bermanec V, Sővegjarto F (1998) Detection and dosimetry of irradiated biominerals with thermoluminescence, radiolyoluminescence and electron spin resonance measurements: comparison of methods. Radiat Meas 29:531–551

    Article  Google Scholar

  • Bailiff IK, Correcher V, Delgado A, Göksu Y, Hubner S (2002) Luminescence characteristics of dental ceramics for retrospective dosimetry: a preliminary study. Radiat Prot Dosim 101:519–524

    Article  Google Scholar

  • Balian HG, Eddy NW (1977) Figure-of-merit (FOM), an improved criterion over the normalized chisquared test for assessing goodness-of-fit of gamma-ray spectral peaks. Nucl Instrum Methods 145(2):389–395

    Article  ADS  Google Scholar

  • Benjamin BW, Flood AB, Salikhov I, Kobayashi K, Dong R, Rychert K, Du G, Schreiber W, Swartz HM (2014) In vivo EPR tooth dosimetry for triage after a radiation event involving large populations. Radiat Environ Biophys 53:335–346

    Article  Google Scholar

  • Brady JM, Aarestad NO, Schwartz HM (1968) In vivo dosimetry by electron spin resonance spectroscopy. Health Phys 15:43–47

    Article  Google Scholar

  • DeWitt R, Klein DM, Yukihara EG, Simon SL, McKeever SWS (2010) Optically stimulated luminescence (OSL) of tooth enamel and its potential use in post-irradiation exposure triage. Health Phys 98(2):432–439

    Article  Google Scholar

  • Geber-Bergstrand T, Bernhardsson C, Mattsson SL, Rääf C (2012) Retrospective dosimetry using OSL of tooth enamel and dental repair materials irradiated under wet and dry conditions. Radiat Environ Biophys 51:443–449

    Article  Google Scholar

  • Godfrey-Smith DI (2008) Toward in vivo OSL dosimetry of human tooth enamel. Radiat Meas 43:854–858

    Article  Google Scholar

  • Godfrey-Smith DI, Pass B (1997) A new method of retrospective radiation dosimetry: optically stimulated luminescence in dental enamel. Health Phys 72(5):744–749

    Article  Google Scholar

  • Huston AL, Justus BL, Falkenstein PL, Miller RW, Ning H, Altemus R (2001) Remote optical fiber dosimetry. Nucl Instrum Methods Phys Res B 184:55–67

    Article  ADS  Google Scholar

  • Hutt G, Jack I, Tchonka J (1988) Optical dating: K feldspars optical response stimulation spectra. Quat Sci Rev 7:381–385

    Article  ADS  Google Scholar

  • Kitis G, Gomez-Ros JM, Tuyn JWN (1998) Thermoluminescence glow-curve deconvolution functions for first, second and general orders of kinetics. J Phys D Appl Phys 31:2636–2641

    Article  ADS  Google Scholar

  • Klein DM, Yukihara EG, Bulur E, Durham JS, Akselrod MS, McKeever SWS (2005) An optical fiber radiation sensor for remote detection of radiological materials. IEEE Sens J 5:581–588

    Article  Google Scholar

  • Kulkarni MS, Mishra DR, Sharma DN (2007) A versatile integrated system for thermoluminescence and optically stimulated luminescence measurements. Nucl Instrum Method Phys Res B 262:348–356

    Article  ADS  Google Scholar

  • McKeever SWS, Bϕtter-Jensen L, Agersnap Larsen N, Duller GAT (1997) Temperature dependence of OSL decay curves experimental and theoretical aspects. Radiat Meas 27:161–170

    Article  Google Scholar

  • Mishra DR, Kulkarni MS, Rawat NS, Muthe KP, Gupta SK, Bhatt BC, Sharma DN (2008) Non-linear light modulation OSL phenomenon. Radiat Meas 43:1177–1186

    Article  Google Scholar

  • Mishra DR, Kulkarni MS, Rawat NS, Soni A, Bhatt BC, Sharma DN (2011a) Preliminary non-linear light modulation OSL studies using α-Al2O3: C. Radiat Meas 46:1462–1468

    Article  Google Scholar

  • Mishra DR, Anuj Soni, Rawat NS, Kulkarni MS, Bhatt BC, Sharma DN (2011b) Method of measuring thermal assistance energy associated with OSL traps in α-Al2O3: C phosphor. Radiat Meas 46:635–642

    Article  Google Scholar

  • Pass B, Godfrey-Smith DI, Scallion P (2003) Retrospective radiation dosimetry using optically stimulated luminescence in dental enamel: possibilities for in vivo dosimetry. In: Proceedings of the 36th midyear topical meeting “radiation safety aspects of homeland security and emergency response”, Health Physics Society, San Antonio, Texas, January 27–29, pp 210–217

  • Polf JC, McKeever SWS, Akselrod MS, Holmstrom S (2002) A real-time, fibre optic dosimetry system using Al2O3 fibres. Radiat Prot Dosim 100:301–304

    Article  Google Scholar

  • Secu CE, Cherestes M, Secu M, Cherestes C, Paraschiva V, Barca C (2011) Retrospective dosimetry assessment using the 380 °C thermoluminescence peak of tooth enamel. Radiat Meas 46:1109–1112

    Article  Google Scholar

  • Shimano T, Iwaski M, Miyazawa C, Miki T, Kai A, Ikeya M (1989) Human tooth dosimetry for gamma-rays and dental X-rays using ESR. Appl Radiat Isot 40:1035–1038

    Article  Google Scholar

  • Sholom S, DeWitt R, Simon SL, Bouville A, McKeever SWS (2011) Emergency dose estimation using optically stimulated luminescence from human tooth enamel. Radiat Meas 46:778–782

    Article  Google Scholar

  • Soni A, Mishra DR, Bhatt BC, Gupta SK, Rawat NS, Kulkarni MS, Sharma DN (2012) Characterization of deep energy level defects in α-Al2O3: C using thermally assisted OSL. Radiat Meas 47:111–120

    Article  Google Scholar

  • Soni A, Mishra DR, Bhatt BC, Gupta SK, Rawat NS, Kulkarni MS, Sharma DN (2013) Improvement in dose threshold of α-Al2O3: C using thermally assisted OSL. Radiat Meas 49:67–72

    Article  Google Scholar

  • Swartz HM, Iwasaki A, Walczak T, Demidenko E, Salikhov I, Khan N, Lesniewski P, Thomas J, Romanyukha A, Schauer D, Starewicz P (2006) In vivo EPR dosimetry to quantify exposures to clinically significant doses of ionising radiation. Radiat Prot Dosim 120(1–4):163–170

    Article  Google Scholar

  • Wieser A, Darroudi F (2014) EPRBioDose 2013: EPR applications and biological dosimetry. Radiat Prot Dosim 101:217–220

    Google Scholar

  • Wieser A, El-Faramawy N (2002) Dose reconstruction with electron paramagnetic resonance spectroscopy of deciduous teeth. Radiat Prot Dosim 101:545–548

    Article  Google Scholar

  • Wieser A, Vasilenko E, Aladova E, Fattibene P, Semiochkina N, Smetanin M (2014) Electron paramagnetic resonance measurements of absorbed dose in teeth from citizens of Ozyorsk. Radiat Environ Biophys 53:321–333

    Article  Google Scholar

  • Williams BB, Dong R, Flood AB, Grinberg O, Kmiec M, Lesniewski PN, Matthews TP, Nicolalde RJ, Raynolds T, Salikhov IK, Swartz HM (2011) A deployable in vivo epr tooth dosimeter for triage after a radiation event involving large populations. Radiat Meas 46(9):772–777

    Article  Google Scholar

  • Yukihara EG, Whitley VH, McKeever SWS, Akselrod AE, Akselrod MS (2004) Effect of high-dose irradiation on the optically stimulated luminescence of Al2O3: C. Radiat Meas 38:317–330

    Article  Google Scholar

  • Yukihara EG, Mittani J, McKeever SWS, Simon SL (2007) Optically stimulated luminescence (OSL) of dental enamel for retrospective assessment of radiation exposure. Radiat Meas 42:1256–1260

    Article  Google Scholar

Download references

Acknowledgments

The authors are grateful to Dr. D. N. Sharma, Director, Health Safety and Environment Group, BARC, and to Shri. D.A.R. Babu, Head, RP&AD, for the support and encouragement during the course of this work. The authors are also thankful to the editor and the referees for their suggestions and critical comments on the manuscript.

Author information

Affiliations

  1. Radiological Physics and Advisory Division, Bhabha Atomic Research Center, Trombay, 400 085, Mumbai, India

    Anuj Soni, D. R. Mishra, B. C. Bhatt & M. S. Kulkarni

  2. Institute of Nuclear Sciences, Ankara University, Ankara, Turkey

    G. S. Polymeris

Authors
  1. Anuj Soni
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. D. R. Mishra
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. G. S. Polymeris
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. B. C. Bhatt
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. M. S. Kulkarni
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Anuj Soni.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Soni, A., Mishra, D.R., Polymeris, G.S. et al. OSL and thermally assisted OSL response in dental enamel for its possible application in retrospective dosimetry. Radiat Environ Biophys 53, 763–774 (2014). https://doi.org/10.1007/s00411-014-0554-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00411-014-0554-5

Keywords

  • Dental enamel
  • Retrospective dosimetry
  • Photoionization cross section
  • Thermally assisted OSL (TA-OSL)
