Archive for History of Exact Sciences

, Volume 69, Issue 3, pp 327–341 | Cite as

Solution to the long-standing puzzle of Huygens’ “anomalous suspension”

  • Michael NauenbergEmail author
Article

Abstract

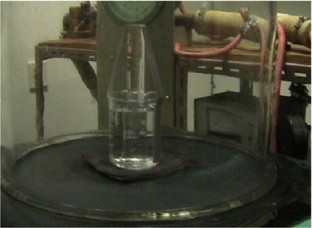

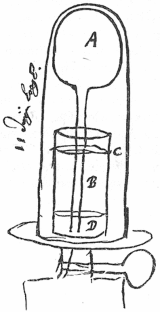

In 1662 Christiaan Huygens carried out the famous Torricelli experiment to test the existence of atmospheric pressure by inserting the apparatus in the glass receiver of a vacuum pump, and evacuating the air inside it. He reported that when the air was exhausted, a column of water remained suspended in a 4-foot tube. This unexpected result was in stark contrast with earlier experiments of Boyle and Hooke that apparently had confirmed Torricelli’s explanation that such a water column was supported by outside air pressure, and would fall when the air was removed. Huygen’s “anomalous suspension” led to the continuation of controversies in the seventeenth century about the nature of the vacuum that these experiments were expected to resolve. Surprisingly, the origin of Huygens’ unexpected result has remained a puzzle up to the present time. In this paper, I discuss the dynamics of such a column of water under the experimental conditions reported by Boyle and by Huygens, that turned out to be different, and present the results of a replication of their experiments with a modern vacuum pump. Contrary to the conventional explanations of these experiments, I demonstrate that in the Boyle–Hooke version of this experiment, the water column descends initially because it is forced down by the gas pressure due to air dissolved in the water which is released inside the Torricelli tube after the external pressure is sufficiently decreased. Huygens, however, first removed this trapped air before he carried out his experiment. In the absence of this internal gas pressure, the early rudimentary vacuum pumps were inadequate to decrease the air pressure sufficiently inside the receiver to demonstrate the descent of a Torricelli column of airless water 4-foot in height or less.

Keywords

Mercury Water Column Huygens Vacuum Pump Glass Wall
These keywords were added by machine and not by the authors. This process is experimental and the keywords may be updated as the learning algorithm improves.

Notes

Acknowledgments

I would like to thank John Heilbron for a stimulating exchange on the puzzle of anomalous suspension, and Fred Kuttner for his assistance in replicating the air pump experiments presented here.

References

  1. Boyle, Robert. 1660. New experiments physico-mechanical, touching the spring of the air and its effects. In The works of Robert Boyle, eds. Hunter Michael, Edward B. Davis. London: Pickering & Chatto.Google Scholar
  2. Galilei, Galileo. 1954. Dialogue concerning two new sciences. Translated by Henry Crew & Alfonso de Salvio, 14–17. New York: Dover Publications.Google Scholar
  3. Gunther, R.T. 1938. Early science in Oxford, vol. XIII, 224–228. London: Dawsons.Google Scholar
  4. Hunter, Michael, and Edward B. Davis. 1999a. The works of Robert Boyle. London: Pickering & Chatto.Google Scholar
  5. Hunter, Michael, and Edward B. Davis. 1999b. The works of Robert Boyle, 157. London: Pickering & Chatto.Google Scholar
  6. Hunter, Michael, and Edward B. Davis. 1999c. The works of Robert Boyle, 205–206. London: Pickering & Chatto.Google Scholar
  7. Hunter, Michael, and Edward B. Davis. 1999d. The works of Robert Boyle, 210–220. London: Pickering & Chatto.Google Scholar
  8. Huygens, Christiaan. 1932a. Ouevres complétes de Christiaan Huygens, 305–333. La Haye: Martinus Nijhoff.Google Scholar
  9. Huygens, Christiaan. 1932b. Ouevres Complétes de Christiaan Huygens, vol. IV, 174–175. La Haye: Martinus Nijhoff.Google Scholar
  10. Huygens, Christiaan. 1932c. Ouevres complétes de Christiaan Huygens, vol. XVII, 305–333. La Haye: Martinus Nijhoff.Google Scholar
  11. Middleton, W.E. Knowles. 1964a. The history of the barometer, 19–32, 37. Baltimore: Johns Hopkins Press.Google Scholar
  12. Middleton, W.E. Knowles. 1964b. The history of the barometer, 10–12. Baltimore: Johns Hopkins Press.Google Scholar
  13. Middleton, W.E. Knowles. 1964c. The history of the barometer, 23–24. Baltimore: Johns Hopkins Press.Google Scholar
  14. Middleton, W.E. Knowles. 1964d. The history of the barometer, 23. Baltimore: Johns Hopkins Press.Google Scholar
  15. Middleton, W.E. Knowles. 1964e. The history of the barometer, 29. Baltimore: Johns Hopkins Press.Google Scholar
  16. Shapin, Steven, and Simon Schaffer. 1985a. Leviathon and the air pump. Princeton: Princeton University Press.Google Scholar
  17. Shapin, Steven, and Simon Schaffer. 1985b. Leviathan and the air pump, 379. Princeton: Princeton University Press.Google Scholar
  18. Shapin, Steven, and Simon Schaffer. 1985c. Leviathan and the air pump, 381. Princeton: Princeton University Press.Google Scholar
  19. Shapin, Steven, and Simon Schaffer. 1985d. Leviathan and the air pump, 241, footnote 24. Princeton: Princeton University Press.Google Scholar
  20. Stroud, Alice. 1981a. Christiaan Huygens and the development of the air pump. Janus 68: 129–158.MathSciNetGoogle Scholar
  21. Stroud, Alice. 1981b. Christiaan Huygens and the development of the air pump. Janus LXVIII: 136.Google Scholar
  22. van Helden, A. 1991. The age of the air pump. Tractrix 1: 149–172.Google Scholar
  23. Vermij, R. 2004a. Christiaan Huygen, De mathematisering van de werkelijkheid. Diemen: Veen Magazine.Google Scholar
  24. Vermij, R. 2004b. Christiaan Huygen, De mathematisering van de werkelijkheid, 87. Diemen: Veen Magazine.Google Scholar

Copyright information

© Springer-Verlag Berlin Heidelberg 2015

Authors and Affiliations

  1. 1.Department of PhysicsUniversity of CaliforniaSanta CruzUSA
