Fracture of the tibial tubercle does not affect clinical outcomes in medial opening wedge high tibial osteotomy with distal tibial tubercle osteotomy

Archives of Orthopaedic and Trauma Surgery (2020)Cite this article

Abstract

Purpose

To investigate whether tibial tubercle fracture affected clinical outcomes and bony union in medial opening wedge high tibial osteotomy with distal tibial tubercle osteotomy (DTO) and to determine the anatomical risk factors for tibial tubercle fracture.

Materials and methods

All patients who underwent DTO were retrospectively reviewed, and 104 successive patients were included. The Knee Society Score and complications including tibial tubercle fracture were recorded. On radiographs and computed tomography scans, the length, thickness, width, height, and bony union of the osteotomized tibial tubercle and the posterior tibial slope were statistically analysed.

Results

Fracture of the tibial tubercle occurred intraoperatively in 11 patients (10.6%) and in the postoperative period in 1 (1.0%). The case of postoperative fracture showed non-union. There was no significant difference in the Knee Society Score between the non-fracture and fracture groups. There were significant differences in the posterior tibial slope and the height of the tibial tubercle between the groups (p < 0.0001 for each comparison). The logistic regression analysis showed that the height of the tibial tubercle was associated with a higher risk of the fracture of the tibial tubercle (p < 0.01; OR, 1.548; 95% CI, 1.149–2.085). However, there were no significant differences in the bony union rate of the tibial tubercle at 6 months after surgery between the groups.

Conclusions

Tibial tubercle fracture did not affect the clinical outcome and bony union in spite of the relatively high occurrence rate. Anatomical risk factors for the fractures was a lower tibial tubercle position.

Level of evidence

Level IV.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

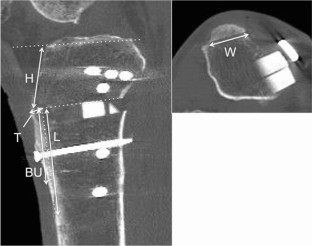

Fig. 2

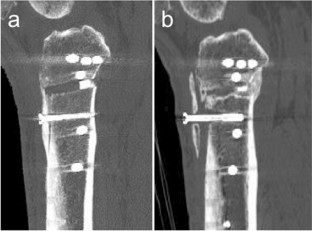

Fig. 3
Fig. 4

References

  1. Ogawa H, Matsumoto K, Yoshioka H, Sengoku M, Akiyama H (2020) Distal tibial tubercle osteotomy is superior to the proximal one for progression of patellofemoral osteoarthritis in medial opening wedge high tibial osteotomy. Knee Surg Sports Traumatol Arthrosc 28(10):3270–3278

    Article  Google Scholar

  2. Horikawa T, Kubota K, Hara S, Akasaki Y (2020) Distal tuberosity osteotomy in open-wedge high tibial osteotomy does not exacerbate patellofemoral osteoarthritis on arthroscopic evaluation. Knee Surg Sports Traumatol Arthrosc 28(6):1750–1756

    Article  Google Scholar

  3. Akiyama T, Osano K, Mizu-Uchi H, Nakamura N, Okazaki K, Nakayama H et al (2019) Distal tibial tuberosity arc osteotomy in open-wedge proximal tibial osteotomy to prevent patella infra. Arthrosc Tech 8(6):e655–e662

    Article  Google Scholar

  4. Erquicia J, Gelber PE, Perelli S, Ibañez F, Ibañez M, Pelfort X et al (2019) Biplane opening wedge high tibial osteotomy with a distal tuberosity osteotomy, radiological and clinical analysis with minimum follow-up of 2 years. J Exp Orthop 6(1):10

    Article  Google Scholar

  5. Gaasbeek RD, Sonneveld H, van Heerwaarden RJ, Jacobs WC, Wymenga AB (2004) Distal tuberosity osteotomy in open wedge high tibial osteotomy can prevent patella infera: a new technique. Knee 11(6):457–461

    CAS  Article  Google Scholar

  6. Kloos F, Becher C, Fleischer B, Feucht MJ, Hohloch L, Südkamp N et al (2019) High tibial osteotomy increases patellofemoral pressure if adverted proximal, while open-wedge HTO with distal biplanar osteotomy discharges the patellofemoral joint: different open-wedge high tibial osteotomies compared to an extra-articular unloading device. Knee Surg Sports Traumatol Arthrosc 27(7):2334–2344

    Article  Google Scholar

  7. Stoffel K, Willers C, Korshid O, Kuster M (2007) Patellofemoral contact pressure following high tibial osteotomy: a cadaveric study. Knee Surg Sports Traumatol Arthrosc 15(9):1094–1100

    Article  Google Scholar

  8. Ogawa H, Matsumoto K, Ogawa T, Takeuchi K, Akiyama H (2016) Effect of wedge insertion angle on posterior tibial slope in medial opening wedge high tibial osteotomy. Orthop J Sports Med 4(2):2325967116630748

    Article  Google Scholar

  9. Ogawa H, Matsumoto K, Ogawa T, Takeuchi K, Akiyama H (2016) Preoperative varus laxity correlates with overcorrection in medial opening wedge high tibial osteotomy. Arch Orthop Trauma Surg 136(10):1337–1342

    Article  Google Scholar

  10. Staubli AE, De Simoni C, Babst R, Lobenhoffer P (2003) TomoFix: a new LCP-concept for open wedge osteotomy of the medial proximal tibia–early results in 92 cases. Injury 34(Suppl 2):B55-62

    Article  Google Scholar

  11. Lobenhoffer P, Agneskirchner JD (2003) Improvements in surgical technique of valgus high tibial osteotomy. Knee Surg Sports Traumatol Arthrosc 11(3):132–138

    Article  Google Scholar

  12. Ogawa H, Matsumoto K, Akiyama H (2018) Coronal tibiofemoral subluxation is correlated to correction angle in medial opening wedge high tibial osteotomy. Knee Surg Sports Traumatol Arthrosc 26(11):3482–3490

    Article  Google Scholar

  13. Ogawa H, Matsumoto K, Akiyama H (2019) Effect of increased posterior tibial slope on the anterior cruciate ligament status in medial open wedge high tibial osteotomy in an uninjured ACL population. Orthop Traumatol Surg Res 105(6):1085–1091

    Article  Google Scholar

  14. Gaasbeek RD, Nicolaas L, Rijnberg WJ, van Loon CJ, van Kampen A (2010) Correction accuracy and collateral laxity in open versus closed wedge high tibial osteotomy. A one-year randomised controlled study. Int Orthop 34(2):201–207

    Article  Google Scholar

  15. Franz P, Luderowski E, Tuca M (2020) Tibial tubercle avulsion fractures in children. Curr Opin Pediatr 32(1):86–92

    Article  Google Scholar

  16. Capogna B, Strauss E, Konda S, Dayan A, Alaia M (2017) Distal patellar tendon avulsion in association with high-energy knee trauma: a case series and review of the literature. Knee 24(2):468–476

    Article  Google Scholar

  17. Faschingbauer M, Sgroi M, Juchems M, Reichel H, Kappe T (2014) Can the tibial slope be measured on lateral knee radiographs? Knee Surg Sports Traumatol Arthrosc 22(12):3163–3167

    CAS  Article  Google Scholar

Download references

Funding

No funding has been received for this study.

Author information

Affiliations

  1. Department of Orthopaedic Surgery, Ogaki Tokushukai Hospital, Hayashi-machi 6-85-1, Ogaki, 503-0015, Japan

    Hiroyasu Ogawa & Masaya Sengoku

  2. Department of Orthopaedic Surgery, Gifu University Graduate School of Medicine, Yanagido 1-1, Gifu, 501-1194, Japan

    Hiroyasu Ogawa, Kazu Matsumoto, Hiroki Yoshioka & Haruhiko Akiyama

Authors
  1. Hiroyasu Ogawa
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Kazu Matsumoto
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Hiroki Yoshioka
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Masaya Sengoku
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Haruhiko Akiyama
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Kazu Matsumoto.

Ethics declarations

Conflict of interest

The authors have no conflicts of interest to disclose.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Ogawa, H., Matsumoto, K., Yoshioka, H. et al. Fracture of the tibial tubercle does not affect clinical outcomes in medial opening wedge high tibial osteotomy with distal tibial tubercle osteotomy. Arch Orthop Trauma Surg (2020). https://doi.org/10.1007/s00402-020-03688-w

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s00402-020-03688-w

Keywords

  • Distal tibial tubercle osteotomy
  • High tibial osteotomy
  • Distal tuberosity osteotomy
  • Tibial tubercle fracture
  • Complication
  • Bony union
