Wrist kinematics after radiolunate arthrodesis

Archives of Orthopaedic and Trauma Surgery volume 135, pages 1033–1041 (2015)Cite this article

Abstract

Introduction

Analysis of carpal kinematics after radiolunate and radioscapholunate arthrodesis shows good preservation of midcarpal joint congruity and motion. However, no biomechanical data exist on carpal kinematics after radiolunate arthrodesis in the wrist. Purpose of this study was to examine the individual motion of scaphoid, capitate and triquetrum after simulated radiolunate arthrodesis.

Materials and methods

Radiolunate arthrodesis was simulated in three fresh human cadaver wrists by means of Kirschner wires. Individual motion of the scaphoid, triquetrum and capitate relative to the radius was measured for extension/flexion and radial–ulnar deviation before and after arthrodesis. Photostereogrammetric measurement was carried out and the helical axis concept of motion was employed.

Results

Global wrist motion, corresponding to capitate motion, was found to be reduced 33–50 % for extension/flexion and 25–43 % for radial–ulnar deviation. Relative motion of the scaphoid for extension/flexion was found to be reduced 20 % more and for radial–ulnar deviation 10 % more than that of the capitate. Relative motion of the triquetrum for extension/flexion was found to be reduced 30 % more and for radial–ulnar deviation 20 % more than that of the capitate. The pattern of motion of the capitate hardly changed, and that of the scaphoid, only slightly. The triquetrum lost its rotational pattern of motion and gave way to tilting movements instead. The physiological function of the scaphoid between distal radius and distal carpal row was preserved.

Conclusion

The presented data conform with the good clinical results obtained after radiolunate arthrodesis in the rheumatoid wrist and furthermore, encourage its use in the posttraumatic wrist.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3

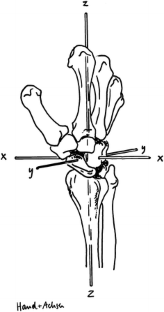

Fig. 4

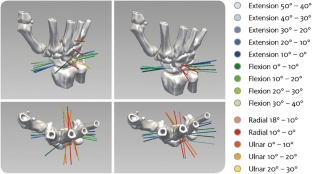

Fig. 5

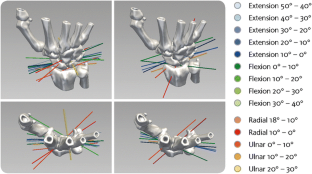

Fig. 6

References

  1. Chamay A, Della Santa D, Vilaseca A (1983) Radiolunate arthrodesis. Factor of stability for the rheumatoid wrist. Ann Chir Main 2:5–17

    CAS  PubMed  Article  Google Scholar

  2. Linscheid RL, Dobyns JH (1985) Radiolunate arthrodesis. J Hand Surg Am 10:821–829

    CAS  PubMed  Article  Google Scholar

  3. Stanley JK, Boot DA (1989) Radio-lunate arthrodesis. J Hand Surg Br 14:283–287

    CAS  PubMed  Article  Google Scholar

  4. Ishikawa H, Hanyu T, Saito H, Takahashi H (1992) Limited arthrodesis for the rheumatoid wrist. J Hand Surg Am 17:1103–1109

    CAS  PubMed  Article  Google Scholar

  5. Ishikawa H, Murasawa A, Nakazono K (2005) Long-term follow-up study of radiocarpal arthrodesis for the rheumatoid wrist. J Hand Surg Am 30:658–666

    PubMed  Article  Google Scholar

  6. Doets HC, Raven EE (1999) A procedure for stabilizing and preserving mobility in the arthritic wrist. J Bone Jt Surg Br 81:1013–1016

    CAS  Article  Google Scholar

  7. Honkanen PB, Mäkelä S, Konttinen YT, Lehto MU (2007) Radiocarpal arthrodesis in the treatment of the rheumatoid wrist. A prospective midterm follow-up. J Hand Surg Eur 32:368–376

    CAS  Article  Google Scholar

  8. Borisch N, Haussmann P (2002) Radiolunate arthrodesis in the rheumatoid wrist: a retrospective clinical and radiological longterm follow-up. J Hand Surg Br 27:61–72

    CAS  PubMed  Article  Google Scholar

  9. Arimitsu S, Murase T, Hashimoto J, Yoshikawa H, Sugamoto K, Moritomo H (2009) Three-dimensional kinematics of the rheumatoid wrist after partial arthrodesis. J Bone Jt Surg Am 91:2180–2187

    Article  Google Scholar

  10. Panjabi M, White AA 3rd (1971) A mathematical approach for three-dimensional analysis of the mechanics of spine. J Biomech 4:203–211

    CAS  PubMed  Article  Google Scholar

  11. De Lange A, Kauer JM, Huiskes R (1985) Kinematic behavior oft he human wrist joint: a roentgen-stereophotogrammetric analysis. J Orthop Res 3:56–64

    PubMed  Article  Google Scholar

  12. Jacob HA, Kissling RO (1995) The mobility of the sacroiliac joints in healthy volunteers between 20 and 50 years of age. Clin Biomech (Bristol, Avon) 10:352–361

    Article  Google Scholar

  13. Borisch N, Lerch K, Grifka J, Haussmann P (2004) Adaptive patterns oft he rheumatoid wrist after radiolunate arthrodesis. Z Rheumatol 63:326–330

    CAS  PubMed  Article  Google Scholar

  14. Ruby LK, Cooney WP 3rd, An KN, Linscheid RL, Chao EY (1988) Relative motion of selected carpal bones: a kinematic analysis of the normal wrist. J Hand Surg Am 13:1–10

    CAS  PubMed  Article  Google Scholar

  15. Sarrafian SK, Melamed JL, Goshgarian GM (1977) Study of wrist motion in flexion and extension. Clin Orthop Relat Res 125:153–159

    Google Scholar

  16. Youm Y, McMurthy RY, Flatt AE, Gillespie TE (1978) Kinematics of the wrist. I. An experimental study of radial–ulnar deviation and flexion-extension. J Bone Jt Surg Am 60:423–431

    CAS  Google Scholar

  17. Meyerdierks EM, Mosher FJ, Werner FJ (1987) Limited wrist arthrodesis: a laboratory study. J Hand Surg Am 12:526–529

    CAS  PubMed  Article  Google Scholar

  18. Halikis MN, Colello-Abraham K, Taleisnik J (1997) Radiolunate fusion. The forgotten partial arthrodesis. Clin Orthop 341:30–35

    PubMed  Article  Google Scholar

  19. Inoue G, Tamura Y (1992) Radiolunate and radioscapholunate arthrodesis. Arch Orthop Trauma Surg 111:333–335

    CAS  PubMed  Article  Google Scholar

  20. Nuttal D, Trail IA, Stanley JK (1998) Movement of the scaphoid in the normal wrist. J Hand Surg Br 20:165–170

    Google Scholar

  21. Craigen MA, Stanley JK (1995) Wrist kinematics. Row, column or both? J Hand Surg Br 20:165–170

    CAS  PubMed  Article  Google Scholar

  22. Garcia-Elias M, Ribe M, Rodriguez J, Cots M, Casas J (1995) Influence of joint laxity on scaphoid kinematics. J Hand Surg Br 20:379–382

    CAS  PubMed  Article  Google Scholar

  23. Galley I, Bain GI, McLean JM (2007) Influence of lunate type on scaphoid kinematics. J Hand Surg Am 32:842–847

    PubMed  Article  Google Scholar

  24. Berger RA, Crowninshield RD, Flatt AE (1982) The three-dimensional rotational behaviors of the carpal bones. Clin Orthop 167:303–310

    PubMed  Google Scholar

  25. Savelberg HH, Otten JD, Kooloos JK, Huiskes R, Kauer JM (1993) Carpal bone kinematics and ligament lengthening studied for the full range of joint movement. J Biomech 26:1389–1402

    CAS  PubMed  Article  Google Scholar

  26. Calfee RP, Leventhal EL, Wilkerson J, Moore DC, Akelman E, Crisco JJ (2008) Simulated radioscapholunate fusion alters carpal kinematics while preserving dart-throwers motion. J Hand Surg Am 33:503–510

    PubMed Central  PubMed  Article  Google Scholar

  27. Crisco JJ, Coburn JC, Moore DC, Akelman E, Weiss AP, Wolfe SW (2005) In vivo radiocarpal kinematics and the dart thrower’s motion. J Bone Jt Surg Am 87:2729–2740

    Article  Google Scholar
