A “sandwich” method of reconstruction of the medial patellofemoral ligament using a titanium interference screw for patellar instability in skeletally immature patients

Archives of Orthopaedic and Trauma Surgery volume 132, pages 1077–1083 (2012)Cite this article

Abstract

Background

No standard surgical procedure for medial patellofemoral ligament (MPFL) reconstruction exists in skeletally immature patients with patellar instability. This study aimed to evaluate the clinical effectiveness of a novel reconstruction technique for the MPFL in patients with patellar instability because of non-closure of the epiphyseal line.

Methods

The “sandwich” method was fixation of the patella between a double-stranded semitendinosus tendon through the posterior third of the femoral insertion of the medial collateral ligament (MCL) as a pulley with a titanium interference screw in a single patellar tunnel. Five knees in five patients were studied: four with recurrent and one with habitual patellar dislocations. Subjects underwent MPFL reconstruction with or without lateral release. Patients were evaluated using pre-operative and post-operative physical and radiographic examinations, including apprehension testing, assessment of tilting and congruence angles, medial and lateral shift ratios under stress measured using X-ray imaging, and Kujala and Lysholm scores.

Results

No patient experienced recurrent post-operative episodes of dislocation or subluxation. By the final follow-up, patellar apprehension had disappeared in all patients. In addition, all patients showed significant improvement in the following: tilting angle, congruence angle, lateral shift ratio, Kujala score, and Lysholm score.

Conclusions

The MPFL reconstruction methods, using a double-stranded semitendinosus autograft and sparing the femoral physeal line in non-closure of the epiphyseal line, provide acceptable short-term results for the treatment of patellar instability.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

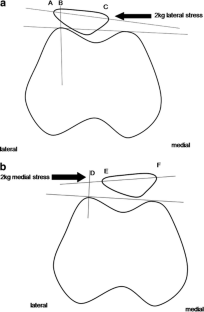

Fig. 1

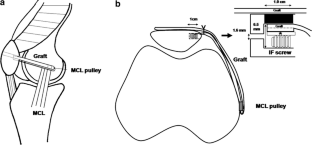

Fig. 2
Fig. 3
