Sacral malformations: use of imaging to optimise sacral nerve stimulation

International Journal of Colorectal Disease volume 31, pages 351–357 (2016)Cite this article

Abstract

Introduction

The success of sacral nerve stimulation, a common treatment for pelvic floor disorders, depends on correct placement of the electrodes through the sacral foramina. When the bony anatomy and topography of the sacrum and sacral spinal nerves are intact, this is easily achieved; where sacral anomalies exist, it can be challenging. A better understanding of common sacral malformations can improve the success of sacral nerve stimulation (SNS) electrode placement.

Material and methods

We reviewed 998 consecutive MRI scans performed to investigate low back pain in patients who had undergone CT and/or X-ray.

Results

Congenital sacral malformations were found in 24.1 %, the most common being sacral meningeal cysts (16 %) and spina bifida occulta (9.9 %). Others were lumbosacral transitional vertebrae (2.5 %), anterior occult meningocele (0.5 %), partial sacral agenesis (0.2 %) and vertebral dysplasia of S1 (0.2 %).

Conclusion

This radiologic review uncovered a high incidence of sacral malformations, and most were asymptomatic. All surgeons who perform SNS should have a basic understanding of sacral malformations, their incidence and effect on foraminal anatomy. Imaging will aid procedural planning.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

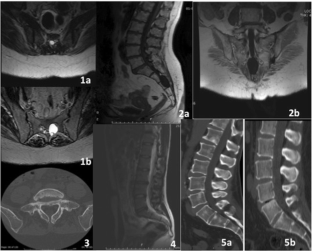

Fig. 1
