Is tubularization of the mobilized urethral plate a better alternative to tubularization of an incised urethral plate for hypospadias repair?

Pediatric Surgery International volume 25, pages 185–190 (2009)Cite this article

Abstract

Introduction

Trial of a new procedure of hypospadias repair based on the incorporation of the entire available innate urethral tissue for the formation of neo-urethra in patients with hypospadias.

Materials and methods

Fifteen consecutive children, nine with distal hypospadias and six with proximal hypospadias (all with severe chordee), whose parents consented to application of a new procedure of hypospadias repair, were the study subjects. This procedure is inspired by Cantwell Ransley procedure for epispadias repair and Snodgras procedure for hypospadias repair. The entire urethral plate was mobilized (i.e., lifted off the corpora) distal to the urethral meatus and was tubularized in two layers; inner urethral skin and outer spongiosal tissue, in Duplay fashion. The repair was reinforced with dartos vascularized flap. The skin incisions on the urethral strip are guided by the disposition of the spongiosal tissue underlying the urethral plate (rather than the conventional U-shaped incision on either side of hypospadiac urethral meatus). In the patients with proximal hypospadias with severe chordee urethral advancement was combined to achieve orthoplasty and a single stage hypospadias repair. The catheter was removed on tenth postoperative day.

Results

Even in patients with proximal hypospadias with severe chordee, good single staged repair was achieved without resorting to dorsal plication that would have been necessary had any other methods based on the preservation of urethral plate was performed in these subjects. Therefore, the procedure was found to have an extended applicability to even those patients where tubularized incised urethral plate urethroplsty is not advised. All patients had good results (in 1 year follow-up), except in three early subjects of the series; two of whom developed minor urethrocutaneous fistulae (probably due to frank urinary leak secondary to repeated catheter blockade) and one developed partial glanular wound dehiscence.

Conclusions

Though the authors have an initial limited experience with this procedure, the procedure is likely to have a promising future due to its versatility and utilization of the entire urethral tissue.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2

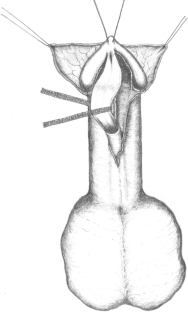

Fig. 3

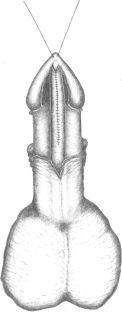

Fig. 4

References

  1. Baskin LS, Duckett JW, Lue TF (1996) Penile curvature. Urology 48:347–356. doi:10.1016/S0090-4295(96)00213-0

    PubMed  Article  CAS  Google Scholar

  2. Baskin LS, Erol A, Li YW et al (1998) Anatomical studies of hypospadias. J Urol 160:1108. doi:10.1016/S0022-5347(01)62711-3

    PubMed  Article  CAS  Google Scholar

  3. Snodgras W, Patterson K, Plaire JC, Grady R, Mitchell ME (2000) Histology of the urethral plate: implications for hypospadias repair. J Urol 164:988–990. doi:10.1016/S0022-5347(05)67233-3

    Article  Google Scholar

  4. Borer JG, Baurer SB, Peters CA, Diamond DA, Atala A, Cliento BG et al (2001) Tubularized incised plate urethroplasty: expanded use in primary and repeat surgery for hypospadias. J Urol 165:581–585. doi:10.1097/00005392-200102000-00075

    PubMed  Article  CAS  Google Scholar

  5. Snodgras W (1994) Tubularized, incised plate urethroplasty for distal hypospadias. J Urol 154:464–465

    Google Scholar

  6. Marshall M Jr, Beh WP, Johnson HIII, Price SE, Barnhouse DH (1978) Etiological considerations in penoscrotal hypospadias repair. J Urol 120:229–231

    PubMed  Google Scholar

  7. Muelen JH (1977) The correction of hypospadias. Plast Reconstr Surg 59:206–215

    Article  Google Scholar

  8. Snodgrass WT (1999) Tubularized incised plate hypospadias repair: indications, technique, and complications. Urology 54:6–11. doi:10.1016/S0090-4295(99)00144-2

    PubMed  Article  CAS  Google Scholar

  9. Singh RB, Pavithran NM (2004) Lessons learnt from Snodgras tip urethroplasty: a study of 75 cases. Pediatr Surg Int 20:204–206. doi:10.1007/s00383-004-1148-0

    PubMed  Article  CAS  Google Scholar

  10. Baker LA, Mathews RI, Docimo SG (2000) Radical bulbar dissection to correct severe chordee and proximal hypospadias. J Urol 164:1347–1349. doi:10.1016/S0022-5347(05)67194-7

    PubMed  Article  CAS  Google Scholar

  11. Koff SA (1980) Mobilization of the urethra in the surgical treatment of hypospadias. J Urol 125:394–397

    Google Scholar

  12. Montfort G, Di Benedetto V, Meyrat BJ (1995) Posterior hypospadias: the French operation. Eur J Pediatr Surg 5:352–354

    Article  Google Scholar

  13. Montfort G, Bretheau D, Di Benedetto V, Bankole R (1992) Posterior hypospdias repair: a new technical approach. Eur Urol 22:137–141

    PubMed  CAS  Google Scholar

  14. Furness PD (2003) Successful hypospadias repair with a ventral based vascular dartos pedicle for urethral coverage. J Urol 169:1825–1827. doi:10.1097/01.ju.0000058429.18975.30

    PubMed  Article  Google Scholar

  15. Van Horn AC, Kass EJ (1995) Glanuloplasty and in situ tubularization of the urethra plate: a simple reliable technique for the majority of boys with hypospadias. J Urol 154:1505–1507. doi:10.1016/S0022-5347(01)66916-7

    PubMed  Article  Google Scholar

Download references

Author information

Affiliations

  1. PGIMS, Rohtak, Haryana, India

    Simmi K. Ratan & Kamal Nain Rattan

  2. Sitaram Bhartiya Institute of Science and Research, New Delhi, India

    John Ratan

Authors
  1. Simmi K. Ratan
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. John Ratan
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Kamal Nain Rattan
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Simmi K. Ratan.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Ratan, S.K., Ratan, J. & Rattan, K.N. Is tubularization of the mobilized urethral plate a better alternative to tubularization of an incised urethral plate for hypospadias repair?. Pediatr Surg Int 25, 185–190 (2009). https://doi.org/10.1007/s00383-008-2312-8

Download citation

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00383-008-2312-8

Keywords

  • Hypospadias
  • Urethral plate mobilization
  • Urethral advancement
  • Neo-urethra
  • Tubularization
  • Urethral plate
