Abstract
The mid-Piacenzian Warm Period (MPWP, ~ 3.264–3.025 Ma) is the most recent example of a persistently warmer climate in equilibrium with atmospheric CO2 concentrations similar to today. Towards studying patterns and dynamics of a warming climate the MPWP is often compared to today. Following the Pliocene Model Intercomparison Project, Phase 2 (PlioMIP2) protocol we prepare a water isotope-enabled Community Earth System Model (iCESM1.2) simulation that is warmer and wetter than the PlioMIP2 multi-model ensemble (MME). While our simulation resembles PlioMIP2 MME in many aspects we find added insights. (1) Considerable warmth at high latitudes exceeds previous simulations. Polar amplification (PA) is comparable to proxies, enabled by iCESM1.2’s high climate sensitivity and a distinct method of ocean initialization. (2) Major driver of warmth is the downward component of clear-sky surface long-wave radiation (\(\varDelta T_{\text{rlds}\_\text{clearsky}}\)). (3) In iCESM1.2 modulated dominance of dynamic (δDY) processes causes different low-latitude (~ 30 S°–10°N) precipitation response than the PlioMIP2 MME, where thermodynamic processes (δTH) dominate. (4) Modulated local condensation leads to lower δ18Op across tropical Indian Ocean and surrounding Asian-African-Australian monsoon regions. (5) We find contrasting changes in tropical atmospheric circulations (Hadley and Walker cells). Anomalous regional meridional (zonal) circulation, forced by changes in tropical-subtropical (tropical) diabatic processes, presents a more comprehensive perspective than explaining weakened and expanded Hadley circulation (strengthened and westward-shifted Walker circulation) via static stability. (6) Enhanced Atlantic meridional overturning circulation owes to a closed Bering Strait.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
1 Introduction
The mid-Piacenzian Warm Period (MPWP, 3.264–3.025 Ma) is the most recent geological interval when climate was persistently warmer while atmospheric CO2 concentrations were close to today. In addition, various characteristics of this period are similar to present, increasing transferability of inferences drawn from MPWP climate to a modern perspective, such as the distribution of continents (Dowsett et al. 2016). Therefore, interest in the MPWP stems from it being a possible reference for future climate (Dowsett et al. 2016; Burke et al. 2018; Chandan and Peltier 2018; Sun et al. 2018, 2024; McClymont et al. 2020).
Reconstructions using environmental proxies and numerical simulations are the two main ways to study past climates. Fruitful collaboration between these two disciplines has shed light on Pliocene climate. Noteworthy are continued effort of the Pliocene Research, Interpretation and Synoptic Mapping (PRISM) project over the past 30 years (Dowsett 1991; Dowsett et al. 1994, 1996, 1999, 2009, 2010, 2012, 2013a, b, 2016; Dowsett and Robinson 2009) that have provided the paleoclimatic framework for model-data comparison and ample information on paleogeography that has been provided to the modeling community as boundary conditions for simulations of Pliocene climate. The paleogeographic reconstructions of PRISM3 (Dowsett et al. 2010) and PRISM4 (Dowsett et al. 2016) have served as boundary conditions for the Pliocene Model Intercomparison Project, an international climate modeling initiative to study and understand climate and environments of the MPWP (Haywood et al. 2021) that has conducted two successful phases PlioMIP1 (Haywood et al. 2011), PlioMIP2 (Haywood et al. 2016), and has recently entered its third phase PlioMIP3 (Haywood et al. 2023).
Overall, the large-scale warm and wet conditions indicated by MPWP climate reconstructions are reproduced by most PlioMIP models. The increase in MPWP surface air temperature (SAT) relative to the pre-industrial inferred from proxy reconstructions improved from PlioMIP1 (∼1.8–3.6 °C) to PlioMIP2 (∼1.7–5.2 °C) (Haywood et al. 2013, 2020) as did total precipitation (0.09–0.18 mm/day in PlioMIP1 (Haywood et al. 2013), 0.07–0.37 mm/day in PlioMIP2 Haywood et al. 2020). In addition to the large-scale patterns, PlioMIP models also simulate important regional climate features, including weakened tropical atmospheric circulation (Sun et al. 2013), reduced El Niño variability (Oldeman et al. 2021), increased monsoon rainfall (Zhang et al. 2013; Sun et al. 2016, 2018, 2024; Li et al. 2020; Berntell et al. 2021; Han et al. 2021; Williams et al. 2021), an overall poleward migration of storm tracks (Baatsen et al. 2022), Arctic warmth (Zheng et al. 2019; de Nooijer et al. 2020), and the enhancement of Atlantic Meridional Overturning Circulation (AMOC) (Zhang et al. 2021). Although much progress has been made in improving simulations in comparison to the geologic record, some basic scientific issues remain (Tindall et al. 2022). For example, high-latitude warmth shown in proxy records persists in being generally underestimated by simulations, despite efforts to resolve data-model inconsistencies by altering the orbital parameters (Prescott et al. 2014; Samakinwa et al. 2020), increasing CO2 concentration (Stepanek et al. 2020), including enhanced concentrations of non-CO2 (i.e. CH4) trace gases (Hopcroft et al. 2020), and enhancing the poleward heat transport via closure of the Bering Strait (Chandan and Peltier 2017; Hunter et al. 2019; Chan and Abe-Ouchi 2020; Stepanek et al. 2020; Tan et al. 2020; Weiffenbach et al. 2022). In essence, the widespread underestimation of polar amplification in climate simulations persists in PlioMIP2. Given the widespread interest in future changes in tropical atmospheric circulation and the associated uncertainties, there is an increasing focus on studying past geological warm periods to gain insights into how tropical atmospheric circulation has evolved in the past, thus contributing to the understanding of future changes (Sun et al. 2013; Zhang et al. 2023, 2024). However, the validity of a common attribution of the weakening of tropical atmospheric circulation during warm periods to the enhancement of static stability has recently been questioned (Zhang et al. 2024). Furthermore, while water-isotope enabled simulations have been used in the study of the Quaternary (Zhu et al. 2017; Tabor et al. 2018; Hu et al. 2019; Falster et al. 2021; He et al. 2021) and of the Eocene (Zhu et al. 2020), there is a lack of consideration of stable water- isotopes in climate simulations of the Pliocene, hampering direct comparison of model- output to oxygen-isotope-based proxy-records as there is necessity for the use of transfer functions. Furthermore, the ability of stable water-isotopes to be used as a tracer for dynamics in the hydrological cycle has so far been lacking for the Pliocene.
With this in mind, we studied the large-scale features of the MPWP using iCESM1.2-ITPCAS following the PlioMIP2 protocols, in anticipation of new findings that increase our understanding of this quasi-analog of future climate conditions and that supplement inferences gained from the PlioMIP2. Our findings indicate that (1) enhanced polar amplification is observed when utilizing a distinct ocean initialization, setting our study apart from the majority of previous research; (2) precipitation response in the latitude band [~ 30°S–10°N] differs between iCESM1.2-ITPCAS and PlioMIP2 primarily due to the predominant influence of different physical processes (dynamic vs. thermodynamic); (3) Diabatic processes provide a more fundamental explanation for a spatial response of tropical atmospheric circulation to MPWP warmth, including Hadley cells and the tropical Pacific Walker cell; (4) two additional water-isotope enabled experiments help us to decipher the decomposition of δ18Op response during the MPWP.
2 Model description and simulation for mid-piacenzian climate
2.1 Model description
The model used for the MPWP simulation is the fully coupled water isotope-enabled version of the Community Earth System Model version 1 (iCESM1.2) (Brady et al. 2019). The four model components that make up this model are: atmosphere (CAM5.3, resolution 1.9° latitude\(\times\)2.5° longitude), land surface (CLM4, 1.9°\(\times\)2.5°), ocean (POP2, ~ 1.0°\(\times\)1.0°), and sea ice (CICE4, same resolution as POP2). All components of iCESM1.2 exchanges relevant fluxes via a coupler (CPL7). The model codes are available to the public via an open access publication of source files (https://github.com/NCAR/iCESM1.2).
As assessed by the work of Nusbaumer et al. (2017) and Brady et al. (2019), iCESM1.2 has good performance in representing the observed distribution of stable isotopes of oxygen (δ18Op) in precipitation, and thus it is widely used in paleoclimate simulations (Zhu et al. 2017, 2020).
2.2 Experimental designs
Following PlioMIP2 protocols, this study used iCESM1.2-ITPCAS to carry out MPWP climate simulations under the enhanced boundary conditions from PRISM4 (Dowsett et al. 2016; Haywood et al. 2016). Given the open-source nature of iCESM1.2 and its application by various different modeling groups, we added the suffix ITPCAS to the article title and diagrams, distinguishing our study from other groups potentially using this model version for PlioMIP simulations. The main experimental parameters in the MPWP simulation (Eoi400; Haywood et al. 2016) are configured as follows: (1) CO2 concentrations in the atmosphere are set to 400 ppm; (2) changes in the topography and bathymetry include closure of the Canadian Archipelago and Bering Strait, and a reduction in land ice cover that comes with major changes of the land-sea-mask in the western Antarctic; (3) prescribed vegetation is provided by the PRISM3 reconstruction as described in Salzmann et al. (2008); and (4) the solar constant and orbital forcing are the same as the pre-industrial condition. In addition to the MPWP experiment, the pre-industrial experiment (PI, E280) is performed for comparison with the MPWP simulation. The MPWP experiment was run for 2500 model years whereas the PI experiment was restarted from a previously obtained equilibrium state (Zhu et al. 2017, 2020) and then ran for another 300 model years.
To illustrate the advantage of the iCESM1.2-ITPCAS compared with other PlioMIP2 models in simulating high latitude warmth, we conducted PlioMIP2 core experiments also using the CESM1.2 (CAM4)-ITPCAS (motivation for specification of the model version is as for iCESM1.2-ITPCAS) following the same experimental configuration as the iCESM1.2-ITPCAS and compare results in Fig. 1. The CESM1.2-ITPCAS configuration used in this work differs from that of Feng et al. (2020) in that the atmospheric model used in their study is CAM version 5 (CAM5) at the horizontal resolution of 0.9° along latitudes and 1.25° along longitudes, whereas we employ CAM version 4 (CAM4) at the horizontal resolution of 1.9° latitude by 2.5° longitude.
Due to increased equilibrium climate sensitivity (ECS) from CAM4 to CAM5 (Feng et al. 2020), this could be the primary reason for our simulated difference in MPWP surface warmth between iCESM1.2-ITPCAS and CESM1.2 (CAM4)-ITPCAS (i.e., iCESM1.2-ITPCAS simulates higher warmth than CESM1.2 (CAM4)-ITPCAS). The model version (CESM 1.0.5), a model not featuring high ECS, can simulate MPWP surface conditions that are among the warmest found from PlioMIP2 models, including those with higher ECS, if it is initialized from a warmer ocean state as opposed to starting from PI or present-day conditions (Baatsen et al. 2022). We similarly used warm model initialization (same salinity and slightly higher ocean temperature) for iCESM1.2-ITPCAS and CESM1.2 (CAM4)-ITPCAS in the expectation of higher magnitude of MPWP surface warmth at higher latitude that was so far underestimated by the models (Dowsett et al. 2013a; Salzmann et al. 2013). This, of course, has the side effect of overestimating some of the reconstructed temperatures in the tropics. We note that different types of proxies appear to disagree on temperatures in the tropics of the Pliocene, and that particularly cold tropical temperatures could potentially be related to biases in the proxy recorder (e.g. McClymont et al. 2020). For detailed initial values of temperature and salinity, please refer to the data set that has been made available online (file ts_init_b20.681_1100-01_s_35.60level.dat.orig, source: https://github.com/CESM-Development/paleoToolkit/tree/master/cesm1/ocn/ic/).

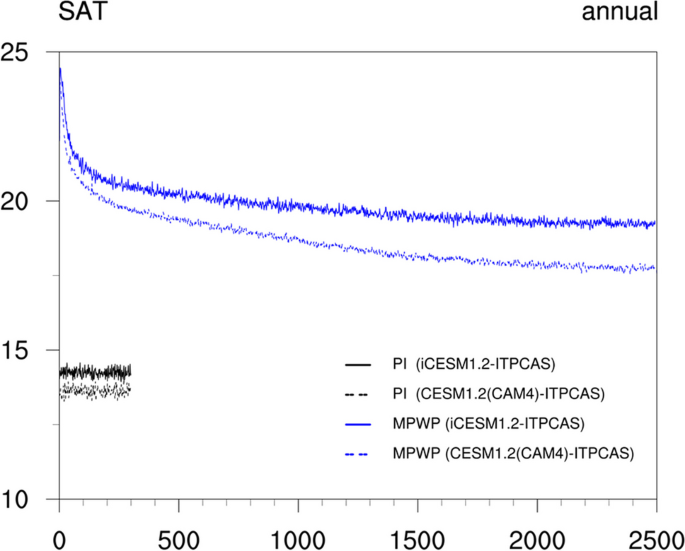

Considering the potential impact of intrinsic decadal variability on the results (Parsons et al. 2020), the last 100 years of each simulation were used for analysis. It’s noteworthy that the time span for calculating the mean climate state is variable across different studies, and averaging periods over 20 (He et al. 2021; IPCC et al. 2013), 30 (Arguez and Vose 2011; Haywood et al. 2013; Salzmann et al. 2013; Sun et al. 2018, 2021, 2023), 50 (IPCC 2013; Hawkins et al. 2017), or even 100 years (Haywood et al. 2020; Stepanek et al. 2020) have been used. For a simulated climate in equilibrium, the choice of the time length over which climatological results are derived should not affect results too much if the average is made over at least a period of multiple decades and as long as it can be shown that significant impact of multi-decadal to multi-centennial variability is absent.
2.3 Diagnostic methodology
2.3.1 Decomposition of surface temperature changes
Causes of differences between simulations were examined by decomposing MPWP surface air temperature (SAT) anomaly into several physical processes by means of an analysis of the surface energy budget, following the work of Lu and Cai (2009).
where overbar indicates time means, \({S}^{\downarrow }\) and \({S}^{\uparrow }\) are surface downward and upward shortwave radiation fluxes, \(\alpha\) is the surface albedo calculated as the ratio of \({S}^{\uparrow }\) to \({S}^{\downarrow }\) at surface, F is net longwave radiation flux at the surface derived from differences between \({F}^{\downarrow }\) (downward longwave radiation flux) and \({F}^{\uparrow }\) (upward longwave radiation flux), the superscript \({\left(\cdot \right)}^{clr}\) denotes clear sky (clr) condition, \({CRF}_{s}\) is cloud radiative forcing at the surface, Q is heat storage, SH and LH are sensible heat and latent heat fluxes, respectively, and a \(\varDelta \left(\cdot \right)\) notation denotes variable differences between two data sets (i.e. different simulated climate states in our case). Thus, the surface temperature difference of MPWP climate vs. a reference climate can be approximately decomposed into the sum of partial temperature changes due to the following seven processes (from left to right): surface albedo feedback (SAF) (\(\varDelta {T}_{SAF}\)), cloud radiative forcing (\(\varDelta {T}_{CRE}\)), non-SAF-induced change in clear-sky short wave radiation (\(\varDelta {T}_{\text{non}\_\text{SAF}\_\text{SW}}\)), downward clear-sky long wave radiation fluxes (\(\varDelta {T}_{\text{r}\text{l}\text{d}\text{s}\_\text{c}\text{l}\text{r}}\)), heat storage (\(\varDelta {T}_{Q}\)), surface sensible fluxes (\(\varDelta {T}_{SH}\)), and surface latent fluxes (\(\varDelta {T}_{LH}\)).
2.3.2 Water vapor budget
Before we continue, we must keep in mind that there are several formulations for the water vapor balance equation, and we have chosen one of the more commonly used expressions (Seager et al. 2010; Chou and Lan 2012).
where P is precipitation, E is evaporation, q is the atmospheric specific humidity, \({\overrightarrow{V}}_{H}\) is the horizontal wind, ∇∙ its divergence, and Res accounts for the residual term, encompassing transient eddy effects and deformation of surface moisture transport due to the surface pressure gradient (D’Agostino and Lionello, 2020; Sun et al. 2021; Sun et al. 2023). The bracket notation denotes the vertical integral in the atmospheric column across the troposphere and is defined as \(\langle\cdot\rangle=\frac1{{gp}_w}\int_0^{P_s}\cdot dp\), where Ps is the surface pressure, ρw is the density of water, and g is the gravitational acceleration. The difference in water vapor budget between two climate states, considering changes in the divergence of water vapor flux (\(-\delta \langle \nabla \cdot q{\overrightarrow{V}}_{H}\rangle\)) for thermodynamic and dynamic decompositions, can be expressed as follows:
The above defined thermodynamic (\(\delta \text{TH}\)) and dynamic (\(\delta \text{DY}\)) components of changes in divergence of water vapor flux (\(-\delta \langle \nabla \cdot q{\overrightarrow{V}}_{H}\rangle\)) that affect precipitation difference between MPWP and PI can be written as follows:
Application of the water vapor budget can be summarized as follows: (1) examining the physical processes controlling precipitation during two different periods (Eqs. 2), (2) evaluating relative contributions of different components to the response of precipitation to MPWP warmth (Eq. 3), and (3) further elucidating relative magnitudes of thermodynamic and dynamic processes in water vapor transport through thermodynamic and dynamic decompositions (Eqs. 4 and 5).
2.3.3 Decomposition of the response of δ18Op
To identify controls on δ18O in precipitation (δ18Op), two additional stable water-isotopes experiments were conducted where sea surface temperature and sea ice distribution from the last 100 years of the PI and MPWP experiments were prescribed as a lower boundary condition to the stand-alone iCAM5. Each simulation ran for 40 years, analysis of climate state and model dynamics being conducted on the last 30 years of each simulation. A mathematical expression for δ18Op at any grid cell can be formulated as the weighted sum of oxygen isotopes in precipitation from all source areas, following the methods described in the work of Tabor et al. (2018), Hu et al. (2019) and He et al. (2021).
where \({\delta }^{18}{O}_{pi}\) and \({p}_{i}\) represent \({\delta }^{18}{O}_{p}\) and precipitation from the source region “i” \(and \ {p}_{total}\) is total precipitation at each grid cell. Equation 6 describes the calculation for δ18Op, considering contributions from multiple source regions weighted by their respective precipitation amounts. The δ18O transported by water vapor (δ18Owv, i) from a specified source region “i” to the formation of δ18O in precipitation at a grid cell (δ18Opi) involves three distinct characteristics and processes: the isotopic signal of water vapor at the source region δ18Owv, i and isotopic depletion δ18Owvsink, i and enrichment en route due to rainout and condensation.The relation of δ18Opi with the three aforementioned characteristics and processes can be expressed as follows:
The δ18Op difference between MPWP and PI periods can be attributed to four distinct processes (Eq. 8).
Please note that annual mean δ18Op is calculated by weighing monthly precipitation amount (Eq. 9).
where \({\delta }^{18}{O}_{pmon}\) is monthly δ18Op, pmon is monthly precipitation, pann is annual total precipitation.
In our study, we divide the investigation into eight regions, seven being located across the ocean, and one covering the global terrestrial realm (Fig. 7b). This approach enables regionally discrete quantification of contributions of three physical processes (source composition, rainout, condensation) and of the spatially heterogeneous isotopic composition at different source regions to the variations of δ18Op around the tropical Indian Ocean and the Tibetan Plateau (TP) in response to MPWP warmth.
2.3.4 Diabatic processes and tropical atmospheric circulation
In the tropics, the thermodynamic equations describing atmospheric motion can be simplified as follows:
where \(\omega\) is the vertical motion of air and \(\sigma\) is the static stability of the atmosphere. This means that the tropical atmosphere is in equilibrium between diabatic heating (cooling) and adiabatic rising (sinking) (Mitas and Clement 2006). First of all, the climatic means of tropical diabatic heating and cooling correspond spatially well with the rising and sinking of the tropical atmosphere (Figs. S4-S5). Next, changes in diabatic processes in the tropics (\(\delta Q\)) and their decomposition into dynamic (\(\delta {Q}_{DY}=\sigma \cdot \delta \omega\)) and thermodynamic contributions (\(\delta {Q}_{TH}=\omega \cdot \delta \sigma\)) due to respective changes by vertical circulation and dry static stability are further used to study the Hadley circulation and Walker circulation changes in response to MPWP warmth.
2.3.5 Mass stream function for Hadley circulation and stream function for Walker circulation
The Hadley circulation’s conventional metric, the mass stream function (MSF), is determined as the vertical integral of the zonal mean meridional wind throughout the troposphere (Oort and Yienger 1996). The calculation is expressed by the equation:
In this equation, a represents Earth’s radius, ∅ signifies latitude, g stands for acceleration due to gravity, p denotes pressure, and v represents meridional velocity.

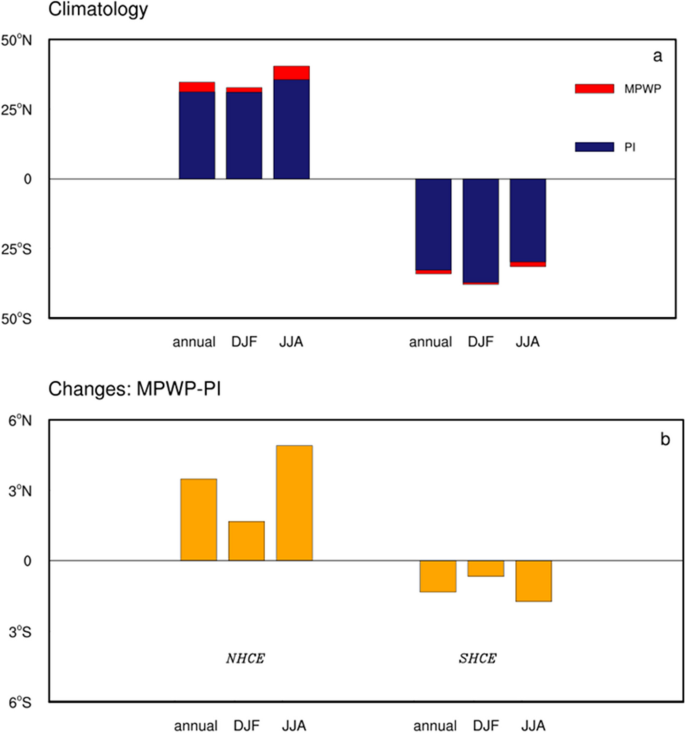

The edges of the northern and southern Hadley cells, labeled NHCE and SHCE respectively, represent the latitudinal positions where the MSF reaches zero at 500 hPa within the subtropical regions of the northern and southern hemispheres (Sun et al. 2013; Zhang et al. 2024).
We can obtain the zonal overturning circulation that characterizes the Walker circulation by vertically integrating the divergence component of the zonal wind average over 30°S-30°N (Sun et al. 2013; Zhang et al. 2024). It is expressed as:
Here, Ψ denotes the zonal stream function, \(\lambda\) represents longitude, p represents pressure, and \({u}_{d}\) represents the divergence component of the zonal wind.
2.3.6 Aridity index
The aridity index (AI) is commonly defined as the ratio of precipitation (P) to potential evapotranspiration (PET), expressed as AI = P/PET. It serves as a direct and effective indicator for quantifying land dryness and is widely employed in drought research (Su et al. 2018). Potential evapotranspiration is often calculated using the Penman formula (Allen et al. 1998):
Where:
∆ is the slope of saturation vapor pressure curve at the given air temperature (kPa \(^\circ \mathrm C^{-1}\)), Rn is the net radiation at the surface (W m−2), G is the soil heat flux (W m−2), γ is the psychrometric constant (kPa\(^\circ \mathrm C^{-1}\)), Ta denotes the 2-meter air temperature, U2 represents the 2-meter wind speed, es stands for the saturation vapor pressure (kPa), and ea represents the actual vapor pressure (kPa), which can be calculated from es and relative humidity.
Therefore, PET comprehensively considers the combined effects of near-surface temperature, relative humidity, surface energy, and other factors, providing a good reflection of the evapotranspiration capacity under different underlying surface thermal conditions. A lower AI value indicates a drier climate. According to the classification standards of the United Nations Environment Programme (Middleton and Thomas 1992), drought severity is categorized into four levels based on AI values: AI < 0.05 indicates a hyper-arid region, 0.05 ≤ AI < 0.2 represents an arid region, 0.2 ≤ AI < 0.5 denotes a semi-arid region, and 0.5 ≤ AI < 0.65 characterizes a dry sub-humid region. As a rule, the annual average AI index is used to describe the average annual dry and humid conditions of a region. The seasonal AI is then used to describe the seasonal variations in regional dry and wet conditions (Zhao et al. 2019; Pour et al. 2020; Kumar et al. 2021).
3 Results
3.1 Surface temperature

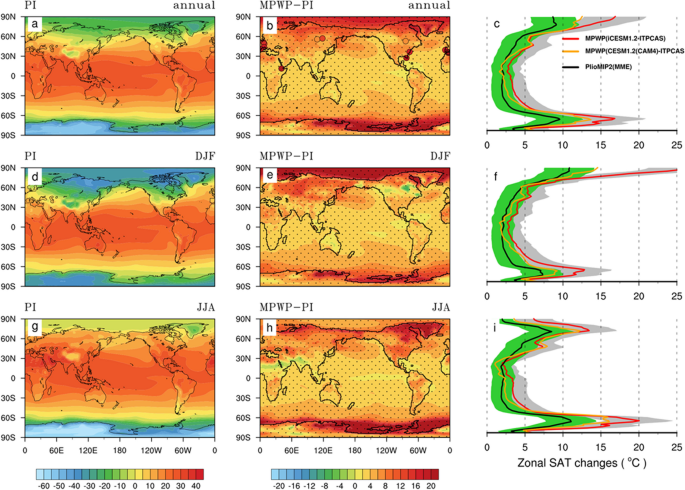

Figure 2 shows annual and seasonal SAT anomalies (Fig. 2, middle panel) of MPWP compared with the PI period as simulated with iCESM1.2-ITPCAS. For the latter, absolute values are shown in Fig. 2 (left panel). The simulated global average SAT of mean annual, boreal winter (December-January-February, DJF) and boreal summer (June-July-August, JJA) is 4.98 °C, 4.81 °C and 5.16 °C above the PI period, respectively. Surface warmth during the MPWP is far from globally uniform, as manifested by pronounced positive temperature anomalies in the high latitudes of the Northern and Southern Hemispheres and a weak rise of SAT in the tropics (Fig. 2b-e-h). Latitudinal heterogeneity of SAT changes reduces the meridional (equator-to-pole) thermal contrast in both hemispheres (Fig. 2b-e-h and c-f-i); the potential effect of non-uniform distribution of warmth on tropical atmospheric circulation is further addressed in Section 3.3.
Compared with the results of PlioMIP2 multi-model ensemble mean (MME) (black curves in Fig. 2c-f-i) and CESM1.2 (CAM4)-ITPCAS (orange curves in Fig. 2c-f-i), the simulations of iCESM1.2-ITPCAS (red curves in Fig. 2c-f-i) show positive temperature anomalies to be more pronounced at high-latitudes in both hemispheres thereby better representing findings derived from reconstructions during the MPWP (Salzmann et al. 2013).

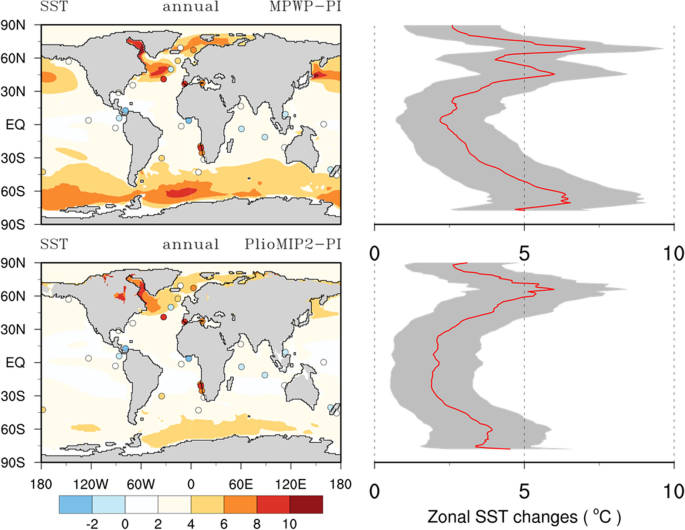

In addition to changes in SAT, sea surface temperature (SST) simulated using iCESM1.2-ITPCAS also shows a significant positive anomaly at high latitudes (Fig. 3, top panel). This is consistent with the results of the PlioMIP2 MME (Fig. 3, bottom panel). Compared to the PlioMIP2 MME, pronounced high latitude warmth in the iCESM1.2-ITPCAS is more in line with proxy data for the MPWP (Dowsett et al. 2013a).

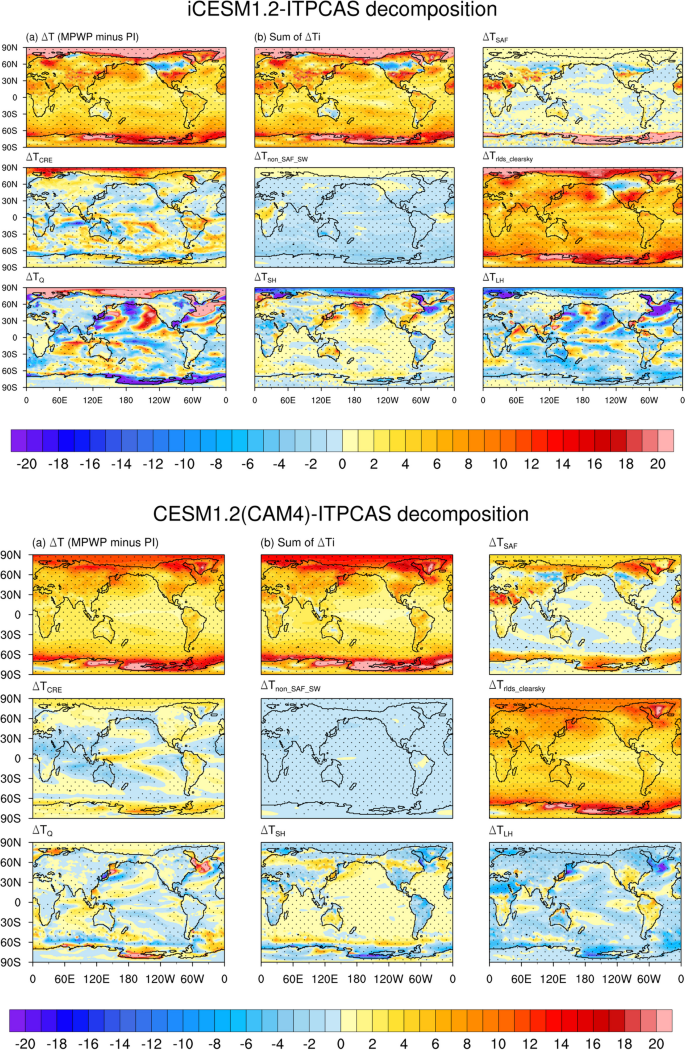

Decomposition shows that the simulated MPWP surface warmth is mainly controlled by changes in downward clear-sky long wave radiation fluxes (\(\varDelta {T}_{\text{r}\text{l}\text{d}\text{s}\_\text{c}\text{l}\text{r}}\)) in both iCESM1.2-ITPCAS and CESM1.2 (CAM4)-ITPCAS (Fig. 4). Yet, iCESM1.2-ITPCAS simulates a larger contribution of\(\varDelta {T}_{\text{r}\text{l}\text{d}\text{s}\_\text{c}\text{l}\text{r}}\) to high latitude surface warmth than the CESM1.2 (CAM4)-ITPCAS simulation (Fig. 4). In addition, contributions by heat storage (\(\varDelta {T}_{Q}\)) and cloud radiative forcing (\(\varDelta {T}_{CRE}\)) to high latitude surface warmth during the MPWP are much higher in the iCESM1.2-ITPCAS simulation than in the CESM1.2 (CAM4)-ITPCAS simulation. This could explain the reason for MPWP surface warmth at high latitudes as simulated by iCESM1.2-ITPCAS is much closer to PRISM4 reconstructions than the results derived from CESM1.2 (CAM4)-ITPCAS (Fig. 2).
3.2 Precipitation and δ18Op

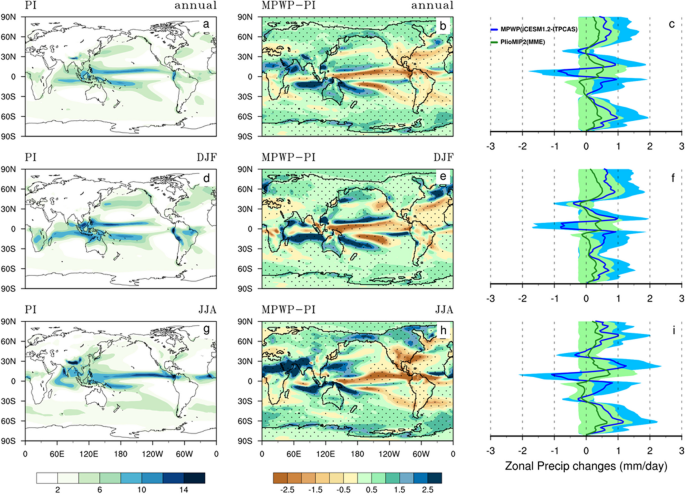

In addition to simulating a warmer MPWP (Figs. 2 and 3), iCESM1.2-ITPCAS simulates MPWP climate that is wetter compared to the PI period (Fig. 5b-e-h and a-d-g). Global average precipitation was higher in the MPWP by 0.33 mm/day, 0.31 mm/day, 0.35 mm/day for the annual, boreal winter, and boreal summer means, respectively. While precipitation in the MPWP was higher overall, there is obvious regional modulation (Fig. 5b-e-h). For example, MPWP precipitation is generally higher outside the tropics. Within the tropics there is a mixed response, with higher precipitation mainly in the monsoon regions, especially in the Asian-Australian monsoon zone, and reduced precipitation in the equatorial region (Fig. 5b-e-h).
Signs of precipitation changes are largely consistent between iCESM1.2-ITPCAS and PlioMIP2 MME (Fig. 5c-f-i) in most parts of both hemispheres, except for regions around the equator and the southern tropics (Fig. 5c-f-i). That is, precipitation patterns are similar between iCESM1.2-ITPCAS and PlioMIP2 MME with respect to wetter middle to high latitudes in each hemisphere, more pronounced dry regions in the northern subtropics, and wetter northern tropics. In contrast, both models produce opposite signs of precipitation change during the MPWP over the tropical regions [~ 30 S°–10\(^\circ\)N]. In the PlioMIP2 MME we find increased precipitation near the equator [~ 10 S°–10\(^\circ\)N] and drying in tropical regions south of the equator [~ 30 S°–10\(^\circ\)S], while in iCESM1.2-ITPCAS there is a decreased precipitation near the equator and increased rainfall in tropical regions of both hemispheres the equator, straddling the equator.

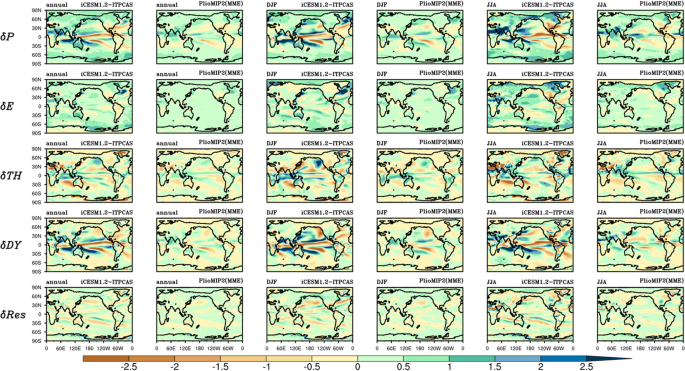

Analysis of water vapor budgets in iCESM1.2-ITPCAS and PlioMIP2 MME, depicted in Fig. 6, helps us to understand precipitation responses to MPWP surface warmth and to identify associated physical processes. Relative to the PI, the increase in global mean precipitation (\(\delta P\)) during the MPWP primarily links to increased evaporation (\(\delta E\)) that is the dominant component across seasons. While providing strong signals at regional scale, other water vapor budget components (\(\delta TH\), \(\delta DY\), \(\delta Res\)) have rather minor impact on global mean precipitation changes in iCESM1.2-ITPCAS and negligible effects in PlioMIP2 MME (Table 1; Fig. 6). At regional scale, however, both in iCESM1.2-ITPCAS and PlioMIP2 MME simulations, dynamic effects (\(\delta DY\)) contribute more to precipitation anomalies than thermodynamic effects (\(\delta TH\)), notably within the tropics and subtropics (Fig. 6). For iCESM1.2-ITPCAS we find a more pronounced response of MPWP precipitation than for PlioMIP2 MME. This owes to stronger physical processes (\(\delta E, \delta TH\), \(\delta DY\), \(\delta Res\)) governing precipitation in iCESM1.2-ITPCAS (Table 1; Fig. 6). Notably, contrasting regional precipitation responses between iCESM1.2-ITPCAS and PlioMIP2 MME, particularly within [~ 30 S°–10°N], arise due to differing dominant effects of \(\delta DY\) and \(\delta TH\). iCESM1.2-ITPCAS emphasizes \(\delta DY\) control, while PlioMIP2 MME attributes regional precipitation changes more to \(\delta TH\) (Fig. 6), although the difference in contribution is for PlioMIP2 MME not so clear due to comparably small overall contribution by both processes (Fig. 6; Table 1).

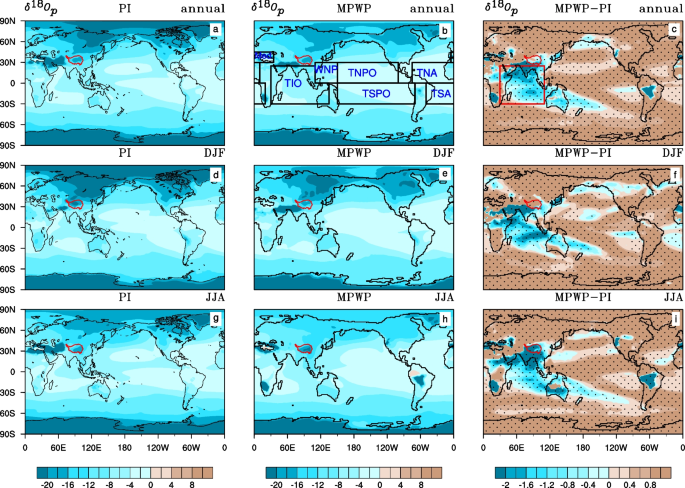

Stable oxygen isotopes (δ18O) simulation in iCESM1.2-ITPCAS enables us to study the dynamic response of precipitation to MPWP warmth. Here we show that PI δ18Op in iCESM1.2-ITPCAS captures the spatial pattern of observed annual, DJF and JJA δ18Op (Fig. 7a-d-g). For the MPWP more negative δ18Op is found over the tropical Indian Ocean and its surrounding landmasses, while remaining regions largely exhibit positive δ18Op anomalies (Fig. 7c-f-i). To clarify controls for more negative δ18Op over the tropical Indian Ocean and its surrounding land masses during the MPWP, Fig. 8 illustrates the combined effects of individual physical processes in all regions for annual (left panel), DJF (middle panel) and JJA (right panel) δ18Op response. These include contributions from changes in source composition (row 1 of Fig. 8), rainout (row 2), condensation (row 3), and source location (row 4).
We find that negative δ18Op over the tropical Indian Ocean and its surrounding land masses is mainly driven by condensation processes (Fig. 8g-h-i) followed by the impact of source location (Fig. 8j-k-l). We also find that condensation is (together with source composition) the primary factor for more positive δ18Op over the TP during DJF (Fig. 8b-h) and (together with source location) for negative deviations during JJA (Fig. 8i-l). Annual variations in δ18Op over the TP are primarily influenced by changes in source location (Fig. 8j). By quantifying the relative contributions of the four physical processes from the 8 considered regions, we conclude that the significant negative δ18Op (annual, DJF and JJA) during the MPWP in the Tropical Indian Ocean is mainly attributed to local condensation processes in the TIO region (Figs. S1C2, S2C2 and S3C2), although source location changes in other regions outside the TIO also contribute (Figs. S1-S2-S3, row5).
3.3 Tropical Atmospheric circulation (Hadley and Walker cells)
3.3.1 A weakened and expanded Hadley circulation

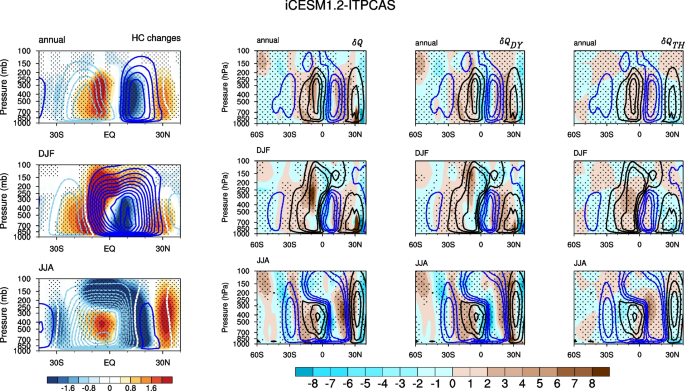

The Hadley Circulation in the MPWP is generally weakened compared to the PI period, and its spatial variation represented by mass stream function is not uniform, characterized by opposite changes in its tropical and subtropical components (Fig. 9). Specifically, anomalous counterclockwise and clockwise circulations are present in the tropics of the Northern and Southern Hemispheres, respectively (shading Fig. 9 left). This is contrary to the spatial distribution of climatological Hadley circulation (i.e., counterclockwise tropical circulation in the Southern Hemisphere, clockwise tropical circulation in the Northern Hemisphere) (contours, Fig. 9 left). In contrast, in the subtropics of both hemispheres anomalous circulation is of the same sense of rotation as the climatological Hadley circulation., i.e. clockwise in the Northern Hemisphere, counterclockwise in the Southern Hemisphere, with the change in the Northern Hemisphere dominating (shading, Fig. 9 left). A weakened mass streamfunction in the tropics of both hemispheres leads to reduced intensity of Northern and Southern Hadley cells; on the other hand, intensified mass stream function in the subtropics of both hemispheres leads a MPWP Hadley circulation that is shifted poleward compared to the PI (Fig. 10).
As mentioned above, both the weakened intensity of Hadley circulation and its poleward shift are due to spatially non-uniform response of the mass stream function to the surface warmth of the MPWP. Therefore, the physical processes explaining the spatially non-uniform response of the mass stream function serve as a logical explanation for the weakening of the Hadley circulation and expansion of its boundaries during the MPWP. Tropical diabatic processes can adequately characterize the climatology of the Hadley circulation for PI and MPWP periods across the annual cycle (Fig. S4); i.e., diabatic heating coincides with tropical rise (Fig. S4, warm colors) and extratropical diabatic cooling matches subtropical sinking (Fig. S4, cool colors).
Moreover, spatial distribution of changes in diabatic processes during the MPWP compared to the PI can usefully depict the anomalous regional meridional cell characterized by anomalies in the mass stream function (Fig. 9, 2nd column). The response of atmospheric diabatic processes to MPWP warmth is not uniformly distributed in the meridional session (from south to north). There is extratropical Southern Hemisphere cooling, tropical Southern Hemisphere heating, Northern Hemisphere cooling south of 10\(^\circ\)N, tropical Northern Hemisphere heating, and extratropical Northern Hemisphere cooling. As the atmosphere rises with heating and sinks with cooling, anomalous regional meridional cells thus develop from south to north in counterclockwise, clockwise, counterclockwise, and clockwise directions. Thus, heterogeneity of atmospheric diabatic processes in the meridional response to MPWP warmth explains the weakened intensity of the Hadley circulation and expansion of its boundaries across the year. Further decomposition of the change in atmospheric diabatic processes into two partial contributions − (1) dynamic contribution (\(\delta {Q}_{DY}\)) due to a change in circulation with no change in potential temperature (Fig. 9, 3rd column), and (2) thermodynamic contribution (\(\delta {Q}_{TH}\)) due to a change in potential temperature with no change in circulation (Fig. 9, 4th column) – shows that dynamical processes (\(\delta {Q}_{DY}\)) dominate spatial heterogeneity of tropical atmospheric diabatic processes in response to MPWP warmth. Thus, dynamical processes determine spatial heterogeneity of the HC anomaly, MPWP relative to PI, and as well are drivers of weakened intensity and extended boundaries of MPWP Hadley circulation across the year.

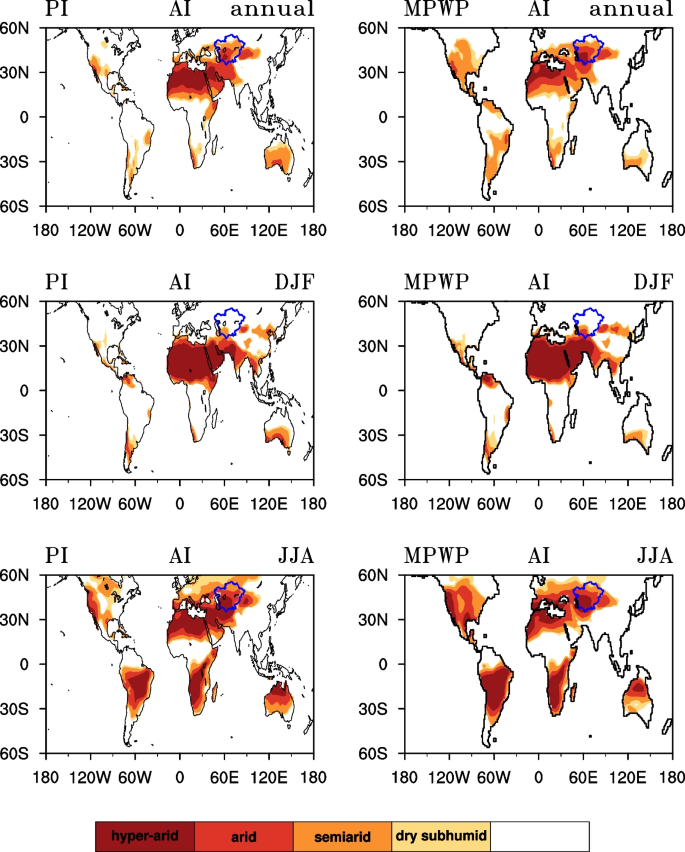

As we know, subtropical arid zones in both hemispheres correspond approximately to the sinking branch of the Hadley circulation. Therefore, it is expected that in the context of ongoing climate change migration of the Hadley circulation would lead to a poleward shift in the extent of the subtropical arid zone (e.g. Hu et al. 2018). To test this hypothesis for the MPWP we compare the aridity index (AI) for the two periods (Fig. 11). Obviously, the northern extent of the northern subtropical arid regions generally moves northward to the northern shores of the Mediterranean Sea. This is expected to impact on the distribution of vegetation in the region. Indeed, one PlioMIP2 model showed that MPWP savanna is expanded northward at the expense of the extent of the Sahara (Stepanek et al. 2020). Similarly, the extent of hyper-arid and arid zones in Central Asia increases (Fig. 11). In the annual and JJA condition, the northern extent of Hadley circulation shifts much more than the southern extent. For this reason, the poleward shift of the southern Hadley cell and its potential linkage to changes in the subtropical arid zone in the Southern Hemisphere are not addressed.
In addition, anomalous tropical clockwise circulation in the Southern Hemisphere, and anomalous counterclockwise circulation in the Northern Hemisphere, which weaken MPWP Hadley circulation, have common sinking branches near the equator (shading, Fig. 9, 1st column). These common sinking branches reduce ascending motion, and thus lead to decreased precipitation near the equator [~ 10 S°–10\(^\circ\)N] (Fig. 5b-e-h and c-f-i).
3.3.2 Strengthening and westward shift of Walker circulation over the tropical Pacific Ocean

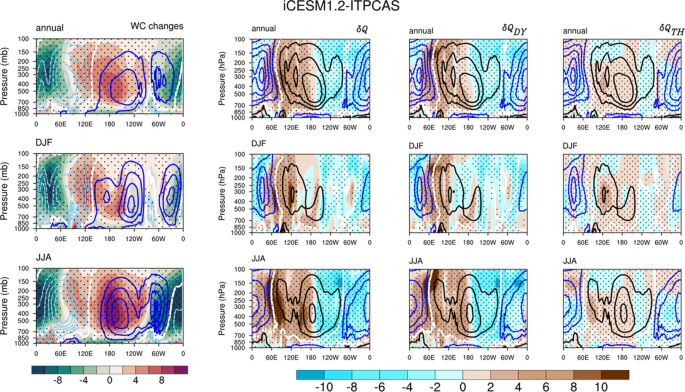

In addition to analyzing differences in MPWP meridional atmospheric circulation with respect to today, we examine the tropical zonal atmospheric circulation (Walker circulation) in response to MPWP warmth. In the iCESM1.2-ITPCAS MPWP simulation we compare the PI Walker circulation over the tropical Pacific Ocean, which is characterized by the rising branch in the Indo-Pacific warm pool and by the sinking branch in the equatorial eastern Pacific Ocean (contours, Fig. 12, 1st column) to the circulation regime that establishes under MPWP climate conditions. Compared with the PI period, the MPWP annual mean Walker circulation is, overall, enhanced across the tropical Pacific Ocean (Fig. 12, 1st column). This enhancement is mainly due to the contribution of the overall intensification of Walker circulation during boreal summer (Fig. 12, 1st column). In contrast, for Walker circulation during boreal winter we see significant enhancement only for the ascending branch. We identify this enhancement during the boreal winter season as the main contributor to the enhanced ascending branch of annual mean Walker circulation (Fig. 12, 1st column). Overall enhancement in Walker circulation, and increased intensity of the ascending branch, would lead to an increase in strength, and to a westward shift, of Walker circulation. In brief, strengthening and westward shift of annual mean Walker circulation are caused by enhancement of Walker circulation in distinct regions in boreal summer and winter, respectively.
Different expressions of diabatic processes in the MPWP compared to the PI serve to understand the strengthening of the Walker circulation and of the westward shift of its boundary. First, diabatic heating is in good agreement with the mean ascending branch of the Walker circulation, from the tropical Indian Ocean to the tropical western Pacific. In contrast, subsidence of Walker circulation in the eastern Pacific is spatially well matched with tropical diabatic cooling (Fig. S5).
Regional clockwise circulation anomalies are due to a rise of diabatic heating in the Indo-Pacific warm pool region and subsidence of cooling in the central-eastern Pacific; such clockwise circulation anomalies are superimposed on the climatologically clockwise Walker circulation in the Pacific, leading to a relatively increased intensity of the MPWP Walker circulation across the year (Fig. 12, 2nd column). There is a clear seasonal modulation of the intensity of diabatic heating in the MPWP in the Indian Ocean-West Pacific. In DJF heating is centered at 60\(^\circ\)E -120\(^\circ\)E, whereas during JJA the largest heating occurs in the regions from 60\(^\circ\)E-90\(^\circ\)E and from 150\(^\circ\)E-180\(^\circ\). This finding explains seasonal dependency of westward shift and of overall enhancement of Walker circulation, where westward shift occurs mainly in boreal winter while enhancement is mainly found during boreal summer. Decomposing tropical diabatic processes into the various contributors that shape a MPWP Walker circulation that is different from its modern counterpart, i.e. into dynamic (Fig. 12, 3rd column) and thermodynamic processes (Fig. 12, 4th column), shows that the anomalous diabatic heating and cooling, which determines enhancement of the Walker circulation and westward shift of its ascending branch, depends mainly on contributions from dynamic processes (Fig. 12, 3rd and 4th column).
3.4 Global and Atlantic Ocean Meridional overturning circulation

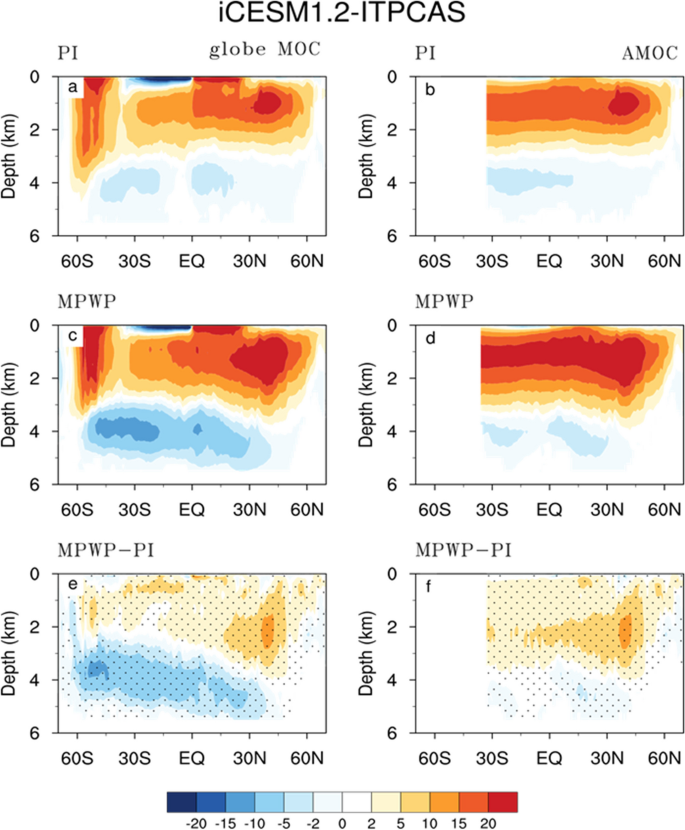

Figure 13a-b and c-d compare PI and MPWP patterns of global Meridional Overturning Circulation (MOC) and of Atlantic Meridional Overturning Circulation (AMOC) with each other. Well-known large-scale features of MOC and of AMOC are well represented in the simulations. This includes the characteristic northward transport of warmer surface waters towards deep-water formation regions in the Northern Hemisphere’s mid to high latitudes. There, the water cools and sinks, before being transported southwards as underlying cold water, finally reaching Southern Hemisphere mid-latitudes where a part of the water again and rises to the surface (Fig. 13a-b and c-d). For the MPWP simulation with iCESM1.2-ITPCAS we find an overall increase in the upper branches of both MOC and AMOC strength compared to the PI period (Fig. 13e-f). This finding is consistent with the enhancement of AMOC in most PlioMIP2 models due to closure of the Bering Strait (Zhang et al. 2021). It is noteworthy that we also find relatively higher Antarctic Bottom Water in the MPWP (Fig. 13e), indicating that enhanced circulation has not been limited to the uppermost 3000 m of the water column but extended far into the deep ocean.
4 Summary and conclusions
We used the water isotope-enabled Community Earth System Model (iCESM1.2- ITPCAS) to simulate large-scale features of the MPWP - a time, when distribution of continents and oceans and the level of CO2 concentrations, was similar to present day. Our findings do not only reproduce large-scale features of MPWP climate as observed from the PlioMIP2 MME. Results derived in our study with iCESM1.2-ITPCAS but also provide further insights. Highlights of the work presented here are: (1) we have mapped the spatial distribution of oxygen isotopes in precipitation δ18Op during this period and explained the isotopic response to MPWP warmth, revealing detailed mechanistic insights using the water tag-region method for areas with significant responses; (2) iCESM1.2-ITPCAS shows higher warmth at high latitudes compared to the PlioMIP2 MME; (3) our study provides a comprehensive mechanistic understanding for differences in temperature, precipitation and tropical atmospheric circulation in the MPWP with respect to today – these key indicators have been extensively studied in climate change research. Our key findings are summarized as follows:
-
1.
A quantitative data–model comparison reveals reduction in the meridional thermal contrast due to heterogeneity of surface warmth during the MPWP, that is characterized by more pronounced warm anomalies at high latitudes than at tropical low latitudes. Compared to the PlioMIP2 MME, iCESM1.2-ITPCAS better simulates the, by models routinely underestimated, high latitude warmth. i.e., the high-latitude MPWP surface temperature simulated by iCESM1.2-ITPCAS is close to the magnitude derived from the reconstruction. Enhanced high-latitude warmth in iCESM1.2-ITPCAS is attributed to two potential factors: (1) its higher climate sensitivity compared to most PlioMIP2 models and (2) utilization of an ocean initialization approach distinctly different from that employed by most previous studies. These differences may result in a larger amplification of high-latitude warmth during the MPWP, that is caused by a modulation of downward clear-sky long wave radiation fluxes (\(\varDelta {T}_{\text{r}\text{l}\text{d}\text{s}\_\text{c}\text{l}\text{r}}\)) in iCESM1.2-ITPCAS compared to PlioMIP2.
-
2.
iCESM1.2-ITPCAS simulates a MPWP that is wetter compared to the PI period. This finding is similar to results from the PlioMIP2 MME, but the precipitation anomaly is certainly larger in iCESM1.2-ITPCAS. Though precipitation is largely similar between our results and those from PlioMIP2 from the viewpoint of global precipitation, regional differences exist between iCESM1.2-ITPCAS and PlioMIP2 MME. In particular, iCESM1.2-ITPCAS simulates a drier equatorial region [~ 10 S°–10\(^\circ\)N] and wetter Southern Hemisphere tropics [~ 30 S°–10\(^\circ\)S]. Differences in regional precipitation responses between iCESM1.2-ITPCAS and PlioMIP2 MME are driven by different relative importance of physical processes for simulated climate patterns. iCESM1.2-ITPCAS emphasizes the control of dynamic processes (δDY), while the PlioMIP2 MME attributes regional precipitation anomalies with regard to PI mainly to thermodynamic processes (δTH).
-
3.
Overall we find positive δ18Op anomalies over most of the world, with the exception of a more negative δ18Op that is observed over the tropical Indian Ocean and on surrounding landmasses. Decomposition of the δ18Op response to MPWP warmth reveals that changes in local condensation emerges as a dominant driver for pronounced negative δ18Op in this region.
-
4.
The MPWP shows distinct differences in tropical zonal and meridional atmospheric circulations in comparison to PI. These include a weakening and a poleward shift in Hadley circulation, and a strengthening and a westward shift of the tropical Pacific Walker circulation. We attribute these changes in circulation patterns to tropical diabatic processes, which we consider to be a more fundamental explanation for MPWP circulation patterns than static stability. Furthermore, compared to thermodynamic effects (\(\delta {Q}_{TH}\)), changes in diabatic processes induced by circulation changes (dynamic effects, \(\delta {Q}_{DY}\)) play a crucial role in determining variations in diabatic processes (\(\delta Q\)) and determine the spatial response of the tropical atmospheric circulation.
-
5.
Surface warmth during the MPWP reinforces subtropical aridity via a poleward shift of the subtropical arid zone that follows from poleward expansion of Hadley circulation during the MPWP. Meanwhile, northward contraction of the southern extent of the Sahara Desert may be related to the northward expansion of the North African monsoon region.
-
6.
With iCESM1.2-ITPCAS we simulate enhanced global ocean and Atlantic ocean meridional overturning circulation during the MPWP that is consistent with the results of the PlioMIP2 MME.
Data availability
All PlioMIP2 simulation data are available via the ESGF data portal or from the PlioMIP2 data server located at the School of Earth and Environment at the University of Leeds; access can be obtained by emailing Alan Haywood (a.m.haywood@leeds.ac.uk). The data used in Fig. 3 for model-data comparison can be retrieved from https://doi.org/10.1594/PANGAEA.911847.
References
Allen RG, Pereira LS, Raes D, Smith M (1998) Crop evapotranspiration—Guidelines for Computing crop water requirements; FAO Irrigation and Drainage Paper 56; FAO, Rome
Arguez A, Vose RS (2011) The definition of the standard WMO climate normal: the key to deriving alternative climate normals. Bull Am Meteorol Soc 92:699–704
Baatsen MLJ, von der Heydt AS, Kliphuis MA, Oldeman AM, Weiffenbach JE (2022) Warm mid-pliocene conditions without high climate sensitivity: the CCSM4-Utrecht (CESM 1.0.5) contribution to the PlioMIP2, Clim. Past 18:657–679. https://doi.org/10.5194/cp-18-657-2022
Berntell E, Zhang Q, Li Q, Haywood AM, Tindall JC, Hunter SJ, Zhang Z, Li X, Guo C, Nisancioglu KH, Stepanek C, Lohmann G, Sohl LE, Chandler MA, Tan N, Contoux C, Ramstein G, Baatsen MLJ, von der Heydt AS, Chandan D, Peltier WR, Abe-Ouchi A, Chan W-L, Kamae Y, Williams CJR, Lunt DJ, Feng R, Otto-Bliesner BL, Brady EC (2021) Mid-pliocene west African monsoon rainfall as simulated in the PlioMIP2 ensemble. Clim Past 17:1777–1794. https://doi.org/10.5194/cp-17-1777-2021
Brady EC, Stevenson S, Bailey D, Liu Z, Noone D, Nusbaumer J, Otto-Bliesner BL, Tabor C, Tomas R, Wong A, Zhang J, Zhu J (2019) The connected isotopic water cycle in the community earth system model, version 1. J Adv Model Earth Syst 11. https://doi.org/10.1029/2019MS001663
Burke KD, Williams JW, Chandler MA, Haywood AM, Lunt DJ, Otto-Bliesner BL (2018) Pliocene and Eocene provide best analogs for near-future climates. Natl Acad Sci USA 115:13288–13293. https://doi.org/10.1073/pnas.1809600115
Chan W-L, Abe-Ouchi A (2020) Pliocene Model Intercomparison Project (PlioMIP2) simulations using the Model for Interdisciplinary Research on Climate (MIROC4m). Clim Past 16:1523–1545. https://doi.org/10.5194/cp-16-1523-2020
Chandan D, Peltier WR (2017) Regional and global climate for the mid-pliocene using the University of Toronto version of CCSM4 and PlioMIP2 boundary conditions. Clim Past 13:919–942. https://doi.org/10.5194/cp-13-919-2017
Chandan D, Peltier WR (2018) On the mechanisms of warming the Mid-pliocene and the inference of a hierarchy of climate sensitivities with relevance to the understanding of climate futures. Clim Past 14:825–856. https://doi.org/10.5194/cp-14-825-2018
Chou C, Lan C-W (2012) Changes in the annual range of precipitation under global warming. J Clim 25(1):222–235
D’Agostino R, Lionello P (2020) The atmospheric moisture budget in the Mediterranean: mechanisms for seasonal changes in the last glacial Maximum and future warming scenario. Q Sci Rev 241:106392. https://doi.org/10.1016/j.quascirev.2020.106392
de Nooijer W, Zhang Q, Li Q, Zhang Q, Li X, Zhang Z, Guo C, Nisancioglu KH, Haywood AM, Tindall JC, Hunter SJ, Dowsett HJ, Stepanek C, Lohmann G, Otto-Bliesner BL, Feng R, Sohl LE, Chandler MA, Tan N, Contoux C, Ramstein G, Baatsen MLJ, von der Heydt AS, Chandan D, Peltier WR, Abe-Ouchi A, Chan W-L, Kamae Y, Brierley CM (2020) Evaluation of Arctic warming in mid-pliocene climate simulations. Clim Past 16:2325–2341. https://doi.org/10.5194/cp-16-2325-2020
Dowsett HJ, Poore R (1991) Pliocene sea surface temperatures of the North Atlantic Ocean at 3.0 Ma. Quaternary Sci Rev 10:189–204
Dowsett HJ, Robinson MM (2009) Mid-pliocene equatorial pacific sea surface temperature reconstruction: a multi-proxy perspective. Philos T R Soc A 367:109–125
Dowsett HJ, Thompson R, Barron J, Cronin T, Fleming F, Ishman S, Poore R, Willard D, Holtz T Jr (1994) Joint investigations of the Middle Pliocene climate I: PRISM palaeoenvironmental reconstructions. Global Planet Change 9:169–195
Dowsett HJ, Barron J, Poore HR (1996) Middle Pliocene sea surface temperatures: a global reconstruction. Mar Micropaleontol 27:13–25
Dowsett HJ, Barron JA, Poore RZ, Thompson RS, Cronin TM, Ishman SE, Willard DA (1999) Middle Pliocene Palaeoenvironmental Reconstruction: PRISM 2, US Geol. Surv. Open File Rep 99–535
Dowsett HJ, Robinson M, Foley K (2009) Pliocene three dimensional global ocean temperature reconstruction. Clim Past 5:769–783. https://doi.org/10.5194/cp-5-769-2009
Dowsett HJ, Robinson M, Haywood A, Salzmann U, Hill D, Sohl L, Chandler M, Williams M, Foley K, Stoll D (2010) The PRISM3D paleoenvironmental reconstruction. Stratigraphy 7:123–139
Dowsett HJ, Robinson MM, Haywood AM, Hill DJ, Dolan AM, Stoll DK, Chan W-L, Abe-Ouchi A, Chandler MA, Rosenbloom NA, Otto-Bliesner BL, Bragg FJ, Lunt DJ, Foley KM, Riesselman CR (2012) Assessing confidence in Pliocene Sea surface temperatures to evaluate predictive models. Nat Clim Change 2:365–371
Dowsett HJ, Foley KM, Stoll DK, Chandler MA, Sohl LE, Bentsen M, Otto-Bliesner BL, Bragg FJ, Chan W-L, Contoux C, Dolan AM, Haywood AM, Jonas JA, Jost A, Kamae Y, Lohmann G, Lunt DJ, Nisancioglu KH, Abe-Ouchi A, Ramstein G, Riesselman CR, Robinson MM, Rosenbloom NA, Salzmann U, Stepanek C, Strother SL, Ueda H, Yan Q, Zhang Z (2013a) Sea surface temperature of the mid-Piacenzian Ocean: a data-model comparison. Sci Rep 3:1–8
Dowsett HJ, Robinson MM, Stoll DK, Foley KM, Johnson ALA, Williams M, Riesselman CR (2013b) The PRISM (Pliocene Palaeoclimate) reconstruction: time for a paradigm shift. Philos T R Soc B 371:1–24
Dowsett H, Dolan A, Rowley D, Moucha R, Forte AM, Mitrovica JX, Pound M, Salzmann U, Robinson M, Chandler M, Foley K, Haywood A (2016) The PRISM4 (mid-Piacenzian) paleoenvironmental reconstruction. Clim Past 12:1519–1538. https://doi.org/10.5194/cp-12-1519-2016
Falster G, Konecky B, Madhavan M, Stevenson S, Coats S (2021) Imprint of the Pacific Walker circulation in global precipitation δ 18 O. J Clim 34(21):8579–8597
Feng R, Otto-Bliesner BL, Brady EC, Rosenbloom NA (2020) Increased climate response and earth system sensitivity from CCSM4 to CESM2 in Mid‐Pliocene simulations. J Adv Model Earth Syst 12:e2019MS002033. https://doi.org/10.1029/2019ms002033
Han Z, Zhang Q, Li Q, Feng R, Haywood AM, Tindall JC, Hunter SJ, Otto-Bliesner BL, Brady EC, Rosenbloom N, Zhang Z, Li X, Guo C, Nisancioglu KH, Stepanek C, Lohmann G, Sohl LE, Chandler MA, Tan N, Ramstein G, Baatsen MLJ, von der Heydt AS, Chandan D, Peltier WR, Williams CJR, Lunt DJ, Cheng J, Wen Q, Burls NJ (2021) Evaluating the large-scale hydrological cycle response within the Pliocene Model Intercomparison Project phase 2 (PlioMIP2) ensemble, Clim. Past 17:2537–2558. https://doi.org/10.5194/cp-17-2537-2021
Hawkins E et al (2017) Estimating changes in global temperature since the preindustrial period. Bull Am Meteor Soc 98:1841–1856
Haywood AM, Dowsett HJ, Robinson MM, Stoll DK, Dolan AM, Lunt DJ, Otto-Bliesner B, Chandler MA (2011) Pliocene Model Intercomparison Project (PlioMIP): experimental design and boundary conditions (experiment 2) Geosci. Model Dev 4:571–577. https://doi.org/10.5194/gmd-4-571-2011
Haywood AM, Hill DJ, Dolan AM, Otto-Bliesner BL, Bragg F, Chan W-L, Chandler MA, Contoux C, Dowsett HJ, Jost A, Kamae Y, Lohmann G, Lunt DJ, Abe-Ouchi A, Pickering SJ, Ramstein G, Rosenbloom NA, Salzmann U, Sohl L, Stepanek C, Ueda H, Yan Q, Zhang Z (2013) Large-scale features of Pliocene climate: results from the Pliocene Model Intercomparison Project. Clim Past 9:191–209. https://doi.org/10.5194/cp-9-191-2013
Haywood AM, Dowsett HJ, Dolan AM, Rowley D, Abe-Ouchi A, Otto-Bliesner B, Chandler MA, Hunter SJ, Lunt DJ, Pound M, Salzmann U (2016) The Pliocene Model Intercomparison Project (PlioMIP) phase 2: scientific objectives and experimental design. Clim Past 12:663–675. https://doi.org/10.5194/cp-12-663-2016
Haywood AM, Tindall JC, Dowsett HJ, Dolan AM, Foley KM, Hunter SJ, Hill DJ, Chan W-L, Abe-Ouchi A, Stepanek C, Lohmann G, Chandan D, Peltier WR, Tan N, Contoux C, Ramstein G, Li X, Zhang Z, Guo C, Nisancioglu KH, Zhang Q, Li Q, Kamae Y, Chandler MA, Sohl LE, Otto-Bliesner BL, Feng R, Brady EC, von der Heydt AS, Baatsen MLJ, Lunt DJ (2020) The Pliocene Model Intercomparison Project phase 2: large-scale climate features and climate sensitivity. Clim Past 16:2095–2123. https://doi.org/10.5194/cp-16-2095-2020
Haywood AM, Dowsett HJ, Tindall JC (2021) PlioMIP1 and PlioMIP2 participants. PlioMIP: the Pliocene Model Intercomparison Project. Past Glob Changes Mag 29(2):92–93. https://doi.org/10.22498/pages.29.2.92
Haywood AM, Tindall JC, Burton L, Chandler MA, Dolan AM, Dowsett HJ, Feng R, Fletcher T, Foley K, Hill DJ, Hunter S, Otto-Bliesner B, Lunt D, Robinson MM (2023) Pliocene Model Intercomparison Project Phase 3 (PlioMIP3) — Science plan and experimental design. Glob Planet Change 232:104316. https://doi.org/10.1016/j.gloplacha.2023.104316
He C, Liu Z, Otto-Bliesner BL, Brady EC, Zhu C, Tomas R, … Bao Y (2021) Hydroclimate footprint of pan-Asian monsoon water isotope during the last deglaciation. Sci Adv 7(4):eabe2611
Hopcroft P, Ramstein G, Pugh T, Hunter S, Murguia-Flores F, Quiquet A, Sun Y, Tan N, Valdes PJ (2020) Polar amplification of Pliocene climate by elevated trace gas radiative forcing. Natl Acad Sci Proc 117(38):23401–23407. https://doi.org/10.1073/pnas.2002320117
Hu Y, Huang H, Zhou C (2018) Widening and weakening of the Hadley circulation under global warming. Sci Bull 63(10):640–644. https://doi.org/10.1016/j.scib.2018.04.020
Hu J, Emile-Geay J, Tabor C, Nusbaumer J, Partin J (2019) Deciphering oxygen isotope records from Chinese speleothems with an isotope-enabled climate model. Paleoceanography Paleoclimatology 34:2098–2112. https://doi.org/10.1029/2019PA003741
Hunter SJ, Haywood AM, Dolan AM, Tindall JC (2019) The HadCM3 contribution to PlioMIP phase 2. Clim Past 15:1691–1713. https://doi.org/10.5194/cp-15-1691-2019
IPCC, Stocker T et al (eds) (2013) Summary for policymakers. Climate Change 2013: The Physical Science Basis. Cambridge University Press, pp 1–29
Kumar B, Pinjarla P, Joshi B, Roy PS (2021) Long Term Spatio-temporal variations of seasonal and decadal aridity in India. J Atmos Sci Res 4(3):29–45. https://doi.org/10.30564/jasr.v4i3.3475
Li X, Guo C, Zhang Z, Otterå OH, Zhang R (2020) PlioMIP2 simulations with NorESM-L and NorESM1-F. Clim Past 16:183–197. https://doi.org/10.5194/cp-16-183-2020
Lu J, Cai M (2009) Seasonality of polar surface warming amplification in climate simulations[J]. Geophys Res Lett 36(36):554–570
McClymont EL, Ford HL, Ho SL, Tindall JC, Haywood AM, Alonso-Garcia M, Bailey I, Berke MA, Littler K, Patterson MO, Petrick B, Peterse F, Ravelo AC, Risebrobakken B, De Schepper S, Swann GEA, Thirumalai K, Tierney JE, van der Weijst C, White S, Abe-Ouchi A, Baatsen MLJ, Brady EC, Chan W-L, Chandan D, Feng R, Guo C, von der Heydt AS, Hunter S, Li X, Lohmann G, Nisancioglu KH, Otto-Bliesner BL, Peltier WR, Stepanek C, Zhang Z (2020) Lessons from a high-CO2 world: an ocean view from ∼ 3 million years ago. Clim Past 16:1599–1615. https://doi.org/10.5194/cp-16-1599-2020
Middleton N, Thomas D (1992) World Atlas of Desertification. Hodder Amold Publication, London
Mitas CM, Clement AC (2006) Recent behavior of the Hadley cell and tropical thermodynamics in climate models and reanalyses. Geophys Res Lett 33:L01810. https://doi.org/10.1029/2005GL024406
Nusbaumer J, Wong TE, Bardeen C, Noone D (2017) Evaluatinghydrological processes in theCommunity atmosphere ModelVersion 5 (CAM5) using stable isotoperatios of water,J. Adv Model EarthSyst 9:949–977. https://doi.org/10.1002/2016MS000839
Oldeman AM, Baatsen MLJ, von der Heydt AS, Dijkstra HA, Tindall JC, Abe-Ouchi A, Booth AR, Brady EC, Chan W-L, Chandan D, Chandler MA, Contoux C, Feng R, Guo C, Haywood AM, Hunter SJ, Kamae Y, Li Q, Li X, Lohmann G, Lunt DJ, Nisancioglu KH, Otto-Bliesner BL, Peltier WR, Pontes GM, Ramstein G, Sohl LE, Stepanek C, Tan N, Zhang Q, Zhang Z, Wainer I, Williams CJR (2021) Reduced El Niño variability in the Mid-pliocene according to the PlioMIP2 ensemble. Clim Past 17:2427–2450. https://doi.org/10.5194/cp-17-2427-2021
Oort AH, Yienger JJ (1996) Observed interannual variability in the Hadley circulation and its connection to ENSO. J Clim 9:2751–2767
Parsons LA, Brennan MK, Wills RC, Proistosescu C (2020) Magnitudes and spatial patterns of interdecadal temperature variability in CMIP6. Geophys Res Lett 47(7):e2019GL086588
Pour SH, Wahab AK, Shahid S (2020) Spatiotemporal changes in aridity and the shift of drylands in Iran. Atmos Res 233:104704
Prescott CL, Haywood AM, Dolan AM, Hunter SJ, Pope JO, Pickering SJ (2014) Assessing orbitally-forced interglacial climate variability during the mid-pliocene warm period, Earth Planet. Sc Lett 400:261–271
Salzmann U, Dolan A, Haywood A, Chan W, Voss J, Hill D, Abe-Ouchi A, Otto-Bliesner B, Bragg F, Chandler M, Contoux C, Dowsett H, Jost A, Kamae Y, Lohmann G, Lunt D, Pickering S, Pound M, Ramstein G, Rosenbloom N, Sohl L, Stepanek C, Ueda H, Zhang Z (2013) Challenges in quantifying Pliocene terrestrial warming revealed by data–model discord. Nat Clim Change 3:969–974. https://doi.org/10.1038/nclimate2008
Salzmann U, Haywood AM, Lunt DJ, Valdes PJ, Hill DJ (2008) A new global biome reconstruction and data-model comparison for the Middle Pliocene. Global Ecol Biogeogr 17:432–447. https://doi.org/10.1111/j.1466-8238.2008.00381.x
Samakinwa E, Stepanek C, Lohmann G (2020) Sensitivity of mid-pliocene climate to changes in orbital forcing and PlioMIP’s boundary conditions. Clim Past 16:1643–1665. https://doi.org/10.5194/cp-16-1643-2020
Seager R, Naik N, Vecchi GA (2010) Thermodynamic and dynamic mechanisms for large-scale changes in the Hydrological cycle in response to global Warming*. J Clim 23:4651–4668
Stepanek C, Samakinwa E, Knorr G, Lohmann G (2020) Contribution of the coupled atmosphere–ocean–sea ice–vegetation model COSMOS to the PlioMIP2, Clim. Past 16:2275–2323. https://doi.org/10.5194/cp-16-2275-2020
Su BH, Jiang DB, Tian ZP (2018) Numerical simulation on the impact of global mountain uplift on the subtropical arid climate (in Chinese). Chin Sci Bull 63:1142–1153. https://doi.org/10.1360/N972017-01275
Sun Y, Ramstein G, Contoux C, Zhou TJ (2013) A comparative study of large-scale atmospheric circulation in the context of a future scenario (RCP4.5) and past warmth (mid-Piacenzian). Clim Past 9(4):1613–1627. https://doi.org/10.5194/cp-9-1613-2013
Sun Y, Zhou T, Ramstein G, Contoux C, Zhang Z (2016) Drivers and mechanisms for enhanced summer monsoon precipitation over East Asia during the Mid-pliocene in the IPSL-CM5A. Clim Dyn 46(5–6):1437–1457
Sun Y, Ramstein G, Li LZ, Contoux C, Tan N, Zhou T (2018) Quantifying east Asian summer monsoon dynamics in the ECP4. 5 scenario with reference to the mid-piacenzian warm period. Geophys Res Lett 45(12):523–12533. https://doi.org/10.1029/2018GL080061
Sun Y, Wu H, Kageyama M, Ramstein G, Li LZ, Tan N, Lin Y, Liu B, Zheng W, Zhang W, Zou L, Zhou T (2021) The contrasting effects of thermodynamic and dynamic processes on east Asian summer monsoon precipitation during the last glacial Maximum: a data-model comparison. Clim Dyn 56:1303–1316
Sun Y, Wu H, Ramstein G, Liu B, Zhao Y, Li LZ, Yuan X, Zhang W, Li L, Zou L, Zhou T (2023) Revisiting the physical mechanisms of east Asian summer monsoon precipitation changes during the Mid-holocene: a data–model comparison. Clim Dyn 60:1009–1022
Sun Y, Wu H, Ding L, Chen L, Stepanek C, Zhao Y, Tan N, Su B, Yuan X, Zhang W, Liu B, Hunter S, Haywood A, Abe-Ouchi A, Otto-Bliesner B, Contoux C, Lunt D, Dolan A, Chandan D, Lohmann G, Dowsett H, Tindall J, Baatsen M, Peltier W, Li Q, Feng R, Salzmann U, Chan W, Zhang Z, Williams C, Ramstein G (2024) Decomposition of physical processes controlling EASM precipitation changes during the mid-Piacenzian: new insights into data–model integration. NPJ Clim Atmos Sci 7:120. https://doi.org/10.1038/s41612-024-00668-4
Tabor CR, Otto-Bliesner BL, Brady EC, Nusbaumer JM, Zhu J, Erb MP, Wong TE, Liu Z, Noone DC (2018) Interpreting precession‐driven δ18O variability in the South Asian Monsoon Region. J Geophys Res: Atmos 123:5927–5946
Tan N, Contoux C, Ramstein G, Sun Y, Dumas C, Sepulchre P, Guo Z (2020) Modeling a modern-like pCO2 warm period (Marine Isotope Stage KM5c) with two versions of an Institut Pierre Simon Laplace atmosphere–ocean coupled general circulation model. Clim Past 16:1–16. https://doi.org/10.5194/cp-16-1-2020
Tindall JC, Haywood AM, Salzmann U, Dolan AM, Fletcher T (2022) The warm winter paradox in the Pliocene northern high latitudes. Clim Past 18:1385–1405. https://doi.org/10.5194/cp-18-1385-2022
Weiffenbach JE, Baatsen MLJ, Dijkstra HA, von der Heydt AS, Abe-Ouchi A, Brady EC, Chan W-L, Chandan D, Chandler MA, Contoux C, Feng R, Guo C, Han Z, Haywood AM, Li Q, Li X, Lohmann G, Lunt DJ, Nisancioglu KH, Otto-Bliesner BL, Peltier WR, Ramstein G, Sohl LE, Stepanek C, Tan N, Tindall JC, Williams CJR, Zhang Q, Zhang Z (2022) Unraveling the mechanisms and implications of a stronger mid-Pliocene AMOC in PlioMIP2. Clim Past Discuss. [preprint]. https://doi.org/10.5194/cp-2022-35
Williams CJR, Sellar AA, Ren X, Haywood AM, Hopcroft P, Hunter SJ, Roberts WHG, Smith RS, Stone EJ, Tindall JC, Lunt DJ (2021) Simulation of the mid-pliocene warm period using HadGEM3: experimental design and results from model–model and model–data comparison. Clim Past 17:2139–2163. https://doi.org/10.5194/cp-17-2139-2021
Zhang R, Yan Q, Zhang ZS, Jiang D, Otto-Bliesner BL, Haywood AM, Hill DJ, Dolan AM, Stepanek C, Lohmann G, Contoux C, Bragg F, Chan W-L, Chandler MA, Jost A, Kamae Y, Abe-Ouchi A, Ramstein G, Rosenbloom NA, Sohl L, Ueda H (2013) Mid-pliocene East Asian monsoon climate simulated in the PlioMIP. Clim Past 9:2085–2099
Zhang Z, Li X, Guo C, Otterå OH, Nisancioglu KH, Tan N, Contoux C, Ramstein G, Feng R, Otto-Bliesner BL, Brady E, Chandan D, Peltier WR, Baatsen MLJ, von der Heydt AS, Weiffenbach JE, Stepanek C, Lohmann G, Zhang Q, Li Q, Chandler MA, Sohl LE, Haywood AM, Hunter SJ, Tindall JC, Williams C, Lunt DJ, Chan W-L, Abe-Ouchi A (2021) Mid-pliocene Atlantic Meridional Overturning Circulation simulated in PlioMIP2, Clim. Past 17:529–543. https://doi.org/10.5194/cp-17-529-2021
Zhang S, Hu Y, Yang J, Li X, Kang W, Zhang J, Liu Y, Nie J (2023) The Hadley circulation in the Pangea era. Sci Bull 68:1060–1068
Zhang K, Sun Y, Zhang Z, Stepanek C, Feng R, Hill D, Lohmann G, Dolan A, Haywood A, Abe-Ouchi A, Otto-Bliesner BL, Contoux C, Chandan D, Dowsett RG, Tindall H, Baatsen J, Tan M, Peltier N, Li WR, Chan Q, Wang W-L, Zhang X (2024) Revisiting the physical processes controlling the tropical atmospheric circulation changes during the mid-piacenzian warm period. Quatern Int 682:46–59
Zhao H, Pan X, Wang Z, Jiang S, Liang L, Wang X, Wang X (2019) What were the changing trends of the seasonal and annual aridity indexes in northwestern China during 1961–2015? Atmos Res 222:154–162
Zheng J, Zhang Q, Li Q, Zhang Q, Cai M (2019) Contribution of sea ice albedo and insulation effects to Arctic amplification in the EC-Earth Pliocene simulation. Clim Past 15:291–305. https://doi.org/10.5194/cp-15-291-2019
Zhu J, Liu Z, Brady E, Otto-Bliesner B, Zhang J, Noone D et al (2017) Reduced ENSO variability at the LGM revealed by an isotope-enabled Earth system model. Geophys Res Lett 44(13):6984–6992. https://doi.org/10.1002/2017GL073406
Zhu J, Poulsen CJ, Otto-Bliesner BL, Liu Z, Brady EC, Noone DC (2020) Simulation of early Eocene water isotopes using an Earth system model and its implication for past climate reconstruction. Earth Planet Sci Lett 537:116164. https://doi.org/10.1016/j.epsl.2020.116164
Acknowledgements
We thank the PlioMIP community for their continued efforts to produce simulations of the MPWP climate and making them available to the scientific community.
Funding
This study was funded by Innovation Program for Young Scholars of TPESER, the Second Tibetan Plateau Scientific Expedition and Research Program (2019QZKK0708), the National Natural Science Foundation of China Basic Science Center for Tibetan Plateau Earth System (41988101), the National Natural Science Foundation of China (42105048), Youth Innovation Team of China Meteorological Administration “Climate change and its impact in the Tibetan Plateau” (NO.CMA2023QN16). This work was supported by the National Key Scientific and Technological Infrastructure project “Earth System Numerical Simulation Facility” (EarthLab). Funding for HD was provided by the U.S. Geological Survey Climate Research and Development Program. C. S. acknowledges institutional funding via the Helmholtz research program “Changing Earth - Sustaining our Future” and the Helmholtz Climate Initiative REKLIM. Any use of trade, firm, or product names is for descriptive purposes only and does not imply endorsement by the U.S. Government.
Author information
Authors and Affiliations
Contributions
Y.S., L.D., and G.R. conceptualized and designed the study. Y.S. conducted simulations, analyzed data, and drafted the manuscript. B.S. assisted in simulation debugging and provided codes for temperature response analysis and AI. H.D. reconstructed PRISM boundary conditions, edited the initial manuscript. C.S. edited the final version. H.W. and Z.X. contributed to the initial organization of the study. J.H. provided codes for water tag experiments. X. Y. edit the mathematical formulae. All authors contributed to and approved the final manuscript.
Corresponding author
Ethics declarations
Conflict of interest
The authors have no relevant financial or non-financial interests to disclose.
Additional information
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary Information
Below is the link to the electronic supplementary material.
ESM 1
(DOCX 20.4 MB)
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Sun, Y., Ding, L., Su, B. et al. Modeling the mid-piacenzian warm climate using the water isotope-enabled Community Earth System Model (iCESM1.2-ITPCAS). Clim Dyn 62, 7741–7761 (2024). https://doi.org/10.1007/s00382-024-07304-0
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s00382-024-07304-0
