Hypersonic boundary-layer separation detection with pressure-sensitive paint for a cone at high angle of attack

Experiments in Fluids Aims and scope Submit manuscript

Abstract

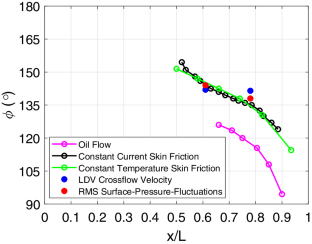

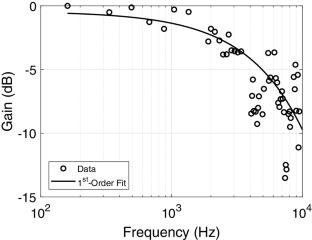

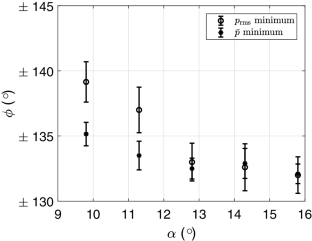

A measurement technique for identifying lee-side crossflow-induced boundary-layer separation on a blunt \(7^{\circ }\) half-angle circular cone at high angle of attack has been developed and tested. Previous work has shown that local minima in root-mean-squared (rms) pressure fluctuations on the surface are good identifiers of separation. These surface pressure fluctuations are measured with a temperature-corrected, high-frequency-response anodized-aluminum pressure-sensitive paint (AA-PSP). This AA-PSP was made in-house to provide the high frequency response required for this work. The sensor’s frequency response of 3 kHz proved to be fast enough to detect lines of local minimum rms pressure fluctuations indicative of separation on the lee side of the cone for angles of attack from \(9.8^{\circ }\) to \(15.8^{\circ }\). A shift in the separation location towards the windward side of the model was observed as angle of attack increased; however, the separation location converged to a constant azimuth for angles of attack greater than or equal to \(1.8\times\) the cone’s half angle.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2

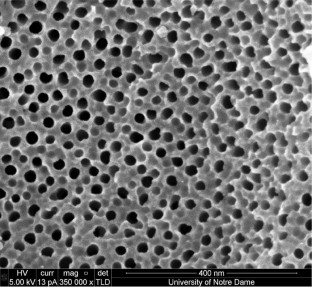

Fig. 3
Fig. 4

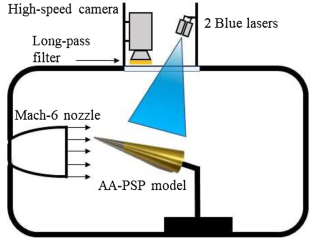

Fig. 5

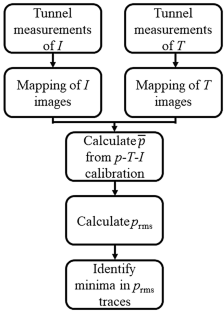

Fig. 6

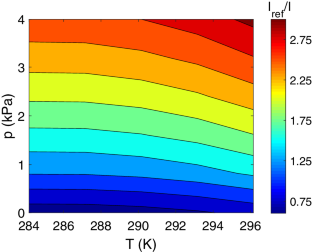

Fig. 7

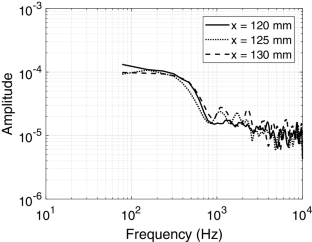

Fig. 8

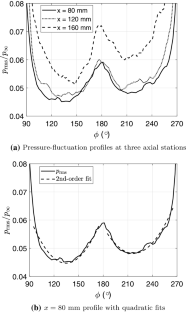

Fig. 9

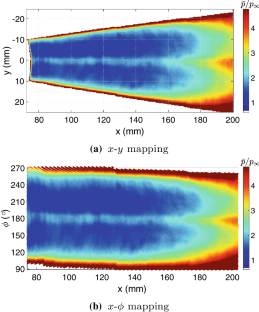

Fig. 10
Fig. 11

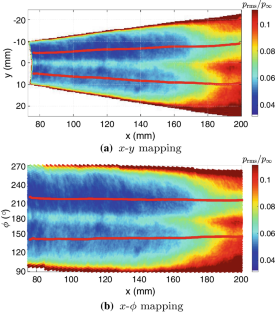

Fig. 12

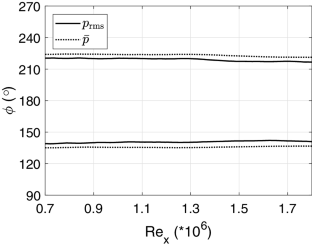

Fig. 13

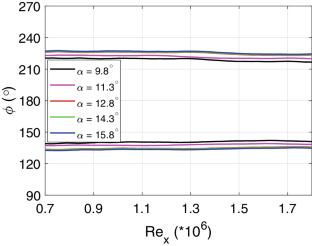

Fig. 14
Fig. 15

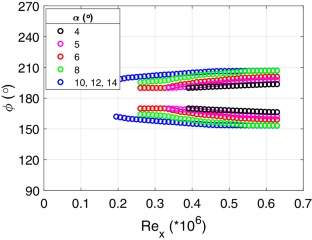

Fig. 16
Fig. 17

Abbreviations

I :

Paint intensity (counts)

M :

Mach number

p :

Pressure (kPa)

Re :

Unit Reynolds number (/m)

T :

Temperature (K)

w :

Uncertainty (%)

x :

Streamwise distance(\(x=0\) at the model tip) (mm)

y :

Spanwise distance (\(y=0\) on the model centerline) (mm)

\(\alpha\) :

Angle of attack (\(^{\circ }\))

\(\theta\) :

Cone half angle (\(^{\circ }\))

\(\varPhi\) :

Gas concentration (\(\%\))

\(\phi\) :

Azimuth (\(\phi =0^{\circ }\) along windward ray) (\(^{\circ }\))

cal:

Value based on calibration

cam:

Value based on camera

ref:

Reference condition

rms:

Root-mean-squared fluctuation

temp:

Value based on temperature dependence

total:

Total value

uni:

Value based on uniformity

x :

Value based on streamwise distance

0:

Stagnation condition

−:

Mean component

\('\) :

Fluctuating component

\(\infty\) :

Freestream condition

References

  • Baccarella D, Liu Q, Passaro A, Lee T, Do H (2016) Development and testing of the ACT-1 experimental facility for hypersonic combustion research. Meas Sci Technol 27(4):045902

    Article  Google Scholar

  • Bell JH, Schairer ET, Hand LA, Mehta RD (2001) Surface pressure measurements using luminescent coatings. Annu Rev Fluid Mech 33(1):155–206

    Article  Google Scholar

  • Byun G, Simpson RL (2010) Surface-pressure fluctuations from separated flow over an axisymmetric bump. AIAA J 48(10):2397–2405

    Article  Google Scholar

  • Cheng T, Deng D, Herman C (2012) Curvature effect quantification for in-vivo IR thermography. In: Proceedings, international mechanical engineering congress and exposition, Vol 2

  • Chesnakas CJ, Simpson RL (1997) Detailed investigation of the three-dimensional separation about a prolate spheroid. AIAA J 35(6):990–999

    Article  Google Scholar

  • Feldhuhn RH, Winkelmann AE, Pasiuk L (1971) An experimental investigation of the flowfield around a yawed cone. AIAA J 9(6):1074–1081

    Article  Google Scholar

  • Goody MC (1999) An experimental investigation of pressure fluctuations in three-dimensional turbulent boundary layers. PhD thesis, Department of Aerospace and Ocean Engineering Virginia Polytechnic Institute and State University, Blacksburg, VA

  • Goody MC, Simpson RL, Chesnakas CJ (1997) Surface pressure fluctuations and pressure-velocity correlations produced by a separated flow around a prolate spheroid at incidence. AIAA paper 97-0485

  • Goody MC, Simpson RL, Chesnakas CJ (2000) Separated flow surface pressure fluctuations and pressure-velocity correlations on prolate spheroid. AIAA J 38(2):266–274

    Article  Google Scholar

  • Gregory JW, Sakaue H, Liu T, Sullivan JP (2014) Fast pressure-sensitive paint for flow and acoustic diagnostics. Annu Rev Fluid Mech 46:303–330

    Article  MathSciNet  Google Scholar

  • Hangai T, Kameda M, Nakakita K, Asai K (2002) Time response characteristics of pyrene-based pressure-sensitive coatings on anodic porous alumina. In: 10th International symposium on flow visualization (F0269)

  • InfraTec (2016) Infrared-thermographic camera ImageIR. User Manual

  • Juliano TJ, Peng D, Jensen C, Gregory J, Liu T, Montefort J, Palluconi S, Crafton J, Fonov S (2011) PSP measurements on an oscillating NACA 0012 airfoil in compressible flow. AIAA paper 2011-3728

  • Juliano TJ, Adamczak D, Kimmel RL (2014) HIFiRE-5 flight test heating analysis. AIAA paper 2014-0076

  • Juliano TJ, Kimmel RL, Willems S, Gülhan A, Wagnild RM (2015) HIFiRE-1 boundary-layer transition: ground test results and stability analysis. AIAA paper 2015-1736

  • Kameda M, Tezuka N, Hangai T, Nakakita K, Amao Y (2004) Adsorptive pressure-sensitive coatings on porous anodized aluminium. Meas Sci Technol 15(3):489–500

    Article  Google Scholar

  • Kavandi JL, Callis JB, Gouterman MP, Khalil G, Wright D, Green E, Burns D, Mclachlan B (1990) Luminescent barometry in wind tunnels. Rev Sci Instrum 61(11):3340–3347

    Article  Google Scholar

  • Kline SJ, McClintock FA (1953) Describing uncertainties in single-sample experiments. Mech Eng 75(1):3–8

    Google Scholar

  • Lemmon EW, Jacobsen RT (2004) Viscosity and thermal conductivity equations for nitrogen, oxygen, argon, and air. Int J Thermophys 25(1):21–69

    Article  Google Scholar

  • Li F, Choudhari M, Chang CL, White J, Kimmel R, Adamczak D, Borg M, Stanfield S, Smith M (2012) Stability analysis for HIFiRE experiments. AIAA paper 2012-2961

  • Liu T, Sullivan JP (2005) Pressure and temperature sensitive paints, 1st edn. Springer, New York

    Google Scholar

  • Liu T, Campbell B, Bruns S, Sullivan JP (1997) Temperature- and pressure-sensitive luminescent paints in aerodynamics. Appl Mech Rev 50(4):227–246

    Article  Google Scholar

  • Liu T, Guille M, Sullivan JP (2001) Accuracy of pressure sensitive paint. AIAA J 39(1):103–112

    Article  Google Scholar

  • Morita K, Suzuki K, Imamura O, Sakaue H (2011) Temperature-cancelled anodized-aluminum pressure sensitive paint for hypersonic wind tunnel application. AIAA paper 2011-3724

  • Numata D, Fujii S, Nagai H, Asai K (2017) Ultrafast-response anodized-aluminum pressure-sensitive paints for unsteady flow measurement. AIAA J 55(4):1118–1125

    Article  Google Scholar

  • Rainbird WJ (1968) Turbulent boundary-layer growth and separation on a yawed cone. AIAA J 6(12):2410–2416

    Article  Google Scholar

  • Reda DC (2002) Review and synthesis of roughness-dominated transition correlations for reentry applications. J Spacecr Rock 39(2):161–167

    Article  Google Scholar

  • Running CL (2018) Hypersonic boundary-layer separation measurements. Master’s thesis, University of Notre Dame

  • Running CL, Thompson MJ, Juliano TJ, Sakaue H (2017) Boundary-layer separation detection for a cone at high angle of attack in Mach 4.5 flow with pressure-sensitive paint. AIAA paper 2017-3120

  • Sakaue H (2005) Luminophore application method of anodized aluminum pressure sensitive paint as a fast responding global pressure sensor. Rev Sci Instrum 76(8):084101

    Article  Google Scholar

  • Sakaue H, Ishii K (2010) A dipping duration study for optimization of anodized-aluminum pressure-sensitive paint. Sensors 10(11):9799–9807

    Article  Google Scholar

  • Sakaue H, Ishii K (2010) Optimization of anodized-aluminum pressure-sensitive paint by controlling luminophore concentration. Sensors 10(7):6836–6847

    Article  Google Scholar

  • Sakaue H, Sullivan JP (2001) Time response of anodized aluminum pressure-sensitive paint. AIAA J 39(10):1944–1949

    Article  Google Scholar

  • Sakaue H, Matsumura S, Schneider SP, Sullivan JP (2002) Anodized aluminum pressure sensitive paint for short duration testing. AIAA paper 2002–2908

  • Stanfield SA, Kimmel RL, Adamczak D, Juliano TJ (2015) Boundary-layer transition experiment during reentry of HIFiRE-1. J Spacecr Rock 52(3):637–649

    Article  Google Scholar

  • Stern O, Volmer M (1919) Uber die abklingungszeit der fluoresznez. Phys Z 20:183–188

    Google Scholar

  • Stetson KF (1972) Boundary-layer separation on slender cones at angle of attack. AIAA J 10(5):642–648

    Article  Google Scholar

  • Tracy RR (1963) Hypersonic flow over a yawed circular cone. PhD thesis, California Institute of Technology, Pasadena, CA

  • Wetzel TG, Simpson RL, Chesnakas CJ (1998) Measurement of three-dimensional crossflow separation. AIAA J 36(4):557–564

    Article  Google Scholar

  • Willems S, Gülhan A, Juliano TJ, Kimmel RL, Schneider SP (2014) Laminar to turbulent transition on the HIFiRE-1 cone at Mach 7 and high angle of attack. AIAA paper 2014-0428

  • Wylie S, Doherty L, McGilvray M (2018) Commissioning of the Oxford high density tunnel (HDT) for boundary layer instability measurements at Mach 7. AIAA paper 2018-3074

Download references

Acknowledgements

The authors would like to thank Prof. Sergey Leonov and Prof. Seong-Kyun Im for allowing access to their jointly operated ACT-1 wind-tunnel facility. In addition, thanks goes out to Notre Dame undergraduate research assistants E. Farnan and Michael Thompson for their work investigating anodization techniques and developing the image mapping technique, respectively. Notre Dame graduate research assistants Harrison Yates and Daiki Kurihara assisted with the surface roughness and frequency response measurements, respectively.
