Effect of rolling process on magnetic properties of Fe-3.3 wt% Si non-oriented electrical steel

Applied Physics A Aims and scope Submit manuscript

Abstract

In this study, the influence of the rolling process on magnetic properties of Fe-3.3 wt% Si non-oriented electrical steel was investigated. The strip samples were cast using a high solidification cooling rate vacuum sampling method to simulate the solidification conditions of the industrial twin roll thin strip casting (TRSC) process. As-cast samples were subjected to various thermo-mechanical processing routes with different levels of hot-rolling (HR) and cold-rolling (CR). The influence of carbon and sulfur (C&S) contents in the steel were also investigated. Core loss (P1.5/50, P1.5/60, P1.0/50, P1.0/60) and magnetic induction (B25, B50) of the final annealed strip samples were measured to investigate how the magnetic properties are influenced by the final grain-size and texture. It was observed that increased HR deformation increased average final grain size after processing. This larger grain size resulted in lower core loss and higher magnetic induction. For the same level of HR deformation, low C&S steel compositions had exhibited a larger average grain size after the recrystallization annealing than high C&S steels. Using texture measurements, it was observed that the intensity of Goss orientation decreased with an increase in HR deformation.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (Canada)

Instant access to the full article PDF.

Institutional subscriptions

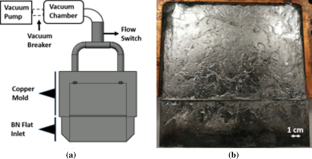

Fig. 1

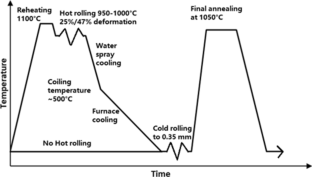

Fig. 2
Fig. 3
Fig. 4
Fig. 5

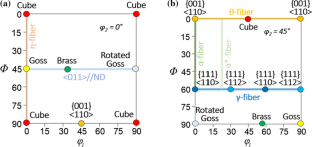

Fig. 6

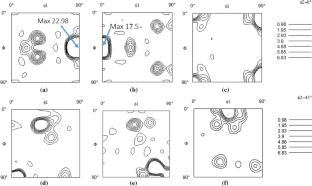

Fig. 7

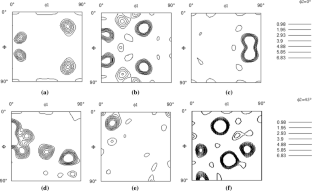

Fig. 8

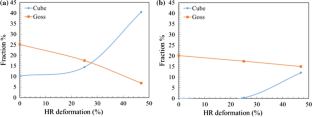

Fig. 9

References

  1. Y. Oda, T. Okubo, M. Takata, Recent development of non-oriented electrical steel in JFE steel. JFE Tech. Rep. 21, 7–13 (2016)

    Google Scholar

  2. J. Hong, H. Choi, S. Lee, J.K. Kim, Y.M. Koo, Effect of Al content on magnetic properties of Fe-Al non-oriented electrical steel. J. Magn. Magn. Mater. 439, 343–348 (2017)

    Article  ADS  Google Scholar

  3. Y. Du, R.J. O’Malley, M.F. Buchely, M. Xu., Design and evaluation of a lab size vacuum sampling method for simulating the twin-roll strip casting process, in AISTech - Iron and Steel Technology Conference Proceedings vol. 2021-June, pp 483–490, 2021, https://doi.org/10.33313/382/048.

  4. M.F. De Campos, J.C. Teixeira, F.J.G. Landgraf, The optimum grain size for minimizing energy losses in iron. J. Magn. Magn. Mater. 301(1), 94–99 (2006)

    Article  ADS  Google Scholar

  5. G. Ouyang, X. Chen, Y. Liang, C. Macziewski, J. Cui, Review of Fe-6.5 wt% Si high silicon steel—a promising soft magnetic material for sub-kHz application. J. Magn. Magn. Mater. 481, 234–250 (2019)

    Article  ADS  Google Scholar

  6. J.-T. Park, J.A. Szpunar, Effect of initial grain size on texture evolution and magnetic properties in nonoriented electrical steels. J. Magn. Magn. Mater. 321(13), 1928–1932 (2009)

    Article  ADS  Google Scholar

  7. Y. Lu et al., Investigation of microstructure and properties of strip-cast 4.5 wt% Si non-oriented electrical steel by different rolling processes. J. Magn. Magn. Mater. 497, 165975 (2020)

    Article  Google Scholar

  8. H. Jiao et al., Texture evolution in twin-roll strip cast non-oriented electrical steel with strong cube and Goss texture. Acta Mater. 199, 311–325 (2020)

    Article  ADS  Google Scholar

  9. N. Shan, J. Liu, Y. Sha, F. Zhang, L. Zuo, Development of through-thickness cube recrystallization texture in non-oriented electrical steels by optimizing nucleation environment. Metall. Mater. Trans. A. 50(5), 2486–2494 (2019)

    Article  Google Scholar

  10. S.H. Lee, D.N. Lee, Analysis of deformation textures of asymmetrically rolled steel sheets. Int. J. Mech. Sci. 43(9), 1997–2015 (2001)

    Article  Google Scholar

  11. J.-T. Park, J.A. Szpunar, Evolution of recrystallization texture in nonoriented electrical steels. Acta Mater. 51(11), 3037–3051 (2003)

    Article  ADS  Google Scholar

  12. S. Akta, G.J. Richardson, C.M. Sellars, Hot deformation and recrystallization of 3% silicon steel part 1: microstructure, flow stress and recrystallization characteristics. ISIJ Int. 45(11), 1666–1675 (2005)

    Article  Google Scholar

  13. H. Jiao et al., Influence of hot deformation on texture and magnetic properties of strip cast non-oriented electrical steel. J. Magn. Magn. Mater. 462, 205–215 (2018)

    Article  ADS  Google Scholar

  14. J.S.M. Pedrosa, S. da Costa Paolinelli, A.B. Cota, Influence of initial annealing on structure evolution and magnetic properties of 3.4% Si non-oriented steel during final annealing. J. Magn. Magn. Mater. 393, 146–150 (2015)

    Article  ADS  Google Scholar

  15. M. Atake, M. Barnett, B. Hutchinson, K. Ushioda, Warm deformation and annealing behavior of iron–silicon–(carbon) steel sheets. Acta Mater. 96, 410–419 (2015)

    Article  ADS  Google Scholar

  16. H.-T. Liu, Z.-Y. Liu, Y.-Q. Qiu, Y. Sun, G.-D. Wang, Microstructure, texture and magnetic properties of strip casting Fe–6.2 wt% Si steel sheet. J. Mater. Process. Technol. 212(9), 1941–1945 (2012)

    Article  Google Scholar

  17. Y. Xu et al., Effect of pre-annealing prior to cold rolling on the precipitation, microstructure and magnetic properties of strip-cast non-oriented electrical steels. J. Mater. Sci. Technol. 33(12), 1465–1474 (2017)

    Article  Google Scholar

  18. E. Gomes, J. Schneider, K. Verbeken, H. Hermann, Y. Houbaert, Effect of hot and cold rolling on grain size and texture in Fe-Si strips with Si-content larger than 2 wt%. Mater. Sci. Forum 638, 3561–3566 (2010)

    Article  Google Scholar

  19. W.C. Jeong, Effect of hot-rolling temperature on microstructure and texture of an ultra-low carbon Ti-interstitial-free steel. Mater. Lett. 62(1), 91–94 (2008)

    Article  MathSciNet  Google Scholar

  20. H.-Z. Li et al., Effects of warm temper rolling on microstructure, texture and magnetic properties of strip-casting 6.5 wt% Si electrical steel. J. Magn. Magn. Mater. 370, 6–12 (2014)

    Article  ADS  Google Scholar

  21. Y. Du, Effect on cooling rate on magnetic properties of Fe-3.4 wt% Si Non-oriented electrical steel, Manuscript submitted for publication, 2021.

  22. ASTM E112–13 Standard Test Methods for Determining Average Grain Size (ASTM International, West Conshohocken, 2013).

  23. A. Suzuki, T. Suzuki, Y. Nagaoka, Y. Iwata, On secondary dendrite arm spacing in commercial steels having different carbon contents. Nippon Kinzoku Gakkai-Si 32(12), 1301–1305 (1968)

    Google Scholar

  24. J. Füzer et al., Investigation of total losses of non-oriented electrical steels. Acta Physica Polonica-Ser. A Gen. Phys. 118(5), 1018 (2010)

    Article  ADS  Google Scholar

  25. ASTM A1036 - 04(2020) Standard guide for measuring power frequency magnetic properties of flat-rolled electrical steels using small single sheet testers (ASTM International, West Conshohocken, 2020).

  26. P. Campbell, W. Blejde, R. Mahapatra, R. Wechsler, Recent progress on commercialization of Castrip® direct strip casting technology at Nucor Crawfordsville. Metallurgist 48(9–10), 507–514 (2004)

    Article  Google Scholar

  27. R. Wechsler and P. Campbell, The first commercial plant for carbon steel strip casting at Crawfordsville, in Dr. Manfred Wolf Symposium, 2002, pp. 70–79.

  28. GB/T 2521.1–2016 Cold-rolled electrical steel delivered in the fully-processed state - Part 1: Grain non-oriented steel strip(sheet).

  29. J.J. Sidor, K. Verbeken, E. Gomes, J. Schneider, P.R. Calvillo, L.A.I. Kestens, Through process texture evolution and magnetic properties of high Si non-oriented electrical steels. Mater. Charact. 71, 49–57 (2012)

    Article  Google Scholar

  30. H. Jiao et al., High-permeability and thin-gauge non-oriented electrical steel through twin-roll strip casting. Mater. Des. 136, 23–33 (2017)

    Article  Google Scholar

Download references

Acknowledgements

This research was performed at Missouri University of Science and Technology (Missouri S&T). The authors would like to thank the graduate research assistants in MSE for their assistance during casting trials and acknowledge Brian Bullock for his help with the setup and manufacture of the samplers. This project was supported by Nucor Corporation and Castrip LLC, so special thanks go to all of their help and guidance. The authors are also grateful to all the faculties and industry mentoring committee of Peaslee Steel Manufacturing Research Center (PSMRC) at Missouri University of Science and Technology (Missouri S&T) for their help and guidance.
