Characterization of focal liver lesions using the stretched exponential model: comparison with monoexponential and biexponential diffusion-weighted magnetic resonance imaging

European Radiology volume 29, pages 5111–5120 (2019)Cite this article

Abstract

Objective

To compare the stretched exponential model of diffusion-weighted imaging (DWI) with monoexponential and biexponential models in terms of the ability to characterize focal liver lesions (FLLs).

Methods

This retrospective study included 180 patients with FLLs who underwent magnetic resonance imaging including DWI with nine b values at 3.0 T. The distributed diffusion coefficient (DDC) and intravoxel diffusion heterogeneity index (α) from a stretched exponential model; true diffusion coefficient (Dt), pseudo-diffusion coefficient (Dp), and perfusion fraction (f) from a biexponential model; and apparent diffusion coefficient (ADC) were calculated for each lesion. Diagnostic performances of the parameters were assessed through receiver operating characteristic (ROC) analysis. For 20 patients with treated hepatic metastases, the correlation between the DWI parameters and the percentage of tumor necrosis on pathology was evaluated using the Spearman correlation coefficient.

Results

DDC had the highest area under the ROC curve (AUC, 0.905) for differentiating malignant from benign lesions, followed by Dt (0.903) and ADC (0.866), without significant differences among them (DDC vs. Dt, p = 0.946; DDC vs. ADC, p = 0.157). For distinguishing hypovascular from hypervascular lesions, and hepatocellular carcinoma from metastasis, f  had a significantly higher AUC than the other DWI parameters (p < 0.05). The α had the strongest correlation with the degree of tumor necrosis (ρ = 0.655, p = 0.002).

Conclusion

The DDC from stretched exponential model of DWI demonstrated excellent diagnostic performance for differentiating malignant from benign FLLs. The α is promising for evaluating the degree of necrosis in treated metastases.

Key Points

• The stretched exponential DWI model is valuable for characterizing focal liver lesions.

• The DDC from stretched exponential model shows excellent performance for differentiating malignant from benign focal liver lesions.

• The α from stretched exponential model is promising for evaluating the degree of necrosis in hepatic metastases after chemotherapy.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

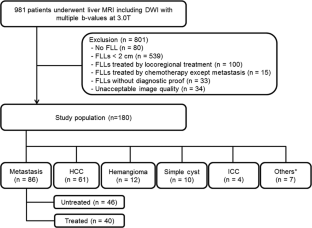

Fig. 1
Fig. 2
Fig. 3

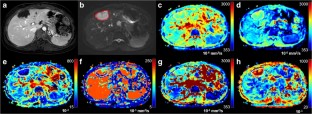

Fig. 4
Fig. 5

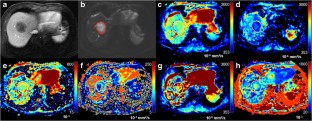

Fig. 6
