Two-year efficacy of single-session high-intensity focused ultrasound (HIFU) ablation of benign thyroid nodules

  • Brian H. H. LangEmail author
  • Yu-Cho Woo
  • Keith Wan-Hang Chiu



Assessing the efficacy of single high-intensity focused ultrasound (HIFU) ablation in benign thyroid nodules beyond 12 months.


One hundred and eight patients underwent single HIFU treatment. Extent of nodule shrinkage [by volume reduction ratio (VRR)] and obstructive symptom score [by 0-10 visual analogue scale (VAS)] were evaluated for 24 months after treatment. VRR (%) was calculated based on the formula: [baseline volume – volume at visit] / [baseline volume] × 100. Binary logistic regression was performed to evaluate factors associated with 24-month treatment success (VRR ≥ 50%).

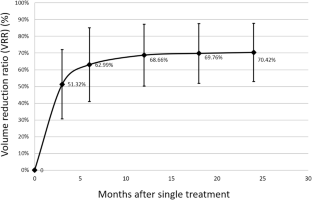

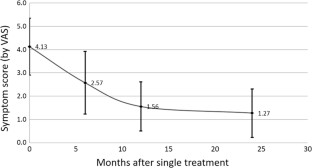

After treatment, the mean (± SD) VRR at 3, 6, 12 ,18 and 24 months were 51.32 ± 20.71%, 62.99 ± 22.05%, 68.66 ± 18.48%, 69.76 ± 17.88% and 70.41 ± 17.39%, respectively, while the median (IQR) VAS at baseline, 6, 12 and 24 months was gradually lowered from 4.0 (2.0), 2.0 (1.0), 2.0 (1.0) to 1.0 (2.0), respectively. Sixty-three (58.3%) nodules had a further volume reduction (i.e. > 4.5%) from 12 to 24 months, while 22 (20.4%) nodules had a volume increase of > 4.5% from 12 to 24 months. Small pre-ablation nodule volume was a significant determinant for treatment success at 24 months (OR=1.045, 95% CI=1.021–1.092, p = 0.038).


A majority of nodules had further volume reduction beyond 12 months after single HIFU ablation, but since one-fifth of nodules had a notable volume increase beyond 12 months, a longer period of surveillance would be necessary. Small pre-ablation nodule volume was a significant factor determining 24-month treatment success.

Key Points

• Small but significant nodule shrinkage continues beyond 12 months after single treatment.

• Obstructive symptom continues to improve beyond 12 months after single treatment

• Smaller-sized nodules have a greater chance of treatment success at 24 months


Interventional ultrasonography High-intensity focused ultrasound ablation Treatment efficacy Ultrasound imaging Ablation techniques



High-intensity focused ultrasound


Thyroid stimulating hormone


Vocal cord palsy


Volume reduction ratio



We would like to thank Mr. Hill Yu for conducting all the symptom assessments for the entire study period and Professor Stephen Cheng (Head of Department of Surgery, University of Hong Kong) for agreeing to be the guarantor of this paper.


The authors state that this work has not received any funding.

Compliance with ethical standards


The scientific guarantor of this publication is Professor Stephen Cheng (Head of Department).

Conflict of interest

The authors of this manuscript declare no relationships with any companies, whose products or services may be related to the subject matter of the article.

Statistics and biometry

No complex statistical methods were necessary for this paper.

Informed consent

Written informed consent was obtained from all subjects (patients) in this study.

Ethical approval

Institutional Review Board approval was obtained.

Study subjects or cohorts overlap

The 6- and 12-month outcomes of 22 patients were previously reported in a small prospective study [9].


• Retrospective

• Observational

• Single institution
