Discrimination of Malignant versus Benign Mediastinal Lymph Nodes Using Diffusion MRI with an IVIM Model

European Radiology volume 28, pages 1301–1309 (2018)Cite this article

Abstract

Objectives

To investigate the value of an intravoxel incoherent motion (IVIM) diffusion model for discriminating malignant versus benign mediastinal lymph nodes (MLN).

Methods

Thirty-five subjects with enlarged MLN were scanned at 1.5 Tesla. Diffusion-weighted imaging was performed with eight b-values. IVIM parameters D, D*, and f, as well as apparent diffusion coefficient (ADC) from a mono-exponential model were obtained. 91 nodes (49 malignant and 42 benign) were analysed with pathologic (n=90) or radiologic (n=1) confirmations. Receiver operating characteristic (ROC) analysis was used to evaluate the diagnostic performance.

Results

The mean values of D, ADC, and f for the malignant group were significantly lower than those for the benign group (p<0.001), while D* showed no significant difference (p=0.281). In the ROC analysis, the combination of D and f produced the largest area under the curve (0.953) compared to ADC or other individual IVIM parameters, leading to the best specificity (92.9%) and diagnostic accuracy (90.1%).

Conclusion

This study demonstrates that the combination of IVIM parameters can improve differentiation between malignant and benign MLN as compared to using ADC alone.

Key Points

• Diffusion MRI is useful for non-invasively discriminating malignant versus benign lymph nodes.

• A mono-exponential model is not adequate to characterise diffusion process in lymph nodes.

• IVIM model is advantageous over mono-exponential model for assessing lymph node malignancy.

• Combination of IVIM parameters improves differentiation of malignant versus benign lymph nodes.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

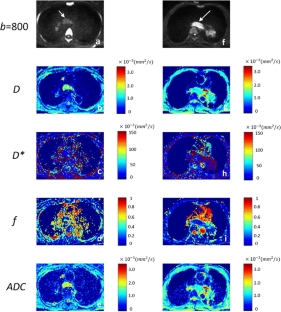

Fig. 1

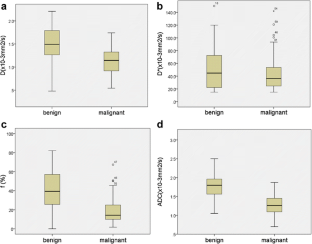

Fig. 2

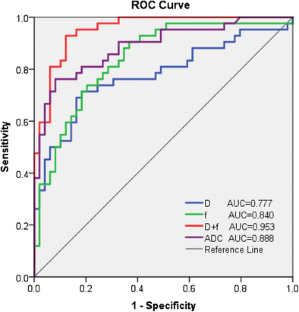

Fig. 3
