Multi-parametric MRI in cervical cancer: early prediction of response to concurrent chemoradiotherapy in combination with clinical prognostic factors

European Radiology volume 28, pages 437–445 (2018)Cite this article

Abstract

Objective

To investigate the prediction of response to concurrent chemoradiotherapy (CCRT) through a combination of pretreatment multi-parametric magnetic resonance imaging (MRI) with clinical prognostic factors (CPF) in cervical cancer patients.

Methods

Sixty-five patients underwent conventional MRI, diffusion-weighted imaging (DWI), and dynamic contrast-enhanced MRI (DCE-MRI) before CCRT. The patients were divided into non- and residual tumour groups according to post-treatment MRI. Pretreatment MRI parameters and CPF between the two groups were compared and prognostic factors, optimal thresholds, and predictive performance for post-treatment residual tumour occurrence were estimated.

Results

The residual group showed a lower maximum slope of increase (MSIL) and signal enhancement ratio (SERL) in low-perfusion subregions, a higher apparent diffusion coefficient (ADC) value, and a higher stage than the non-residual tumour group (p < 0.001, p = 0.003, p < 0.001, and p < 0.001, respectively). MSIL and ADC were independent prognostic factors. The combination of both measures improved the diagnostic performance compared with individual MRI parameters. A further combination of these two factors with CPF exhibited the highest predictive performance.

Conclusions

Pretreatment MSIL and ADC were independent prognostic factors for cervical cancer. The predictive capacity of multi-parametric MRI was superior to individual MRI parameters. The combination of multi-parametric MRI with CPF further improved the predictive performance.

Key points

• Pretreatment MSI L and ADC were independent prognostic factors for post-treatment residual tumours.

• The residual groups showed lower MSI L , higher ADC and higher stage.

• The predictive capacity of multi-parametric MRI was superior to individual MRI parameters.

• The combination of multi-parametric MRI with CPF exhibited the highest predictive performance.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

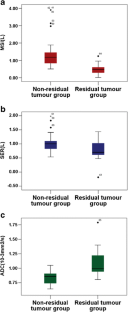

Fig. 1

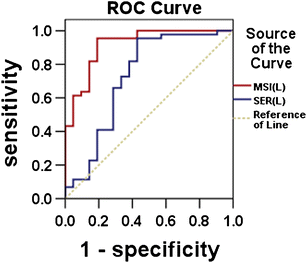

Fig. 2

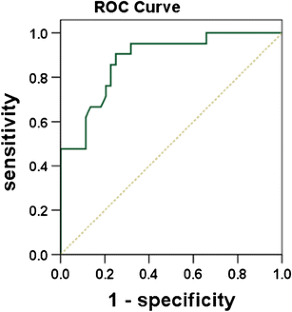

Fig. 3

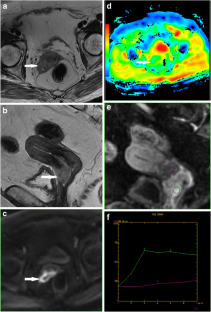

Fig. 4

Abbreviations

MRI:

magnetic resonance imaging

DWI:

diffusion-weighted imaging

ADC:

apparent diffusion coefficient

DCE-MRI:

dynamic contrast-enhanced MRI

MSI:

maximum slope of increase

SER:

signal enhancement ratio

ROI:

region of interest

CPF:

clinical prognostic factor

References

  1. Siegel RL, Miller KD, Jemal A (2015) Cancer statistics, 2015. CA Cancer J Clin 65:5–29

    Article  PubMed  Google Scholar

  2. Chereau E, DE LA Hosseraye C, Ballester M et al (2013) The role of completion surgery after concurrent radiochemotherapy in locally advanced stages IB2-IIB cervical cancer. Anticancer Res 33:1661–1666

    CAS  PubMed  Google Scholar

  3. Leguevaque P, Motton S, Delannes M et al (2011) Completion surgery or not after concurrent chemoradiotherapy for locally advanced cervical cancer? Eur J Obstet Gynecol Reprod Biol 155:188–192

    Article  PubMed  Google Scholar

  4. Tangjitgamol S, Katanyoo K, Laopaiboon M, Lumbiganon P, Manusirivithaya S, Supawattanabodee B (2014) Adjuvant chemotherapy after concurrent chemoradiation for locally advanced cervical cancer. Cochrane Database Syst Rev 12: (Cd010401)

  5. Sun Y, Tong T, Cai S, Bi R, Xin C, Gu Y (2014) Apparent diffusion coefficient (ADC) value:a potential imaging biomarker that reflects the biological features of rectal cancer. Plos One 9, e109371

    Article  PubMed  PubMed Central  Google Scholar

  6. Kuang F, Ren J, Zhong Q, Fu LY, Huan Y, Chen ZQ (2013) The value of apparent diffusion coefficient in the assessment of cervical cancer. Eur Radiol 23:1050–1058

    Article  PubMed  Google Scholar

  7. Liu Y, Ye ZX, Sun HR, Bai RJ (2015) Clinical application of diffusion-weighted magnetic resonance imaging in uterine cervical cancer. Int J Gynecol Cancer 25:1073–1078

    Article  PubMed  Google Scholar

  8. Somoye G, Harry V, Semple S et al (2012) Early diffusion weighted magnetic resonance imaging can predict survival in women with locally advanced cancer of the cervix treated with combined chemo-radiation. Eur Radiol 22:2319–2327

    Article  PubMed  Google Scholar

  9. Kim HS, Kim CK, Park BK, Huh SJ, Kim B (2013) Evaluation of therapeutic response to concurrent chemoradiotherapy in patients with cervical cancer using diffusion-weighted MR imaging. J Magn Reson Imaging 37:187–193

    Article  PubMed  Google Scholar

  10. Gladwish A, Milosevic M, Fyles A et al (2016) Association of apparent diffusion coefficient with disease recurrence in patients with locally advanced cervical cancer treated with radical chemotherapy and radiation therap. Radiology 279:158–166

    Article  PubMed  Google Scholar

  11. Harry VN (2010) Novel imaging techniques as response biomarkers in cervical cancer. Gynecol Oncol 116:253–261

    CAS  Article  PubMed  Google Scholar

  12. Kim JH, Kim CK, Park BK, Park SY, Huh SJ, Kim B (2012) Dynamic contrast-enhanced 3-T MR imaging in cervical cancer before and after concurrent chemoradiotherapy. Eur Radiol 22:2533–2539

    Article  PubMed  Google Scholar

  13. Loncaster JA, Carrington BM, Sykes JR et al (2002) Prediction of radiotherapy outcome using dynamic contrast enhanced MRI of carcinoma of the cervix. Int J Radiat Oncol Biol Phys 54:759–767

    Article  PubMed  Google Scholar

  14. Pecorelli S, Zigliani L, Odicino F (2009) Revised FIGO staging for carcinoma of the cervix. Int J Gynaecol Obstet 105:107–108

    Article  PubMed  Google Scholar

  15. Semple SI, Harry VN, Parkin DE, Gilbert FJ (2009) A combined pharmacokinetic and radiologic assessment of dynamic contrast-enhanced magnetic resonance imaging predicts response to chemoradiation in locally advanced cervical cancer. Int J Radiat Oncol Biol Phys 75:611–617

    CAS  Article  PubMed  Google Scholar

  16. Yamashita Y, Baba T, Baba Y et al (2000) Dynamic contrast-enhanced MR imaging of uterine cervical cancer: pharmacokinetic analysis with histopathologic correlation and its importance in predicting the outcome of radiation therapy. Radiology 216:803–809

    CAS  Article  PubMed  Google Scholar

  17. Nam H, Park W, Huh SJ et al (2007) The prognostic significance of tumor volume regression during radiotherapy and concurrent chemoradiotherapy for cervical cancer using MRI. Gynecol Oncol 107:320–325

    Article  PubMed  Google Scholar

  18. Odicino F, Tisi G, Rampinelli F, Miscioscia R, Sartori E, Pecorelli S et al (2007) New development of the FIGO staging system. Gynecol Oncol 107:S8–S9

    Article  PubMed  Google Scholar

  19. Sevin BU, Lu Y, Bloch DA, Nadjl M, Koechill DR, Averette HE (1996) Surgically defined prognostic parameters in patients with early cervical carcinoma a multivariate survival tree analysis. Cancer 78:1438–1446

    CAS  Article  PubMed  Google Scholar

  20. Takeda N, Sakuragi N, Takeda M et al (2002) Multivariate analysis of histopathologic prognostic factors for invasive cervical cancer treated with radical hysterectomy and systematic retroperitoneal lymphadenectomy. Acta Obstet Gynecol Scand 81:1144–1151

    Article  PubMed  Google Scholar

  21. Lyng H, Vorren AO, Sundfor K et al (2001) Intra- and intertumor heterogeneity in blood perfusion of human cervical cancer before treatment and after radiotherapy. Int J Cancer 96:182–190

    CAS  Article  PubMed  Google Scholar

  22. Dzik-Jurasz A, Domenig C, George M et al (2002) Diffusion MRI for prediction of response of rectal cancer to chemoradiation. Lancet 360:307–308

    Article  PubMed  Google Scholar

  23. McVeigh PZ, Syed AM, Milosevic M, Fyles A, Haider MA (2008) Diffusion-weighted MRI in cervical cancer. Eur Radiol 18:1058–1064

    Article  PubMed  Google Scholar

  24. Huang ZB, Mayr NA, Lo SS et al (2013) Characterizing at-risk voxels by using perfusion magnetic resonance imaging for cervical cancer during radiotherapy. J Cancer Sci Ther 4:254–259

    Google Scholar

  25. Mayr NA, Yuh WTC, Jajoura D et al (2010) Ultra-early predictive assay for treatment failure using functional magnetic resonance imaging and clinical prognostic parameters in cervical cancer. Cancer 116:903–912

    Article  PubMed  PubMed Central  Google Scholar

  26. Kilic S, Cracchiolo B, Gabel M, Haffty B, Mahmoud O (2015) The relevance of molecular biomarkers in cervical cancer patients treated with radiotherapy. Ann Transl Med 18:261

    Google Scholar

  27. Fu Z, Chen D, Cheng H, Wang F (2015) Hypoxia-inducible factor-1alpha protects cervical carcinoma cells from apoptosis induced by radiation via modulation of vascular endothelial growth factor and p53 under hypoxia. Med Sci Monit 21:318–325

    Article  PubMed  PubMed Central  Google Scholar

  28. Zahra MA, Hollingsworth KG, Sala E, Lomas DJ, Tan LT (2007) Dynamic contrast-enhanced MRI as a predictor of tumour response to radiotherapy. Lancet Oncol 8:63–74

    Article  PubMed  Google Scholar

  29. Mayr NA, Hawighorst H, Yuh WTC, Essig M, Magnotta VA, Knopp MV (1999) MR microcirculation in cervical cancer: correlations with histomorphological tumor markers and clinical outcome. J Magn Reson Imaging 10:267–276

    CAS  Article  PubMed  Google Scholar

  30. Taylor JS, Tofts PS, Port RE et al (1999) MR imaging of tumor microcirculation: promise for the new millennium. J Magn Reson Imaging 10:903–907

    CAS  Article  PubMed  Google Scholar

  31. Li YL, Zhang XP, Li J et al (2015) MRI in diagnosis of pathological complete response in breast cancer patients after neoadjuvant chemotherapy. Eur J Radiol 84:242–249

    Article  PubMed  Google Scholar

  32. Wu ML, Lu L, Zhang Q et al (2016) Relating doses of contrast agent administered to TIC and semi-quantitative parameters on DCE-MRI: based on a murine breast tumor model. Plos One 11, e0149279

    Article  PubMed  PubMed Central  Google Scholar

  33. Zahra MA, Tan LT, Priest AN et al (2009) Semi-quantitative and quantitative dynamic contrast-enhanced magnetic resonance imaging measurements predict radiation response in cervix cancer. Int J Radiat Oncol Biol Phys 74:766–773

    Article  PubMed  Google Scholar

Download references

Author information

Affiliations

  1. Department of Radiology, The General Hospital of Ningxia Medical University, 804 Shengli Road, Yinchuan, 750004, China

    Wei Yang, Bing Chen, Ai Jun Wang & Jian Guo Zhao

  2. Department of Radiology, Jinshan Hospital, Fudan University, 1508 Longhang Road, Shanghai, 201508, China

    Jin Wei Qiang

  3. Department of Pathology, The General Hospital of Ningxia Medical University, 804 Shengli Road, Yinchuan, 750004, China

    Hai Ping Tian

Authors
  1. Wei Yang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Jin Wei Qiang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Hai Ping Tian
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Bing Chen
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Ai Jun Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Jian Guo Zhao
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Jin Wei Qiang.

Ethics declarations

Guarantor

The scientific guarantor of this publication is Jin Wei Qiang.

Conflict of interest

The authors of this manuscript declare no relationships with any companies, whose products or services may be related to the subject matter of the article.

Funding

This study has received funding by National Natural Science Foundation of China (No.81471628); Shanghai Municipal Commission of Health and Family Planning, China (No.2013SY075 and No. ZK2015A05).

Statistics and biometry

No complex statistical methods were necessary for this paper.

Ethical approval

Institutional Review Board approval was obtained.

Informed consent

Written informed consent was obtained from all patients in this study.

Methodology

• prospective

• diagnostic or prognostic study

• performed at one institution.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Yang, W., Qiang, J.W., Tian, H.P. et al. Multi-parametric MRI in cervical cancer: early prediction of response to concurrent chemoradiotherapy in combination with clinical prognostic factors. Eur Radiol 28, 437–445 (2018). https://doi.org/10.1007/s00330-017-4989-3

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00330-017-4989-3

Keywords

  • Magnetic resonance imaging
  • Dynamic contrast-enhanced MR imaging
  • Diffusion-weighted imaging
  • Cervical cancer
  • Concurrent chemoradiotherapy
