Usefulness of the dynamic gadolinium-enhanced magnetic resonance imaging with simultaneous acquisition of coronal and sagittal planes for detection of pituitary microadenomas

Abstract

Objective

Does dynamic gadolinium-enhanced imaging with simultaneous acquisition of coronal and sagittal planes improve diagnostic accuracy of pituitary microadenomas compared with coronal images alone?

Methods

Fifty-six patients underwent 3-T sella MRI including dynamic simultaneous acquisition of coronal and sagittal planes after gadolinium injection. According to conspicuity, lesions were divided into four scores (0, no; 1, possible; 2, probable; 3, definite delayed enhancing lesion). Additional information on supplementary sagittal images compared with coronal ones was evaluated with a 4-point score (0, no; 1, possible; 2, probable; 3, definite additional information). Accuracy of tumour detection was calculated.

Results

Average scores for lesion detection of a combination of two planes, coronal, and sagittal images were 2.59, 2.32, and 2.18. 6/10 lesions negative on coronal images were detected on sagittal ones. Accuracy of a combination of two planes, of coronal and of sagittal images was 92.86%, 82.14% and 75%. Six patients had probable or definite additional information on supplementary sagittal images compared with coronal ones alone (10.71%).

Conclusion

Dynamic MRI with combined coronal and sagittal planes was more accurate for detection of pituitary microadenomas than routinely used coronal images. Simultaneous dynamic enhanced acquisition can make study time fast and costs low.

Key Points

We present a new dynamic MRI technique for evaluating pituitary microadenomas

This technique provides simultaneous acquisition of contrast enhanced coronal and sagittal images.

This technique makes the diagnosis more accurate and reduces the examination time.

Such MR imaging only requires one single bolus of contrast agent.

This is a preview of subscription content, access via your institution.

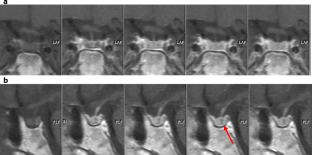

Fig. 1
Fig. 2

References

  1. Finelli DA, Kaufman B (1993) Varied microcirculation of pituitary adenomas at rapid, dynamic, contrast-enhanced MR imaging. Radiology 189:205–210

    PubMed  CAS  Google Scholar

  2. Miki Y, Matsuo M, Nishizawa S et al (1990) Pituitary adenomas and normal pituitary tissue: enhancement patterns on gadopentetate-enhanced MR imaging. Radiology 177:35–38

    PubMed  CAS  Google Scholar

  3. Sakamoto Y, Takahashi M, Korogi Y, Bussaka H, Ushio Y (1991) Normal and abnormal pituitary glands: gadopentetate dimeglumine-enhanced MR imaging. Radiology 178:441–445

    PubMed  CAS  Google Scholar

  4. Tien RD (1992) Sequence of enhancement of various portions of the pituitary gland on gadolinium-enhanced MR images: correlation with regional blood supply. AJR Am J Roentgenol 158:651–654

    PubMed  CAS  Google Scholar

  5. Yuh WT, Fisher DJ, Nguyen HD et al (1994) Sequential MR enhancement pattern in normal pituitary gland and in pituitary adenoma. AJNR Am J Neuroradiol 15:101–108

    PubMed  CAS  Google Scholar

  6. Bonneville JF, Cattin F, Gorczyca W, Hardy J (1993) Pituitary microadenomas: early enhancement with dynamic CT—implications of arterial blood supply and potential importance. Radiology 187:857–861

    PubMed  CAS  Google Scholar

  7. Bartynski WS, Lin L (1997) Dynamic and conventional spin-echo MR of pituitary microlesions. AJNR Am J Neuroradiol 18:965–972

    PubMed  CAS  Google Scholar

  8. Gao R, Isoda H, Tanaka T et al (2001) Dynamic gadolinium-enhanced MR imaging of pituitary adenomas: usefulness of sequential sagittal and coronal plane images. Eur J Radiol 39:139–146

    PubMed  Article  CAS  Google Scholar

  9. Tabarin A, Laurent F, Catargi B et al (1998) Comparative evaluation of conventional and dynamic magnetic resonance imaging of the pituitary gland for the diagnosis of Cushing’s disease. Clin Endocrinol (Oxf) 49:293–300

    Article  CAS  Google Scholar

  10. Stadnik T, Stevenaert A, Beckers A, Luypaert R, Buisseret T, Osteaux M (1990) Pituitary microadenomas: diagnosis with two-and three-dimensional MR imaging at 1.5 T before and after injection of gadolinium. Radiology 176:419–428

    PubMed  CAS  Google Scholar

  11. Davis PC, Gokhale KA, Joseph GJ et al (1991) Pituitary adenoma: correlation of half-dose gadolinium-enhanced MR imaging with surgical findings in 26 patients. Radiology 180:779–784

    PubMed  CAS  Google Scholar

Download references

Author information

Affiliations

Authors

Corresponding author

Correspondence to Sung Tae Kim.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Lee, H.B., Kim, S.T., Kim, HJ. et al. Usefulness of the dynamic gadolinium-enhanced magnetic resonance imaging with simultaneous acquisition of coronal and sagittal planes for detection of pituitary microadenomas. Eur Radiol 22, 514–518 (2012). https://doi.org/10.1007/s00330-011-2291-3

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00330-011-2291-3

Keywords

  • Pituitary adenoma
  • Pituitary neoplasms
  • Pituitary diseases
  • Magnetic resonance imaging
  • Gadolinium
