Ascending colon rotation following patient positional change during CT colonography: a potential pitfall in interpretation

European Radiology volume 21, pages 353–359 (2011)Cite this article

Abstract

Objective

To investigate the degree and pattern of ascending colonic rotation as patients moved from supine to prone positions during CTC.

Methods

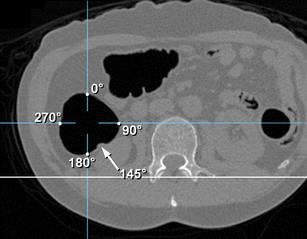

A search of our CTC and colonoscopy database found 37 patients (43 eligible lesions) who fulfilled the following criteria: colonoscopy-proven sessile polyps ≥6 mm in the straight mid-ascending colon, lesion visualisation in both supine and prone CTC, and optimal colonic distension. A coordinate system was developed to designate the polyp radial location (°) along the luminal circumference, unaffected by rotation of the torso. The degree/direction of polyp radial location change (i.e. ascending colonic rotation) between supine and prone positions correlated with anthropometric measurements.

Results

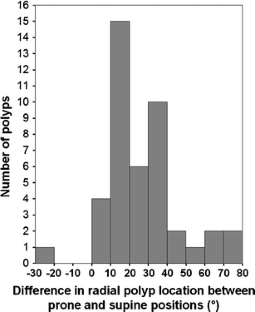

Movement from supine to prone positions resulted in a change in the radial polyp location of between −23° and 79° (median, 21°), demonstrating external rotation of the ascending colon in almost all cases (2° to 79° in 36/37 patients and 42/43 lesions). The degree/direction of rotation mildly correlated with the degree of abdominal compression in the anterior-posterior direction in prone position (r = 0.427 [P = 0.004] and r = 0.404 [P = 0.007]).

Conclusion

The ascending colon was usually found to rotate externally as patients moved from supine to prone positions, partly dependent on the degree of abdominal compression.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

References

  1. Graser A, Stieber P, Nagel D et al (2009) Comparison of CT colonography, colonoscopy, sigmoidoscopy and faecal occult blood tests for the detection of advanced adenoma in an average risk population. Gut 58:241–248

    CAS  Article  PubMed  Google Scholar

  2. Regge D, Laudi C, Galatola G et al (2009) Diagnostic accuracy of computed tomographic colonography for the detection of advanced neoplasia in individuals at increased risk of colorectal cancer. JAMA 301:2453–2461

    CAS  Article  PubMed  Google Scholar

  3. Johnson CD, Chen MH, Toledano AY et al (2008) Accuracy of CT colonography for detection of large adenomas and cancers. N Engl J Med 359:1207–1217

    CAS  Article  PubMed  Google Scholar

  4. Kim DH, Pickhardt PJ, Taylor AJ et al (2007) CT colonography versus colonoscopy for the detection of advanced neoplasia. N Engl J Med 357:1403–1412

    CAS  Article  PubMed  Google Scholar

  5. Pickhardt PJ, Choi JR, Hwang I et al (2003) Computed tomographic virtual colonoscopy to screen for colorectal neoplasia in asymptomatic adults. N Engl J Med 349:2191–2200

    CAS  Article  PubMed  Google Scholar

  6. Slater A, Taylor SA, Tam E et al (2006) Reader error during CT colonography: causes and implications for training. Eur Radiol 16:2275–2283

    Article  PubMed  Google Scholar

  7. Chen SC, Lu DS, Hecht JR, Kadell BM (1999) CT colonography: value of scanning in both the supine and prone positions. AJR Am J Roentgenol 172:595–599

    CAS  PubMed  Google Scholar

  8. Yee J, Kumar NN, Hung RK, Akerkar GA, Kumar PR, Wall SD (2003) Comparison of supine and prone scanning separately and in combination at CT colonography. Radiology 226:653–661

    Article  PubMed  Google Scholar

  9. Fletcher JG, Johnson CD, Welch TJ et al (2000) Optimization of CT colonography technique: prospective trial in 180 patients. Radiology 216:704–711

    CAS  PubMed  Google Scholar

  10. Chen JC, Dachman AH (2006) Cecal mobility: a potential pitfall of CT colonography. AJR Am J Roentgenol 186:1086–1089

    Article  PubMed  Google Scholar

  11. Laks S, Macari M, Bini EJ (2004) Positional change in colon polyps at CT colonography. Radiology 231:761–766

    Article  PubMed  Google Scholar

  12. Mang T, Maier A, Plank C, Mueller-Mang C, Herold C, Schima W (2007) Pitfalls in multi-detector row CT colonography: a systematic approach. Radiographics 27:431–454

    Article  PubMed  Google Scholar

  13. Saunders BP, Phillips RK, Williams CB (1995) Intraoperative measurement of colonic anatomy and attachments with relevance to colonoscopy. Br J Surg 82:1491–1493

    CAS  Article  PubMed  Google Scholar

  14. Saunders BP, Masaki T, Sawada T et al (1995) A peroperative comparison of Western and Oriental colonic anatomy and mesenteric attachments. Int J Colorectal Dis 10:216–221

    CAS  Article  PubMed  Google Scholar

  15. Punwani S, Halligan S, Tolan D, Taylor SA, Hawkes D (2009) Quantitative assessment of colonic movement between prone and supine patient positions during CT colonography. Br J Radiol 82:475–481

    CAS  Article  PubMed  Google Scholar

  16. Liedenbaum MH, de Vries AH, Halligan S et al (2009) CT colonography polyp matching: differences between experienced readers. Eur Radiol 19:1723–1730

    Article  PubMed  Google Scholar

  17. Lee SS, Park SH, Kim JK et al (2009) Panoramic endoluminal display with minimal image distortion using circumferential radial ray-casting for primary three-dimensional interpretation of CT colonography. Eur Radiol 19:1951–1959

    Article  PubMed  Google Scholar

  18. Dachman AH (2006) Advice for optimizing colonic distention and minimizing risk of perforation during CT colonography. Radiology 239:317–321

    Article  PubMed  Google Scholar

  19. Huang A, Roy DA, Summers RM et al (2007) Teniae coli-based circumferential localization system for CT colonography: feasibility study. Radiology 243:551–560

    Article  PubMed  Google Scholar
