European Radiology

, Volume 20, Issue 8, pp 1974–1984 | Cite as

Treatment of carotid siphon aneurysms by use of the Willis stent graft: an angiographic and histopathological study

  • Yue-Qi Zhu
  • Ming-Hua LiEmail author
  • Jian Xie
  • Hua-Qiao Tan
  • Ying-Sheng Cheng
  • Jian-Bo Wang



We designed a carotid siphon (CS) aneurysm model in dogs to test a new stent graft (the Willis covered stent) and compared tissue reaction over 12-month follow-up versus a comparison group with stents implanted in straight vessels.

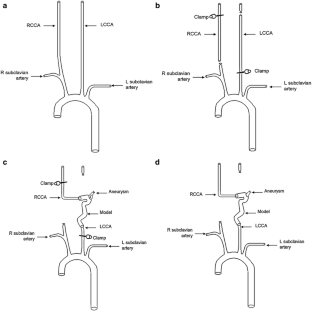

Twenty-four saccular sidewall aneurysms (group A) and 12 CS aneurysms (group B) were created surgically. A Willis stent graft was implanted in each aneurysm. Angiography was performed immediately and at 1-, 3-, 6- and 12-month post-implantation to investigate aneurysm isolation, endoleak, stent angulation, parent artery (PA) patency and restenosis. Light and scanning electron microscopy were used to identify aneurysmal sac thrombi, intima hyperplasia and endothelial progress.


Immediate angiography demonstrated mild endoleak in two aneurysms and three stent angulations in group B. Follow-up at 12 months revealed resolved endoleaks, occlusion in one PA and mild stenosis in three in group B. In group A, occlusion occurred in one PA and mild stenosis in two. Light microscopy revealed new intima, and all aneurysm sacs were filled with thrombi. In group B, endothelial progress was complete at 12 months, and closely correlated with haemodynamic changes.


Application of a Willis stent graft is a feasible method of treating CS aneurysms, and it exhibits a prolonged endothelial progress compared with that in straight vessels.


Covered stent Intracranial aneurysm Animal model Carotid siphon



This study is supported by the Doctor Innovation Found of Medical School of Shanghai Jiao Tong University (No. BXJ0933).


  1. 1.
    Nakagawa T, Hashi K (1994) The incidence and treatment of asymptomatic unruptured intracranial aneurysms. J Neurosurg 80:217–225CrossRefPubMedGoogle Scholar
  2. 2.
    Winn HR, Jane JA, Taylor J et al (2002) Prevalence of asymptomatic incidental aneurysms: review of 4568 arteriograms. J Neurosurg 96:43–49CrossRefPubMedGoogle Scholar
  3. 3.
    Bonneville F, Sourour N, Biondi A (2006) Intracranial aneurysms: an overview. Neuroimaging Clin N Am 16:371–382CrossRefPubMedGoogle Scholar
  4. 4.
    Saatci I, Cekirge HS, Ozturk MH et al (2004) Treatment of internal carotid artery aneurysms with a covered stent: experience in 24 patients with mid-term follow-up results. AJNR Am J Neuroradiol 25:1742–1749PubMedGoogle Scholar
  5. 5.
    Molyneux A, Kerr R, Stratton I et al (2002) International Subarachnoid Aneurysm Trial (ISAT) of neurosurgical clipping versus endovascular coiling in 2143 patients with ruptured intracranial aneurysms: a randomised trial. Lancet 360:1267–1274CrossRefPubMedGoogle Scholar
  6. 6.
    Molyneux AJ, Kerr RC, Yu LM et al (2005) International Subarachnoid Aneurysm Trial (ISAT) of neurosurgical clipping versus endovascular coiling in 2143 patients with ruptured intracranial aneurysms: a randomized comparison of effects on survival, dependency, seizures, rebleeding, subgroups, and aneurysm occlusion. Lancet 366:809–817CrossRefPubMedGoogle Scholar
  7. 7.
    Sluzewski M, Rooij WJ, Slob MJ et al (2004) Relation between aneurysm volume, packing, and compaction in 145 cerebral aneurysms treated with coils. Radiology 231:653–658CrossRefPubMedGoogle Scholar
  8. 8.
    Molyneux AJ, Cekirge S, Saatci I et al (2004) Cerebral Aneurysm Multicenter European Onyx (CAMEO) trial: results of a prospective observational study in 20 European centers. AJNR Am J Neuroradiol 25:39–51PubMedGoogle Scholar
  9. 9.
    Nageh T, Thomas MR (2000) Coronary-artery rupture treated with a polytetrafluoroethylene-coated stent. N Engl J Med 342:1922–1924CrossRefPubMedGoogle Scholar
  10. 10.
    Ruiz CE, Zhang HP, Douglas JT et al (1995) A novel method for treatment of abdominal aortic aneurysms using percutaneous implantation of a newly designed endovascular device. Circulation 91:2470–2477PubMedGoogle Scholar
  11. 11.
    Gu L, Santra S, Mericle RA et al (2005) Finite element analysis of covered microstents. J Biomech 38:1221–1227CrossRefPubMedGoogle Scholar
  12. 12.
    Li MH, Zhu YQ, Fang C et al (2008) The feasibility and efficacy of treatment with a Willis covered stent in recurrent intracranial aneurysms after coiling. AJNR Am J Neuroradiol 29:1395–1400CrossRefPubMedGoogle Scholar
  13. 13.
    Li MH, Li YD, Gao BL et al (2007) A new covered stent designed for intracranial vasculature: application in the management of pseudoaneurysms of the cranial internal carotid artery. AJNR Am J Neuroradiol 28:1579–1585CrossRefPubMedGoogle Scholar
  14. 14.
    Xie J, Li MH, Tan HQ et al (2009) Establishment of an experimental intracranial internal carotid artery model and the application in covered-stent navigability testing. AJNR Am J Neuroradio l30:1041–1045CrossRefGoogle Scholar
  15. 15.
    Zhu YQ, Cheng YS, Li MH et al (2009) Comparison of the tissue reaction of the three different endografts used for exclusion of carotid artery aneurysm model in dogs. J Vasc Interv Radio l20:791–798CrossRefGoogle Scholar
  16. 16.
    Bouthillier A, Loveren HR, Keller JT (1996) Segments of the internal carotid artery: a new classification. Neurosurgery 38:425–433CrossRefPubMedGoogle Scholar
  17. 17.
    Tan HQ, Li MH, Zhu YQ et al (2008) Surgical construction of a novel simulated carotid siphon in dogs. J Neurosurg 109:1173–1178CrossRefPubMedGoogle Scholar
  18. 18.
    Nishi S, Nakayama Y, Ishibashi-Ueda H et al (2003) Occlusion of experimental aneurysm with heparin-loaded, microporous stent grafts. Neurosurgery 53:1397–1405CrossRefPubMedGoogle Scholar
  19. 19.
    Dai D, Ding YH, Danielson MA et al (2007) Endovascular treatment of experimental aneurysms by use of fibroblast-coated platinum coils an angiographic and histopathologic study. Stroke 38:170–176CrossRefPubMedGoogle Scholar
  20. 20.
    Carter AJ, Bailey L, Devries J et al (2000) The effects of uncontrolled hyperglycemia on thrombosis and formation of neointima after coronary stent placement in a novel diabetic porcine model of restenosis. Coron Artery Dis 11:473–479CrossRefPubMedGoogle Scholar
  21. 21.
    Fischell TA, Virmani R (2001) Intracoronary brachytherapy in the porcine model: a different animal. Circulation 104:2388–2390PubMedGoogle Scholar
  22. 22.
    Levy EI, Boulos AS, Hanel RA et al (2003) In vivo model of intracranial stent implantation: a pilot study to examine the histological response of cerebral vessels after randomized implantation of heparin-coated and uncoated endoluminal stents in a blinded fashion. J Neurosurg 98:544–553CrossRefPubMedGoogle Scholar
  23. 23.
    Jung F, Beysang R, Guceve L et al (1975) Angiography of the cervico-cephalic vessels of the dog. The carotid system. J Chir (Paris) 109:109–118Google Scholar
  24. 24.
    Oesterle SN, Whitbourn R, Fitzgerald PJ et al (1998) The stent decade: 1987 to 1997. Stanford Stent Summit faculty. Am Heart J 136:578–599CrossRefPubMedGoogle Scholar
  25. 25.
    Alexander MJ, Smith TP, Tucci DL (2002) Treatment of an iatrogenic petrous carotid artery pseudoaneurysm with a Symbiot covered stent: technical case report. Neurosurgery 50:658–662CrossRefPubMedGoogle Scholar
  26. 26.
    Fisher AB, Chien S, Barakat AI et al (2001) Endothelial cellular response to altered shear stress. Am J Physiol Lung Cell Mol Physiol 281:L529–L533PubMedGoogle Scholar
  27. 27.
    Wei Z, Costa K, Al-Mehdi AB et al (1999) Simulated ischemia in flow-adapted endothelial cells leads to generation of reactive oxygen species and cell signaling. Circ Res 85:682–699PubMedGoogle Scholar
  28. 28.
    Hoit DA, Schirmer CM, Malek AM et al (2008) Stent graft treatment of cerebrovascular wall defects: intermediate-term clinical and angiographic results. Neurosurgery 62(5 Suppl 2):ONS380–ONS389CrossRefPubMedGoogle Scholar
