Fig. 3

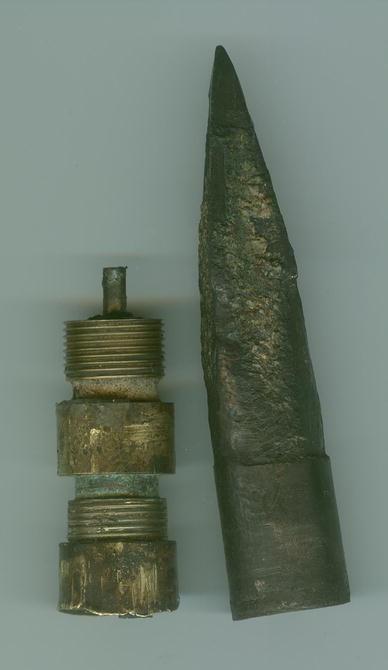

Disassembled bomb lance fragment from whale 80G1, captured at Gambell, AK, in 1980. This is also a piece of a bomb lance made according to Pierce’s 1879 patent as it lacks the gas vents in the head as in the 1885 patent. More of the fuse tube has survived and can be seen in this photograph
