The tibial lateral axis is a novel extraarticular landmark for detection of the tibial anteroposterior axis

Surgical and Radiologic Anatomy volume 42, pages 1195–1202 (2020)Cite this article

Abstract

Purpose

Although the tibial rotation axis is significant in knee arthroplasty, no reliable extraarticular landmark has been proposed. We hypothesized that the tibial lateral axis (TLA), a tangential line of the lateral tibial surface, is perpendicular to the surgical epicondylar axis (SEA) and compared it to other existing landmarks by 3D-CT.

Methods

Fifty legs in 25 consecutive patients were studied. Using their preoperative CT, the TLAs were identified on slices at 10–50% of the total length of the tibia and the measured differences of angles against the line perpendicular to the SEA (the tibial AP axis) were calculated. The differences between the SEA and the femoral and tibial posterior condylar axis, Akagi’s line and the line between the medial intercondylar spine and the medial border of the patellar tendon (sAP line)(intraarticular), the ankle axis, and the transmalleolar axis (extraarticular) were also calculated and compared.

Results

The mean values of TLA at 10%, 20%, 30% were virtually parallel to the SEA (0.97° ± 4.84°, 0.02° ± 4.61°, 1.10° ± 4.97°, respectively). They were equivalent to existing intraarticular landmarks and superior to existing extraarticular landmarks, and these levels corresponded to the tip to the lower end of the tibial tubercle (at 10.8% and 17.0% of total tibial length).

Conclusion

The proximal TLAs can be an extraarticular bony landmark that indicates the line perpendicular to the SEA. A prospective study is needed to prove the validity and accuracy of the axes clinically.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

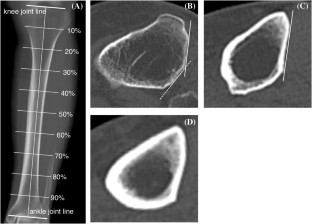

Fig. 1

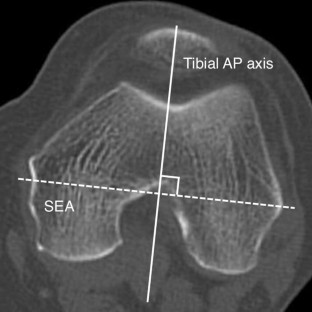

Fig. 2

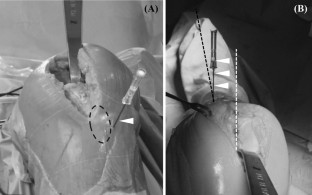

Fig. 3
