Evaluation of the facet joints with magnetic resonance images in the patients with disc degeneration and spondylolisthesis

Surgical and Radiologic Anatomy volume 40, pages 1063–1075 (2018)Cite this article

Abstract

Purpose

We aimed to research in detail the morphology of the facet orientation (FO) and tropism (FT) in degenerative diseases.

Method

This study consisted of patients with disc degeneration (DD) and with lumbar spondylolisthesis (LS) as well as a control group without these two diseases. The group of patients with DD was separated by DD grades. Vertebral body and intervertebral discs’ (IVDs) morphometric values, facet joint osteoarthritis (OA) grading, FO and FT were examined in all the groups. All measurements were applied to MRIs of 353 patients.

Result

There was a significant difference in facet angle values between the groups at L4–L5 (FO: p = 0.001). There was a significant negative correlation between FO at L4–L5 and L4 vertebral body anterior posterior diameter and L5 mid-vertebral body height, in 353 patients (p = 0.003; p = 0.010). Facet joint OA grading scores were lower in the control group than in the disc degeneration patient (DDP) and LS groups (p < 0.05). Sagittal FO was seen with the increase of facet joint OA scores at L4–L5 in the control and DDP groups (control: p = 0.001; DDP: p = 0.40).

Conclusion

Facet joints can show different orientation values in LS and DDP groups at L4–L5. The presence of FT is a risk factor for an LS patient at L4–L5. Sagittal FO is seen with vertebral slip at L5–S1. FO is affected by the morphometric changes of the vertebral body at L4–L5. Discussions in this regard need to be resolved through further research.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

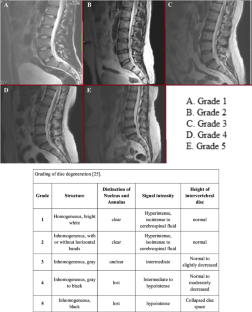

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

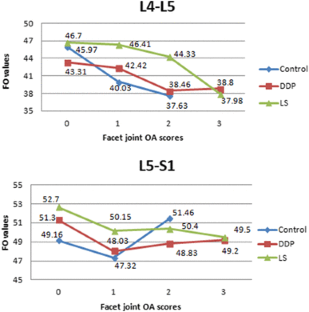

Fig. 6

References

  1. Abbas J, Hamoud K, May H, Hay O, Medlej B, Masharawi Y, Peled N, Hershkovitz I (2010) Degenerative lumbar spinal stenosis and lumbar spine configuration. Eur Spine J 19:1865–1873

    Article  PubMed  PubMed Central  CAS  Google Scholar

  2. Adams MA, Hutton WC (1983) The mechanical function of the lumbar apophyseal joints. Spine 8:327–330

    Article  PubMed  CAS  Google Scholar

  3. Amonoo-Kuofi HS (1991) Morphometric changes in the heights and anteroposterior diameters of the lumbar intervertebral discs with age. J Anat 175:159

    PubMed  PubMed Central  CAS  Google Scholar

  4. Berlemann U, Jeszenszky DJ, Bühler DW, Harms J (1998) Facet joint remodeling in degenerative spondylolisthesis, an investigation of joint orientation and tropism. Eur Spine J 7:376–380

    Article  PubMed  PubMed Central  CAS  Google Scholar

  5. Boden SD, Riew KD, Yamaguchi K, Branch TP, Schellinger S, Wiesel SW (1996) Orientation of the lumbar facet joints, association with degenerative disc disease. J Bone Joint Surg 78:403–411

    Article  PubMed  CAS  Google Scholar

  6. Dai LY (2001) Orientation and tropism of lumbar facet joints in degenerative spondylolisthesis. Int Orthop 25:40–42

    Article  PubMed  PubMed Central  CAS  Google Scholar

  7. Do DH, Taghavi CE, Fong W, Kong MH, Morishita Y, Wang JC (2011) The relationship between degree of facet tropism and amount of dynamic disc bulge in lumbar spine of patients symptomatic for low back pain. Eur Spine J 20:71–78

    Article  PubMed  Google Scholar

  8. Don AS, Robertson PA (2008) Facet joint orientation in spondylolysis and isthmic spondylolisthesis. J Spinal Disord Tech 21:112–115

    Article  PubMed  Google Scholar

  9. Fujiwara A, Lim TH, An HS, Tanaka N, Jeon CH, Andersson GB, Haughton VM (2000) The effect of disc degeneration and facet joint osteoarthritis on the segmental flexibility of the lumbar spine. Spine 25:3036–3044

    Article  PubMed  CAS  Google Scholar

  10. Fujiwara A, Tamai K, An HS, Lim TH, Yoshida H, Kurihashi A, Saotome K (2001) Orientation and osteoarthritis of the lumbar facet joint. Clin Orthop Relat Res 385:88–94

    Article  Google Scholar

  11. Gocmen-Mas N, Karabekir H, Ertekin T, Edizer M, Canan Y, Duyar I (2010) Evaluation of lumbar vertebral body and disc: a stereological morphometric study. Int J Morphol 28:841–847

    Article  Google Scholar

  12. Grobler LJ, Robertson PA, Novotny JE, Pope MH (1993) Etiology of spondylolisthesis, assessment of the role played by lumbar facet joint morphology. Spine 18:80–91

    Article  PubMed  CAS  Google Scholar

  13. Grogan J, Nowicki BH, Schmidt TA, Haughton VM (1997) Lumbar facet joint tropism does not accelerate degeneration of the facet joints. Am J Neuroradiol 18:1325–1329

    PubMed  CAS  Google Scholar

  14. Jentzsch T, Geiger J, Zimmermann SM, Slankamenac K, Nguyen-Kim TDL, Werner CM (2013) Lumbar facet joint arthritis is associated with more coronal orientation of the facet joints at the upper lumbar spine. Radiol Res Pract 2013:693971

    PubMed  PubMed Central  Google Scholar

  15. Kalichman L, Suri P, Guermazi A, Li L, Hunter DJ (2009) Facet orientation and tropism, associations with facet joint osteoarthritis and degenerative spondylolisthesis. Spine 34:E579

    Article  PubMed  PubMed Central  Google Scholar

  16. Karacan I, Aydin T, Sahin Z, Cidem M, Koyuncu H, Aktas I, Uludag M (2004) Facet angles in lumbar disc herniation: their relation to anthropometric features. Spine 29:1132–1136

    Article  PubMed  Google Scholar

  17. Kim KH, Park JY, Kuh SU, Chin DK, Kim KS, Cho YE (2013) Changes in spinal canal diameter and vertebral body height with age. Yonsei Med J 54:1498–1504

    Article  PubMed  PubMed Central  Google Scholar

  18. Kirkaldy-Willis WH, Wedge JH, Yong-Hing K, Reilly J (1978) Pathology and pathogenesis of lumbar spondylosis and stenosis. Spine (Phila Pa 1976) 3:319–328

    Article  Google Scholar

  19. Kong MH, He W, Tsai YD, Chen NF, Keorochana G, Do DH, Wang JC (2009) Relationship of facet tropism with degeneration and stability of functional spinal unit. Yonsei Med J 50:624–629

    Article  PubMed  PubMed Central  Google Scholar

  20. Lee DY, Lee SH (2009) Effects of facet tropism and disk degeneration on far lateral lumbar disk herniation: comparison with posterolateral lumbar disk herniation. Neurologia Medico-chirurgica 49:57–61

    Article  PubMed  Google Scholar

  21. Malkoc I, Aydinlioglu SA et al (2012) Age related changes in height and shape of the lumbar intervertebral discus. Eur J Basic Med Sci 2:68–73

    Google Scholar

  22. Meyerding HW (1932) Spondylolisthesis. Surg Gynecol Obstet 54:371–377

    Google Scholar

  23. Nguyen HS, Doan N et al (2016) Upright magnetic resonance imaging of the lumbar spine: Back pain and radiculopathy. J Cranioverteb Junction Spine 7:31

    Article  Google Scholar

  24. Noren R, Trafimow J, Andersson GB, Huckman MS (1991) The role of facet joint tropism and facet angle in disc degeneration. Spine 16:530–532

    Article  PubMed  CAS  Google Scholar

  25. Pfirrmann CW, Metzdorf A, Zanetti M et al (2001) Magnetic resonance classification of lumbar intervertebral disc degeneration. Spine 26:1873–1878

    Article  PubMed  CAS  Google Scholar

  26. Pichaisak W, Chotiyarnwong C, Chotiyarnwong P (2015) Facet joint orientation and tropism in lumbar degenerative disc disease and spondylolisthesis. J Med Assoc Thai 98:373–379

    PubMed  Google Scholar

  27. Roberts N, Gratin C, Whitehouse GH (1997) MRI analysis of lumbar intervertebral disc height in young and older populations. J Magn Reson Imaging 7:880–886

    Article  PubMed  CAS  Google Scholar

  28. Samartzis D, Cheung JPY et al (2016) Critical values of facet joint angulation and tropism in the development of lumbar degenerative spondylolisthesis: an international, large-scale multicenter study by the AOSpine Asia Pacific Research Collaboration Consortium. Glob Spine J 6:414–421

    Article  Google Scholar

  29. Takashima H, Takebayash T, Yoshimoto M et al (2014) Investigation of intervertebral disc and facet joint in lumbar spondylolisthesis using T2 mapping. Magn Reson Med Sci 13:261–266

    Article  PubMed  Google Scholar

  30. Weishaupt D, Schweitzer ME, Alam F et al (1999) MR imaging of inflammatory joint diseases of the foot and ankle. Skelet Radiol 28:663–669

    Article  CAS  Google Scholar

Download references

Author information

Affiliations

  1. Department of Anatomy, Selcuk University, Medical Faculty, 42131, Konya, Turkey

    Yunus Emre Kundakci, Nadire Unver Dogan, Zeliha Fazliogullari & Ahmet Kagan Karabulut

  2. Konya, Turkey

    Ibrahim Guler

  3. Department of Anatomy, Selcuk University, Meram Medical Faculty, Konya, Turkey

    Ismihan Ilknur Uysal

Authors
  1. Yunus Emre Kundakci
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Nadire Unver Dogan
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Ibrahim Guler
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Ismihan Ilknur Uysal
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Zeliha Fazliogullari
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Ahmet Kagan Karabulut
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Nadire Unver Dogan.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Kundakci, Y.E., Unver Dogan, N., Guler, I. et al. Evaluation of the facet joints with magnetic resonance images in the patients with disc degeneration and spondylolisthesis. Surg Radiol Anat 40, 1063–1075 (2018). https://doi.org/10.1007/s00276-018-2052-y

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00276-018-2052-y

Keywords

  • Degenerative spine
  • Facet angle
  • Lumbar intervertebral disc
  • Vertebra morphometry
  • Spondylolisthesis
