Morphometric analyses of the cervical superior facets and implications for facet dislocation

International Orthopaedics volume 32, pages 97–101 (2008)Cite this article

Abstract

The articular facets of the cervical spine have been well addressed; however, little information is available on the relationship of the superior facets of the cervical spine to traumatic dislocation in the literature. Morphometric analyses of the superior facets of 30 dried cervical spines from C3 to C7 were performed to determine any morphological differences. The angle of the superior facet with respect to the transverse plane was also measured on computed tomography (CT) scans of 30 patients having neck injury without fracture/dislocation. The vertical and surface lengths of the superior facet were significantly lower (P < 0.01) at C6–C7 levels than at C3–5 levels. The anteroposterior diameter of the superior facet was smaller (P < 0.05) at C6 and C7 levels compared to C3–5 levels. Although the superior facet joint surface is in a more coronal orientation in lower cervical vertebrae, the inclination of the superior facet is more horizontal relative to the transverse plane when measured in vivo. A combination of lower height, smaller anteroposterior diameter of the superior facet, and a more horizontally oriented superior facet at C6 and C7 levels in vivo may explain the predilection of translation relative to one another in the lower cervical spine.

Résumé

Les facettes articulaires de la colonne cervicale sont bien analysées cependant une meilleure connaissance des relations de l’articulaire supérieure lors des traumatismes avec luxations de la colonne dans la littérature est possible. L’analyse morphométrique de l’articulaire supérieure a été analysée sur 30 colonnes cervicales de cadavres, de C3 à C7, de façon à analyser les différences morphologiques. L’angle supérieur de l’articulaire a été mesuré sur le scanner de 30 patients ayant présenté un traumatisme cervical sans fracture, ni luxation. Les dimensions verticales et les surfaces de l’articulaire supérieure sont, significativement, moins importantes au niveau C6 et C7 qu’au niveau C3 à C5 (p < 0.01). Le diamètre antéropostérieur de l’articulaire supérieure est également plus petit au niveau de C6 C7 qu’au niveau de C3 C5 (p < 0.05). De la même façon, l’articulaire supérieure est dans un plan plus frontal dans la partie basse de la colonne. L’inclinaison de cette articulaire est, de même, plus horizontale par rapport au plan transversal, mesure in vivo. La combinaison de tous ces facteurs : dimensions moins importantes, petits diamètres, antéropostérieur et facettes supérieures de l’articulaire plus horizontale en C6 C7, expliquent la fréquence des translations relatives possibles des vertèbres dans la partie basse de la colonne et donc la fragilité de cette zone.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2

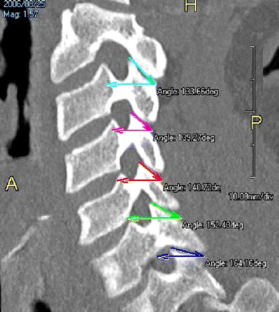

Fig. 3

References

  1. Bauze RJ, Ardran GM (1978) Experimental production of forward dislocation of the human cervical spine. J Bone Joint Surg Br 60-B:239–245

    PubMed  CAS  Google Scholar

  2. Beatson TR (1963) Fractures and dislocations of the cervical spine. J Bone Joint Surg Br 45-B:21–35

    Google Scholar

  3. Beyer CA, Cabanela ME, Berquist TH (1991) Unilateral facet dislocations and fracture-dislocations of the cervical spine. J Bone Joint Surg Br 73(6):977–981

    PubMed  CAS  Google Scholar

  4. Burke CD, Berryman D (1971) The place of closed manipulation in the management of flexion-rotation dislocations of the cervical spine. J Bone Joint Surg Br 53-B:165–182

    Google Scholar

  5. Gehweiler JA Jr, Osborne RL Jr, Becker RF (1980) The radiology of vertebral trauma. Saunders, Philadelphia, p 432

    Google Scholar

  6. Grobler LJ, Robertson PA, Novotny JE, Pope MH (1993) Etiology of spondylolisthesis: assessment of the role played by lumbar facet joint morphology. Spine 18:80–91

    PubMed  Article  CAS  Google Scholar

  7. Johnson MG, Fisher CG, Boyd M, Pitzen T, Oxland TR, Dvorak MF (2004) The radiographic failure of single segment anterior cervical plate fixation in traumatic cervical flexion distraction injuries. Spine 29(24):2815–2820

    PubMed  Article  Google Scholar

  8. Mahale YJ, Silver JR (1992) Progressive paralysis after bilateral facet dislocation of the cervical spine. J Bone Joint Surg Br 74-B:219–223

    Google Scholar

  9. Maiman DJ, Barolat G, Larson SJ (1986) Management of bilateral locked facets of the cervical spine. Neurosurgery 18:542–547

    PubMed  Article  CAS  Google Scholar

  10. O’Brien PJ, Schweigel JF, Thompson WJ (1982) Dislocations of the lower cervical spine. J Trauma 22:710–714

    PubMed  CAS  Article  Google Scholar

  11. Pal GP, Routal RV, Saggu SK (2001) The orientation of the articular facets of the zygapophyseal joints at the cervical and upper thoracic region. J Anat 198 (Pt 4):431–441

    PubMed  Article  CAS  Google Scholar

  12. Panjabi MM, Oxland T, Koichiro T, Goel V, Duranceau J, Krag M (1993) Articular facets of the human spine: quantitative three-dimensional anatomy. Spine 18:1298–1310

    PubMed  Article  CAS  Google Scholar

  13. Rorabeck CH, Rock MG, Hawkins RJ, Bourne RB (1987) Unilateral facet dislocation of the cervical spine: an analysis of the results of treatment in 26 patients. Spine 12:23–27

    PubMed  Article  CAS  Google Scholar

  14. Shapiro SA (1993) Management of unilateral locked facet of the cervical spine. Neurosurgery 33:832–837

    PubMed  Article  CAS  Google Scholar

  15. Sharma M, Langrana NA, Rodriguez 1 (1995) Role of ligaments and facets in lumbar spinal stability. Spine 20:887–900

    PubMed  Article  CAS  Google Scholar

  16. Sonntag VKH (1981) Management of bilateral locked facets of the cervical spine. Neurosurgery 8:150–152

    PubMed  CAS  Article  Google Scholar

Download references

Author information

Affiliations

  1. Department of Orthopedic Surgery, Medical University of Ohio, 3065 Arlington Avenue, Toledo, OH, 43614, USA

    Nabil A. Ebraheim, Vishwas Patil, Jiayong Liu & Steve P. Haman

  2. Department of Anatomy, Medical University of Ohio, 3065 Arlington Avenue, Toledo, OH, 43614, USA

    Richard A. Yeasting

Authors
  1. Nabil A. Ebraheim
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Vishwas Patil
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Jiayong Liu
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Steve P. Haman
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Richard A. Yeasting
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Jiayong Liu.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Ebraheim, N.A., Patil, V., Liu, J. et al. Morphometric analyses of the cervical superior facets and implications for facet dislocation. International Orthopaedics (SICO 32, 97–101 (2008). https://doi.org/10.1007/s00264-006-0286-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00264-006-0286-5

Keywords

  • Cervical Spine
  • Transverse Plane
  • Degenerative Spondylolisthesis
  • Superior Facet
  • Lower Cervical Spine
