Abstract

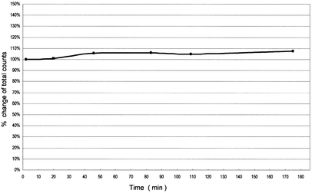

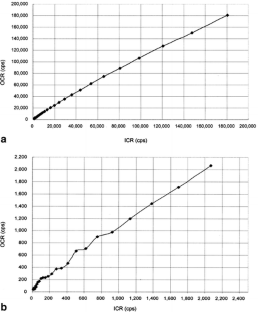

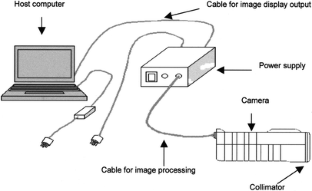

We have designed and developed a small field of view gamma camera, the eZ SCOPE, based on use of a CdZnTe semiconductor. This device utilises proprietary signal processing technology and an interface to a computer-based imaging system. The purpose of this study was to evaluate the performance of the eZ scope in comparison with currently employed gamma camera technology. The detector is a single wafer of 5-mm-thick CdZnTe that is divided into a 16×16 array (256 pixels). The sensitive area of the detector is a square of dimension 3.2 cm. Two parallel-hole collimators are provided with the system and have a matching (256 hole) pattern to the CdZnTe detector array: a low-energy, high-resolution parallel-hole (LEHR) collimator fabricated of lead and a low-energy, high-sensitivity parallel-hole (LEHS) collimator fabricated of tungsten. Performance measurements and the data analysis were done according to the procedures of the NEMA standard. We also studied the long-term stability of the system with continuous use and variations in ambient temperature. Results were as follows. Intrinsic energy resolution: 8.6% FWHM at 141 keV. Linearity: There was excellent linearity between the observed photopeaks and the known gamma ray energies for the given isotopes. Intrinsic system uniformity: For the central field of view, the integral uniformity and the differential uniformity were, respectively, 1.6% and 1.3% with the LEHR collimator and 1.9% and 1.2% with the LEHS collimator. System spatial resolution: The FWHM measurements made at the surface of the collimator were 2.2 mm (LEHR) and 2.9 mm (LEHS). Contrast test: The average S/N ratios (i.e. counts in the irradiated pixel divided by counts in the surrounding pixels) for the inner ring pixels (8)/outer ring pixels (16) using the LEHS collimator and LEHR collimator were 3.2%/0.2% and 3.7%/0.3%, respectively. Count rate characteristics: We could not determine the maximum count rate and the 20% loss count rate from these data because the plateau was not reached while using the solutions measured. System sensitivity: The average acquisitions were 11,052 cpm/MBq (LEHR) and 28,590 cpm/MBq (LEHS). Temperature dependence: The system displayed minimum corresponding shift in cps with temperature changes in the measured temperature range. We designed and developed a semiconductor-based gamma camera using CdZnTe. The basic performance of this camera compares favourably with the existing gamma camera technology that is deployed in the medical field today. The most significant differences include the spatial resolution, sensitivity, high count rate characteristics and energy resolution. We believe that this device will be of value for a number of clinical applications including sentinel node detection and radiopharmaceutical-guided surgery.
This is a preview of subscription content, log in via an institution to check access.
References
Narita H, Kawaida Y, Ooshita T, Itou T, Tsuchida D, Fukumitsu N, Mori Y, Makino M. Evaluation of efficiency of a multi-crystal scintillation camera Digirad 2020tc Imager using a solid-state detector. Kaku Igaku 2001; 38:355–362.
Kim JH, Choi Y, Joo KS, Sihn BS, Chong JZ, Kim SE, Lee KH, Choe YS. Development of a miniature scintillation camera using an NaI(Tl) scintillator and PSPMT for scintimammography. Phys Med Biol 2000; 45:3481–3488.
Mark BW, Allen RG, Victor GR, Stan M, Andrew GW, Randolph W. Performance of a PSPMT based detector for scintimammography. Phys Med Biol 2000; 45:781–800.
Zanzonico P, Heller S. The intraoperative gamma probe: basic principles and choices available. Semin Nucl Med 2000; 30:33–48.
Performance Measurements of Scintillation Cameras: NEMA standards, 1994. Publ. No. NU1&2.
Krag DN, Weaver L, Alex C, et al. Surgical resection and radio-localization of the sentinel lymph node in breast cancer using a gamma probe. Surg Oncol 1993; 2:335–340.
Giuliano AE, Kirgan DM, Guenther JM, et al. Lymphatic mapping and sentinel lymphadenectomy for breast cancer. Ann Surg 1994; 220:391–401.
Albertini JA, Lyman GH, Cox C, et al. Lymphatic mapping and sentinel node biopsy in the patients with breast cancer. JAMA 1996; 276:1818–1822.
Jose A, Bruno A, Francisco N, et al. Value of99mTc-MIBI scintimammography in women with impalpable breast lesions seen on mammography. Eur J Surg 2001; 167:344–346.
Grain E, Devillers A, Girault S, et al. Scintimammography: better detection of small-sized lesions with tomoscintigraphic than planar images, a phantom study. Nucl Med Commun 2001; 22:1045–1054.
Matsumoto C, Takahashi T, Takizawa K, et al. Performance of a new Schottky CdTe detector for hard X-ray spectroscopy. IEEE Trans Nucl Sci 1998; 45:428–432.
Bertolucci E, Chiro P, Conti M, et al. Imaging performance of single-element CdZnTe detectors for digital radiography. IEEE Trans Nucl Sci 1998; 45:406–412.
Mori T, Takayama T, Motomura N. The CdTe detector module and its imaging performance. Ann Nucl Med 2001; 15:487–494.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Abe, A., Takahashi, N., Lee, J. et al. Performance evaluation of a hand-held, semiconductor (CdZnTe)-based gamma camera. Eur J Nucl Med Mol Imaging 30, 805–811 (2003). https://doi.org/10.1007/s00259-002-1067-z
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s00259-002-1067-z
