A hand-held imaging probe for radio-guided surgery: physical performance and preliminary clinical experience

  • Original Article
  • Published:
European Journal of Nuclear Medicine and Molecular Imaging Aims and scope Submit manuscript

Abstract

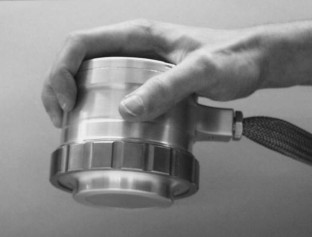

Improvements in the specificity of radiopharmaceutical compounds have been paralleled by an upsurge of interest in developing small detectors to assist surgeons in localizing tumour tissue during surgery. This study reports the main technical features and physical characteristics of a new hand-held gamma camera dedicated to accurate and real-time intra-operative imaging. First clinical experience is also reported. The POCI (Per-operative Compact Imager) camera consists of a head module composed of a high-resolution interchangeable lead collimator and a CsI(Na) crystal plate optically coupled to an intensified position-sensitive diode. The current prototype has a 40-mm diameter field of view, an outer diameter of 9.5 cm, a length of 9 cm and a weight of 1.2 kg. Overall detector imaging characteristics were evaluated by technetium-99m phantom measurements. Three patients with breast cancer previously scheduled to undergo sentinel lymph node detection were selected for the preliminary clinical experience. Preoperative images of the lymphatic basin obtained using the POCI camera were compared with conventional transcutaneous explorations using a non-imaging gamma probe. The full-width at half-maximum (FWHM) spatial resolution was investigated in both air and scattering medium; when the phantom was placed in contact with the collimator, the POCI camera exhibited a 3.2 mm FWHM. The corresponding sensitivity was 290 cps/MBq. The preliminary clinical results showed that POCI was able to predict the number and location of all SLNs. In one case, two deep radioactive nodes missed by the gamma probe were detected on the intra-operative images. This very initial experience demonstrates that the physical performance of the POCI camera is adequate for radio-guided surgery. These results are sufficiently encouraging to prompt further evaluation studies designed to determine the specific and optimal clinical role of intra-operative imaging devices.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1.
Fig. 2.
Fig. 3.
Fig. 4.

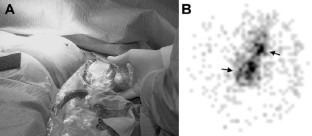

Fig. 5A, B.

References

  1. Shneebaum S, Even-Sapir E, Cohen M. Clinical applications of gamma-detection probes—radioguided surgery. Eur J Nucl Med 1999; 26(Suppl):S26–S35.

    Google Scholar

  2. Tiourina T, Arends B, Huysmans D, et al. Evaluation of surgical gamma probes for radioguided sentinel node localisation. Eur J Nucl Med 1998; 25:1224–1231.

    Article  CAS  PubMed  Google Scholar

  3. Hartsough NE, Barrett HH, Barrett HB, Woolfenden JM. Intraoperative tumor detection: relative performance of single-element, dual-element and imaging probes with various collimators. IEEE Trans Med Imaging 1995; 14:259–265.

    Article  Google Scholar

  4. Ménard L, Charon Y, Solal M, et al. POCI: a compact high resolution γ camera for intra-operative surgical use. IEEE Trans Nucl Sci 1998; 45:1293–1297.

    Article  Google Scholar

  5. Ménard L, Charon Y, Solal M, et al. Performance characterization and first clinical evaluation of an intra-operative compact imager. IEEE Trans Nucl Sci 1999; 46:2068–2074.

    Article  Google Scholar

  6. Solal M, Ménard L, Charon Y, et al. A silicon continuous position sensitive diode and associated electronics: modelling and simulation. Nucl Instrum Meth 2002; 477:491–498.

    Article  CAS  Google Scholar

  7. Hoffman EJ, Tornai MP, Janecek M, Patt BE, Iwanczyk JS. Intraoperative probes and imaging probes. Eur J Nucl Med 1999; 26:913–935.

    Article  CAS  PubMed  Google Scholar

  8. MacDonald LR, Patt BE, Iwanczyk JS, et al. High resolution hand-held gamma camera. SPIE Medical Applications of Penetrating Radiation. Proc SPIE 2000; in press.

  9. Pani R, Soluri A, Scafe R, et al. A compact gamma ray imager for oncology. Nucl Instrum Meth 2002; 477:509–513.

    Article  CAS  Google Scholar

  10. Britten AJ. A method to evaluate intra-operative gamma probes for sentinel lymph node localisation. Eur J Nucl Med 1999; 26:76–83.

    Article  CAS  PubMed  Google Scholar

  11. Jansen L, Koops HS, Nieweg OE, et al. Sentinel node biopsy for melanoma in the head and neck region. Head Neck 2000; 22:27–33.

    Article  CAS  PubMed  Google Scholar

  12. Saha S, Wiese D, Badin J, et al. Technical details of sentinel lymph node mapping in colorectal cancer and its impact on staging. Ann Surg Oncol 2000; 7:82–84.

    PubMed  Google Scholar

Download references

Acknowledgements

The authors thank Dr. J.C. Travagli from the Department of General Surgery, Institut G. Roussy, Villejuif, for its collaboration in the clinical evaluations, Ms. L. Saint Ange for editing and Dr. K. Kerrou for valuable discussions concerning this project.
