Abstract

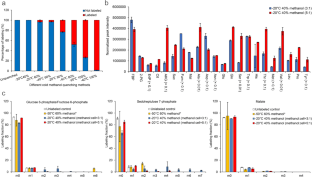

Metabolomics has been a potential tool for strain improvement through analyzing metabolite changes in the context of different conditions. However, the availability of a universal metabolite profiling analysis is still a big challenge. In this study, we presented an optimized liquid chromatography-tandem mass spectrometry-based metabolomics methodology for Corynebacterium glutamicum, an important industrial workhorse. It was found that quenching the cellular metabolism with 5-fold volume of − 20 °C 40% methanol was highly recommended due to its lower cell damage rate and higher intracellular metabolite recovery rate. For extracting intracellular metabolites, ethanol/water (3:1, v/v) at 100 °C combined with acidic acetonitrile/water (1:1, v/v, with 0.1% formic acid) at − 20 °C achieved the unbiased metabolite profiling of C. glutamicum. The established methodology was then applied to investigate the intracellular metabolite differences between C. glutamicum ATCC 13032 and an mscCG-deleted mutant under biotin limitation condition. It was observed that in the presence of the functional l-glutamate exporter MscCG, biotin limitation led to accumulation of intracellular 2-oxoglutarate but not l-glutamate. Deletion of mscCG severely inhibited l-glutamate excretion and resulted in a dramatical increase of intracellular l-glutamate, which in turn affected the metabolite profile. The optimized metabolomics methodology holds promise for promoting studies on metabolic mechanism of C. glutamicum.
Similar content being viewed by others
References
Becker J, Wittmann C (2012) Bio-based production of chemicals, materials and fuels—Corynebacterium glutamicum as versatile cell factory. Curr Opin Biotechnol 23(4):631–640. https://doi.org/10.1016/j.copbio.2011.11.012
Becker J, Wittmann C (2016) Industrial biotechnology: microorganisms. In: Wittmann C, Liao JC (eds) Industrial microorganisms: Corynebacterium glutamicum. Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, pp 183–220
Becker M, Borngen K, Nomura T, Battle AR, Marin K, Martinac B, Kramer R (2013) Glutamate efflux mediated by Corynebacterium glutamicum MscCG, Escherichia coli MscS, and their derivatives. Biochim Biophys Acta 1828(4):1230–1240. https://doi.org/10.1016/j.bbamem.2013.01.001
Bolten CJ, Kiefer P, Letisse F, Portais JC, Wittmann C (2007) Sampling for metabolome analysis of microorganisms. Anal Chem 79(10):3843–3849. https://doi.org/10.1021/ac0623888
Buchholz A, Hurlebaus J, Wandrey C, Takors R (2002) Metabolomics: quantification of intracellular metabolite dynamics. Biomol Eng 19(1):5–15. https://doi.org/10.1016/S1389-0344(02)00003-5
Canelas AB, ten Pierick A, Ras C, Seifar RM, van Dam JC, van Gulik WM, Heijnen JJ (2009) Quantitative evaluation of intracellular metabolite extraction techniques for yeast metabolomics. Anal Chem 81(17):7379–7389. https://doi.org/10.1021/ac900999t
Fiehn O (2001) Combining genomics, metabolome analysis, and biochemical modelling to understand metabolic networks. Comp Funct Genomics 2(3):155–168. https://doi.org/10.1002/cfg.82
Guo X, Wang J, Xie X, Xu Q, Zhang C, Chen N (2013) Enhancing the supply of oxaloacetate for l-glutamate production by pyc overexpression in different Corynebacterium glutamicum. Biotechnol Lett 35(6):943–950. https://doi.org/10.1007/s10529-013-1241-3
Hashimoto K, Kawasaki H, Akazawa K, Nakamura J, Asakura Y, Kudo T, Sakuradani E, Shimizu S, Nakamatsu T (2006) Changes in composition and content of mycolic acids in glutamate-overproducing Corynebacterium glutamicum. Biosci Biotechnol Biochem 70(1):22–30. https://doi.org/10.1271/Bbb.70.22
Hirasawa T, Saito M, Yoshikawa K, Furusawa C, Shmizu H (2018) Integrated analysis of the transcriptome and metabolome of Corynebacterium glutamicum during penicillin-induced glutamic acid production. Biotechnol J 13. doi:https://doi.org/10.1002/biot.201700612
Hirasawa T, Wachi M (2017) Glutamate fermentation-2: mechanism of l-glutamate overproduction in Corynebacterium glutamicum. Adv Biochem Eng Biotechnol 159:57–72. https://doi.org/10.1007/10_2016_26
Kawahara Y, Takahashi-Fuke K, Shimizu E, Nakamatsu T, Nakamori S (1997) Relationship between the glutamate production and the activity of 2-oxoglutarate dehydrogenase in Brevibacterium lactofermentum. Biosci Biotechnol Biochem 61(7):1109–1112. https://doi.org/10.1271/Bbb.61.1109
Kimura E, Abe C, Kawahara Y, Nakamatsu T (1996) Molecular cloning of a novel gene, dtsR, which rescues the detergent sensitivity of a mutant derived from Brevibacterium lactofermentum. Biosci Biotechnol Biochem 60(10):1565–1570. https://doi.org/10.1271/Bbb.60.1565
Krömer JO, Sorgenfrei O, Klopprogge K, Heinzle E, Wittmann C (2004) In-depth profiling of lysine-producing Corynebacterium glutamicum by combined analysis of the transcriptome, metabolome, and fluxome. J Bacteriol 186(6):1769–1784. https://doi.org/10.1128/JB.186.6.1769-1784.2004
Li X, Long D, Ji J, Yang W, Zeng Z, Guo S, Ji Z, Qi G, Chen S (2013) Sample preparation for the metabolomics investigation of poly-gamma-glutamate-producing Bacillus licheniformis by GC-MS. J Microbiol Methods 94(1):61–67. https://doi.org/10.1016/j.mimet.2013.04.006
Li Z, Yang A, Li Y, Liu P, Zhang Z, Zhang X, Shui W (2016) Targeted cofactor quantification in metabolically engineered E. coli using solid phase extraction and hydrophilic interaction liquid chromatography-mass spectrometry. J Chromatogr B Analyt Technol Biomed Life Sci 1014:107–115. https://doi.org/10.1016/j.jchromb.2015.12.037
Magnus JB, Hollwedel D, Oldiges M, Takors R (2006) Monitoring and modeling of the reaction dynamics in the valine/leucine synthesis pathway in Corynebacterium glutamicum. Biotechnol Prog 22(4):1071–1083. https://doi.org/10.1021/bp060072f
Marx A, Eikmanns BJ, Sahm H, de Graaf AA, Eqqeling L (1999) Response of the central metabolism in Corynebacterium glutamicum to the use of an NADH-dependent glutamate dehydrogenase. Metab Eng 1(1):35–48. https://doi.org/10.1006/mben.1998.0106
Meinert S, Rapp S, Schmitz K, Noack S, Kornfeld G, Hardiman T (2013) Quantitative quenching evaluation and direct intracellular metabolite analysis in Penicillium chrysogenum. Anal Biochem 438(1):47–52. https://doi.org/10.1016/j.ab.2013.03.021
Nakamura J, Hirano S, Ito H, Wachi M (2007) Mutations of the Corynebacterium glutamicum NCgl1221 gene, encoding a mechanosensitive channel homolog, induce l-glutamic acid production. Appl Environ Microbiol 73(14):4491–4498. https://doi.org/10.1128/AEM.02446-06
Patejko M, Jacyna J, Markuszewski MJ (2017) Sample preparation procedures utilized in microbial metabolomics: an overview. J Chromatogr B Analyt Technol Biomed Life Sci 1043:150–157. https://doi.org/10.1016/j.jchromb.2016.09.029
Rabinowitz JD, Kimball E (2007) Acidic acetonitrile for cellular metabolome extraction from Escherichia coli. Anal Chem 79(16):6167–6173. https://doi.org/10.1021/Ac070470c
Ryan D, Robards K (2006) Metabolomics: the greatest omics of them all? Anal Chem 78(23):7954–7958. https://doi.org/10.1021/ac0614341
Sato H, Orishimo K, Shirai T, Hirasawa T, Nagahisa K, Shimizu H, Wachi M (2008) Distinct roles of two anaplerotic pathways in glutamate production induced by biotin limitation in Corynebacterium glutamicum. J Biosci Bioeng 106(1):51–58. https://doi.org/10.1263/jbb.106.51
Schädel F, David F, Franco-Lara E (2011) Evaluation of cell damage caused by cold sampling and quenching for metabolome analysis. Appl Microbiol Biotechnol 92(6):1261–1274. https://doi.org/10.1007/s00253-011-3377-1
Schneider J, Wendisch VF (2010) Putrescine production by engineered Corynebacterium glutamicum. Appl Microbiol Biotechnol 88(4):859–868. https://doi.org/10.1007/s00253-010-2778-x
Shiio I, Otsuka SI, Takahashi M (1962) Effect of biotin on the bacterial formation of glutamic acid I Glutamate formation and cellular premeability of amino acids. J Biochem 51(1):56–62. https://doi.org/10.1093/oxfordjournals.jbchem.a127500
Spura J, Reimer LC, Wieloch P, Schreiber K, Buchinger S, Schomburg D (2009) A method for enzyme quenching in microbial metabolome analysis successfully applied to gram-positive and gram-negative bacteria and yeast. Anal Biochem 394(2):192–201. https://doi.org/10.1016/j.ab.2009.07.016
Tateno T, Okada Y, Tsuchidate T, Tanaka T, Fukuda H, Kondo A (2009) Direct production of cadaverine from soluble starch using Corynebacterium glutamicum coexpressing alpha-amylase and lysine decarboxylase. Appl Microbiol Biotechnol 82(1):115–121. https://doi.org/10.1007/s00253-008-1751-4
van Gulik WM (2010) Fast sampling for quantitative microbial metabolomics. Curr Opin Biotechnol 21(1):27–34. https://doi.org/10.1016/j.copbio.2010.01.008
Wang QZ, Wu CY, Chen T, Chen X, Zhao XM (2006) Integrating metabolomics into a systems biology framework to exploit metabolic complexity: strategies and applications in microorganisms. Appl Microbiol Biotechnol 70(2):151–161. https://doi.org/10.1007/s00253-005-0277-2
Wang Y, Cao G, Xu D, Fan L, Wu X, Ni X, Zhao S, Zheng P, Sun J, Ma Y (2018) A novel l-glutamate exporter of Corynebacterium glutamicum. Appl Environ Microbiol 84(6):e02691–e02617. https://doi.org/10.1128/AEM.02691-17
Wellerdiek M, Winterhoff D, Reule W, Brandner J, Oldiges M (2009) Metabolic quenching of Corynebacterium glutamicum: efficiency of methods and impact of cold shock. Bioprocess Biosyst Eng 32(5):581–592. https://doi.org/10.1007/s00449-008-0280-y
Wittmann C, Krömer JO, Kiefer P, Binz T, Heinzle E (2004) Impact of the cold shock phenomenon on quantification of intracellular metabolites in bacteria. Anal Biochem 327(1):135–139. https://doi.org/10.1016/j.ab.2004.01.002
Acknowledgements
This study was supported by the National Natural Sciences Foundation of China (31370113, 31700085, 31700044, and 31370829), Chinese Academy of Sciences Key Project (ZDRW-ZS-2016-2), and the first Special Support Plan for Talents Development and High-Level Innovation and Entrepreneurship Team of the Tianjin Municipal City.
Author information
Authors and Affiliations
Contributions
P.Z. and J.S. conceived the project. Q.Z. and X.Z. designed the study. Q.Z., J.Y., and Z.Z. carried out the experiments. Q.Z., X.Z., and Y.W. interpreted the results and wrote this manuscript. P.Z., J.S., and Y.M. revised the manuscript and gave valuable suggestion to improve the manuscript. T.D. polished the manuscript. All authors read and approved the final manuscript for publication.
Corresponding authors
Ethics declarations
Conflict of interest
The authors declare that they have no conflict of interest.
Ethical statement
This article does not contain any studies with human participants or animals performed by any of the authors.
Electronic supplementary material
ESM 1
(PDF 415 kb)
Rights and permissions
About this article
Cite this article
Zhang, Q., Zheng, X., Wang, Y. et al. Comprehensive optimization of the metabolomic methodology for metabolite profiling of Corynebacterium glutamicum. Appl Microbiol Biotechnol 102, 7113–7121 (2018). https://doi.org/10.1007/s00253-018-9095-1
