Butanol production from concentrated lactose/whey permeate: Use of pervaporation membrane to recover and concentrate product

Abstract

In these studies, butanol (acetone butanol ethanol or ABE) was produced from concentrated lactose/whey permeate containing 211 g L−1 lactose. Fermentation of such a highly concentrated lactose solution was possible due to simultaneous product removal using a pervaporation membrane. In this system, a productivity of 0.43 g L−1 h−1 was obtained which is 307 % of that achieved in a non-product removal batch reactor (0.14 g L−1 h−1) where approximately 60 g L−1 whey permeate lactose was fermented. The productivity obtained in this system is much higher than that achieved in other product removal systems (perstraction 0.21 g L−1 h−1 and gas stripping 0.32 g L−1 h−1). This membrane was also used to concentrate butanol from approximately 2.50 g L−1 in the reactor to 755 g L−1. Using this membrane, ABE selectivities and fluxes of 24.4–44.3 and 0.57–4.05 g m−2 h−1 were obtained, respectively. Pervaporation restricts removal of water from the reaction mixture thus requiring significantly less energy for product recovery when compared to gas stripping.

This is a preview of subscription content, access via your institution.

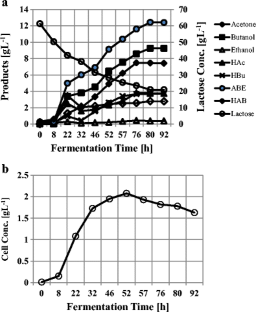

Fig. 1

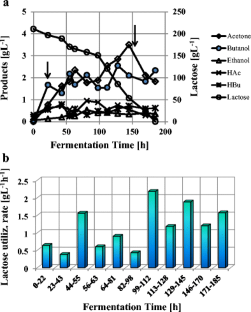

Fig. 2

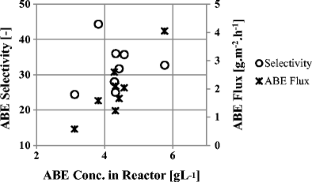

Fig. 3

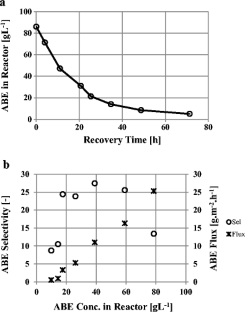

Fig. 4

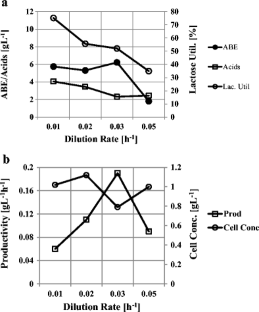

Fig. 5

References

  • Domingues L, Lima N, Teixeira JA (2001) Alcohol production from cheese whey permeate using genetically modified flocculent yeast cells. Biotechnol Bioeng 72:507–514

    CAS  PubMed  Article  Google Scholar

  • Dürre P (1998) New insights and novel developments in clostridial acetone/butanol-isopropanol fermentation. Appl Microbiol Biotechnol 49:639–648

    Article  Google Scholar

  • Ennis BM, Maddox IS (1985) Use of Clostridium acetobutylicum P262 for production of solvents from whey permeate. Biotechnol Lett 7:601–606

    CAS  Article  Google Scholar

  • Ennis BM, Maddox IS, Schoutens GH (1986) Immobilized Clostridium acetobutylicum for continuous butanol production from whey permeate. N Z J Dairy Sci Technol 21:99–109

    CAS  Google Scholar

  • Ezeji TC, Blaschek HP (2008) Fermentation of dried distillers’ grains and soluble (DDGS) hydrolysates to solvents and value-added products by solventogenic clostridia. Bioresour Technol 99:5232–5242

    CAS  PubMed  Article  Google Scholar

  • Ezeji TC, Qureshi N, Blaschek HP (2004) Acetone-butanol-ethanol production from concentrated substrate: reduction in substrate inhibition by fed-batch technique and product inhibition by gas stripping. Appl Microbiol Biotechnol 63:653–658

    CAS  PubMed  Article  Google Scholar

  • Ezeji TC, Qureshi N, Blaschek HP (2013) Microbial production of a biofuel (acetone-butanol-ethanol) in a continuous bioreactor: impact of bleed and simultaneous product removal. Bioprocess Biosyst Eng 36:109–116

    CAS  PubMed  Article  Google Scholar

  • Friedl A, Qureshi N, Maddox IS (1991) Continuous acetone-butanol-ethanol (ABE) fermentation using immobilized cells of Clostridium acetobutylicum in a packed bed reactor and integration with product removal by pervaporation. Biotechnol Bioeng 38:518–527

    CAS  PubMed  Article  Google Scholar

  • Groot WJ, van der Lans RGJM, Luyben KCAM (1992) Technologies for butanol recovery integrated with fermentations. Proc Biochem 27:61–75

    CAS  Article  Google Scholar

  • Huang W-C, Ramey DE, Yang S-T (2004) Continuous production of butanol by Clostridium acetobutylicum immobilized in a fibrous bed bioreactor. Appl Biochem Biotechnol 113–116:887–898

    PubMed  Article  Google Scholar

  • Jones DT, Woods DR (1986) Acetone-butanol fermentation revisited. Microb Rev 50:484–524

    CAS  Google Scholar

  • Maddox IS (1989) The acetone-butanol-ethanol fermentation: recent progress in technology. Biotechnol Genet Eng Rev 7:190–220

    Article  Google Scholar

  • Maddox IS, Qureshi N, Roberts-Thomson K (1995) Production of acetone-butanol from concentrated substrates using Clostridium acetobutylicum in an integrated fermentation-product removal process. Proc Biochem 30:209–215

    CAS  Google Scholar

  • Mariano AP, Qureshi N, Filho RM, Ezeji TC (2011) Bioproduction of butanol in bioreactors: new insights from simultaneous in situ butanol recovery to eliminate product toxicity. Biotechnol Bioeng 108:1757–1765

    CAS  PubMed  Article  Google Scholar

  • Mawson AJ (1987) Ethanol production from whey in New Zealand. Aus J Biotechnol 1:64–73

    CAS  Google Scholar

  • Parekh SR, Parekh RS, Wayman M (1988) Ethanol and butanol production by fermentation of enzymatically saccharified SO2-prehydrolysed lignocellulosics. Enzym Microb Technol 10:660–668

    CAS  Article  Google Scholar

  • Qureshi N, Maddox IS (2005) Reduction in butanol inhibition by perstraction: utilization of concentrated lactose/whey permeate by Clostridium acetobutylicum to enhance butanol fermentation economics. Food Bioprod Proc 83(C1):43–52

    CAS  Article  Google Scholar

  • Qureshi N, Peterson AHJ, Maddox IS (1988) Model for continuous production of solvents from whey permeate in a packed bed reactor using cells of Clostridium acetobutylicum immobilized by adsorption onto bonechar. Appl Microbiol Biotechnol 29:323–328

    CAS  Article  Google Scholar

  • Qureshi N, Maddox IS, Friedl A (1992) Application of continuous substrate feeding to the ABE fermentation: relief of product inhibition using extraction, perstraction, stripping and pervaporation. Biotechnol Prog 8:382–390

    CAS  Article  Google Scholar

  • Qureshi N, Meagher MM, Hutkins RW (1999) Recovery of butanol from model solutions and fermentation broth using a silicalite/silicone membrane. J Membr Sci 158:115–125

    CAS  Article  Google Scholar

  • Qureshi N, Lai LL, Blaschek HP (2004) Scale-up of a high productivity biofilm reactor to produce butanol by adsorbed cells of Clostridium beijerinckii. Trans I Chem E Food Bioprod Process 82:164–173

    CAS  Article  Google Scholar

  • Qureshi N, Hughes S, Maddox IS, Cotta MA (2005) Energy efficient recovery of butanol from fermentation broth by adsorption. Bioprocess Biosyst Eng 27:215–222

    CAS  PubMed  Article  Google Scholar

  • Wongso DD (1993) Optimization of industrial whey ethanol fermentation process. Ph.D. dissertation, Biotechnology Department, Massey University, Palmerston North, New Zealand

  • Zverlov VV, Berezina O, Velikodvorskaya GA, Schwarz WH (2006) Bacterial acetone and butanol production by industrial fermentation in the Soviet Union: use of hydrolyzed agricultural waste for biorefinery. Appl Microbiol Biotechnol 71:587–597

    CAS  PubMed  Article  Google Scholar

Download references

Acknowledgments

NQ would like to thank Michael A. Cotta (United States Department of Agriculture, Agricultural Research Service, National Center for Agricultural Utilization Research, Peoria, IL, USA) for reading this paper and providing constructive comments that improved the quality of the article.

Author information

Affiliations

Authors

Corresponding author

Correspondence to N. Qureshi.

Additional information

Mention of trade names or commercial products in this article is solely for the purpose of providing scientific information and does not imply recommendation or endorsement by the United States Department of Agriculture. USDA is an equal opportunity provider and employer.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Qureshi, N., Friedl, A. & Maddox, I.S. Butanol production from concentrated lactose/whey permeate: Use of pervaporation membrane to recover and concentrate product. Appl Microbiol Biotechnol 98, 9859–9867 (2014). https://doi.org/10.1007/s00253-014-6117-5

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s00253-014-6117-5

Keywords

  • Butanol
  • Membrane
  • Pervaporation
  • Whey permeate
  • Productivity
  • Concentrated butanol
  • ABE
