Cloning, expression, and biochemical characterization of a novel GH16 β-agarase AgaG1 from Alteromonas sp. GNUM-1

Applied Microbiology and Biotechnology volume 98, pages 4545–4555 (2014)Cite this article

Abstract

Alteromonas sp. GNUM-1 is known to degrade agar, the main cell wall component of red macroalgae, for their growth. A putative agarase gene (agaG1) was identified from the mini-library of GNUM-1, when extracellular agarase activity was detected in a bacterial transformant. The nucleotide sequence revealed that AgaG1 had significant homology to GH16 agarases. agaG1 encodes a primary translation product (34.7 kDa) of 301 amino acids, including a 19-amino-acid signal peptide. For intracellular expression, a gene fragment encoding only the mature form (282 amino acids) was cloned into pGEX-5X-1 in Escherichia coli, where AgaG1 was expressed as a fusion protein with GST attached to its N-terminal (GST-AgaG1). GST-AgaG1 purified on a glutathione sepharose column had an apparent molecular weight of 59 kDa on SDS-PAGE, and this weight matched with the estimated molecular weight (58.7 kDa). The agarase activity of the purified protein was confirmed by the zymogram assay. GST-AgaG1 could hydrolyze the artificial chromogenic substrate, p-nitrophenyl-β-d-galactopyranoside but not p-nitrophenyl-α-d-galactopyranoside. The optimum pH and temperature for GST-AgaG1 activity were identified as 7.0 and 40 °C, respectively. GST-AgaG1 was stable up to 40 °C (100 %), and it retained more than 70 % of its initial activity at 45 °C after heat treatment for 30 min. The K m and V max for agarose were 3.74 mg/ml and 23.8 U/mg, respectively. GST-AgaG1 did not require metal ions for its activity. Thin layer chromatography analysis, mass spectrometry, and 13C-nuclear magnetic resonance spectrometry of the GST-AgaG1 hydrolysis products revealed that GST-AgaG1 is an endo-type β-agarase that hydrolyzes agarose and neoagarotetraose into neoagarobiose.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

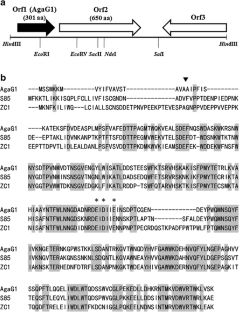

Fig. 1
Fig. 2

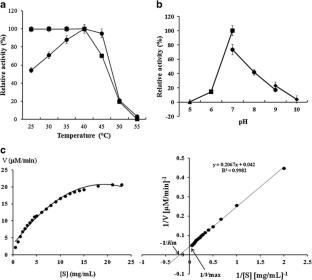

Fig. 3

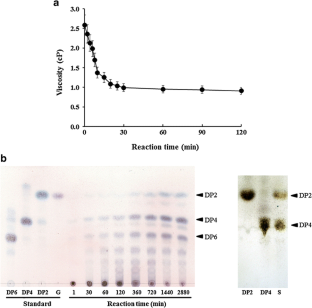

Fig. 4
Fig. 5

References

  • Allouch J, Jam M, Helbert W, Barbeyron T, Kloareg B, Henrissat B, Czjzek M (2003) The three dimensional structures of two beta agarases. J Biol Chem 278:47171–47180

    CAS  PubMed  Article  Google Scholar

  • Aoki T, Araki T, Kitamikado M (1990) Purification and characterization of a novel beta-agarase from Vibrio sp. AP-2. Eur J Biochem 187:461–465

    CAS  PubMed  Article  Google Scholar

  • Araki C (1959) Seaweed polysaccharides. In: Wolfrom ML (ed) Carbohydrate chemistry of substances of biological interest. Pergamon, London, pp 15–30

    Google Scholar

  • Chi WJ, Chang YK, Hong SK (2012) Agar degradation by microorganisms and agar-degrading enzymes. Appl Microbiol Biotechnol 94:917–930

    CAS  PubMed  Article  Google Scholar

  • Correc G, Hehemann J-H, Czjzek M, Helbert W (2011) Structural analysis of the degradation products of porphyran digested by Zobellia galactanivorans β-porphyranase A. Carbohydr Polym 83:277–283

    CAS  Article  Google Scholar

  • Gauthier G, Gauthier M, Christen R (1995) Phylogenetic analysis of the genera Alteromonas, Shewanella, and Moritella using genes coding for small-subunit rRNA sequences and division of the genus Alteromonas into two genera, Alteromonas (emended) and Pseudoalteromonas gen. nov, and proposal of twelve new species combinations. Int J Syst Bacteriol 45:755–761

    CAS  PubMed  Article  Google Scholar

  • Hassairi I, Ben Amar R, Nonus M, Gupta BB (2001) Production and separation of alpha-agarase from Altermonas agarlyticus strain GJ1B. Bioresour Technol 29:47–51

    Article  Google Scholar

  • Hayase N, Sogabe T, Itou R, Yamamori N, Sunamori J (2003) Polymer film produced by a marine bacterium. J Biosci Bioeng 95:72–76

    CAS  PubMed  Google Scholar

  • Hehemann JH, Correc G, Barbeyron T, Helbert W, Czjzek M, Michel G (2010) Transfer of carbohydrate-active enzymes from marine bacteria to Japanese gut microbiota. Nature 464:908–912

    CAS  PubMed  Article  Google Scholar

  • Kim J, Hong SK (2012) Isolation and characterization of an agarase-producing bacterial strain, Alteromonas sp. GNUM-1, from the West Sea, Korea. J Microbiol Biotechnol 23:1621–1628, Erratum (2013) 23:136

    Article  Google Scholar

  • Kirimura K, Masuda N, Iwasaki Y, Nakagawa H, Kobayashi R, Usai S (1999) Purification and characterization of a novel β-agarase from an alkalophilic bacterium, Alteromonas sp. E-1. J Biosci Bioeng 87:436–441

    CAS  PubMed  Article  Google Scholar

  • Knutsen SH, Myslabodski DE, Larsen B, Usov AI (1994) A modified system of nomenclature for red algal galactans. Bot Mar 37:163–169

    CAS  Article  Google Scholar

  • Kobayashi R, Takisada M, Suzuki T, Kirimura K, Usami S (1997) Neoagarobiose as a novel moisturizer with whitening effect. Biosci Biotechnol Biochem 61:162–163

    CAS  PubMed  Article  Google Scholar

  • Kodama K, Shiozawa H, Ishii A (1993) Alteromonas rava sp. nov, a marine bacterium that produces a new antibiotic, thiomarinol. Ann Rep Sankyo Res Lab 45:131–136

    CAS  Google Scholar

  • Leon O, Quintana L, Peruzzo G, Slebe JC (1992) Purification and properties of an extracellular agarase from Alteromonas sp. strain C-1. Appl Environ Microbiol 58:4060–4063

    CAS  PubMed Central  PubMed  Google Scholar

  • Lineweaver H, Burk D (1934) The determination of enzyme dissociation constants. J Amer Chem Soc 56:658–666

    CAS  Article  Google Scholar

  • Martinez-Checa F, Bejar V, Llamas I, Del Moral A, Quesada E (2005) Alteromonas hispanica sp. nov, a polyunsaturated fatty acid producing, halophilic bacterium isolated from Fuente de Piedra, southern Spain. Int J Syst Evol Microbiol 55:2385–2390

    CAS  PubMed  Article  Google Scholar

  • Morrice LM, McLean MW, Williamson FB, Long WF (1983) Beta-agarase I and II from Pseudomonas atlantica purifications and some properties. Eur J Biochem 135:553–558

    CAS  PubMed  Article  Google Scholar

  • Oh C, Zoysa MD, Kwon YK, Heo SJ, Affan A, Jung WK, Park HS, Lee J, Son SK, Yoon KT, Kang DH (2011) Complete genome sequence of the agarase-producing marine bacterium strain S89, representing a novel species of the genus Alteromonas. J Bacteriol 193:5538–5538

    CAS  PubMed Central  PubMed  Article  Google Scholar

  • Ohta Y, Hatada Y, Miyazaki M, Nogi Y, Ito S, Horikoshi K (2005) Purification and characterization of a novel α-agarase from a Thalassomonas sp. Curr Microbiol 50:212–216

    CAS  PubMed  Article  Google Scholar

  • Potin P, Richard C, Rochas C, Kloareg B (1993) Purification and characterization of the alpha-agarase from Alteromonas agarlyticus (Cataldi) comb. nov, strain GJ1B. Eur J Biochem 214:599–607

    CAS  PubMed  Article  Google Scholar

  • Raguenes G, Cambon-Bonavita MA, Lohier JF, Boisset C, Guezennec J (2003) A novel, highly viscous polysaccharide excreted by an Alteromonas isolated from a deep-sea hydrothermal vent shrimp. Curr Microbiol 46:448–452

    CAS  PubMed  Article  Google Scholar

  • Rochas C, Lahaye M, Yaphe W (1986) 13C-N.M.R.-spectroscopic investigation of agarose oligomers. Carbohydr Res 148:199–207

    CAS  Article  Google Scholar

  • Rochas C, Potin P, Kloareg B (1994) NMR spectroscopic investigation of agarose oligomers produced by an alpha-agarase. Carbohydr Res 253:69–77

    CAS  PubMed  Article  Google Scholar

  • Segel IH (1976) Enzyme kinetics. In Biochemical calculations. How to solve mathematical problems in general biochemistry, 2nd edn. Wiley, New York, pp 214–229

    Google Scholar

  • Temuujin U, Chi WJ, Lee SY, Chang YK, Hong SK (2011) Overexpression and biochemical characterization of DagA from Streptomyces coelicolor A3(2): an endo-type β-agarase producing neoagarotetraose and neoagarohexaose. Appl Microbiol Biotechnol 92:749–59

    CAS  PubMed  Article  Google Scholar

  • Temuujin U, Chi WJ, Chang YK, Hong SK (2012) Identification and biochemical characterization of Sco3487 from Streptomyces coelicolor A3(2), an exo- and endo-type β-agarase-producing neoagarobiose. J Bacteriol 194:142–149

    CAS  PubMed Central  PubMed  Article  Google Scholar

  • Usov AI (1998) Structural analysis of red seaweed galactans of agar and carrageenan groups. Food Hydrocoll 12:301–308

    CAS  Article  Google Scholar

  • van de Velde F, Knutsen SH, Usov AI, Rollema HS, Cerezo AS (2002) 1H and 13C high resolution NMR spectroscopy of carrageenans: application in research and industry. Trends Food Sci Technol 13:73–92

    Article  Google Scholar

  • Wang J, Mou H, Jiang X, Guan H (2006) Characterization of a novel β-agarase from marine Alteromonas sp. SY37-12 and it degrading products. Appl Microbiol Biotechnol 71:833–839

    CAS  PubMed  Article  Google Scholar

  • Xiao TF, Kim SM (2010) Agarase: review of major sources, categories, purification method, enzyme characteristics and applications. Mar Drugs 8:200–218

    Article  Google Scholar

Download references

Acknowledgments

This work was supported by grant no. 2012-R1A1B3002174 from the Basic Research Program of the National Research Foundation (KRF) of Korea.
